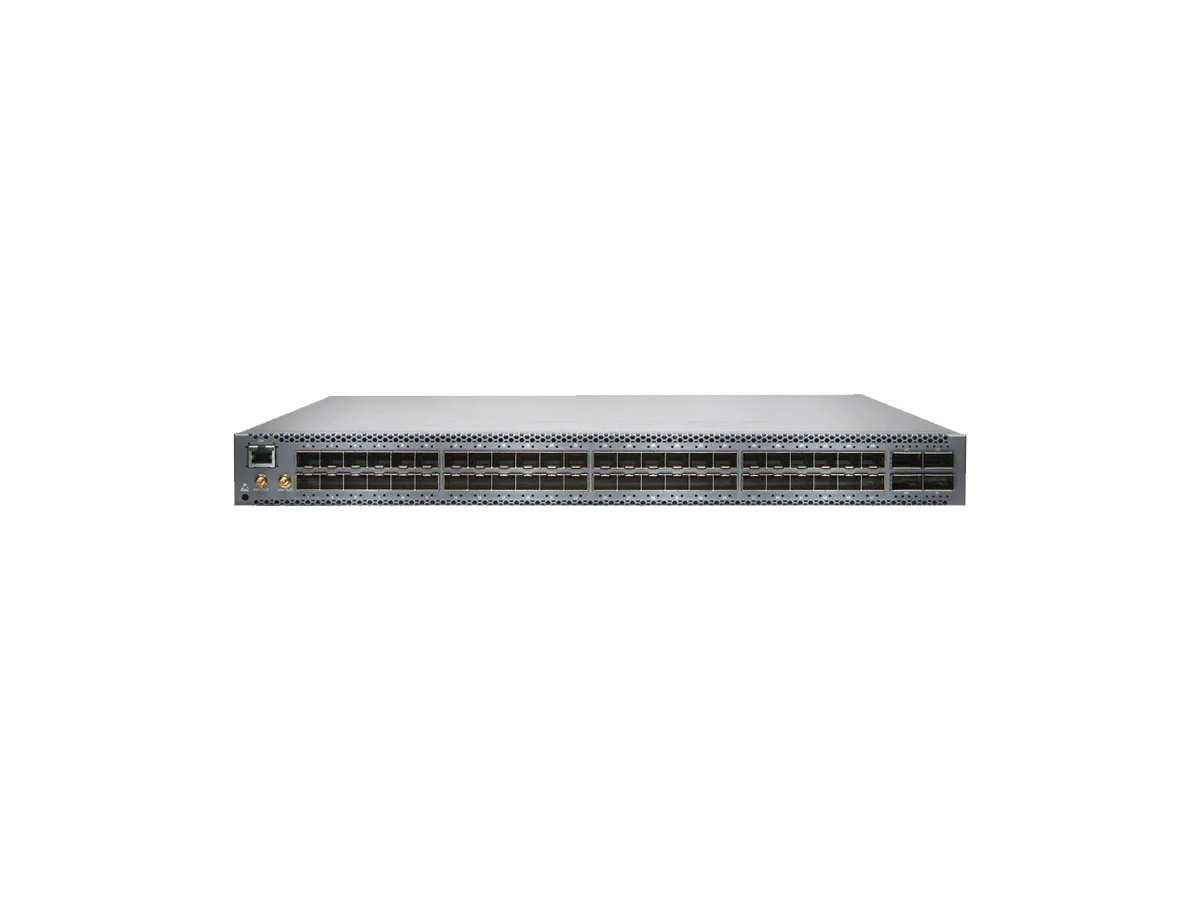

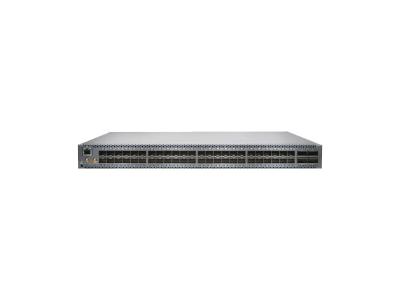

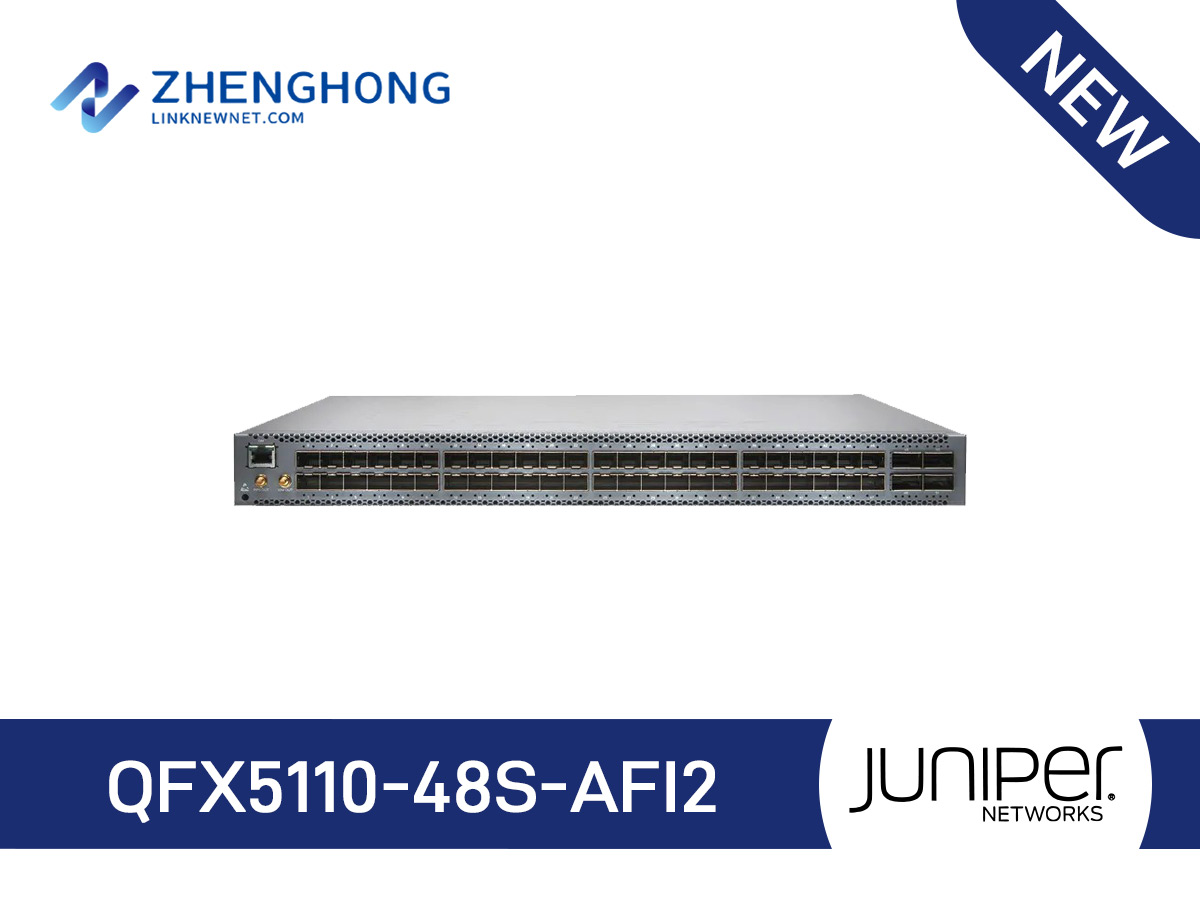

QFX5110-48S-AFI2 Specification | |
Dimensions (W x H x D) | 1.72 x17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm) |
Rack units | 1 U |
Weight | 23 lb (10.43 kg) |
Operating system | Junos OS |
CPU | 1.8 GHz quad-core Intel CPU |
Power | * AFO/AFI: Max load: 300 W, Typical load: 195 W, Idle load: 150 W * Dual redundant (1+1) and hot-pluggable power supplies * 110-240 V single phase AC power * -36 to -72 V DC power |
Cooling | * Redundant (N+1) and hot-pluggable fan modules for front-to- back and back-to-front airflow * Redundant variable-speed fans to reduce power draw |
Total packet buffer | 16 MB |
Warranty | Juniper standard one-year warranty |
System Throughput | Up to 1.76 Tbps (bidirectional) |
Forwarding Capacity | 1.32 Bpps |
Interface Options
| * 1GbE SFP: 48 (24 copper 1GbE) * 10GbE SFP+: 48/64 (with breakout cable) * 40GbE QSFP+: 4 * 100GbE QSFP28: 4 |
Other Interface Notes
| * Each QSFP+ port can be configured as a 4 x 10GbE interface or as a 40 Gbps port * Each QSFP28 port can be configured as a 4 x 10GbE interface a 40 Gbps port or as a 100 Gbps port * 1 USB 2.0 port * 1 RS-232 console port * 2 management ports: 2x SFP fiber ports or 1x RJ-45 and 1x copper SFP ports * Supported transceiver and direct attach cable * SFP+ 10GbE optical modules * SFP+ DAC cables: 1/3/5 m twinax copper and 1/3/5/7/10 m active twinax copper * SFP GbE optical and copper module * QSFP+ DAC cables: 1/3/5 m twinax copper and 7/10 m active twinax copper * QSFP+ AOC cables: 1/3/5/7/10/15/20/30 m cable * QSFP+ Optics: SR4, LX4, ESR4, IR, LR4 * QSFP+ to SFP+ 10GbE direct attach breakout copper (1/3/10 m twinax copper and 5/7 m active twinax copper cable) * QSFP28 Optics: SR4, CWDM4, LR4 * QSFP28 AOC: 10 m cable |
MAC addresses per system | 288,000 |
VLAN IDs | 4,093 |
Number of link aggregation groups (LAGs) | 104 |
Number of ports per LAG | 32 |
Firewall filters (ingress / egress) | 6,142 / 1,022 |
IPv4 unicast routes | 128,000 prefixes; 208,000 host routes; 64 ECMP paths |
IPv4 multicast routes | 104,000 |
IPv6 unicast routes | 84,000 |
IPv6 multicast routes | 52,000 |
ARP entries | 48,000 |
Jumbo frame | 9,216 bytes |
Spanning Tree Protocol (STP) | * Multiple Spanning Tree Protocol (MSTP) Instances: 64 * VLAN Spanning Tree Protocol (VSTP) Instances: 253 |
Traffic mirroring | * Mirroring destination ports per switch: 4 * Maximum number of mirroring sessions: 4 * Mirroring destination VLANs per switch: 4 |
Operating temperature | 32° to 104° F (0° to 40° C) |
Storage temperature | -40° to 158° F (-40° to 70° C) |
Operating altitude | Up to 2,000 ft (610 m) |
Relative humidity operating | Operating: 5% to 90% (noncondensing) |
Relative humidity non-operating | Non-operating: 0% to 95% (noncondensing) |
