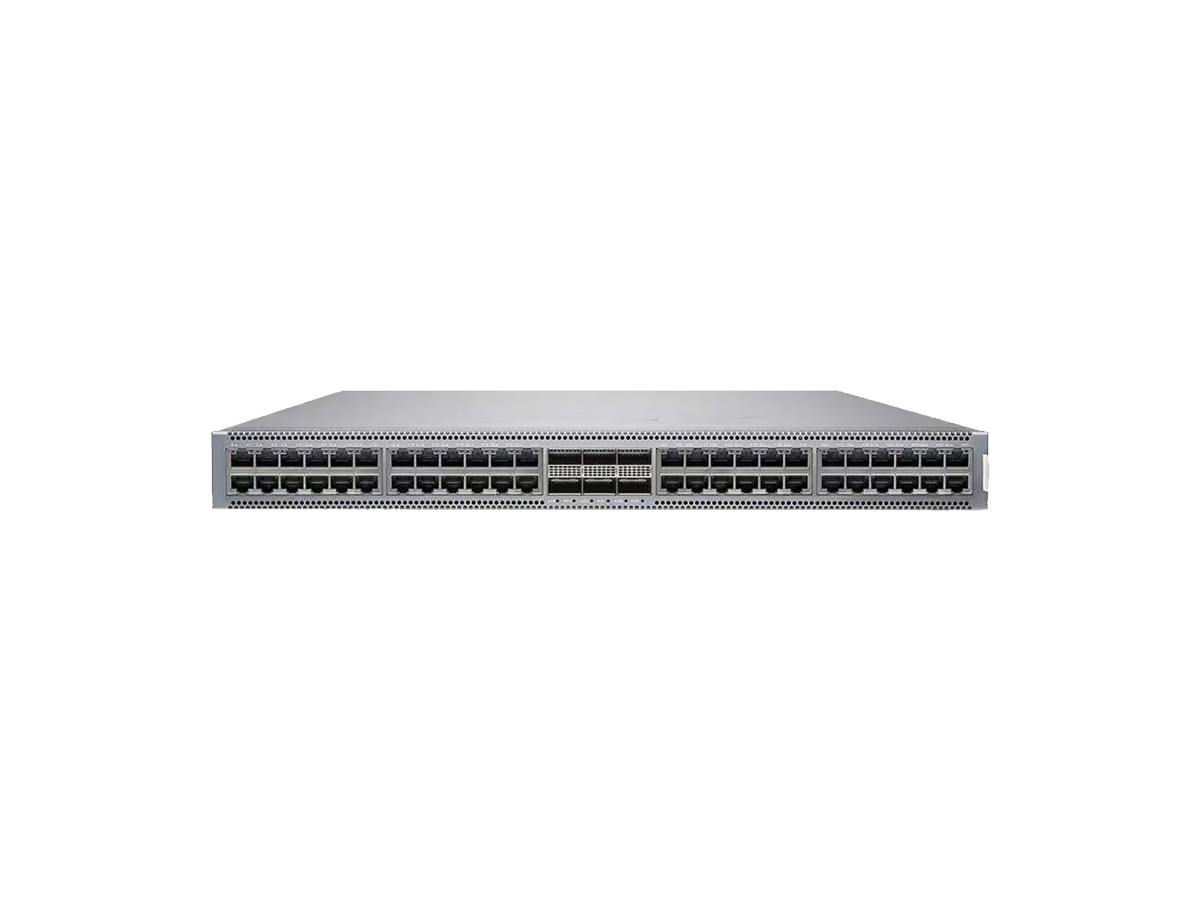

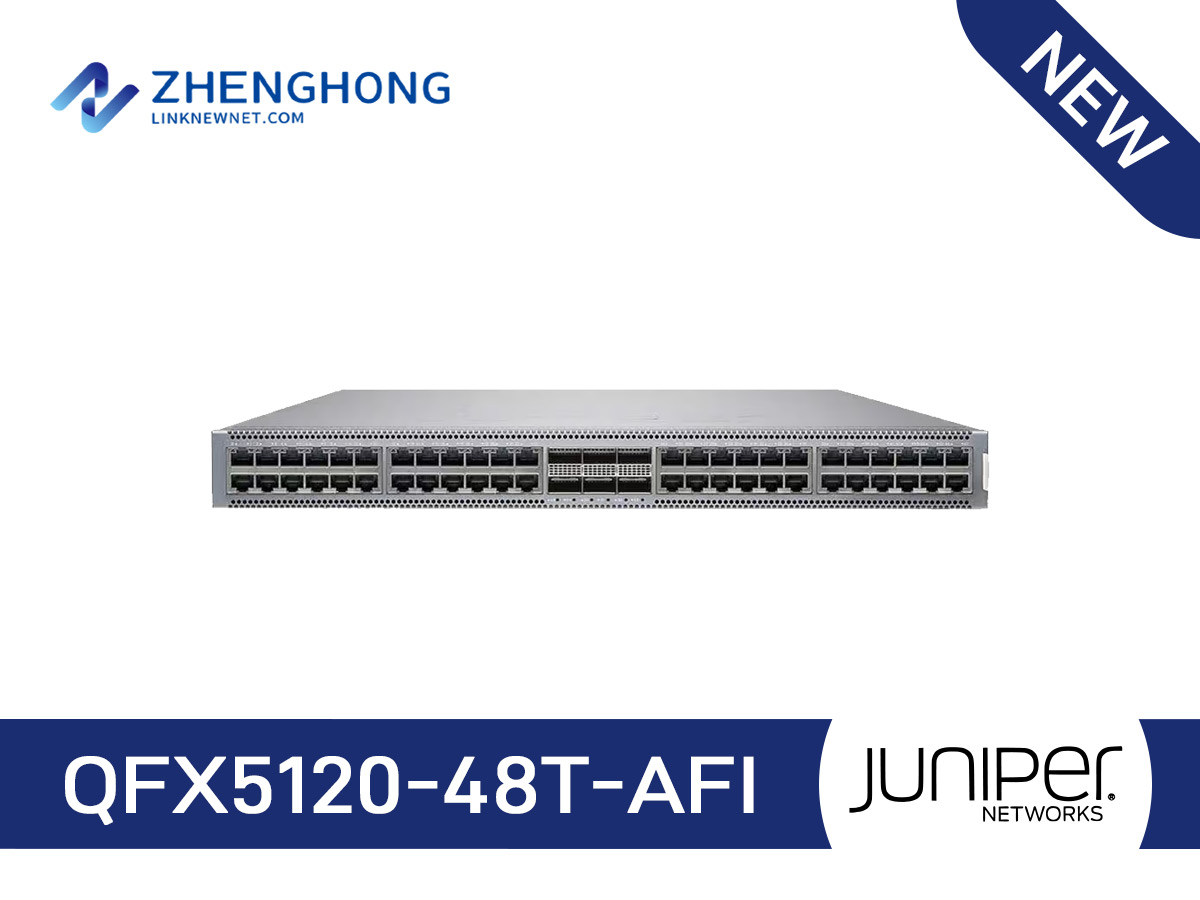

Juniper QFX5120-48T-AFI Specifications | |
| Model | QFX5120-48T-AFI |
| Ports | 48 x 10GBase-T, 6 x 100G |
| Form Factor | 1U |
| Power Supply | AC PSU |
| Cooling | Side intake and port side exhaust |
| Switching Capacity | 2.16 Tbps |
| Maximum Forwarding Rate | 1.62 Bpps |
| Latency | Microseconds order |
| MAC Addresses | 288K |
| Jumbo Frames | Up to 9216 bytes |
| VLAN IDs | 4094 |
| Environmental Temperature | 0��C to 40��C |
| Humidity | 5% to 90% (non-condensing) |
| Management | CLI, Web Interface, SNMP, RMON |
| Dimensions | 1.72 x 17.4 x 20.4 inches (H x W x D) |
| Packet Buffer | 22 MB shared |
| Power Consumption | Max 300W |
| QoS | Ingress and egress policing and shaping |
| Software Features | Virtual Chassis, L2/L3 features, VXLAN, IPv6 support |
| Warranty | 1-year limited warranty |
