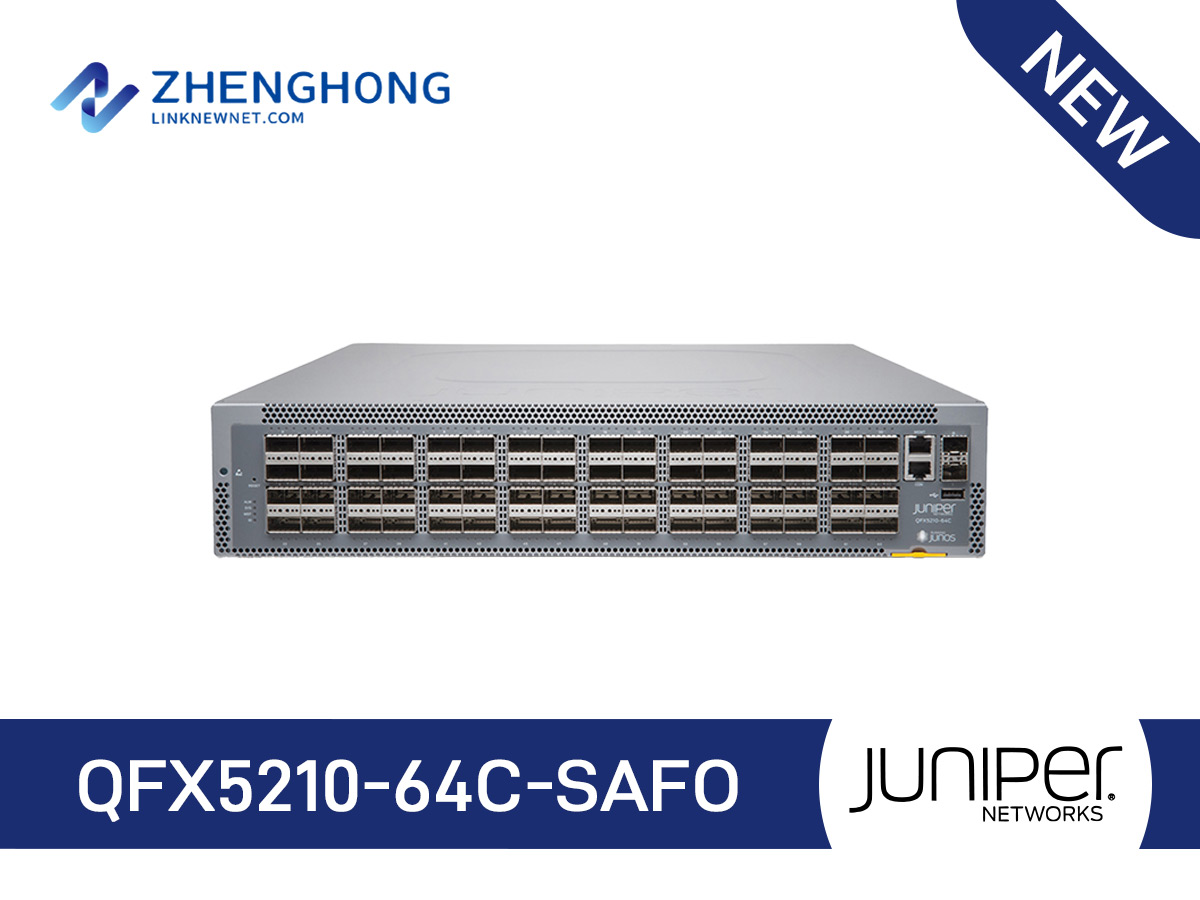

Juniper QFX5210-64C-SAFO Specifications | |
| Brand | Juniper |
| Model | QFX5210-64C-SAFO |
| Airflow Direction | AIR FLOW OUT |
| BIOS Support | Enable BIOS QFX5210-64C |
| Port Configuration | 64 x 100GbE ports |
| Switching Capacity | 12.8 Tbps |
| Forwarding Capacity | 9.52 Bpps |
| Chassis Dimensions (H x W x D) | 1.72 x 17.5 x 21.9 inches |
| Power Supply | AC or DC, dual redundant |
| Operating System | Junos OS |
| Max Power Consumption | 800 W |
| Cooling | FRU, redundant fans |
| Storage Temperature | -40��C to 70��C |
| Operating Temperature | 0��C to 40��C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Rack Units | 1U |
| Management Ports | 1 x Gigabit Ethernet, 1 x RJ-45 console, 1 x USB |
| MAC Address Table | 128K entries |
| VLAN IDs | 4,094 |
| Jumbo Frames | 9,216 bytes |
| Compliance | RoHS-6 compliant |
