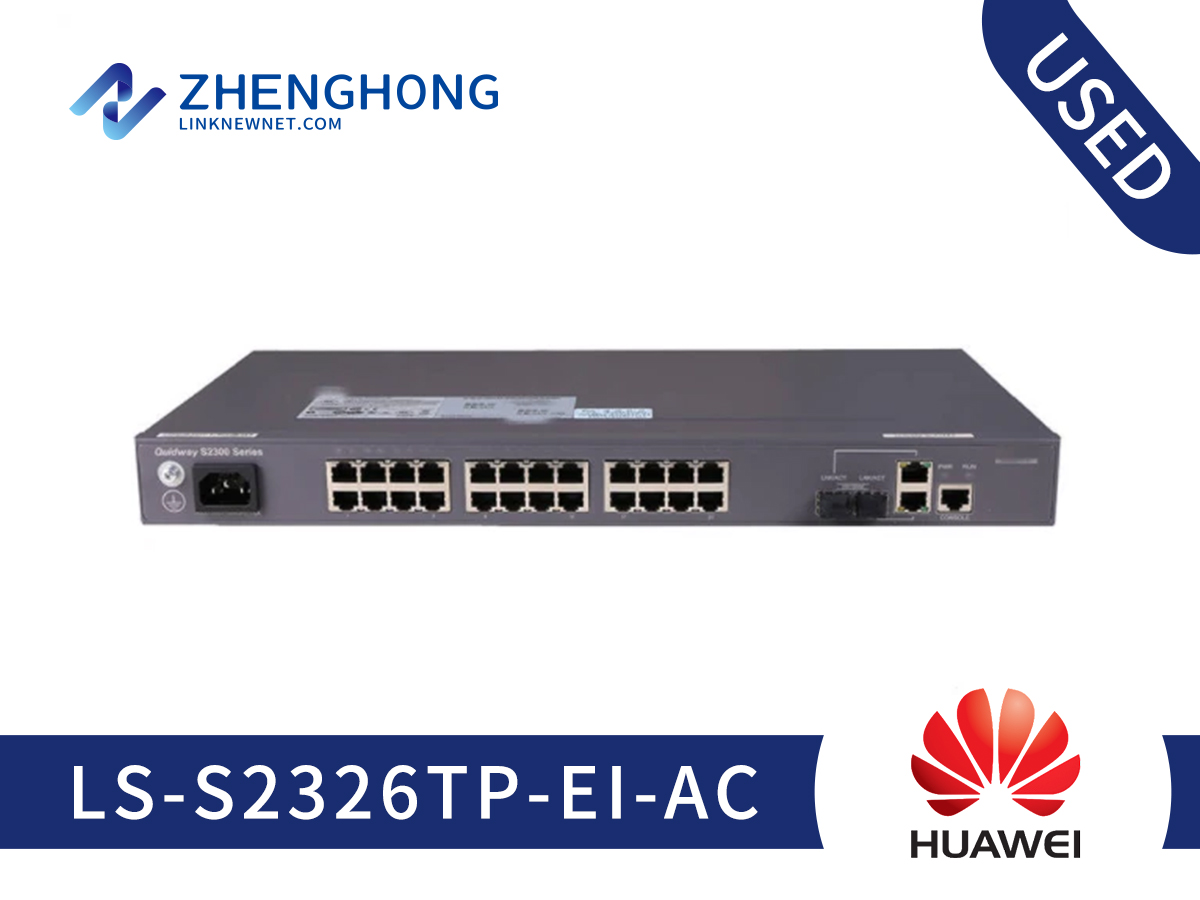

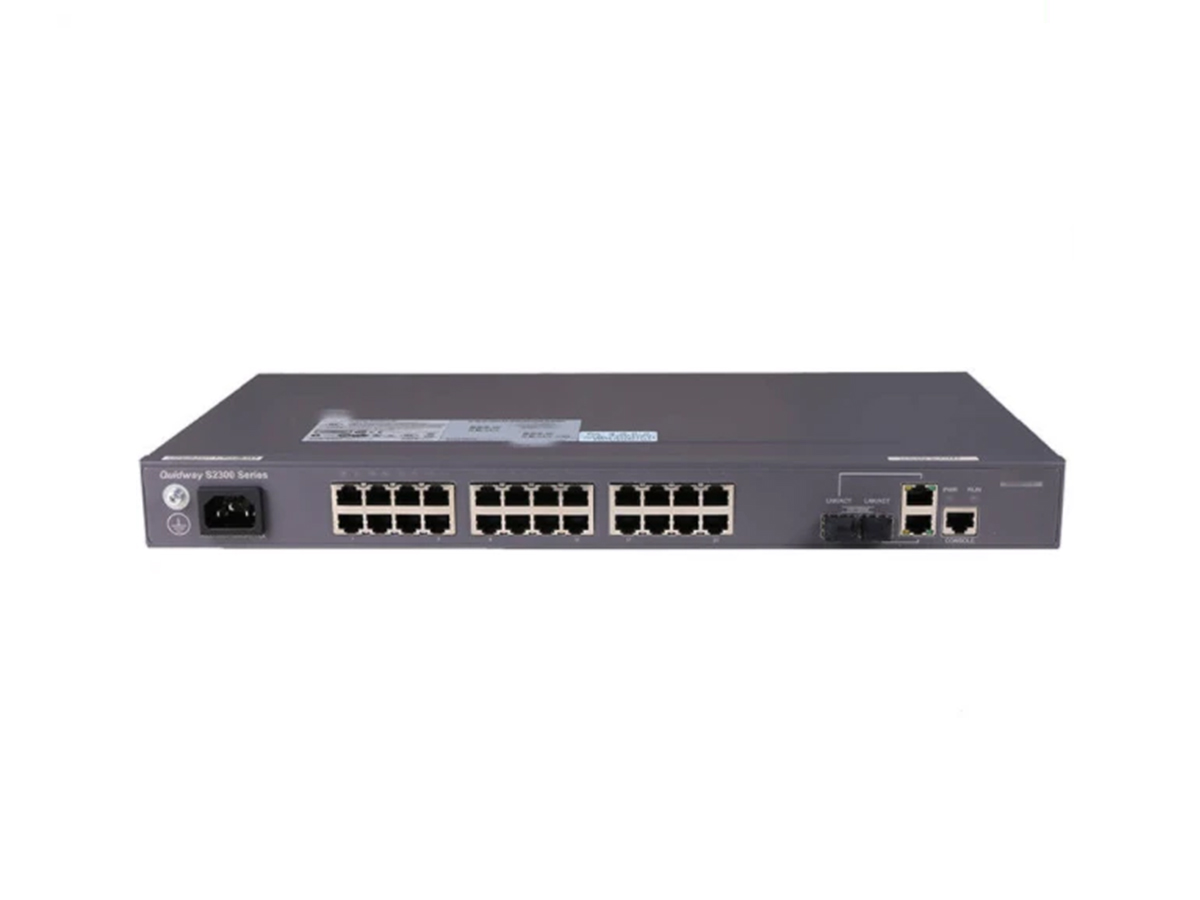

Huawei S2300 Series Switch LS-S2326TP-EI-AC Overview
Huawei S2300 Series Switch LS-S2326TP-EI-AC is a genuine campus and data-center switching product from Huawei, a global ICT provider whose CloudEngine and S-Series platforms are widely deployed in campus and data-center environments. Belonging to the Huawei S2300 Series family, the LS-S2326TP-EI-AC unit is built to the original factory specification, so it integrates with existing Huawei deployments predictably and behaves exactly as the platform documentation describes. In the network, it is suited to access-layer and edge deployments, where reliable wiring-closet operation and straightforward management are the priorities.
From a specification standpoint, packet forwarding up to 6.6 Mpps. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Huawei hardware already running in the environment.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “S2326TP-EI Mainframe(24 10/100 BASE-T ports and 2 Combo GE(10/100/1000 BASE-T+100/1000 Base-X) ports and AC 110/220V)”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the LS-S2326TP-EI-AC. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned LS-S2326TP-EI-AC
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
LS-S2326TP-EI-AC Specifications | |
Port | twenty-four 10/100Base-TX ports and two gigabit Combo ports (10/100/1000Base-T or 100/1000Base-X) |
Forwarding performance | 6.6 Mpps |
Port switching capacity | 8.8 Gbit/s |
Backplane switching capacity | 32 Gbit/s |
MAC address table | Supports 8 K MAC address entries. Supports manual addition and deletion of a MAC address table. Supports configuration of MAC address aging time. Supports disabling of MAC address learning based on port or aggregation group. Supports limit on the number of MAC addresses to be learned on a port. Supports blackhole MAC addresses. |
VLAN features | Supports IEEE 802.1Q (VLAN) and 4096 VLANs. Supports port-based VLAN. Supports MAC-based VLAN. Supports basic QinQ. Supports 1:1 VLAN switching. Supports N:1 VLAN switching. |
QoS | Supports port rate limit and traffic rate limit. Supports four queues with different priorities on each port. Supports mapping of packets to different queues based on 802.1p. Supports multiple algorithms including SP, WRR, and SP+WRR. Supports traffic classification based on source MAC address, destination MAC address, source IP address, destination IP address, Layer-4 port number, protocol type, VLAN ID, Ethernet frame protocol type, and CoS. Supports traffic-based priority marking and packet redirection. |
IPv6 features | Supports IPv6 host functions. Supports static route configuration. Supports IPv6 ACL. Supports MLD v1/v2 snooping. |
Multicast | Supports IGMP v1/v2/v3 snooping. Supports multicast load sharing among bundled ports. Supports port-based multicast rate limit and traffic statistics |
Port mirroring | Supports 1:1 or N:1 port mirroring. Supports Remote Switched Port Analyzer (RSPAN) and traffic-based mirroring. Supports packet forwarding on an observing port. |
Security | Supports IEEE 802.1X authentication and the limit on the maximum number of users on a port. Supports dynamic ARP detection. Supports IP Source Guard. Supports multiple authentication methods including AAA, RADIUS, HWTACACS+, and NAC. Supports binding of the IP address, MAC address, port number, and VLAN ID. Support port rate limit. Supports port isolation, port security, and sticky MAC. Supports packet filtering. Supports packet filtering based on MAC addresses. Supports suppression of multicast, broadcast, and unknown single-cast packets. Supports limit on the number of MAC addresses to be learned. Supports CPU protection. |
Surge protection | Each port has a surge protection capability of 7 kV. Each port has a surge protection capability of 15 kV after an extra surge protection device is added. |
Management | Supports iStack. Supports automatic configuration. Supports CLI configuration. Supports remote configuration and maintenance by using Telnet. Supports SNMP v1/v2/v3. Supports RMON. Supports HGMP v2. Supports SSH v2. Supports Web management. Supports GVRP. |
Operating environment | Operating temperature: 0°C to 50°C (long term); –5°C to 55°C (short term); relative humidity: 10% to 90% (non-condensing) |
Power supply | AC: Rated voltage: 100 V to 240 V, 50/60 Hz Maximum voltage: 90 V to 264 V, 50/60 Hz |
Dimensions: width x depth x height | 442 mm x 220 mm x 43.6 mm |
