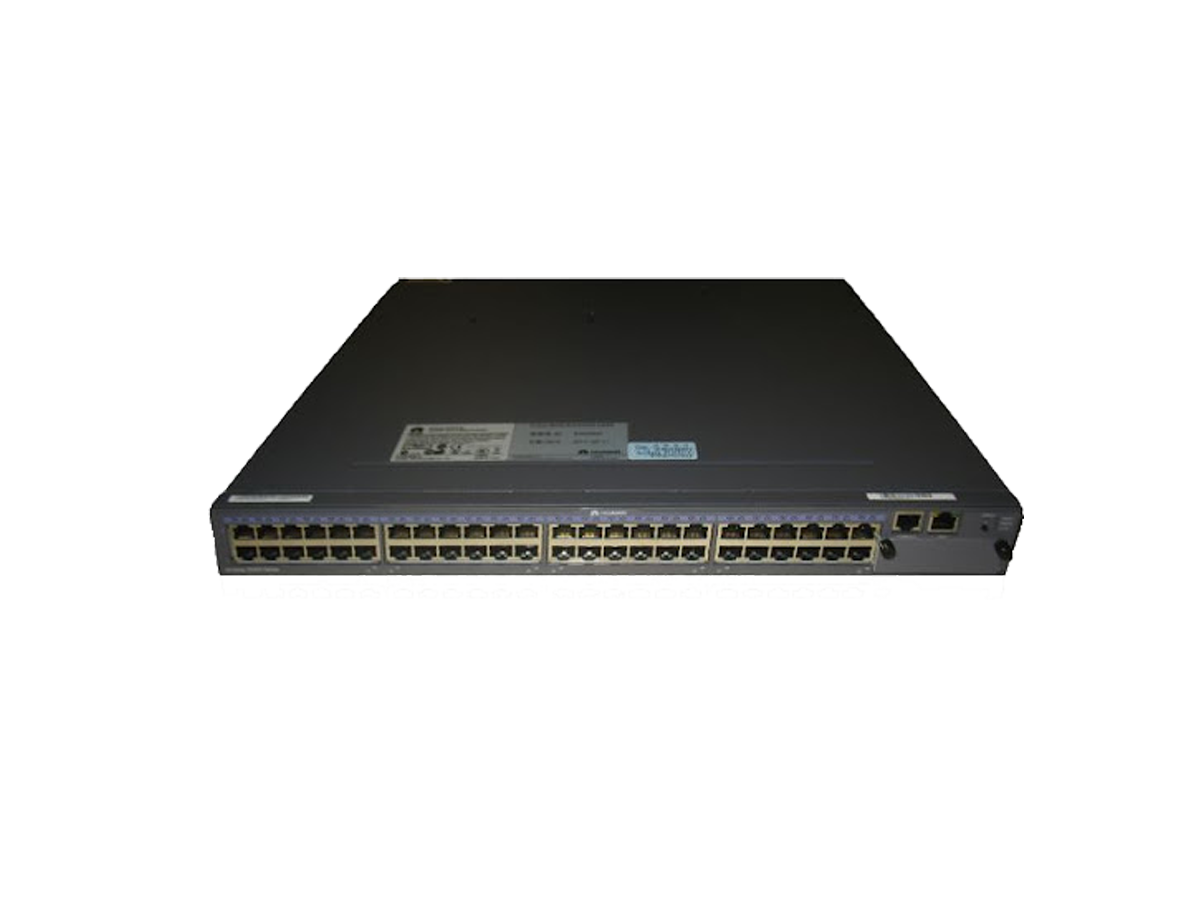

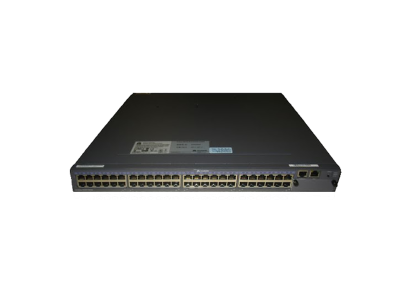

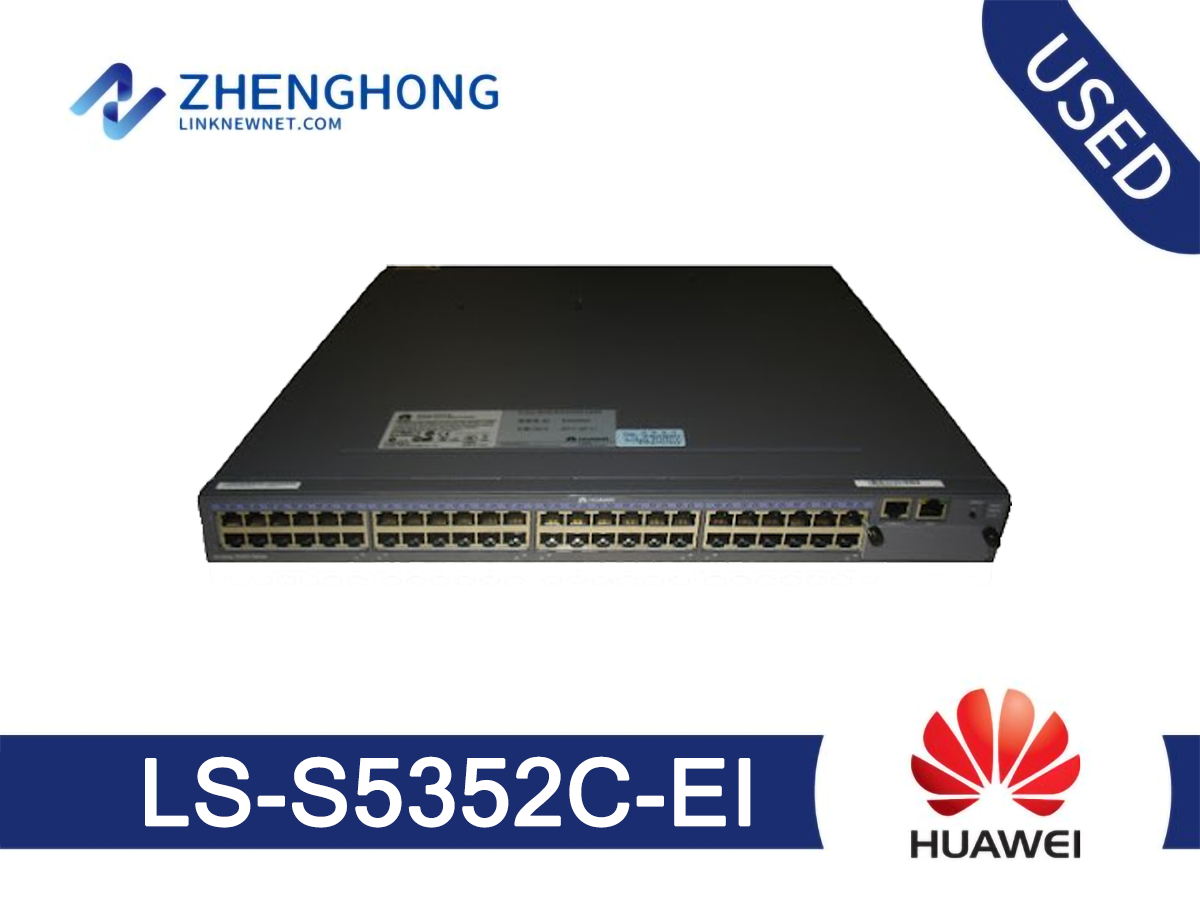

LS-S5352C-EI Specifications | |
Technical Specifications | |
Memory (RAM) | 256 MB |
Flash | 32 MB |
Mean time between failures (MTBF) | 46.05 years when a 2x10GE card is configured; 57.08 years when a 4xGE front card is configured; 25.58 years when a 4x10GE front card is configured |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port protectio n | ±2 kV in common mode
|
Power supply protection | Non-PoE switch: – AC: ±6 kV in differential mode; ±6 kV in common mode – DC: ±1 kV in differential mode; ±2 kV in common mode |
Dimensions (W x D x H) | 442.0 mm x 420.0 mm x 43.6 mm |
Weight | Fully loaded:≤ 8.5 kg Empty loaded:≤ 5 kg |
Stack ports | Two stack ports available on each stack card |
Maximum stack bandwidth (bidirectional) | 48 Gbit/s |
RPS | Not supported |
PoE | Yes |
Rated voltage range | -48 V DC to -60 V DC 100 V AC to 240 V AC, 50/60 Hz |
Maximum voltage range | -36 V DC to -72 V DC 90 V AC to 264 V AC, 47 Hz to 63 Hz |
Maximum system power consumption (100% throughput, 100% PoE loads, full speed of fans) | 88 W |
Operating altitude | Non-PoE switch: – AC: 0 m to 5000 m – DC: 0 m to 2000 m |
EMC | CISPR22 Class A CISPR24 EN55022 Class A EN50024 ETSI EN 300 386 Class A CFR 47 FCC Part 15 Class A ICES 003 Class A AS/NZS CISPR22 Class A IEC61000-4-2 ITU-T K 20 ITU-T K 44 |
Environmental standards | RoHS REACH WEEE |
Security | IEC 60950-1 EN 60950-1/A11/A12 UL 60950-1 CSA C22.2 No 60950-1 AS/NZS 60950.1 |
