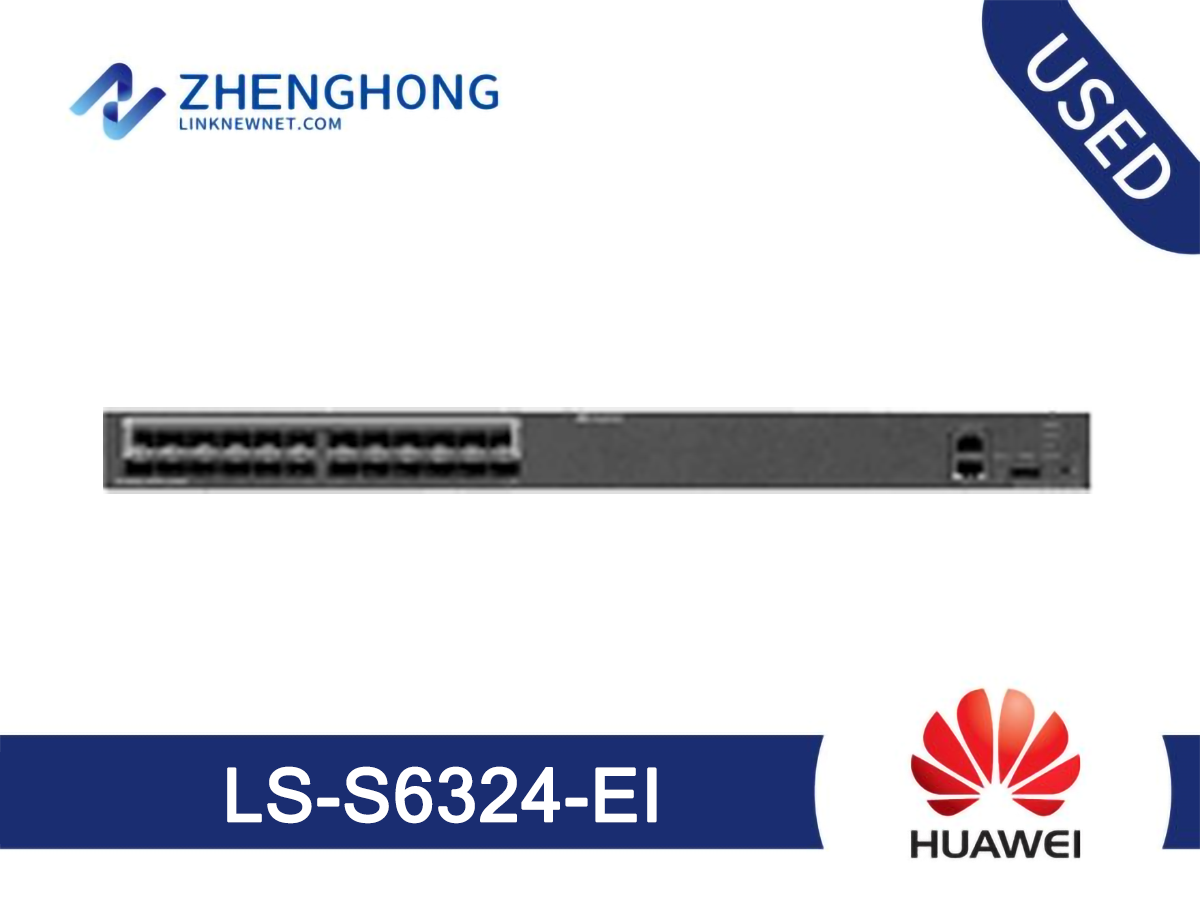

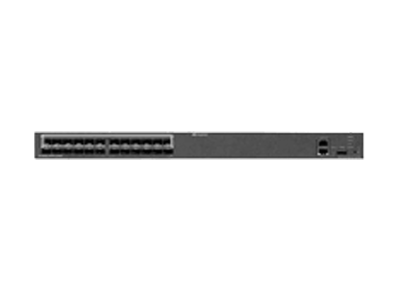

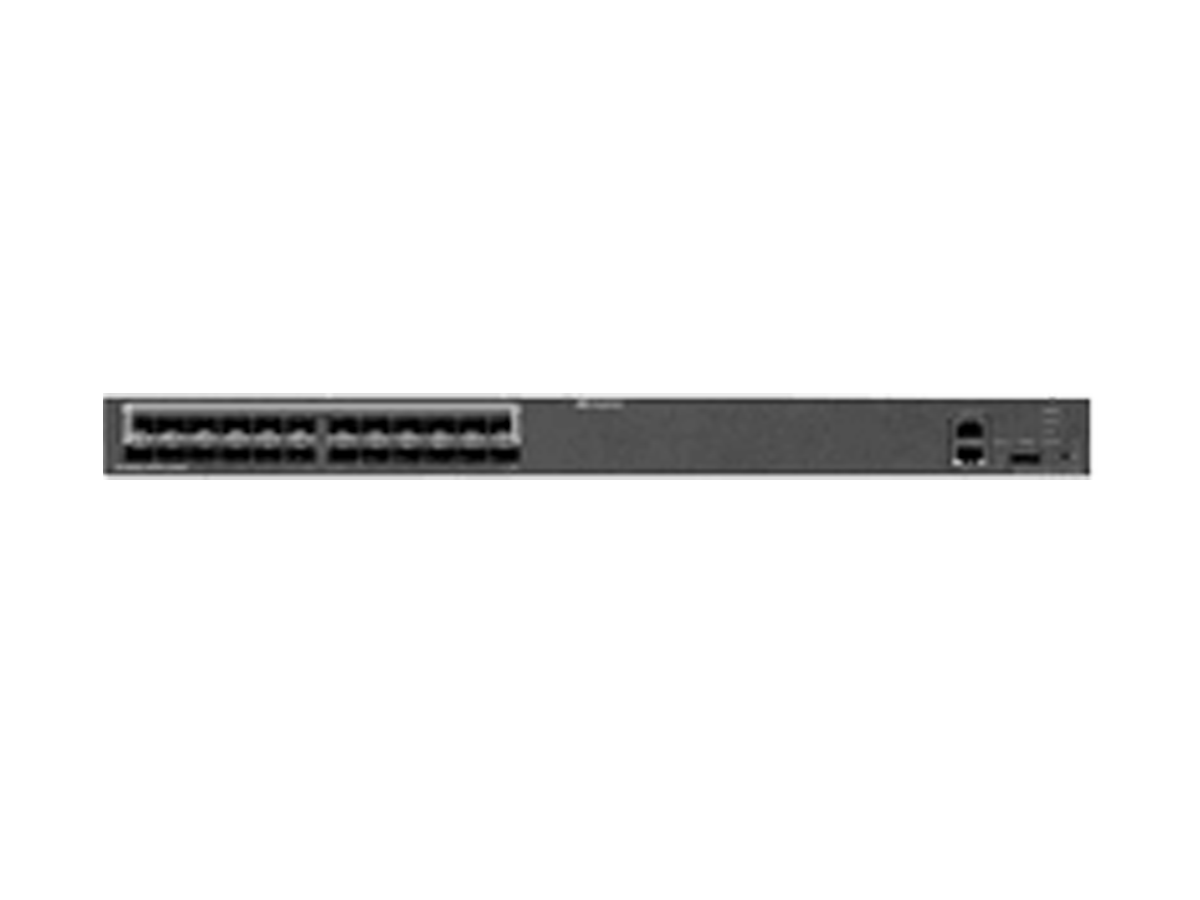

Huawei S6300 Series Switch LS-S6324-EI Overview
Huawei S6300 Series Switch LS-S6324-EI is a genuine campus and data-center switching product from Huawei, a global ICT provider whose CloudEngine and S-Series platforms are widely deployed in campus and data-center environments. Belonging to the Huawei S6300 Series family, the LS-S6324-EI unit is built to the original factory specification, so it integrates with existing Huawei deployments predictably and behaves exactly as the platform documentation describes. In the network, it is suited to access-layer and edge deployments, where reliable wiring-closet operation and straightforward management are the priorities.
From a specification standpoint, it offers 24 ports for client, server or uplink connectivity; packet forwarding up to 358 Mpps. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Huawei hardware already running in the environment.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “S6324-EI Mainframe (24 GE SFP/10 GE SFP+, Chassis, Dual Slots of power, Without Power Module)”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the LS-S6324-EI. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned LS-S6324-EI
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
LS-S6324-EI Specifications | |
Port | 24 GE SFP ports or 10GE SFP+ ports |
Forwarding performance | 358 Mpps |
Switching capacity | 480 Gbit/s |
MAC address table | Supports 128 K MAC address entries. Supports automatic learning and aging of MAC addresses. Supports static, dynamic, and blackhole MAC address entries. Supports packet filtering based on source MAC addresses |
VLAN features | Supports up to 4,096 VLANs. Supports guest VLANs and voice VLANs. Supports VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports. Supports 1:1 and N:1 VLAN switching. Supports basic QinQ and selective QinQ |
IPv4 routing | Supports static routing, RIP v1, RIP v2, ECMP, and URPF. Supports OSPF, IS-IS, and BGP. Supports VRRP. Supports policy-based routing. Supports routing policies. |
IPv6 routing | Supports static routing. Supports RIPng. Supports manual tunnels. Supports 6-to-4 tunnels. Supports ISTAP tunnels. Supports OSPFv3 |
QoS/ACL | Supports rate limit on packets sent and received by a port. Supports packet redirection. Supports port-based traffic policing and two-rate three-color CAR. Supports eight queues on each port. Supports multiple queue scheduling algorithms including WRR, DRR, SP, WRR+SP, and DRR+SP. Supports WRED. Supports re-marking of the 802.1p priority and DSCP priority. Supports packet filtering based on Layer 2 to Layer 4 information, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol, and VLAN ID. Supports queue-based rate limit and traffic shaping on ports. |
IPv6 features | Supports Neighbor Discovery (ND). Supports PMTU. Supports IPv6 Ping, IPv6 Tracert, and IPv6 Telnet. Supports 6-to-4 tunnels, ISATAP tunnels, and manually configured tunnels. Supports ACLs based on the source IPv6 address, destination IPv6 address, Layer-4 port, or protocol type. Supports MLD v1/v2 snooping. |
Multicast | Supports static Layer-2 multicast MAC addresses. Supports MAC-based multicast forwarding. Supports IGMP snooping and fast leave. Supports multicast VLAN. Supports MLD snooping. Supports IGMP proxy. Supports controllable multicast. Supports port-based multicast traffic statistics. Supports IGMP v1/v2/v3. Supports PIM-SM, PIM-DM, and PIM-SSM. Supports MSDP. |
Security | Supports hierarchical user management and password protection. Supports DoS attack defense, ARP attack defense, and ICMP attack defense. Supports binding of the IP address, MAC address, port number, and VLAN ID. Supports port isolation, port security, and sticky MAC. Supports blackhole MAC addresses. Supports limit on the number of MAC addresses to be learned. Supports IEEE 802.1x authentication and the limit on the maximum number of users on a port. Supports multiple authentication methods including AAA, RADIUS, HWTACACS, and NAC. Supports SSH v2. Supports HTTPS. Supports CPU protection. Supports blacklisting and whitelisting. |
Management and maintenance | Supports intelligent stacking (implemented by service ports). Supports MAC Forced Forwarding (MFF). Supports Virtual Cable Test (VCT). Supports Ethernet OAM (IEEE 802.3ah and 802.1ag). Supports local port mirroring, Remote Switched Port Analyzer (RSPAN), and packet forwarding on an observing port. Supports remote configuration and maintenance by using Telnet. Supports SNMP v1/v2/v3. Supports RMON. Supports the Network Management System (NMS) and Web management. Supports HGMP. Supports system logs and multi-level alarms. Supports GVRP. Supports MUX VLAN. Supports 802.3az (Energy Efficient Ethernet). |
Operating environment | Operating temperature: 0°C to 45°C (long term); –5°C to 50°C (short term); relative humidity: 10% to 90% (non-condensing) |
Input voltage | AC: Rated voltage: 100 V to 240 V, 50/60 Hz Maximum voltage: 90 V to 264 V, 50/60 Hz |
Dimensions: width x depth x height | 442 mm x 420 mm x 43.6 mm |
Power consumption | 165 W |
LS-S6324-EI - Deployment Notes
This LS-S6324-EI switch is suited to wiring-closet, distribution, or core roles depending on the port density and uplink options of the specific model. The port configuration is a key consideration when planning power budgets for attached devices such as IP phones and access points.
For a refresh or expansion, confirm the IOS/NX-OS software release supported by this specific SKU, the fan and power requirements, and the uplink modules that match your existing infrastructure. Our team can verify revision levels and software compatibility before you order.
Every unit at LinkNewNet is inspected and tested before dispatch, and this LS-S6324-EI variant is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Volume requirements can be staged with configuration checks.
LS-S6324-EI - Huawei Series Notes
This listing is part of the Huawei enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Huawei switch is typically deployed in campus access, aggregation, or data-center roles. It provides reliable Layer 2/3 switching for user, server and uplink connectivity, and integrates with Huawei iMaster NCE or traditional CLI-based management.
Deployment guidance: When planning this LS-S6324-EI unit into a network, confirm the software image (VRP / iMaster NCE), the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Huawei reconditioning process: Every pre-owned Huawei unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Huawei management tools.
Related models in this family: LS-S6348-EI. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: EI = Enhanced feature set - this suffix indicates the feature set, power, or port type of the LS-S6324-EI, which affects software licensing and regional compliance.
