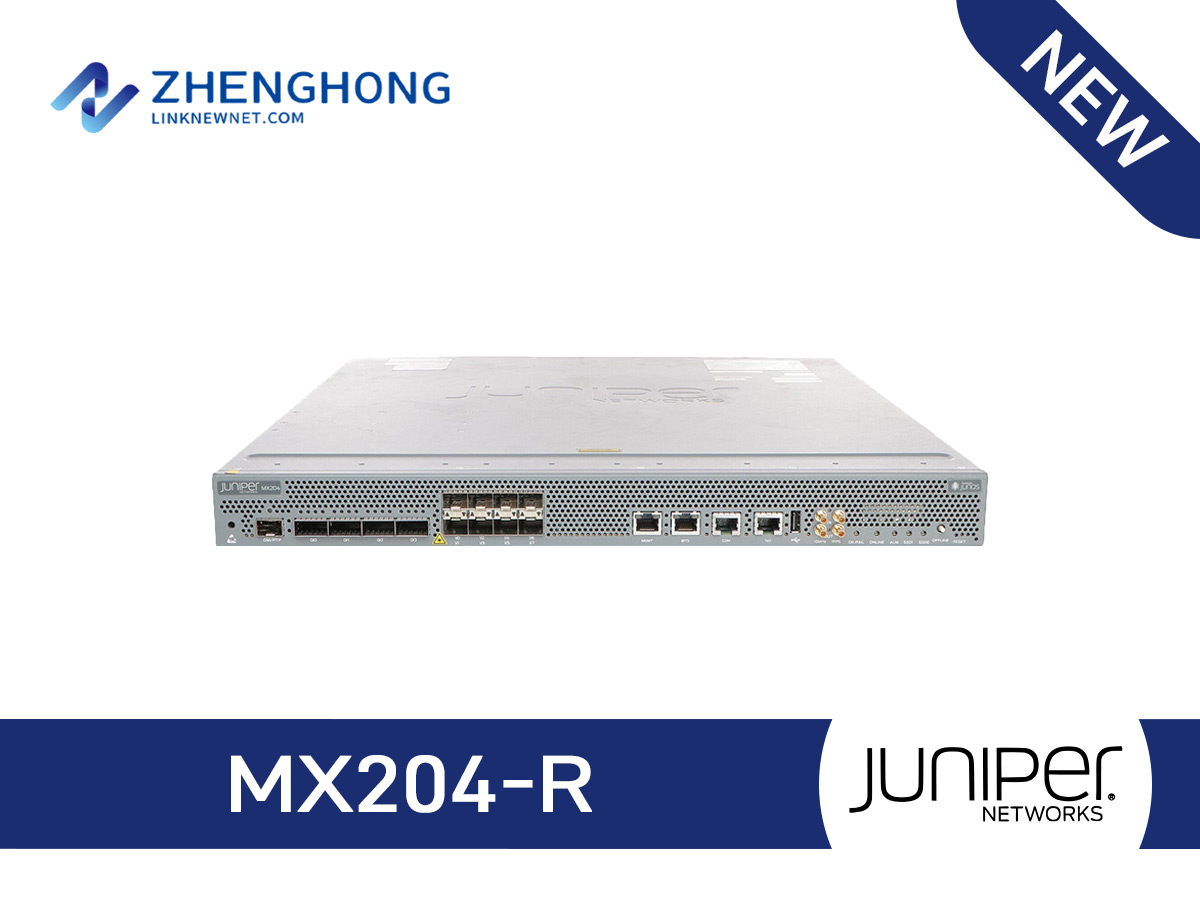

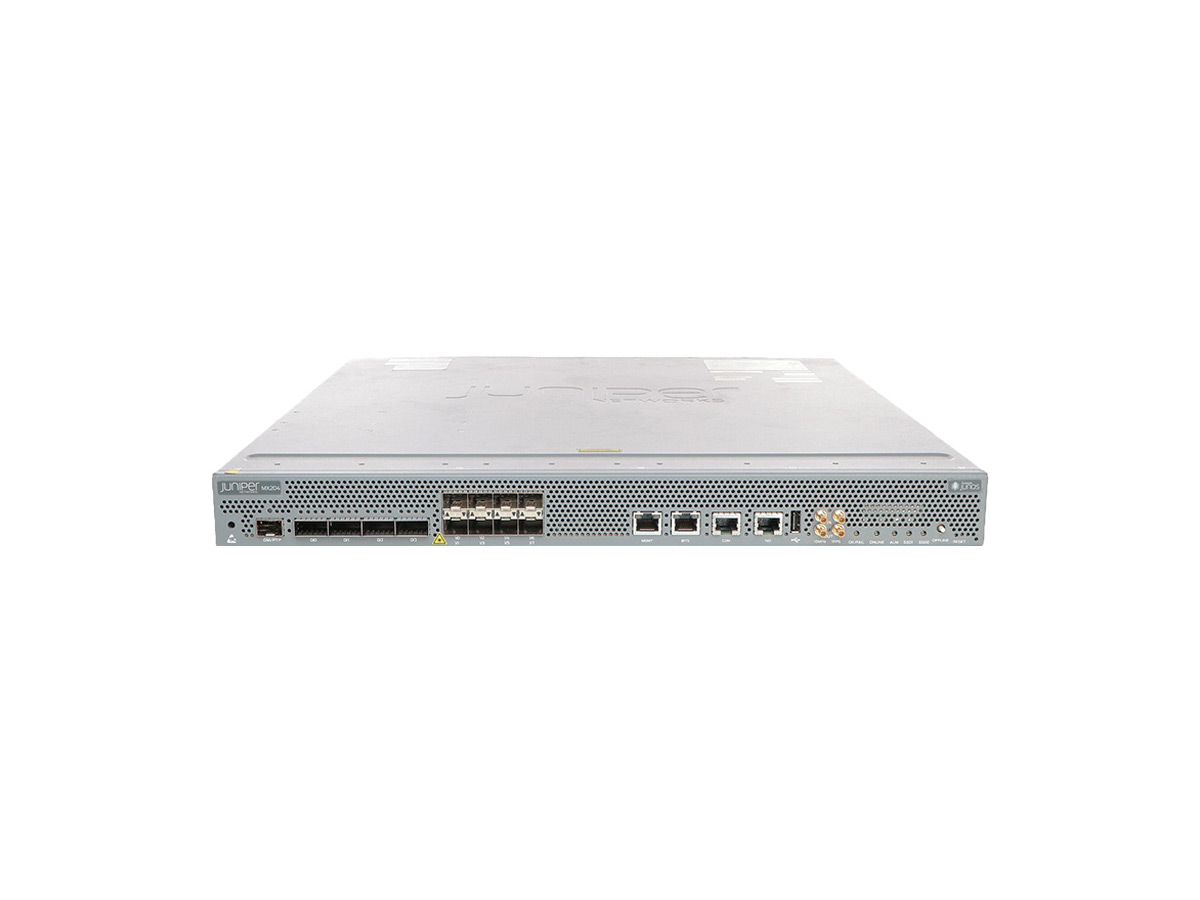

MX204-R - Juniper MX Series Base Product Bundles Overview
MX204-R - Juniper MX Series Base Product Bundles is a genuine edge and wide-area routing product from Juniper, a vendor known for scalable, high-performance networking platforms from the campus edge to the core. Belonging to the Juniper MX Series family, the MX204-R unit is built to the original factory specification, so it integrates with existing Juniper deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
From a specification standpoint, aggregate capacity of 400 Gbps. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Juniper hardware already running in the environment.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “MX204 chassis with 3 fan trays and 2 power supplies, R mode. incl. Junos”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the MX204-R. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned MX204-R
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
MX204-R Specification | |

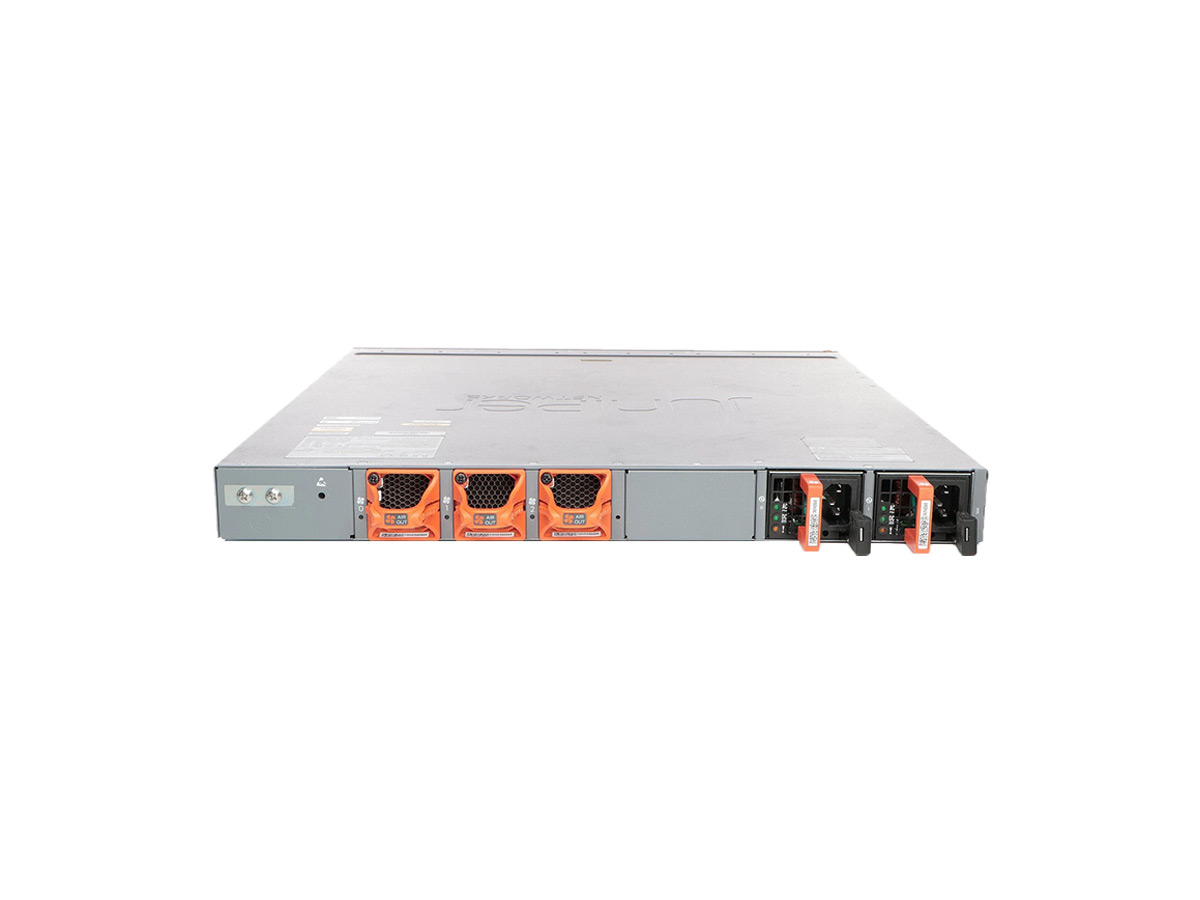

Description | MX204 chassis with 3 fan trays and 2 power supplies, R mode |
Slots | 8 10GbE, 4 100GbE |
Maximum 1GbE | 24 |
Maximum 10GbE | 24 |
Maximum 40GbE | 4 |
Maximum 100GbE | 4 |
System Capacity | 400 Gbps |
Switch Fabric Capacity per Slot | N/A |
DPCs and/or MPCs per Chassis | Built-in |
Chassis per Rack | 42 |
Dimensions (W x H x D) | 17.6 x 1.75 x 18.7 in (44.7 x 4.45 x 47.5 cm) |
Maximum Weight | 23.15 lbs / 10.5 kg |
Mounting | Four-post rack |
Power Options | 100 V to 240 V AC |
Operating Temperature | 32° to 131° F (0° to 55° C) |
Humidity | 5 % to 90% RH, operating, noncondensing |
Altitude | 6000 ft |
MX204-R - Deployment Notes
This MX204-R switch is suited to wiring-closet, distribution, or core roles depending on the port density and uplink options of the specific model. The port configuration is a key consideration when planning power budgets for attached devices such as IP phones and access points.
For a refresh or expansion, confirm the IOS/NX-OS software release supported by this specific SKU, the fan and power requirements, and the uplink modules that match your existing infrastructure. Our team can verify revision levels and software compatibility before you order.
Every unit at LinkNewNet is inspected and tested before dispatch, and this MX204-R variant is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Volume requirements can be staged with configuration checks.
