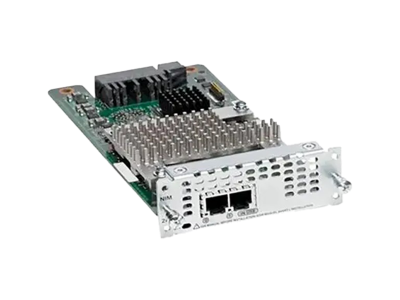

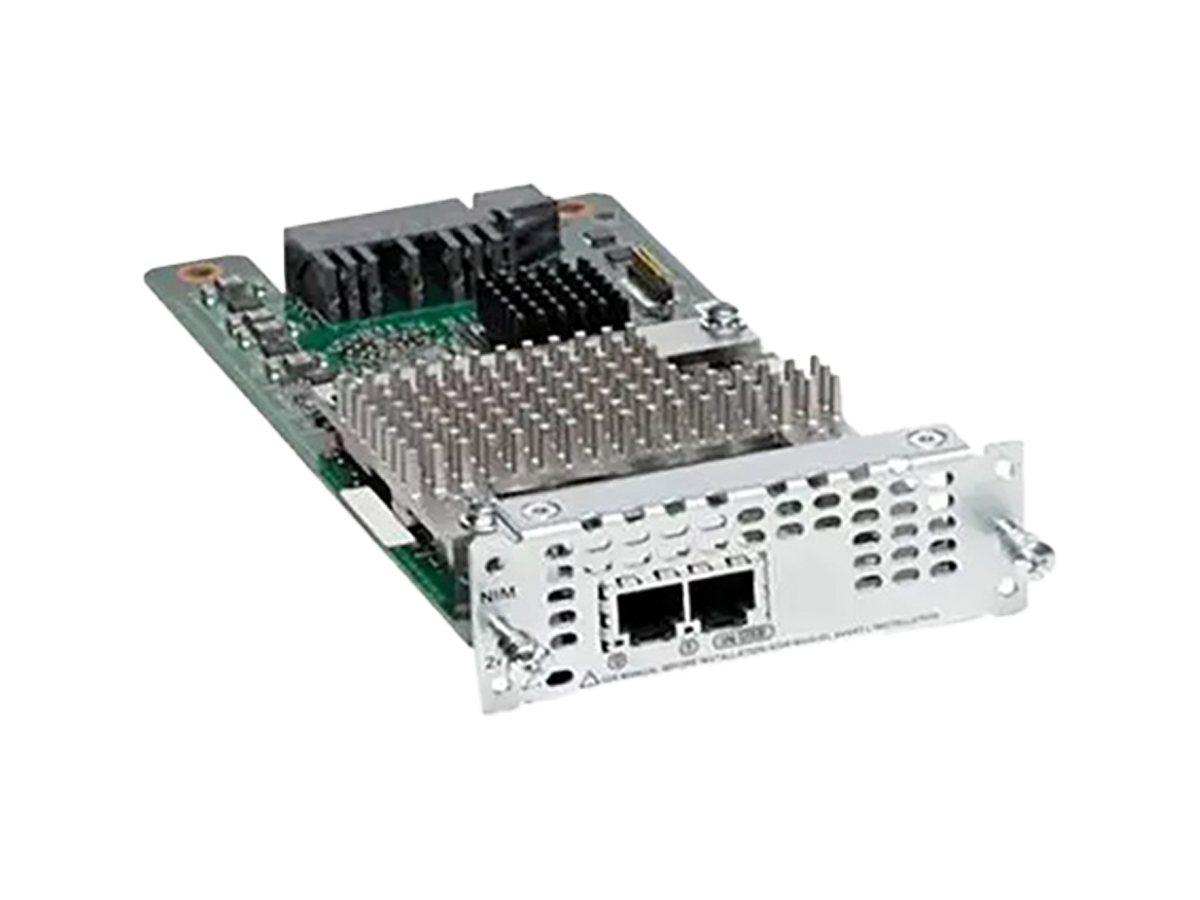

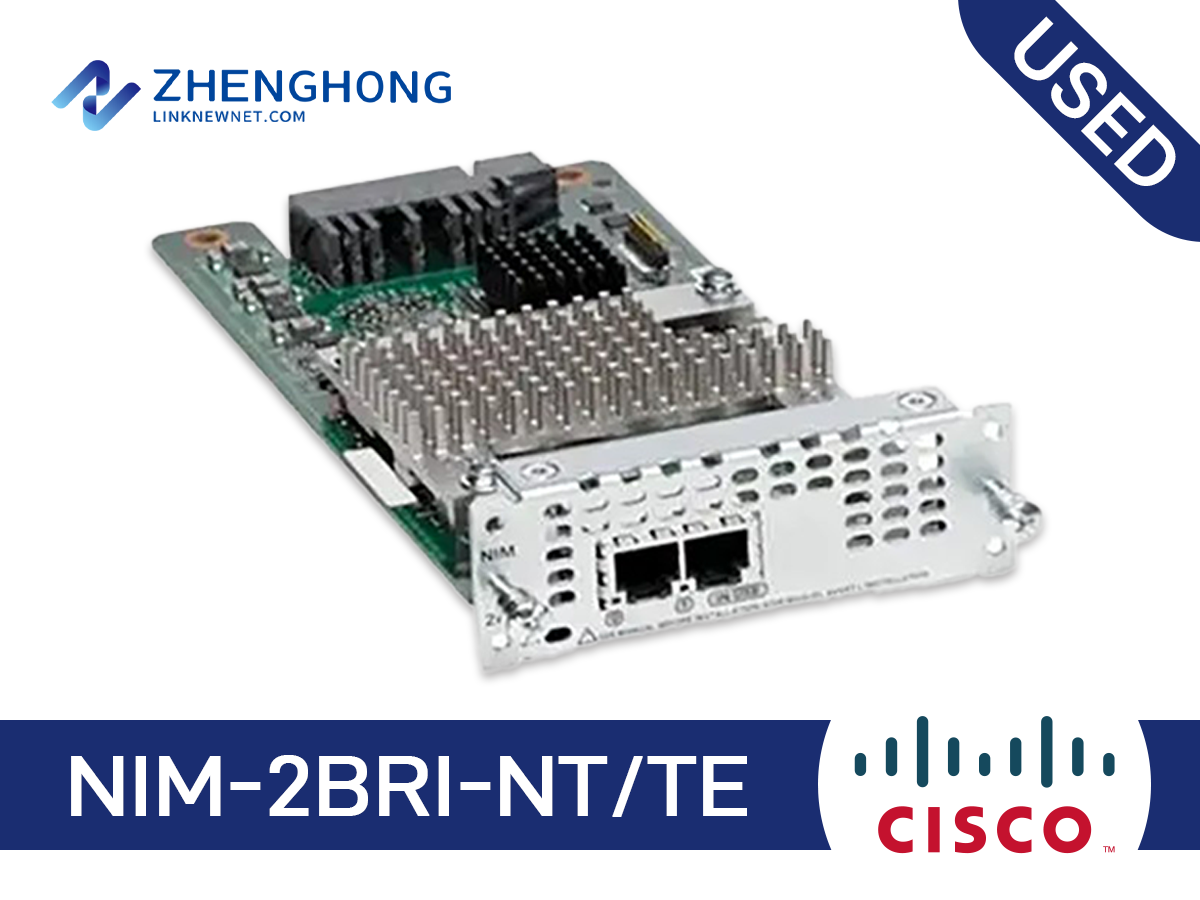

NIM-2BRI-NT/TE - Cisco ISR4000 Network Interface Modules Overview
NIM-2BRI-NT/TE - Cisco ISR4000 Network Interface Modules is a genuine modular capacity expansion product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco family, the NIM-2BRI-NT/TE unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
From a specification standpoint, it offers 2 ports for client, server or uplink connectivity. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include adding ports and performance to existing chassis systems, modernizing legacy platforms with compatible line cards, and mixing copper, fiber and high-speed uplinks in one chassis. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “2-Port BRI Network Interface Module”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the NIM-2BRI-NT/TE. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned NIM-2BRI-NT/TE
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
NIM-2BRI-NT/TE Specifications | |
Number of Ports | 2 |
ISR G2 comparison | VIC2-2BRI-NT/TE |
Cisco IOS Release | XE3.14.3, XE3.15.1, XE3.16 and above |
Weight | 0.42 lb (191 g) |
Telnet or console | Remote and local configuration, monitoring, and troubleshooting from Cisco IOS XE Software command-line interface. |
Simple Network Management Protocol (SNMP)
| ● Router and data service unit (DSU)/channel service unit (CSU) managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user ● Standard MIB (MIB II) ● Cisco Integrated DSU/CSU MIB ● RFC 1406 T1 MIB, including Alarm Detection and Reporting
|
SNMP traps | Generated in response to alarms |
Standards | TIA-968-B (USA) CS-03 (Canada) AS/ACIF S031 (Australia) PTC220 (New Zealand) TBR 3 (CE countries) ITU-T I.430
|
Emission | 47 CFR Part 15 CISPR22: Edition 6.0: 2008 CNS13438: 2006 EN 300 386 V1.6.1 EN 55022:2010 EN61000-3-2: 2006 [Inc amd 1 '&' 2] EN61000-3-3: 2008 ICES-003 Issue 5: 2012 KN 22: 2009 TCVN 7189: 2009 VCCI: V-3/2013.04 |
Immunity | CISPR24: 2010 EN 300 386 V1.6.1 EN55024: 2010 KN24: 2011 TCVN 7317: 2003 |
NIM-2BRI-NT/TE - Product Notes
This listing is a specific SKU variant of the NIM-2BRI-NT/TE family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
NIM-2BRI-NT/TE - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco module/line card expands the capability of a chassis platform, adding interface density, forwarding capacity, or service features. It is installed in a matching chassis slot and managed as part of the parent platform.
Deployment guidance: When planning this NIM-2BRI-NT/TE unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: NIM-ES2-8-P, NIM-1T, NIM-8MFT-T1/E1, NIM-SSD, NIM-8CE1T1-PRI. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: E = Enhanced feature set / EMEA regulatory domain - this suffix indicates the feature set, power, or regulatory variant of the NIM-2BRI-NT/TE, which affects software licensing and regional compliance.
