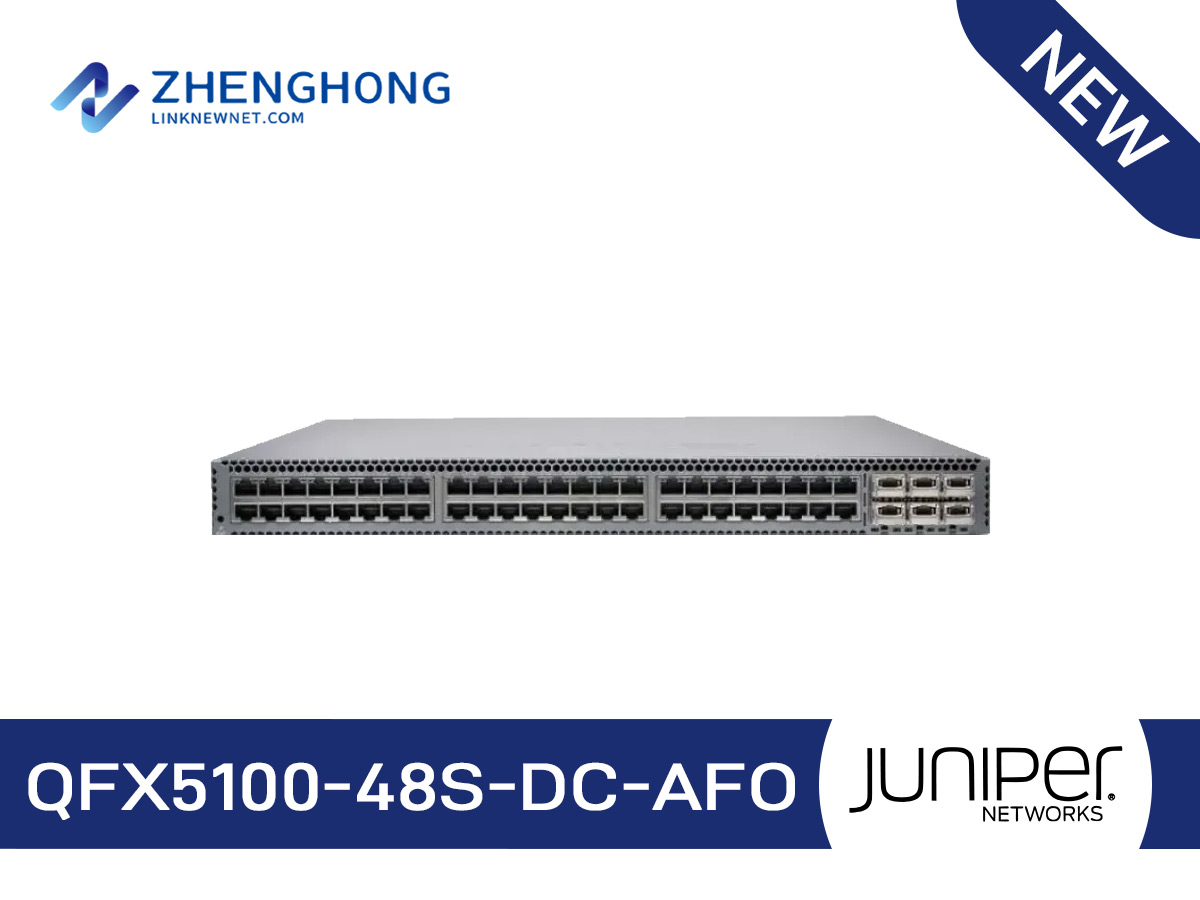

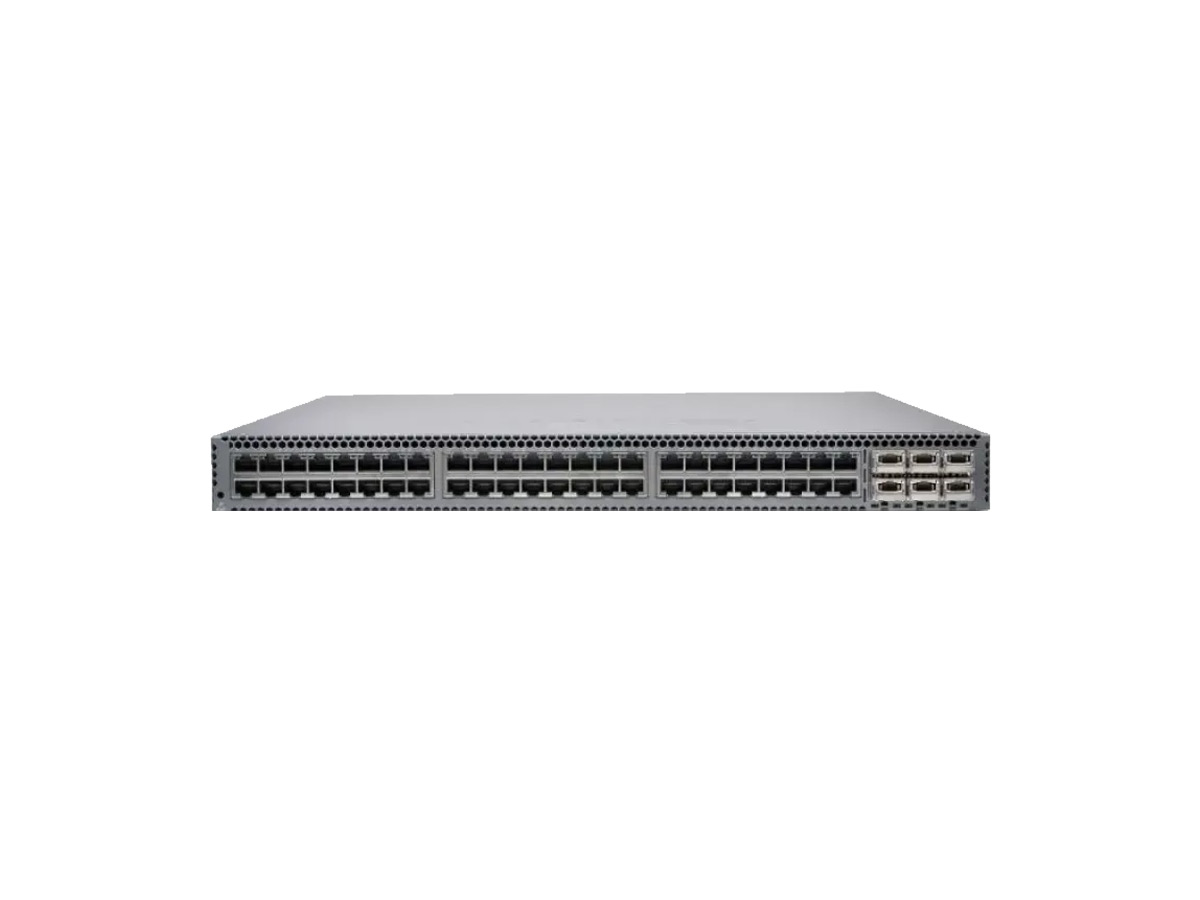

QFX5100-48S-DC-AFO Specifications | |
| Brand | Juniper |
| Product Name | QFX5100-48S-DC-AFO |
| Form Factor | Fixed-configuration Switch |
| Ports | 48 x 10 GbE SFP/SFP+ and 6 x 40 GbE QSFP+ |
| Power Supply | Dual DC Power Supplies |
| Switching Capacity | Up to 1.44 Tbps |
| Throughput | Up to 1.08 Bpps |
| Latency | Low Latency |
| Management Interface | RJ-45, USB, Mini-USB |
| Operating System | Junos OS |
| Virtualization | Virtual Chassis, VCF Support |
| Layer 3 Features | Static Routing, RIP, OSPF, IS-IS, BGP, Multicast |
| Security Features | Access Control Lists (ACLs), Port Security, VLAN Support, MACsec (optional) |
| Quality of Service (QoS) | Advanced QoS Features |
| Dimensions (H x W x D) | 1.72 x 17.4 x 16.43 in (43.7 x 442 x 417 mm) |
| Environmentals | Operating temperature: 0�� to 40��C |
| Power Consumption | Typical: 210W, Maximum: 350W |
| Redundancy | Redundant Power Supply Units |
| Cooling | Front to Back Airflow (AFO) |
| Warranty | Limited Lifetime Warranty |
