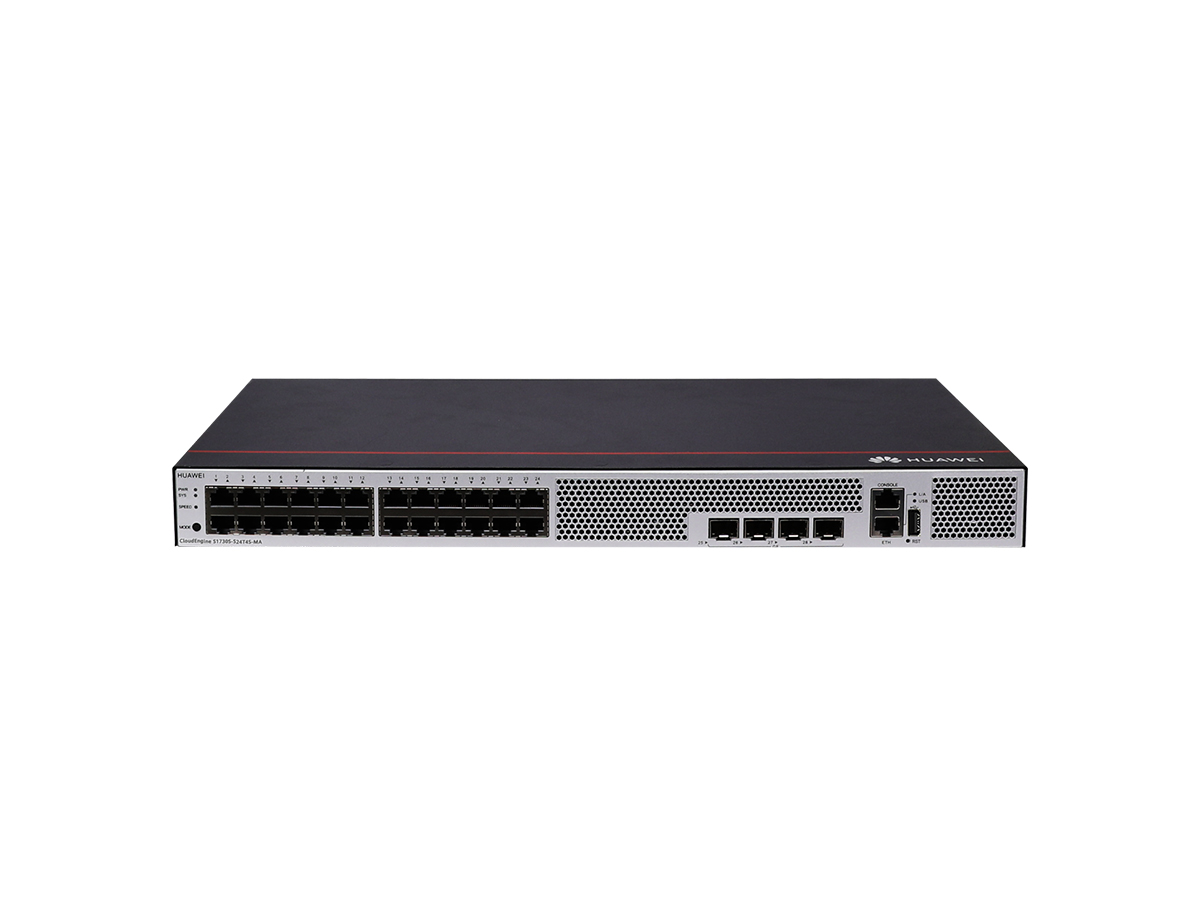

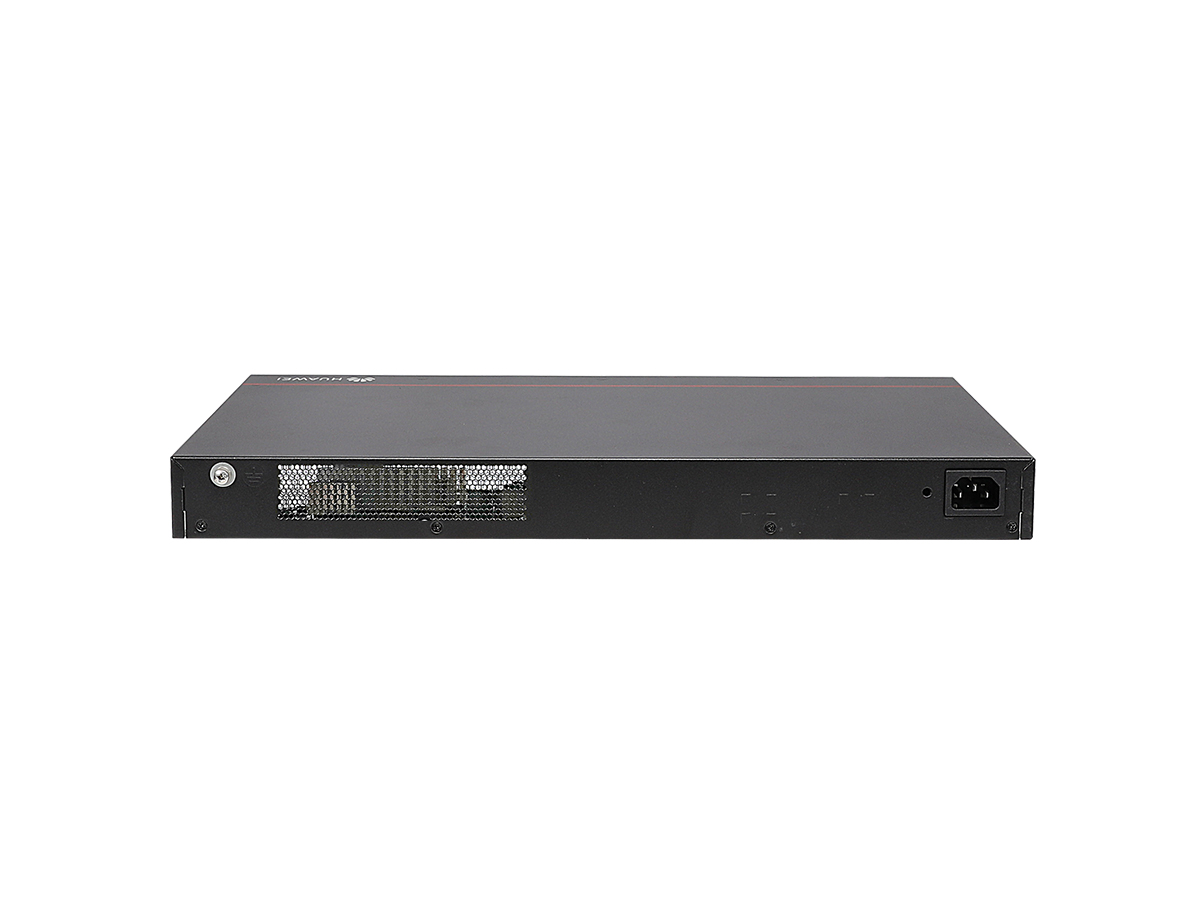

S1730S-S24T4S-MA Specification | |
Item | Description |
Memory (RAM) | 1 GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 92.82 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | Common mode: ±7 kV |
Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
Dimensions (H x W x D) |
|
Stack ports | Not supported |
RTC | Not supported |
RPS | Not supported |
PoE | Not supported |
Rated voltage range |
|
Maximum voltage range |
|
Maximum power consumption (100% throughput) | 34 W |
Typical power consumption (30% of traffic load, tested according to ATIS standard, with EEE enabled) | 28 W |
Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | Noise-free (no fans) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Certification |
|
