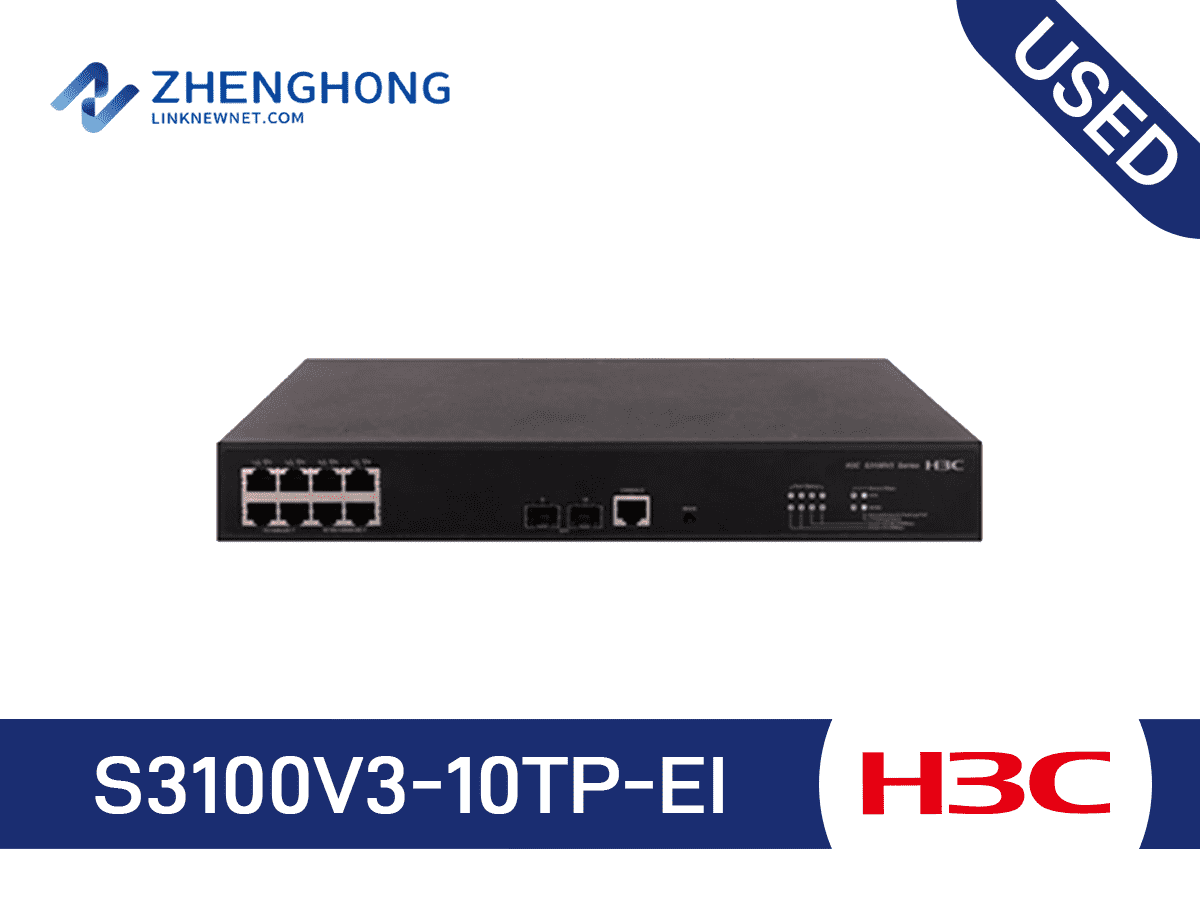

S3100V3-10TP-EI Specifications | |
| Brand | H3C |
| Model | S3100V3-10TP-EI |
| Layer | Layer 2 |
| 10/100BASE-T Ports | 4 |
| 10/100/1000BASE-T Ports | 4 |
| 1000BASE-X SFP Ports | 2 |
| Form Factor | Rackmount |
| Switching Capacity | 32 Gbps |
| Forwarding Rate | 24 Mpps |
| AC Power Supply | Yes |
| VLAN Support | Yes |
| QoS | Yes |
| Operating Temperature Range | 0��C to 45��C |
| Operating Humidity Range | 10% to 90% |
| Dimensions (WxDxH) | 230 x 445 x 44 mm |
| Management | Yes |
| MTBF | >50,000 hours |
| MAC Address Table Size | 8k |
| Spanning Tree Protocol | Yes |
| Power Consumption | 24W |
| Port Mirroring | Yes |
