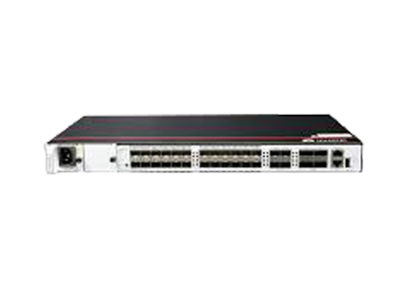

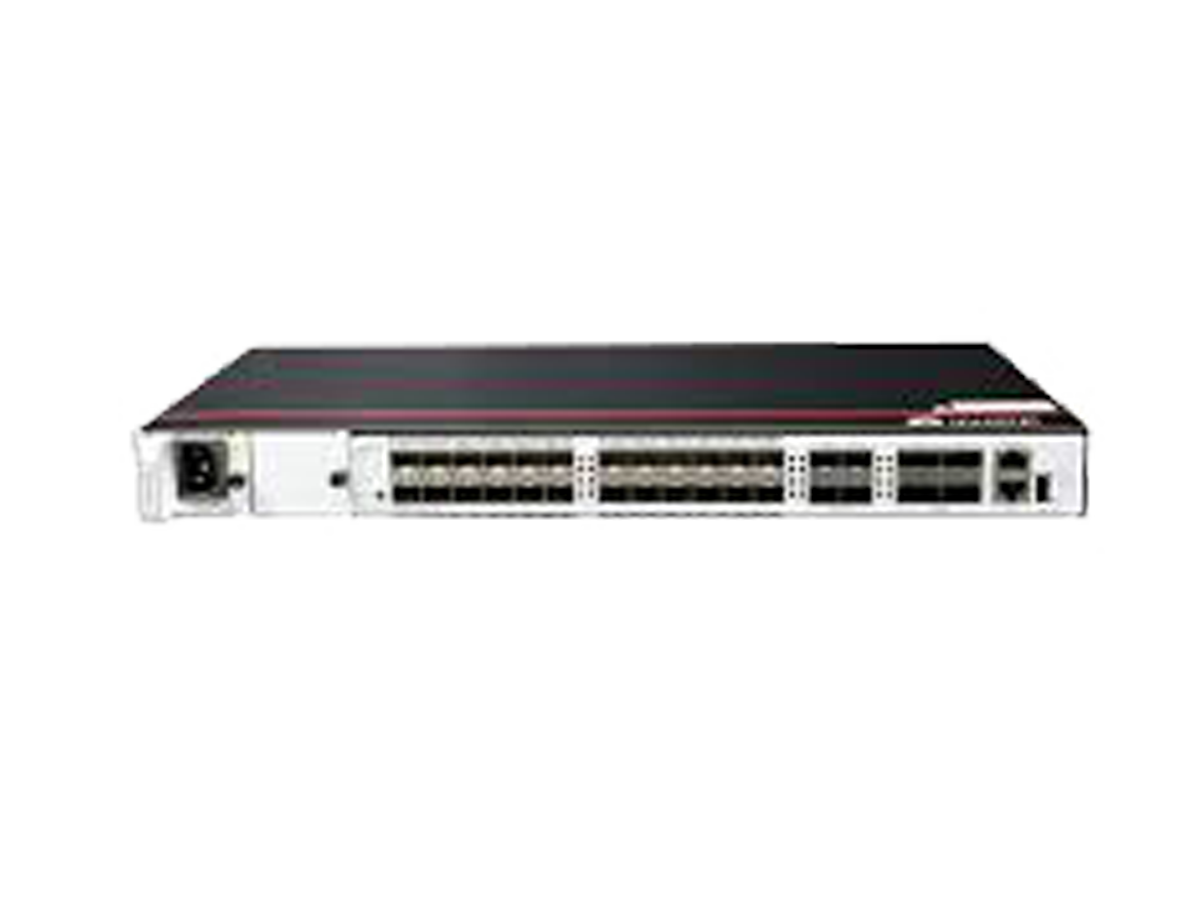

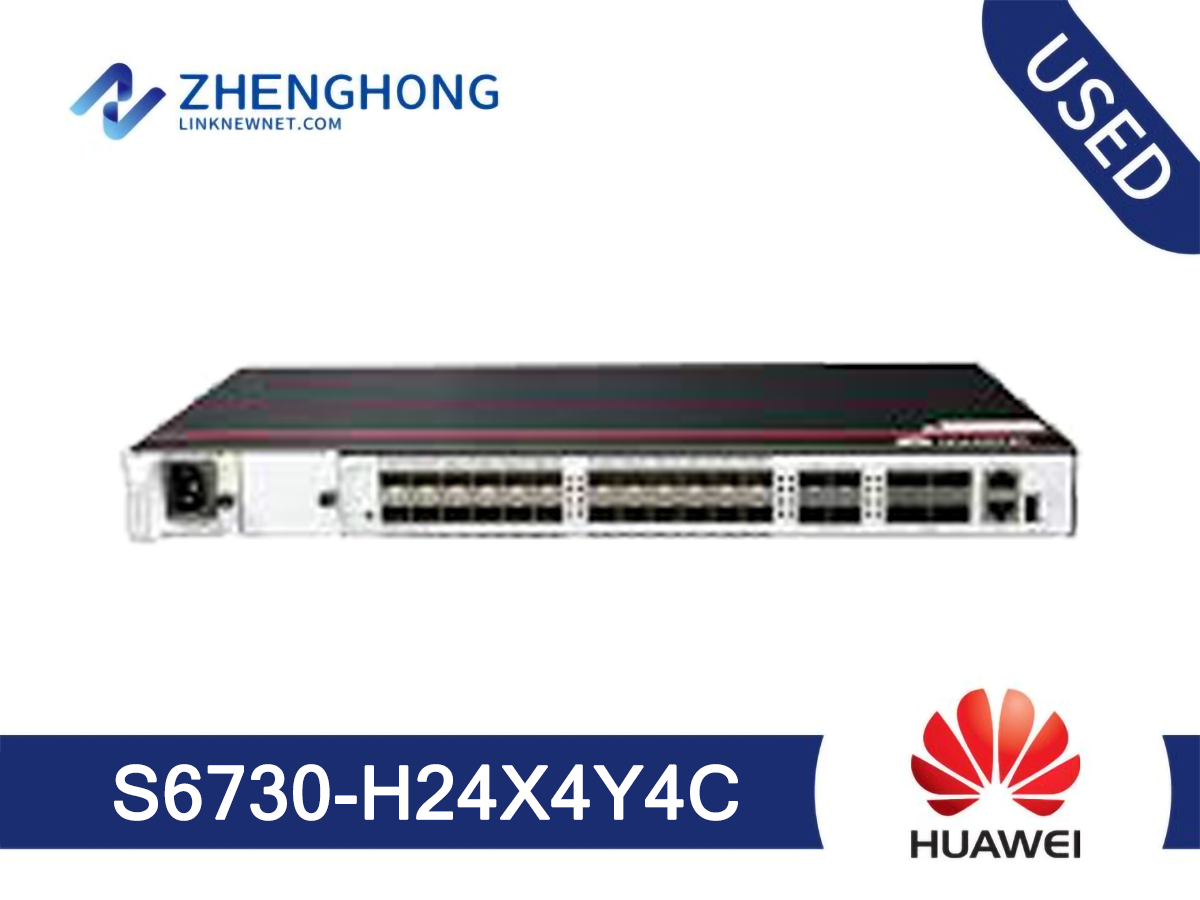

S6730-H24X4Y4C Specifications | |
| Brand | Huawei |
| Product Series | S6700 Series |
| Model | S6730-H24X4Y4C |
| Switch Type | Managed |
| Port Count | 24 x 10 Gig SFP+, 4 x 40 Gig QSFP+ |
| Forwarding Performance | 480 Mpps |
| Switching Capacity | 2.4 Tbps |
| MAC Address Table Size | 288K |
| Packet Buffer Memory | 4 GB |
| Latency | 1��s |
| Flash Memory | 2 GB |
| DRAM | 8 GB |
| Power Supply | Dual, hot-swappable AC/DC |
| Power Consumption | Max 350 W |
| Virtualization Support | Yes (VXLAN, BGP-EVPN) |
| High Availability Features | 1+1 power redundancy, hot-swappable modules |
| Security Features | Access control lists (ACL), Secure Shell (SSH), DDoS protection |
| Management Features | CLI, SNMP, WebUI, Huawei eSight |
| Stacking | IRF (Intelligent Resilient Framework), up to 9 switches |
| Compliance Standards | CE, FCC, RoHS |
| Dimensions (H x W x D) | 43.6 x 442 x 420 mm |
