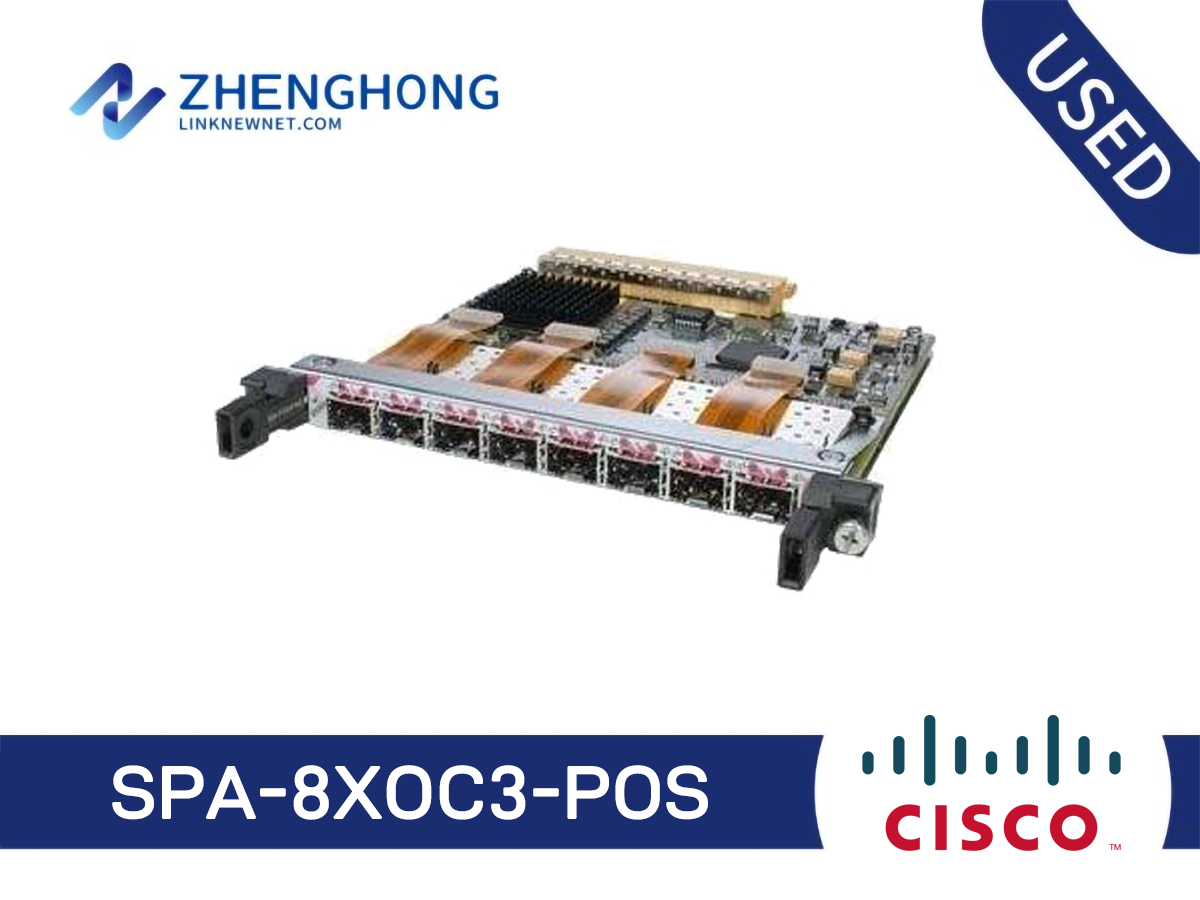

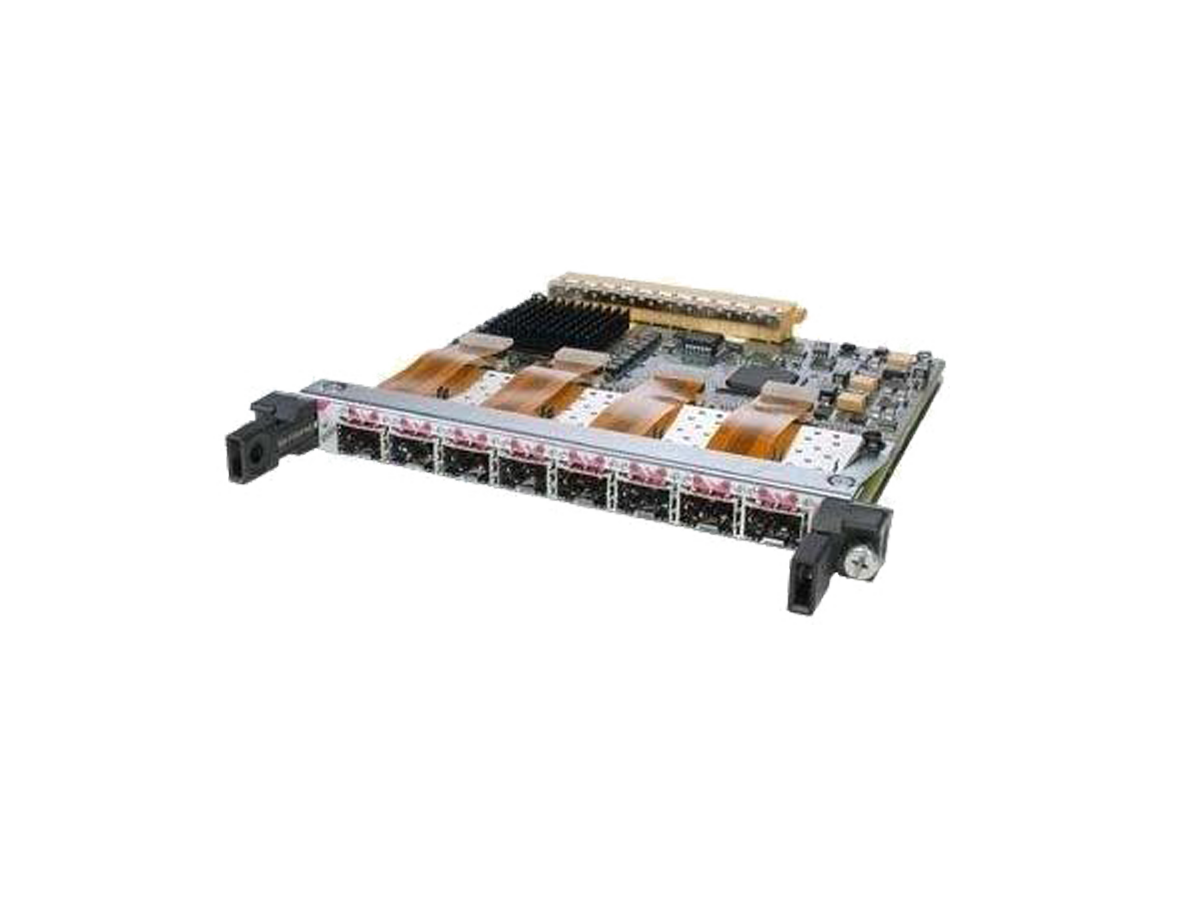

SPA-8XOC3-POS - Cisco ASR 9000 Series Shared Port Adapter

Description

Cisco ASR 9000 AdapterSPA-8XOC3-POS8-port OC-3/STM-1 POS Shared Port Adapters

Product Name

Cisco 8-Port OC-3c/STM-1 POS SPA

Product compatibility

• Cisco 12000 Series Routers

• Cisco XR 12000 Series Routers

• Cisco ASR 1000 Series Router

• Cisco ASR 9000 Series Router

Port density per SPA

8 ports

Physical interface

• OC-3c/STM-1 SFP optics module • Visual status indicators (LEDs):

• SPA status LED

• Per-port LEDs

• Carrier and alarm

• Active and loopback

Protocols

• RFC 1662 PPP in High-Level Data Link Control (HDLC)-like framing

• RFC 2615 Point-to-Point Protocol (PPP) over SONET/SDH

• RFC 2427, Multiprotocol Interconnect over Frame Relay

• IPv4/IPv6

Features and functions

Synchronization

• Local (internal) or loop timed (recovered from network)

• Pointer activity monitoring

Local (diagnostic) and line (network) loopback

Payload mapping

• POS with 1 + X^43 self-synchronous scrambler

SONET/SDH compliance

• Telcordia (Bellcore) GR-253-CORE (as applicable)

• ANSI T1.105, T1.231

• ITU-T G.707, G.957, G.825 (as applicable)

Supported SONET/SDH alarm and signal events

• Signal failure bit error rate (SF-ber)

• Signal degrade bit error rate (SD-ber)

• Signal label payload construction (C2)

• Path trace byte (J1)

• Section

• Loss of signal (LoS)

• Loss of frame (LoF)

• Error counts for B1

• Threshold crossing alarms (TCA) for B1

• Line

• Line alarm indication signal (LAIS)

• Line remote defect indication (LRDI)

• Line remote error indication (LREI)

• Error counts for B2

• TCA for B2

• Path

• Path alarm indication signal (PAIS)

• Path remote defect indication (PRDI)

• Path remote error indication (PREI)

• Error counts for B3

• TCA for B3

• Loss of pointer (LoP)

• Positive stuffing event (PSE)

• Negative stuffing event (NSE)

• Path unequipped indication signal (PUNEQ)

• Path payload mismatch indication signal (PPLM)

Network management

• RFC 2558 MIB (SONET/SDH)

• Simple Network Management Protocol (SNMP)

Reliability and availability

• Online insertion and removal (OIR)

• Field-replaceable SFP optical modules

• 1+1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols

• Single SPA software reset

Physical specifications

• Weight: 0.75 lb (0.34 kg)

• Height: 0.8 in. (2.03 cm) (single height)

• Width: 6.75 in. (17.15 cm)

• Depth: 7.28 in. (18.49 cm)

Power

• 8-Port OC-3c/STM-1 = 8.0W (no optics)
