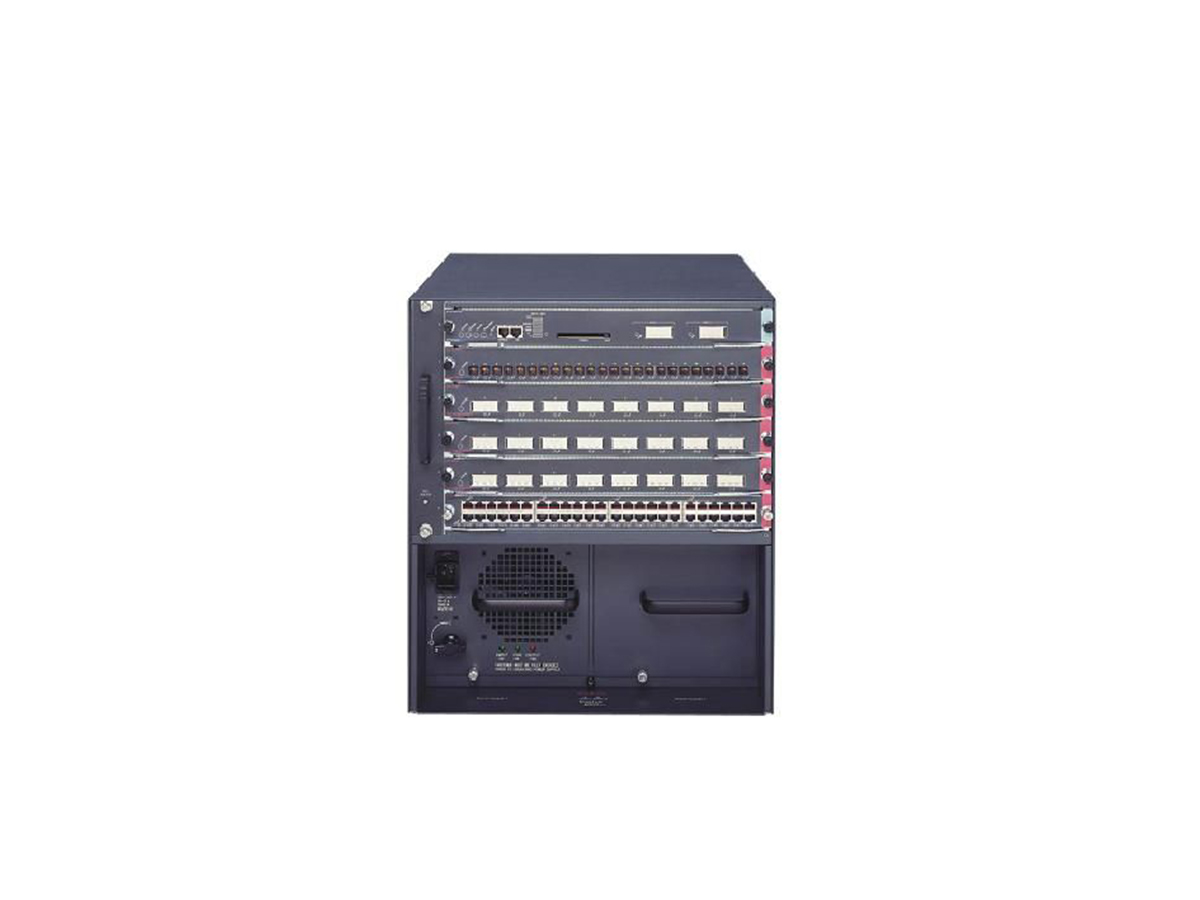

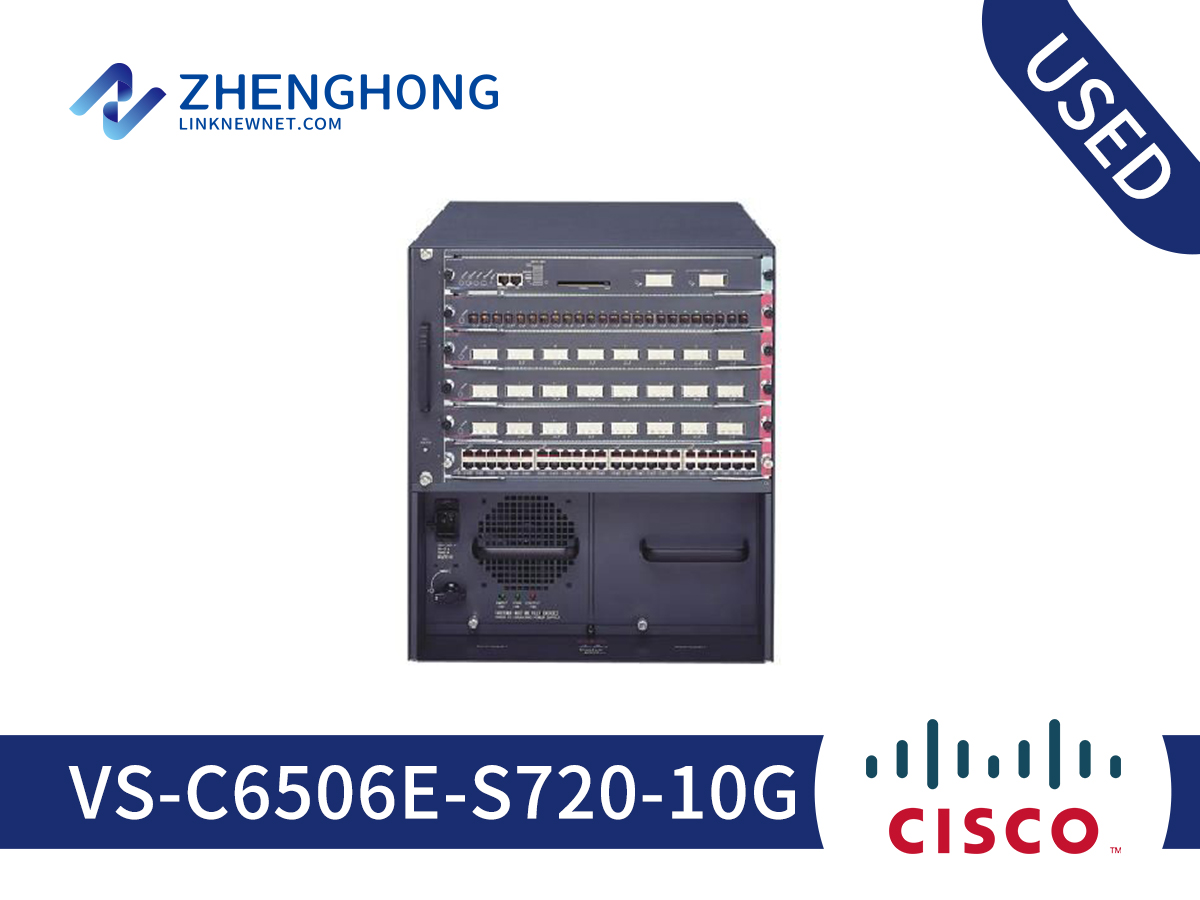

VS-C6506E-S720-10G Specification | |
General | |
Device Type | Switch - 2 ports - with Cisco Virtual Switching Supervisor Engine 720 3C, Fan Tray |
Ports | 2 x X2 + 2 x SFP + 1 x 10/100/1000 |
Subtype | 10 Gigabit Ethernet |
Enclosure Type | Rack-mountable 12U |
RAM | 2 GB |
Routing Protocol | OSPF, RIP, BGP-4, IS-IS, HSRP, IGMP, VRRP, PIM-SM, PIM-DM, GRE, Bidirectional PIM |
Features | NAT support, MPLS support, IGMP snooping, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN |
Flash Memory | 1 GB flash |
Status Indicators | Port status, power, link OK, system, active |
Expansion / Connectivity | |
Interfaces | 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x console - RJ-45 management ¦ 1 x USB Type A ¦ 1 x USB Type B ¦ 2 x SFP (mini-GBIC) ¦ 2 x X2 |
Expansion Slots | CompactFlash Card - type II ¦ 6 (total) / 5 (free) x expansion slot |
Installed Modules Qty (Max) | 1 (installed) / 6 (max) |
Power | |
Power Device | Internal power supply - hot-plug |
Installed Qty | 2 (max) |
Power Redundancy | Yes |
Dimensions & Weight | |
Width | 17.5 in |
Depth | 18.1 in |
Height | 19.2 in |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 - 90% |
