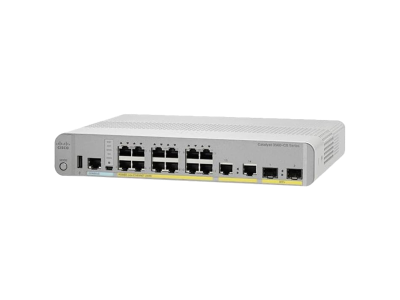

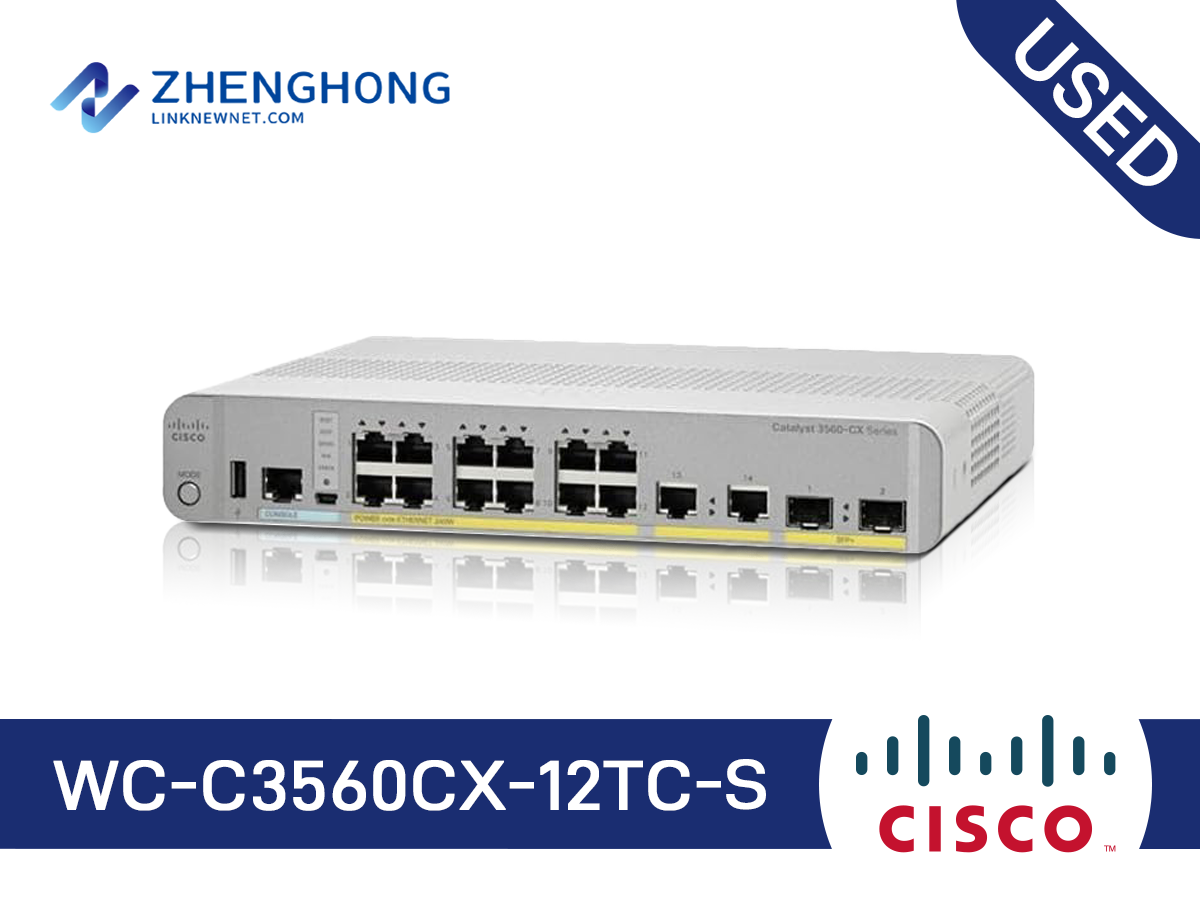

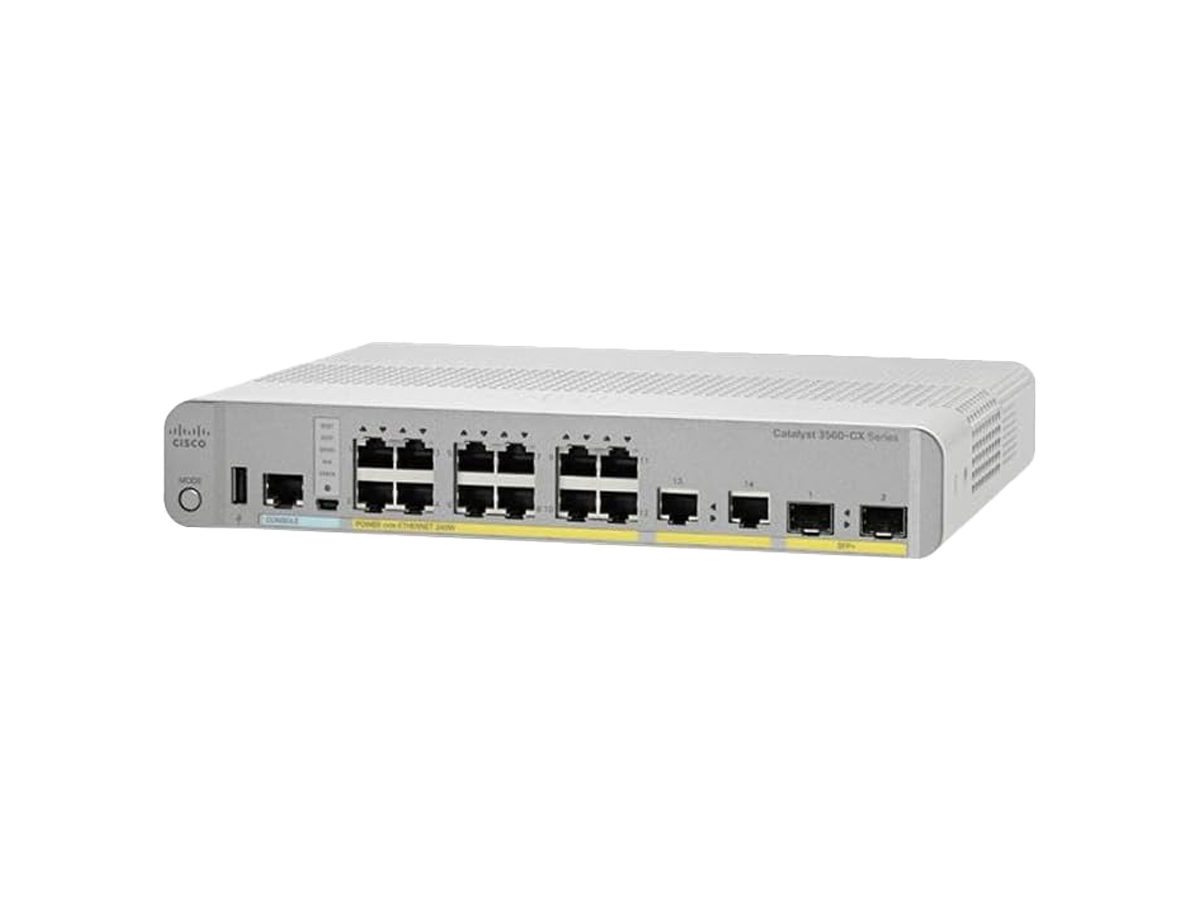

WS-C3560CX-12TC-S Catalyst Compact switch Overview
WS-C3560CX-12TC-S Catalyst Compact switch is a genuine campus and data-center switching product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco family, the WS-C3560CX-12TC-S unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is suited to access-layer and edge deployments, where reliable wiring-closet operation and straightforward management are the priorities.
From a specification standpoint, it offers 12 ports for client, server or uplink connectivity; packet forwarding up to 50.6 Mpps; Power over Ethernet support. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “3560-CX Switch 12 GE, uplinks: 2 x 1G SFP and 2 x 1G copper, IP Base”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the WS-C3560CX-12TC-S. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Upgrade Path
WS-C3560CX-12TC-S is end-of-life. See how to upgrade to Catalyst 9200 or 9300 →
Buying a Pre-Owned WS-C3560CX-12TC-S
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
WS-C3560CX-12TC-S Specifications | |
Ethernet Ports | 12 x 10/100/1000 Gigabit Ethernet |
PoE | 12 PoE+ |
Available | 240W |
Uplinks | 2 x 1G copper plus 2 x 10G SFP+ |
Default Software | IP Base (IP Services with RTU License) |
Powering Option | Internal power supply |
Available PoE Power (W) | 240W |
Can Switch Be Powered with Uplinks? | No |
Forwarding Bandwidth | 34 Gbps |
Switching Bandwidth (full-duplex capacity) | 68 Gbps |
Flash memory | 128 MB |
Memory DRAM | 512 MB |
Max VLANs | 1023 |
VLAN IDs | 4000 |
Maximum transmission unit (MTU) | Up to 9000 bytes |
Jumbo frames | 9198 bytes |
Forwarding rate 64 Byte Packet | 50.6 mpps |
Dimensions | 1.75 x 10.6 x 9.4 in (4.44 x 26.9 x 23.8 cm) |
Weight | 5.1 lb (2.31 Kg) |
Operating* temperature up to 5000 ft (1524 m) | -5°C to +45°C (+23°F to +113°F) |
Operating* temperature up to 10,000 ft (3048 m) | -5°C to +45°C (+23°F to +113°F) |
Storage temperature up to 15,000 ft (4572 m) | -25°C to +70°C (-13°F to +158°F) |
Operating altitude | Up to 3048 m (Up to 10,000 ft) |
Storage altitude | Up to 4000 m (Up to 15,000 ft) |
Operating relative humidity | 5% to 95% noncondensing |
Storage relative humidity | 5% to 95% noncondensing |
MTBF | 528,480 |
Management | ● BRIDGE-MIB ● CISCO-CABLE-DIAG-MIB ● CISCO-CDP-MIB ● CISCO-CLUSTER-MIB ● CISCO-CONFIG-COPY-MIB ● CISCO-CONFIG-MAN-MIB ● CISCO-DHCP-SNOOPING-MIB ● CISCO-ENTITY-VENDORTYPE-OID-MIB ● CISCO-ENVMON-MIB ● CISCO-ERR-DISABLE-MIB ● CISCO-FLASH-MIB ● CISCO-FTP-CLIENT-MIB ● CISCO-IGMP-FILTER-MIB ● CISCO-IMAGE-MIB ● CISCO-IP-STAT-MIB ● CISCO-LAG-MIB ● CISCO-MAC-NOTIFICATION-MIB ● CISCO-MEMORY-POOL-MIB ● CISCO-PAGP-MIB ● CISCO-PING-MIB ● CISCO-POE-EXTENSIONS-MIB ● CISCO-PORT-QOS-MIB ● CISCO-PORT-SECURITY-MIB ● CISCO-PORT-STORM-CONTROL-MIB ● CISCO-PRODUCTS-MIB ● CISCO-PROCESS-MIB ● CISCO-RTTMON-MIB ● CISCO-SMI-MIB ● CISCO-STP-EXTENSIONS-MIB ● CISCO-SYSLOG-MIB ● CISCO-TC-MIB ● CISCO-TCP-MIB ● CISCO-UDLDP-MIB ● CISCO-VLAN-IFTABLE ● RELATIONSHIP-MIB ● CISCO-VLAN-MEMBERSHIP-MIB ● CISCO-VTP-MIB ● ENTITY-MIB ● ETHERLIKE-MIB ● IEEE8021-PAE-MIB ● IEEE8023-LAG-MIB ● IF-MIB ● INET-ADDRESS-MIB ● OLD-CISCO-CHASSIS-MIB ● OLD-CISCO-FLASH-MIB ● OLD-CISCO-INTERFACES-MIB ● OLD-CISCO-IP-MIB ● OLD-CISCO-SYS-MIB ● OLD-CISCO-TCP-MIB ● OLD-CISCO-TS-MIB ● RFC1213-MIB ● RMON-MIB ● RMON2-MIB ● SNMP-FRAMEWORK-MIB ● SNMP-MPD-MIB ● SNMP-NOTIFICATION-MIB ● SNMP-TARGET-MIB ● SNMPv2-MIB ● TCP-MIB ● UDP-MIB ● ePM MIB |
Standards | ● IEEE 802.1D Spanning Tree Protocol ● IEEE 802.1p CoS Prioritization ● IEEE 802.1Q VLAN ● IEEE 802.1s ● IEEE 802.1w ● IEEE 802.1x ● IEEE 802.1AB (LLDP) ● IEEE 802.3ad ● IEEE 802.3af ● IEEE 802.3ah ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports ● IEEE 802.3 10BASE-T specification ● IEEE 802.3u 100BASE-TX specification ● IEEE 802.3ab 1000BASE-T specification ● IEEE 802.3z 1000BASE-X specification ● 100BASE-BX (SFP) ● 100BASE-FX (SFP) ● 100BASE-LX (SFP) ● 1000BASE-BX (SFP) ● 1000BASE-SX (SFP) ● 1000BASE-LX/LH (SFP) ● 1000BASE-ZX (SFP) ● 1000BASE-CWDM SFP 1470 nm ● 1000BASE-CWDM SFP 1490 nm ● 1000BASE-CWDM SFP 1510 nm ● 1000BASE-CWDM SFP 1530 nm ● 1000BASE-CWDM SFP 1550 nm ● 1000BASE-CWDM SFP 1570 nm ● 1000BASE-CWDM SFP 1590 nm ● 1000BASE-CWDM SFP 1610 nm ● RMON I and II standards ● SNMPv1, SNMPv2c, and SNMPv3 |
RFC compliance | ● RFC 768: UDP ● RFC 783: TFTP ● RFC 791: IP ● RFC 792: ICMP ● RFC 793: TCP ● RFC 826: ARP ● RFC 854: Telnet ● RFC 951: Bootstrap Protocol ● RFC 1542: BOOTP Extensions ● RFC 959: FTP ● RFC 1058: RIP Routing ● RFC 1112: IP Multicast and IGMP ● RFC 1157: SNMPv1 ● RFC 1166: IP Addresses ● RFC 1253: OSPF Routing ● RFC 1256: ICMP Router Discovery ● RFC 1305: NTP ● RFC 1492: TACACS+ ● RFC 1493: Bridge MIB ● RFC 1542: Bootstrap Protocol ● RFC 1583: OSPFv2 ● RFC 1643: Ethernet Interface MIB ● RFC 1723: RIPv2 Routing ● RFC 1757: RMON ● RFC 1812: IP Routing ● RFC 1901: SNMPv2C ● RFC 1902-1907: SNMPv2 ● RFC 1981: MTU Path Discovery IPv6 ● FRC 2068: HTTP ● RFC 2080: RIP for IPv6 ● RFC 2131: DHCP ● RFC 2138: RADIUS ● RFC 2233: IF MIB ● RFC 2236: IP Multicast ● RFC 2328: OSPFv2 ● RFC 2273-2275: SNMPv3 ● RFC 2373: IPv6 Aggregatable Addrs ● RFC 2453: RIPv2 Routing ● RFC 2460: IPv6 protocol ● RFC 2461: IPv6 Neighbor Discovery ● RFC 2462: IPv6 Autoconfiguration ● RFC 2463: ICMP IPv6 ● RFC 2474: DiffServ Precedence ● RFC 2597: Assured Forwarding ● RFC 2598: Expedited Forwarding ● RFC 2571: SNMP Management ● RFC 2740: OSPF for IPv6 ● RFC 3046: DHCP Relay Agent Information Option ● RFC 3101, 1587: NSSAs ● RFC 3376: IGMPv3 ● RFC 3580: 802.1x RADIUS |
Safety standards | ● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825 |
Electromagnetic emissions certifications | ● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia |
Environmental | Reduction of Hazardous Substances (ROHS) 6 |
Telco | Common Language Equipment Identifier (CLEI) code |
