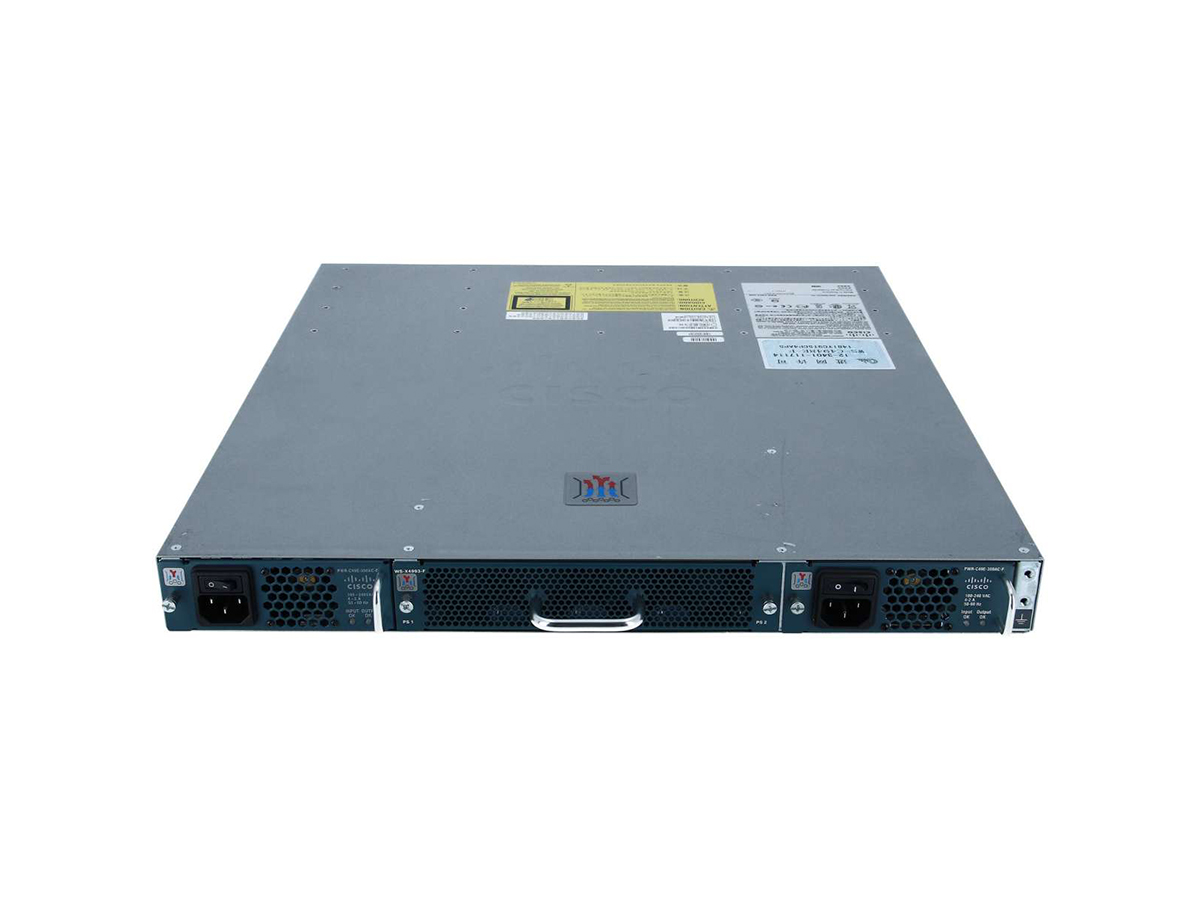

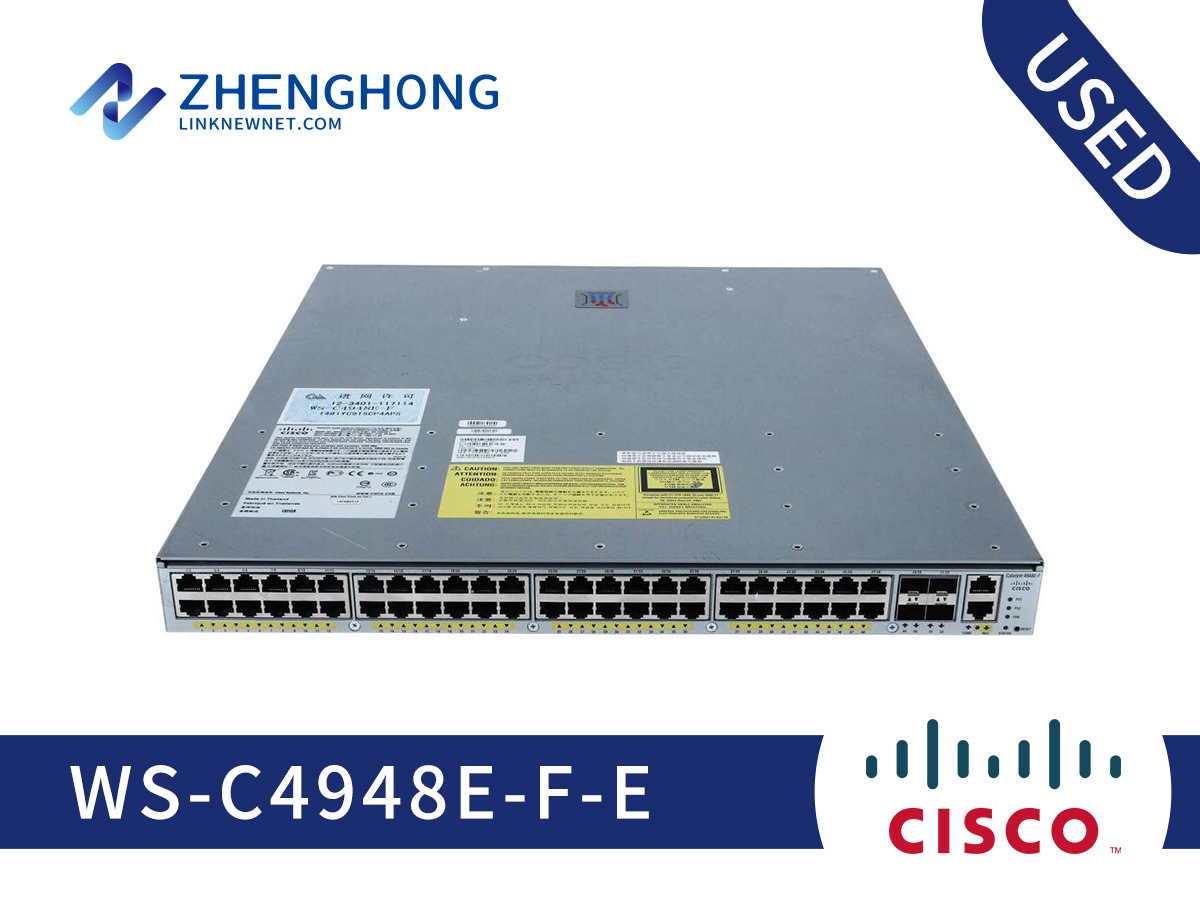

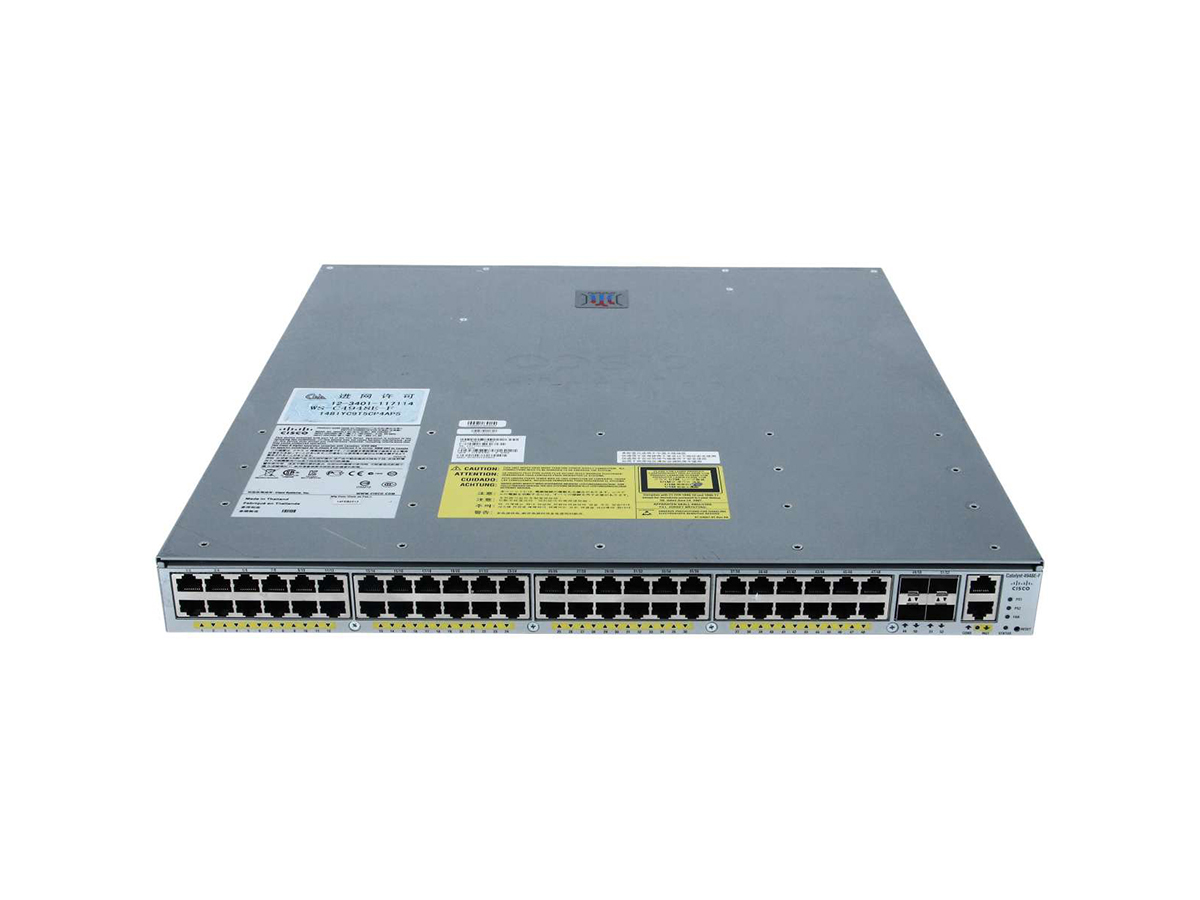

WS-C4948E-F-E Specification | |
General | |
Device Type | Switch - 48 ports - L3 - managed |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 + 4 x SFP+ |
Performance | Switching capacity: 176 Gbps ¦ IPv4 switching: 131 Mpps ¦ IPv6 switching: 110 Mpps |
Features | Hot swap module replacement, layer 3 switching, layer 2 switching, DHCP support, auto-negotiation, VLAN support, IGMP snooping, traffic shaping, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Non-Stop Forwarding (NSF), Spanning Tree Protocol (STP) support, Per-VLAN Spanning Tree (PVST), tunneling, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), back to front airflow, Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag |
Processor | 1: 1 GHz |
RAM | 1 GB SDRAM |
Status Indicators | Port status, power, link OK, system, link/activity |
Expansion / Connectivity | |
Interfaces | 48 x 1000Base-T RJ-45 ¦ 4 x SFP+ |
Power | |
Power Device | Internal power supply - hot-plug |
Installed Qty | 1 (installed) / 2 (max) |
Power Redundancy | Optional |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Voltage Required | AC 120/230 V (50/60 Hz) |
Dimensions & Weight | |
Width | 17.5 in |
Depth | 19.4 in |
Height | 1.7 in |
Weight | 18.96 lbs |
