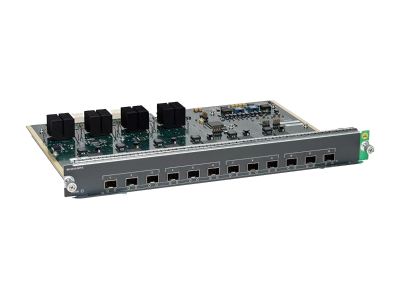

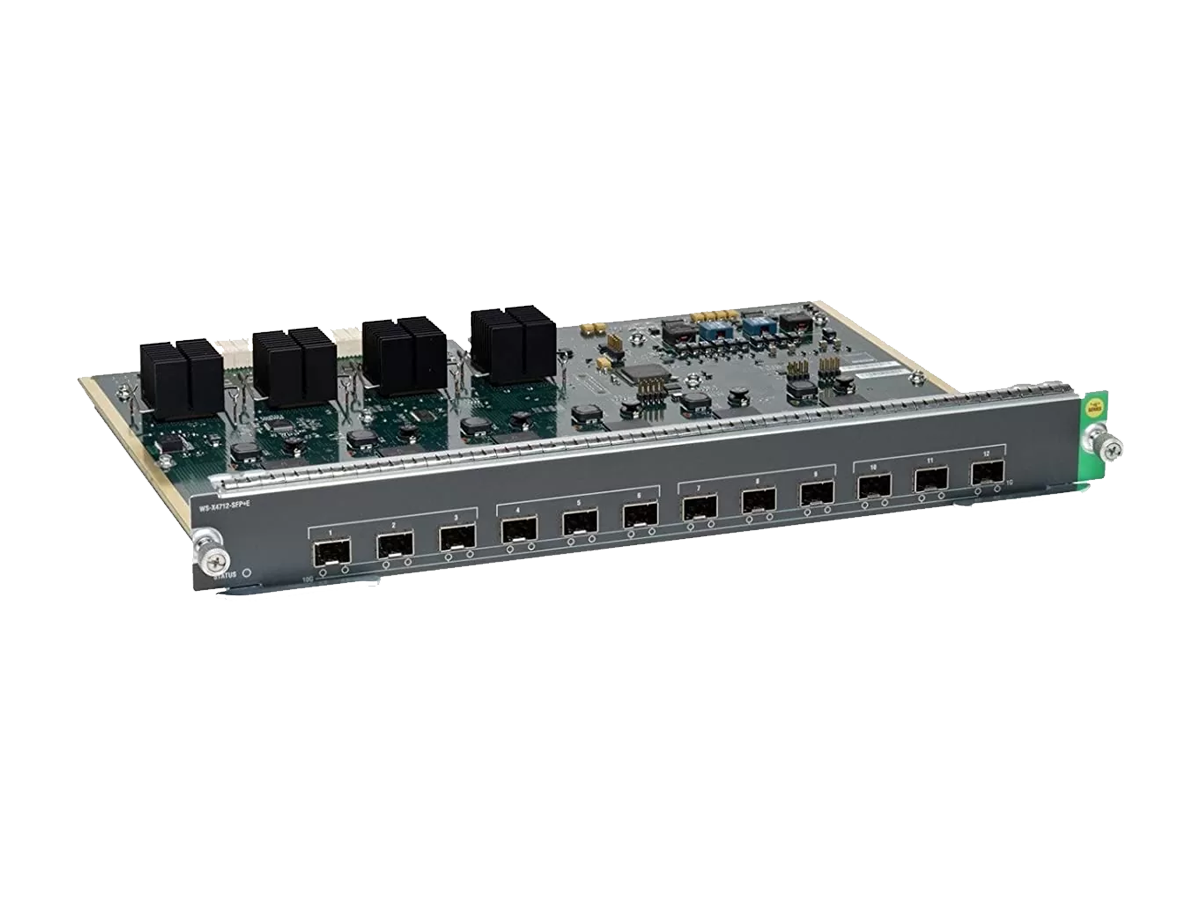

WS-X4712-SFP-E - Cisco Catalyst 4500E Series SFP Line Cards Overview
WS-X4712-SFP-E - Cisco Catalyst 4500E Series SFP Line Cards is a genuine modular capacity expansion product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco Catalyst 4500E Series family, the WS-X4712-SFP-E unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is installed into a compatible chassis slot, where it works alongside the supervisor and line cards to extend the platform’s capabilities.
From a specification standpoint, it offers 12 ports for client, server or uplink connectivity. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include short-reach data-center interconnects, campus backbone fiber links, and carrier access and metro networks. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco Catalyst 4500E Series 12-Port GE (SFP)”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the WS-X4712-SFP-E. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Capacity Expansion
Add ports and performance to existing chassis.
Upgrade Path
Modernize aging platforms with compatible modules.
Flexible I/O
Mix copper, fiber and high-speed uplinks.
Buying a Pre-Owned WS-X4712-SFP-E
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
WS-X4712-SFP-E Specifications | |
Port Information | |
Type | E-Series Gigabit Ethernet SFP Line Cards |
Number of Ports | 12 |
Port Speed | 1GbE/100Mbps |
Port Type | Pluggables |
Wire Rate | 1:1 |
Feature | |
Standards | ● Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az ● 1000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, CWDM |
EtherChannel Technology | ● Gigabit EtherChannel: All 1000 Mbps ports ● 10 Gigabit EtherChannel: All 10Gbps ports ● IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports ● Port Aggregation Protocol (PagP): Yes ● Number of ports per tuple: 8 ● EtherChannel and IEEE 802.3ad technology across line cards: Yes |
Physical Dimensions | ● Occupies one slot in the Cisco Catalyst 4500 Series platform ● Dimensions (H x W x D): 1.2 x 14.25 x 10.75 in. (3.0 x 36.2 x 27.3 cm) |
Environmental Conditions | ● Operating temperature: 32° to 104°F (0° to 40°C) ● Storage temperature: -40° to 167°F (-40° to 75°C) ● Relative humidity: 10 to 90%, noncondensing ● Operating altitude: -60 to 3000m |
Safety Conditions | Fiber optic lasers: Class 1 laser products |
Safety Certifications | ● UL 1950 ● EN 60950 ● CSA-C22.2 no 950 ● IEC 950 ● IEC 60950-1, 2nd Ed. EN 60950-1, 2nd Ed. UL 60950-1, 2nd Ed. CAN/CSA-C22.2 No. 60950-1 2nd Ed.11 |
Electromagnetic Emissions Certifications | ● FCC 15J Class A ● VCCI Class A ● CE Marking ● EN 55022 Class A ● EN 55024 Class A ● CISPR 22 Class A ● AS/NZ 3548 ● NEBS Level 3 (GR-1089-CORE, GR-63-CORE) ● ETSI ETS-300386-2 ● EN 50121-4 |
ROHS Compliance | ROHS5 |
Power and MTBF Information | |
Max Rated Power (W) | 45 |
Rated MTBF (Hours) | 1,329,480 |
