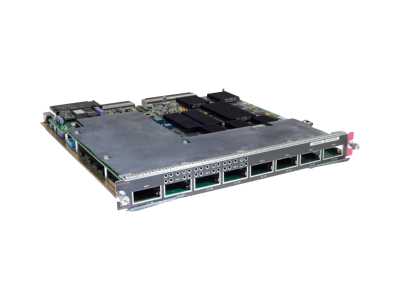

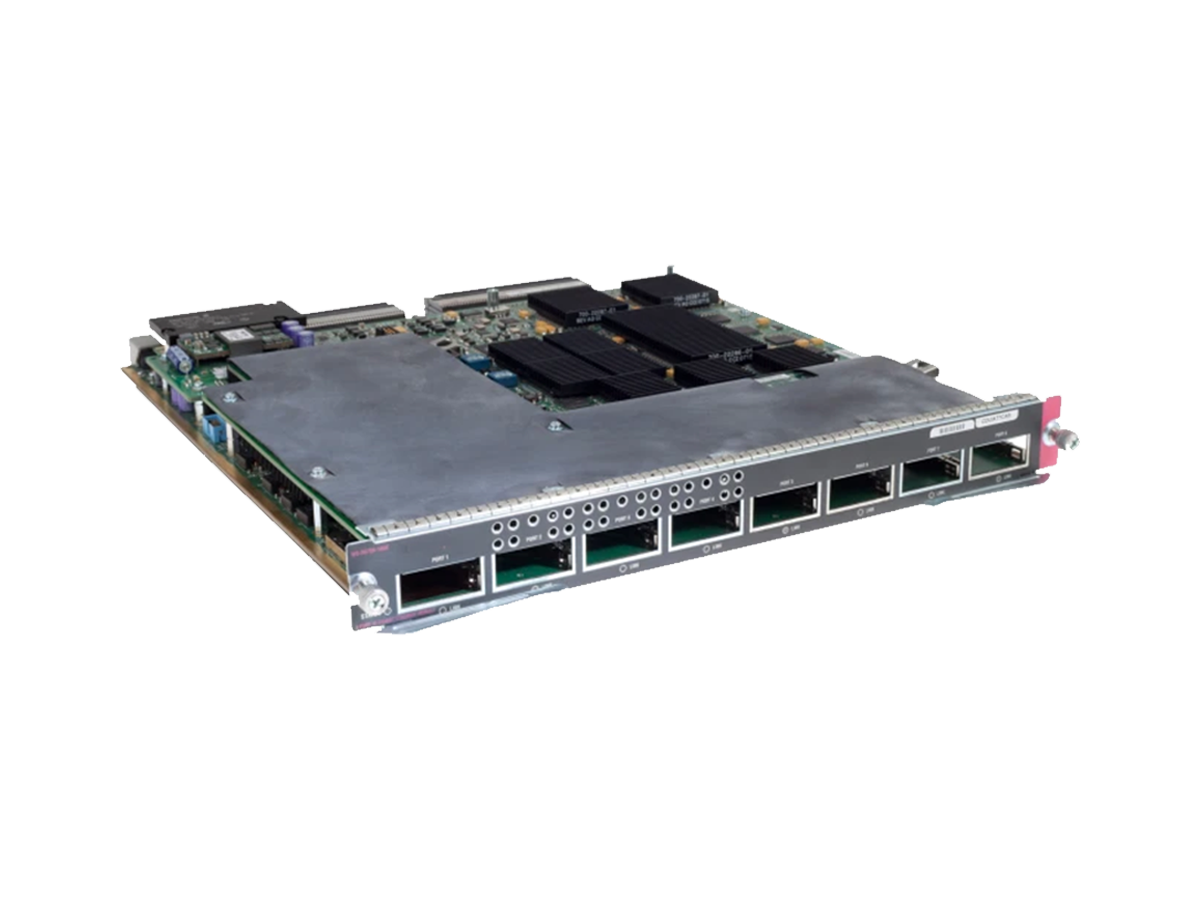

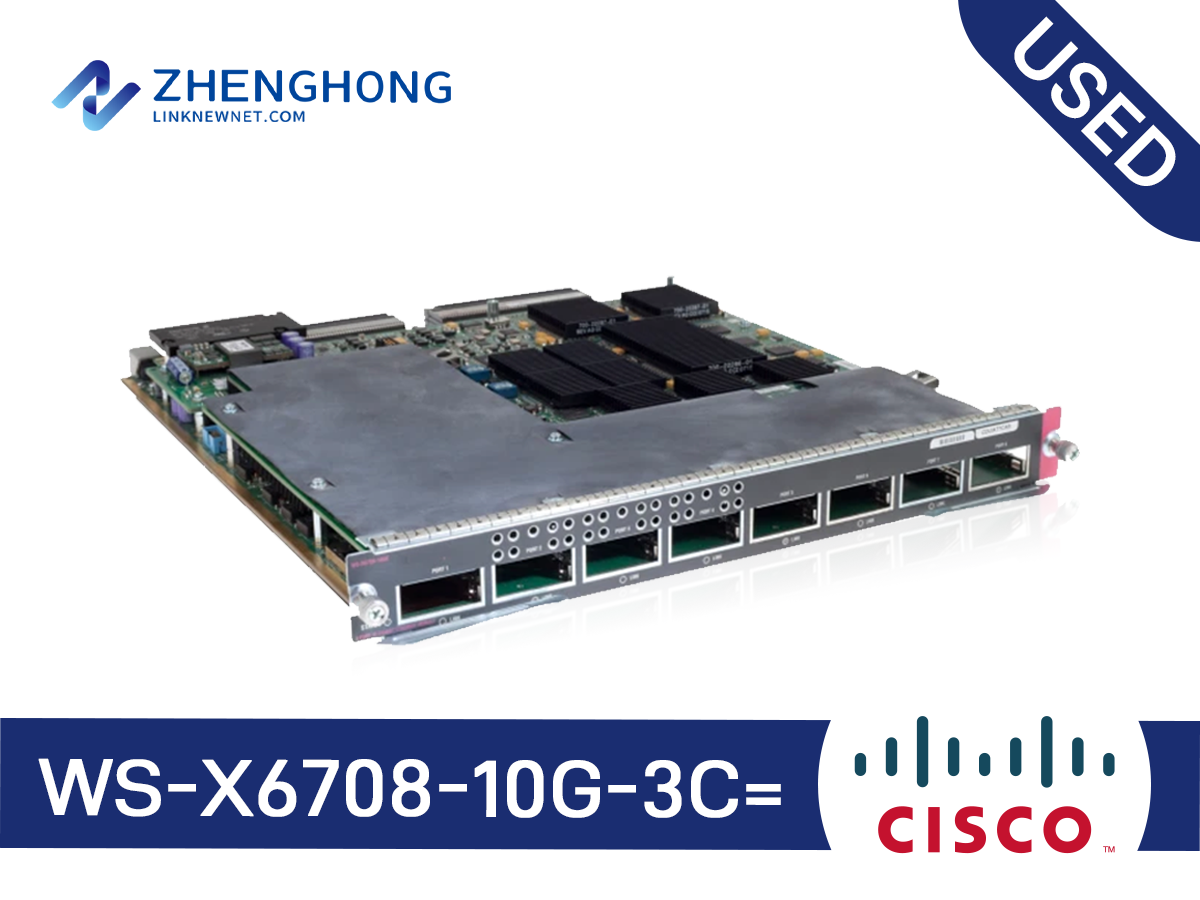

WS-X6708-10G-3C= - Cisco Catalyst 6500 Series Fiber Module Overview
WS-X6708-10G-3C= - Cisco Catalyst 6500 Series Fiber Module is a genuine modular capacity expansion product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco Catalyst 6500 Series family, the WS-X6708-10G-3C= unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is installed into a compatible chassis slot, where it works alongside the supervisor and line cards to extend the platform’s capabilities.
This unit follows the original factory specification for the Cisco Catalyst 6500 Series family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include adding ports and performance to existing chassis systems, modernizing legacy platforms with compatible line cards, and mixing copper, fiber and high-speed uplinks in one chassis. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco 7600 Ethernet Module / Catalyst 6500 8 port 10 Gigabit Ethernet module with DFC3C (req. X2)”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the WS-X6708-10G-3C=. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Capacity Expansion
Add ports and performance to existing chassis.
Upgrade Path
Modernize aging platforms with compatible modules.
Flexible I/O
Mix copper, fiber and high-speed uplinks.
Buying a Pre-Owned WS-X6708-10G-3C=
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
Cisco Catalyst 6500 Series 10 Gigabit Ethernet modules Specifications | |
Standard protocols | IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, and IEEE 802.3an |
Physical specifications | ● Occupies one slot in the Cisco Catalyst 6500 Series chassis or Cisco 7600 Series chassis ● Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm) ● Weight: ◦ Cisco Catalyst 6708 and 6716: 13 pounds excluding X2 components; ¼ pound for each X2 ◦ Cisco Catalyst 6704: 10 pounds excluding XENPAK and DFC components; 2/3 pound for each XENPAK |
Environmental conditions | Operating temperature: ● Agency-certified for operation: 32 to 104°F (0 to 40°C) ● Design and tested for operation 32 to 130°F (0 to 55°C) ● Storage temperature: –40 to 167°F (–40 to 75°C) ● Relative humidity: 10 to 90 percent, noncondensing Operating altitude: ● Agency-certified for operation: –500 to 6500 ft (–150 to 2000m) ● Designed and tested for operation –500 to 10000 ft (–150 to 3000m) |
Regulatory compliance | Cisco Catalyst 6500 Series 10 Gigabit Ethernet modules, when installed in a system, comply with the following EMC and safety standards: EMC Standards: ● FCC Part 15 (CFR 47) Class A ● ICES-003 Class A ● VCCI Class A ● EN55022 Class A ● EN55024 ● CISPR24 ● CISPR 22 Class A ● AS/NZS CISPR 22 Class A ● ETS 300 386 ● KN 22 Class A ● EN 50082-1 ● EN61000-3-2 ● EN61000-3-3 ● EN61000-6-1 ● CNS13438 Class A ● KN6100 -4 Series Safety Standards: ● UL 60950-1 ● CAN/CSA C22.2 No. 60950 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950-1 ● IEC 60825 Class 1 ● EN 60825 Class 1 ● 21CFR 1040 |
ETSI | ● ETS 300 019-2-1, Class 1.1 Storage ● ETS 300 019-2-2, Class 2.1 and 2.2 Transportation ● ETS 300 019-2-3, Class 3.1E Stationary Use |
Network management | ● ETHERLIKE-MIB (RFC 1643) ● IF-MIB (RFC 1573) ● Bridge MIB (RFC 1493) ● CISCO-STACK-MIB ● CISCO-VTP-MIB ● CISCO-CDP-MIB ● RMON MIB (RFC 1757) ● CISCO-PAGP-MIB ● CISCO-STP-EXTENSIONS-MIB ● CISCO-VLAN-BRIDGE-MIB ● CISCO-VLAN-MEMBERSHIP-MIB ● ENTITY-MIB (RFC 2037) ● HC-RMON ● RFC1213-MIB (MIB-II) ● SMON-MIB |
Power requirements | ● WS-X6716-10T-3C: 509.3W (12.1A @ 42V) ● WS-X6716-10T-3CXL: 538.7W (12.8A @ 42V) ● WS-X6716-10G-3C: 457.8W (10.9A @ 42V) ● WS-X6716-10G-3CXL: 487.2W (11.6A @ 42V) ● WS-X6708-10G-3C: 444.36W (10.58A @ 42v) ● WS-X6708-10G-3CXL: 473.76w (11.28A @ 42V) ● WS-X6704-10GE with DFC3CXL: 362.46W (8.63A @ 42V) ● WS-X6704-10GE with DFC3C: 333.06W (7.93A @ 42V) ● WS-X6704-10GE with DFC3BXL: 402.36W (9.58A @ 42V) ● WS-X6704-10GE with DFC3B: 377.16W (8.98A @ 42V) ● WS-X6704-10GE with DFC3A: 389.76W (9.28A @ 42V) ● WS-X6704-10GE with CFC: 295.26W (7.03A @ 42V) |
NEBS criteria levels | SR-3580 Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4) |
Indicators | ● Status: green (operational), red (faulty), and orange (module booting) ● Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected) |
WS-X6708-10G-3C= - Product Notes
This listing is a specific SKU variant of the WS-X6708-10G-3C= family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
WS-X6708-10G-3C= - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco module/line card expands the capability of a chassis platform, adding interface density, forwarding capacity, or service features. It is installed in a matching chassis slot and managed as part of the parent platform.
Deployment guidance: When planning this WS-X6708-10G-3C= unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: 76-ES+XC-20G3C, 7600-ES20-10G3C, RSP720-3CXL-10GE, SPA-1X10GE-L-V2, 7600-ES20-GE3C. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
