Data Center Network Optimization: Key Differences Between Access Ports and Trunk Ports & Highlights of the Nexus C3232C

Jul 09 , 2026 6

Data Center Network Optimization: Access Port vs. Trunk Port Differentiation Points & Nexus 3232C Highlights

Common Network Optimization Issues

Recently, while optimizing data center networks for clients, I found that many people confuse Access ports with Trunk ports, leading to recurring issues such as VLAN isolation errors and broadcast storms. Often, a lack of understanding of these basics makes troubleshooting very difficult.

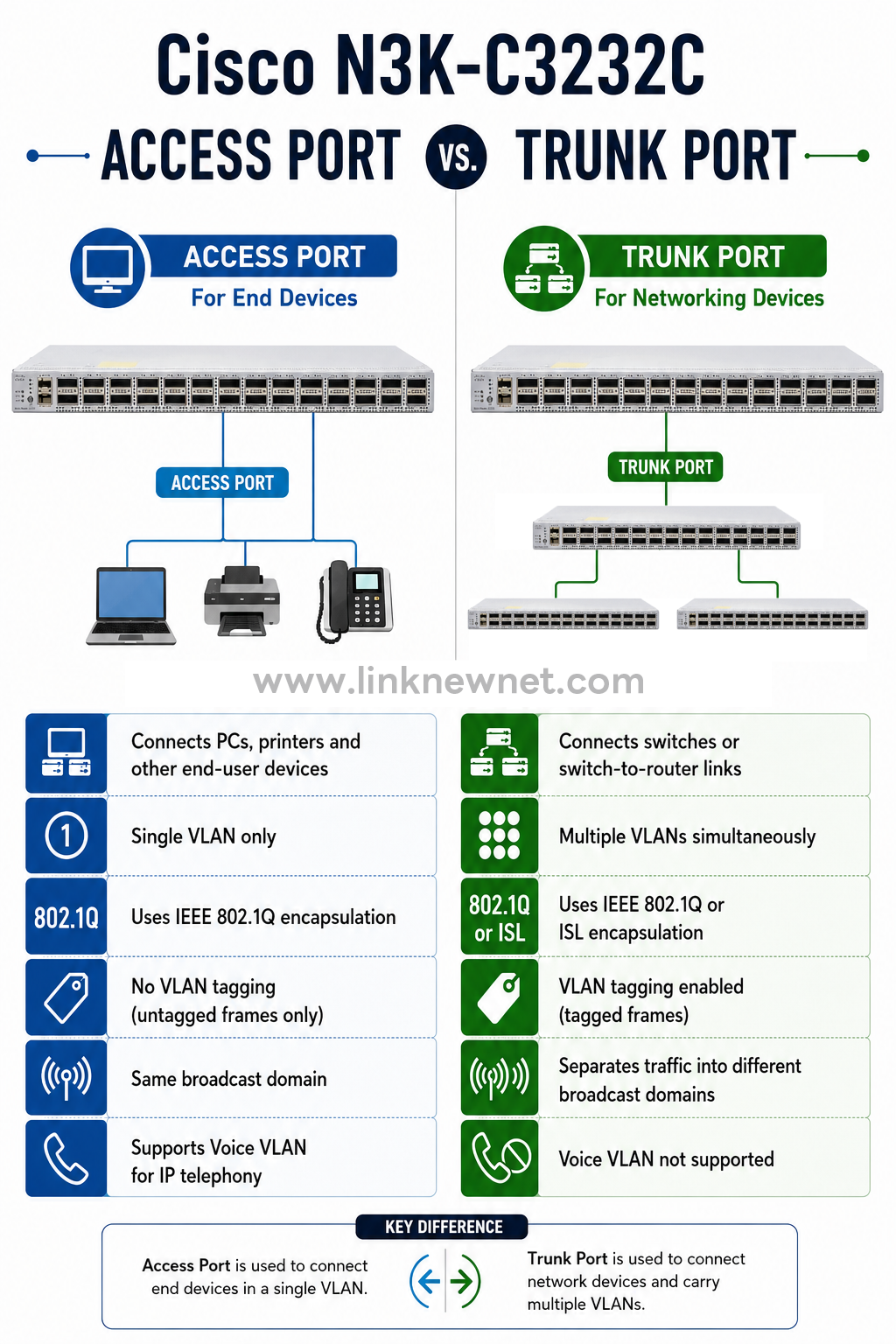

[2†embed_image] As a network engineer, this classic comparison image reminds me of the pitfalls I encountered when I first started out. Today, I'll share it with you, and also discuss the Cisco Nexus 3232C (N3K-C3232C) switch I've been using in a recent project. This high-density data center switch performs excellently in high-traffic scenarios. Below, we'll introduce some of its highlights based on official specifications.

Access Port vs Trunk Port Explained (Core Value)

 Purpose/Scenario: Access ports are typically used to connect terminal devices (PCs, printers, IP phones, etc.) and belong to a single VLAN [1†L17-L22]; Trunk ports are used for connections between switches or between a switch and a router, and can transmit traffic from multiple VLANs simultaneously [1†L17-L22][3†L33-L36].

 VLAN & Tagging: Access ports can only be configured with one VLAN [1†L17-L22] and transmit untagged frames; Trunk ports can carry multiple VLANs [1†L17-L22] and use IEEE 802.1Q tags to mark VLAN information in the frame header [3†L33-L36]. This way, when multiple VLAN traffic shares a link, the switch knows which VLAN a received frame belongs to.

• Voice VLAN: Access ports can be configured with dedicated voice VLANs, allowing IP phones connected to the same port to prioritize voice traffic [6†L11-L15]; Trunk ports do not support voice VLAN configuration [6†L11-L15], as voice VLANs are typically only enabled on the access point where the terminal is connected.

• Broadcast Domain: The VLAN of an Access port constitutes a broadcast domain, isolating broadcasts between different Access ports; Trunk ports span multiple VLANs, serving as a connection channel between multiple broadcast domains (requires VLAN policy usage).

• Engineering Tip: Using the `switchport trunk allowed vlan ...` command on a Trunk port to restrict the list of allowed VLANs can prevent broadcast storms and security risks from unrelated VLANs [10†L207-L214]; using the `switchport voice vlan <VLAN number>` command on an Access port to quickly configure a voice VLAN can also simplify IP phone deployment.

Cisco Nexus 3232C (N3K-C3232C) Highlights

 High Density and High Performance: The Cisco Nexus 3232C is a 1U compact switch with 32 QSFP28 ports on the front panel. Each port natively supports 100G Ethernet and can be split into 4×25G modes, supporting a maximum of 128 25G ports [26†L232-L238][26†L158-L161]. This switch provides line-speed L2/L3 forwarding, a switching capacity of up to 6.4Tbps, a forwarding performance of up to 330 million PPS [26†L147-L150], and an end-to-end hardware latency of only about 450ns [22†L494-L500], making it ideal for high-bandwidth, low-latency scenarios.

High flexibility: Each QSFP28 port can be flexibly configured in 4×25G mode to adapt to the access requirements of devices with different speeds [26†L158-L161]. It also supports various 10G/25G/40G/50G/100G fiber optic and copper cabling modules (including direct-connect copper and fiber optic cables) [26†L232-L238], ensuring compatibility with existing cabling in both rack-mount and ToR (Toll-of-Residence) designs.

• Data Center Friendly: Supports network virtualization features such as VXLAN (requires a compatible NX-OS version) [20†L537-L540], facilitating tenant-level network isolation; supports vPC (Virtual Port Channel), enabling redundant aggregation between two switches, eliminating STP congestion, and achieving full-bandwidth active-active [26†L169-L172]; built-in 16MB shared buffer [22†L502-L504], mitigating sudden traffic surges; powerful programmable interfaces (supporting NX-API, Python, Puppet/Chef, etc.) make automated operation and maintenance and script management easier [26†L150-L153].

• Reliable and Easy to Maintain: Utilizing dual redundant power supplies and redundant fans [26†L220-L223], it boasts high hardware reliability. Running the stable and mature NX-OS operating system, it supports POAP zero-contact automatic deployment [26†L186-L190], and features a built-in EEM event manager and Python scripts, significantly improving automated management and fault handling efficiency [26†L186-L190].

Personal Opinion and Scenario Recommendation: In my opinion, the N3K-C3232C is particularly suitable for environments requiring high bandwidth aggregation while maintaining flexibility. It saves more rack space and power consumption than older equipment and is easier to manage: in the same rack space, 32×100G ports can aggregate more traffic with significantly improved throughput, while maintaining stable operation and powerful functionality—a true "high-density" upgrade. Compared to older equipment, the new platform is superior in both performance and energy efficiency, bringing significant advantages to large-scale data center network construction.

Typical application scenarios include the core/aggregation layer of data centers, ToR switches in leaf-spine architectures, and bandwidth-sensitive storage networks. In these situations, high-volume, high-speed interconnection is a key requirement. The N3K-C3232C provides ample bandwidth and maintains compatibility with devices of different speeds through QSFP splitting. Specific deployment should be determined based on the actual network topology and business needs. For example, in scenarios involving financial transactions, cloud computing, video-on-demand, and big data analytics, where a large amount of east-west traffic is required, using this switch for top-of-rack or aggregation is very suitable. Of course, for general office networks or environments with fewer terminals, a more economical switch model can be chosen.
