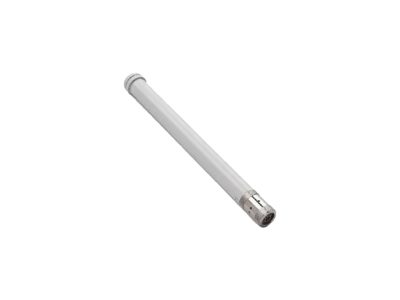

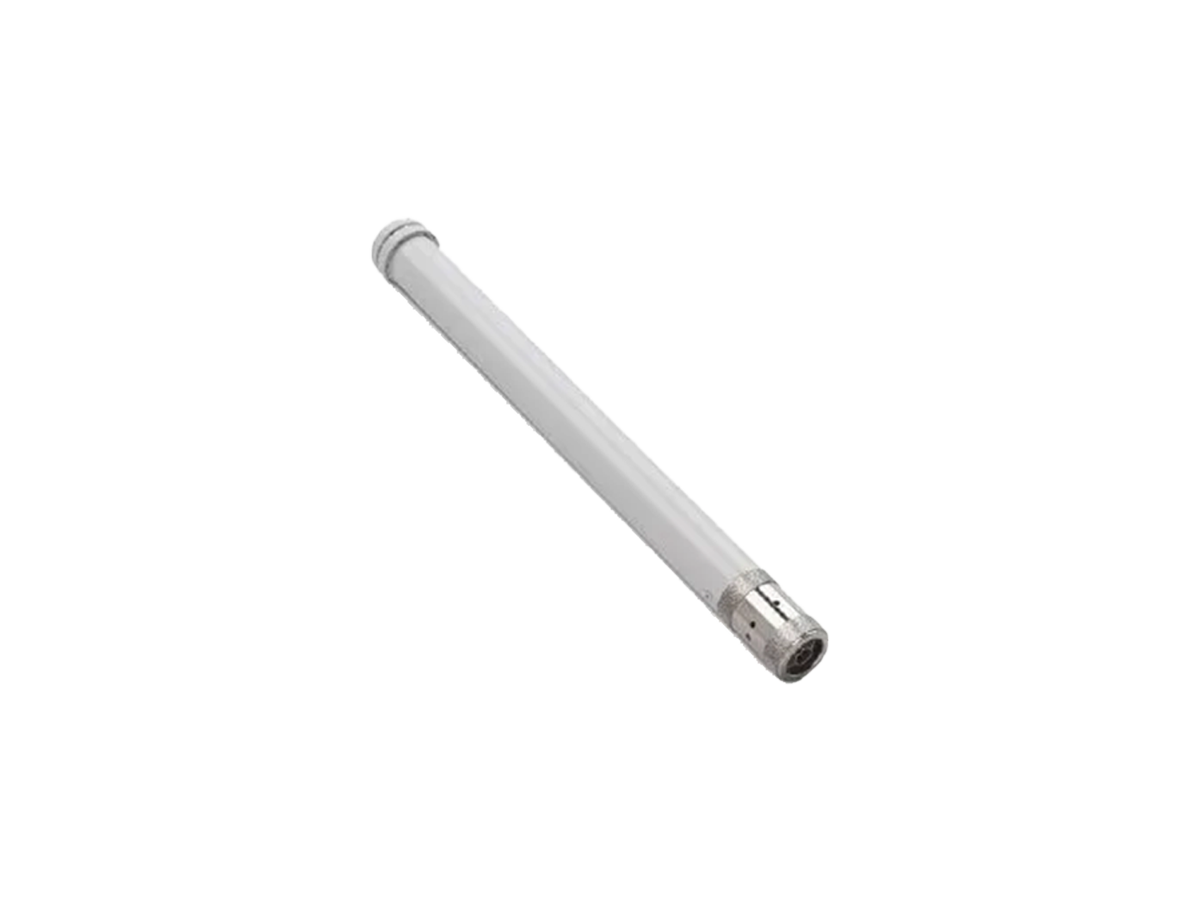

AIR-ANT2450V-N|LinkNewNet

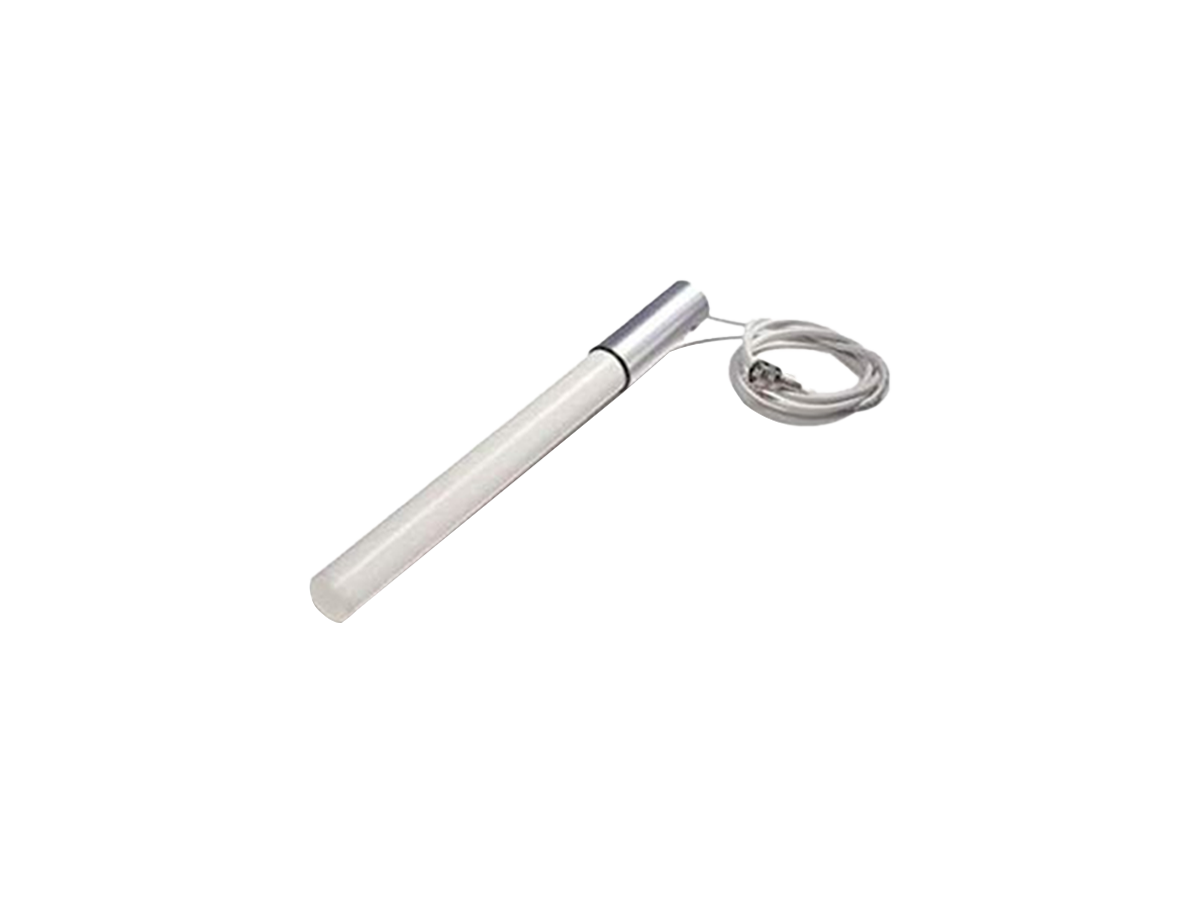

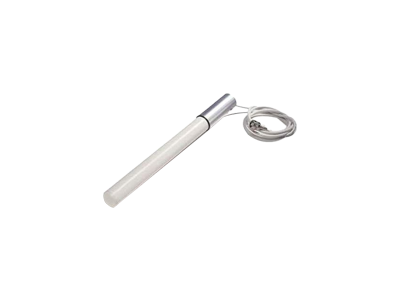

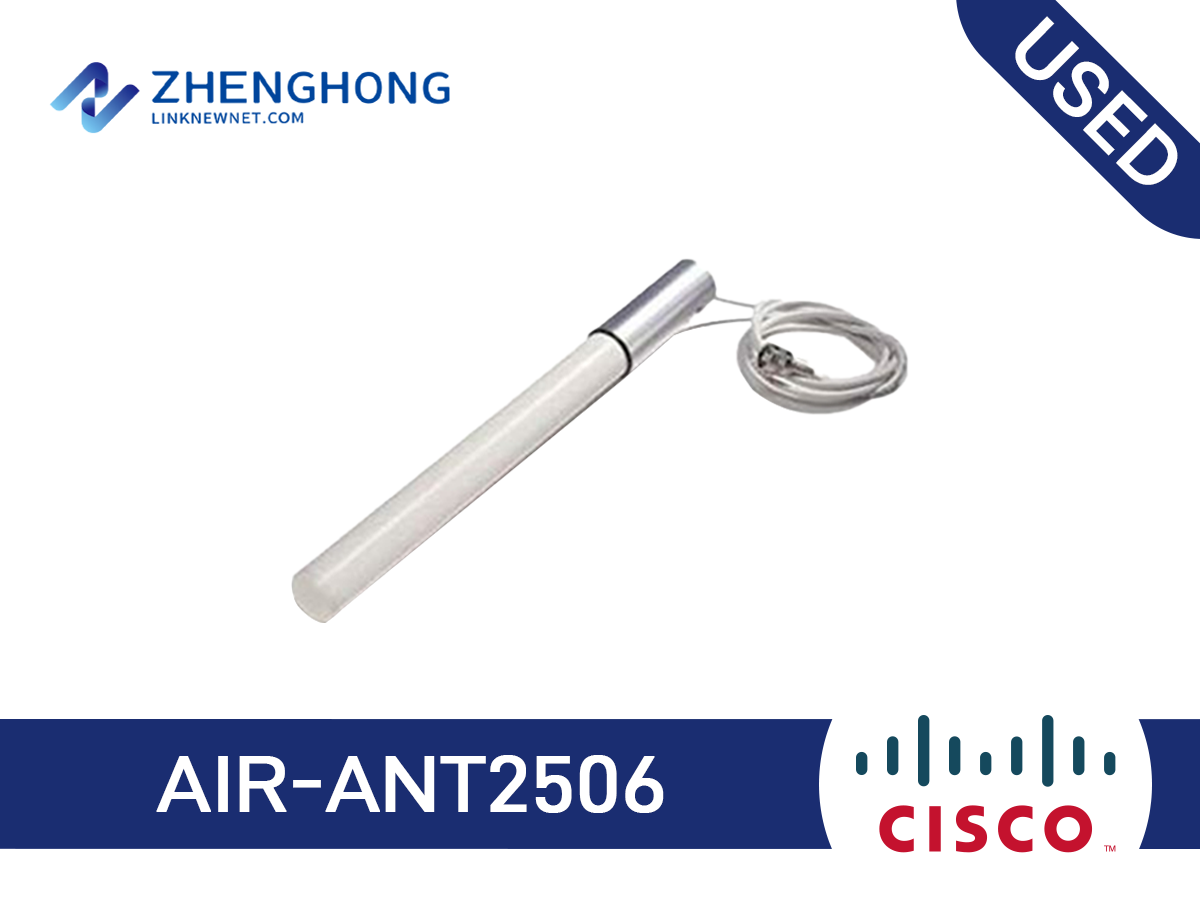

AIR-ANT2506 Cisco Antenna 2.4 GHz

Model: AIR-ANT2506

Detail: 2.4 GHz, 5.2 dBi Mast Mount Omni Antenna w/RP-TNC Connector

Condition: USED

List Price: $89 Price: $53

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-ANT2506 Specifications
Antenna type	Dipole
Operating frequency range	2.4- to 2.84-GHz
Environment	Indoor/outdoor
Nominal input impedance	50 Ohms
VSWR	Less than 2:1, 1.5:1 nominal
Gain	5.2 dBi
Polarization	Linear, vertical
E-Plane (3dB bandwidth)	36 degrees
H-Plane (3dB bandwidth)	Omnidirectional
Cable length and type	3 ft. (0.91 m) RG-58
Dimensions (H x W)	11.5 in x 1.125 in. (29.2 cm x 2.8 cm)
Mounting	Mast, 2 in (5.08 cm) maximum
Operating temperature range	-30° to 70° C (-22° to 158° F)

Q&A

What are the common troubleshooting steps for AIR-ANT2506?

Check cable connections, ensure compatibility with wireless devices, and verify the antenna's positioning for optimal performance.

What accessories are available for AIR-ANT2506?

Accessories include mounting brackets, coaxial cables, and RP-TNC connectors to facilitate installation.

How does AIR-ANT2506 compare with other similar products?

The AIR-ANT2506 offers a balanced combination of frequency and gain, making it competitive compared to other 2.4 GHz outdoor antennas.

What type of connector does the AIR-ANT2506 use?

The AIR-ANT2506 uses an RP-TNC connector, ensuring compatibility with a wide range of Cisco wireless devices.

How does the AIR-ANT2506 compare in cost-effectiveness to other 2.4 GHz omni antennas?

The AIR-ANT2506 offers competitive pricing with high-quality performance and durability, making it a cost-effective choice for extending wireless coverage.

What are the key characteristics of the AIR-ANT2506?

Key features include a 5.2 dBi gain for improved signal range, mast mount capability for elevated placement, and an RP-TNC connector for compatibility with various devices.

Can the AIR-ANT2506 be used for outdoor applications?

Yes, its durable construction and mast mount capability make the AIR-ANT2506 suitable for outdoor use, extending wireless coverage in various environments.

How do I install the AIR-ANT2506 on a mast?

Installation involves securing the antenna to a mast using the included mounting hardware and connecting it to your device via the RP-TNC connector.

Does the AIR-ANT2506 require regular maintenance?

Minimal maintenance is required, but regular checks for physical damage and ensuring secure connections can prolong its lifespan.

Are there any direct alternatives to the AIR-ANT2506?

Comparable alternatives may include other 2.4 GHz omni-directional antennas with similar gain and connector types, but the AIR-ANT2506 is uniquely designed for Cisco products.

What troubleshooting tips are there for the AIR-ANT2506 if it's not performing optimally?

Ensure the antenna is properly mounted and oriented, check for any physical obstructions, and verify that the connection to the device is secure.

What accessories are available for the AIR-ANT2506?

Accessories include mounting kits for various installation scenarios and extension cables to facilitate optimal positioning.

How does the AIR-ANT2506 perform in high-interference areas?

Its 5.2 dBi gain helps improve signal quality and range, even in environments with high RF interference, making it a versatile solution for challenging deployments.

Can I use the AIR-ANT2506 with non-Cisco equipment?

While designed for Cisco products, the RP-TNC connector makes it compatible with a wide range of devices, allowing for flexible deployment scenarios.

Is AIR-ANT2506 cost-effective for system integrators?

Yes, the AIR-ANT2506 provides high performance at a reasonable price, making it a cost-effective choice for system integrators.

What are the key features of the AIR-ANT2506?

The AIR-ANT2506 features a 2.4 GHz frequency, 5.2 dBi gain, and RP-TNC connector, ensuring reliable wireless coverage.

What are the typical application scenarios for AIR-ANT2506?

The AIR-ANT2506 is ideal for outdoor wireless networks, providing stable coverage for outdoor environments.

How do I install the AIR-ANT2506 omni antenna?

The AIR-ANT2506 is mast mountable and includes all necessary hardware for a straightforward installation process.

Does the AIR-ANT2506 require regular upgrades?

No, the AIR-ANT2506 does not require frequent upgrades; however, ensure firmware updates for connected devices.

Are there any alternative products to the AIR-ANT2506?

Yes, alternatives include other Cisco antennas with different gains and specifications, like the AIR-ANT24120.

What are the common troubleshooting steps for AIR-ANT2506?

Check cable connections, ensure compatibility with wireless devices, and verify the antenna's positioning for optimal performance.

What accessories are available for AIR-ANT2506?

Accessories include mounting brackets, coaxial cables, and RP-TNC connectors to facilitate installation.

How does AIR-ANT2506 compare with other similar products?

The AIR-ANT2506 offers a balanced combination of frequency and gain, making it competitive compared to other 2.4 GHz outdoor antennas.

What type of connector does the AIR-ANT2506 use?

The AIR-ANT2506 uses an RP-TNC connector, ensuring compatibility with a wide range of Cisco wireless devices.
