AIR-AP1852E-F-K9|LinkNewNet

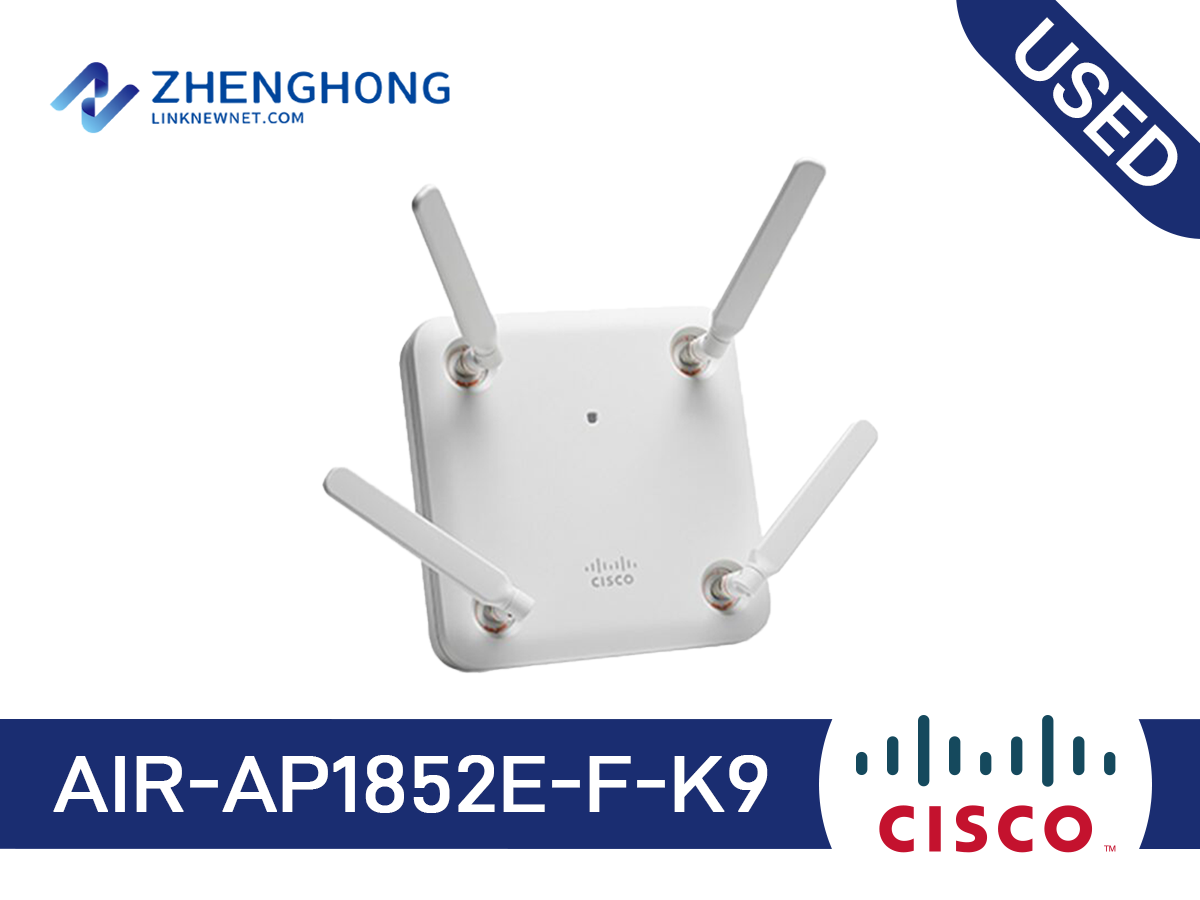

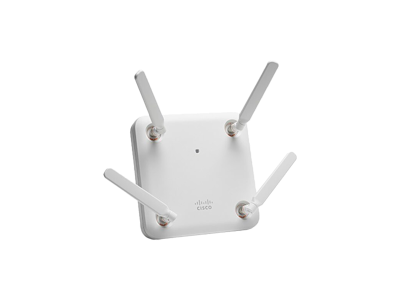

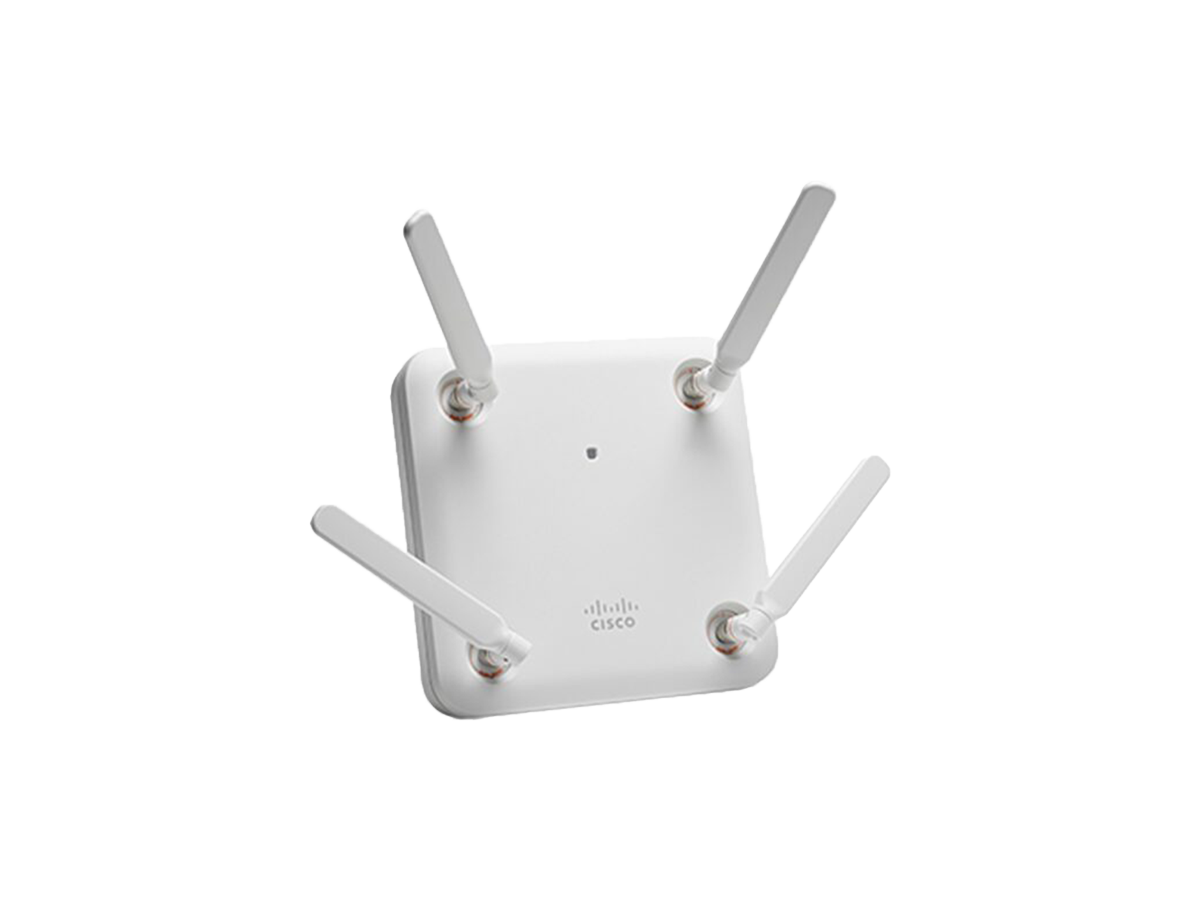

Cisco Aironet 1852E Access Point - AIR-AP1852E-F-K9

Model: AIR-AP1852E-F-K9

Detail: 802.11ac Wave 2 Access Point, 4x4:4, External-Ant, F Regulatory Domain

Condition: USED

List Price: $1027 Price: $616

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-AP1852E-F-K9 Specification
Description	802.11ac Wave 2 Access Point, 4x4:4, External-Ant, F Regulatory Domain
Software	Cisco Unified Wireless Network Software Release with AireOS wireless controllers: 8.1 MR1 or later for the Cisco Aironet 1850 Series Access Points
Regulatory Domain	F (F regulatory domain): - 2.412 to 2.472 GHz; 3 channels - 5.745 to 5.825 GHz; 4 channels
Deployment modes	Centralized local, Standalone, Sniffer, Cisco FlexConnect, Monitor, OfficeExtend, Mesh
Supported wireless LAN controllers	Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 5760 Series Wireless Controllers, Cisco Catalyst 3650/3850 Series switch with integrated controller Cisco Mobility Express
802.11n version 2.0 (and related) capabilities	4x4 MIMO with four spatial streams Maximal ratio combining (MRC) 20- and 40-MHz channels PHY data rates up to 600 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support
802.11ac Wave 1 and 2 capabilities	4x4 MIMO with four spatial streams, single-user MIMO 4x4 MIMO with three spatial streams, multiuser MIMO MRC 802.11ac beamforming (transmit beamforming) 20-, 40-, and 80-MHz channels PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support Rogue device detection
External antenna (sold separately)	Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Interfaces	1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation) Management console port (RJ-45) USB 2.0 (enabled via future software)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
Weight	3.12 lb (1.41 kg)
Environmental	Cisco Aironet 1850e Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: -4° to 122°F (-20° to 50°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft.
System memory	1 GB DRAM 256 MB Flash
Input power requirements	AP1850: 44 to 57 VDC Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz
Power draw	20.9W Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable.
Powering options	802.3at Enhanced PoE Cisco power injector, AIR-PWRINJ4= Cisco local power supply, AIR-PWR-C= Cisco power injector, AIR-PWRINJ5= (Note: this injector supports 802.3af only) 802.3af Note: If 802.3af PoE is the source of power, (1) the 1852e 2.4-GHz radio will shift to 2x3 from 3x4, (2) The USB port and AUX Ethernet port are disabled on both the 1852i and 1852e.
Warranty	Limited lifetime hardware warranty

Q&A

What common troubleshooting tips exist for AIR-AP1852E-F-K9?

Ensure firmware is up-to-date, verify network configurations, and check the physical connections and external antennas for any issues.

What accessories are available for the AIR-AP1852E-F-K9?

Accessories include different types of external antennas, mounting kits, and compatible power injectors and adapters.

How does the AIR-AP1852E-F-K9 compare to similar models?

Compared to the AIR-AP1832I-B-K9, the AIR-AP1852E-F-K9 supports more spatial streams (4x4:4) and is equipped with external antennas for better coverage flexibility.

Can the AIR-AP1852E-F-K9 be used in outdoor settings?

No, the AIR-AP1852E-F-K9 is designed for indoor use only; outdoor models are available for external environments.

What is the difference between Cisco APs and Aruba APs?

These two brands of APs focus on different areas.

There are so many APs in the market, how can I select?

Consider your budget, and what you need AP to do.

What is the difference between Huawei wireless and Cisco wireless?

These two brands of wireless products focus on different areas.

What makes the AIR-AP1852E-F-K9 access point cost-effective?

The AIR-AP1852E-F-K9 offers high-performance 802.11ac Wave 2 technology, providing robust connectivity and improved network efficiency at a competitive price.

What are the main features of the AIR-AP1852E-F-K9?

The AIR-AP1852E-F-K9 features 4x4 MU-MIMO, external antennas, and is designed for the F regulatory domain, ensuring high-speed wireless connectivity.

What is a suitable application scenario for AIR-AP1852E-F-K9?

Ideal for high-density environments like schools, offices, and retail spaces that require reliable and fast Wi-Fi coverage.

How do you install the AIR-AP1852E-F-K9 access point?

The AIR-AP1852E-F-K9 can be ceiling or wall-mounted using the provided mounting hardware, ensuring optimal coverage.

Does the AIR-AP1852E-F-K9 require software upgrades?

Yes, periodic software updates for the AIR-AP1852E-F-K9 ensure it remains secure and functional with the latest features and security patches.

Are there alternative products to AIR-AP1852E-F-K9?

Alternatives include the Cisco AIR-AP1852I-E-K9, which has internal antennas, or the AIR-AP2802E-E-K9 for higher performance needs.
