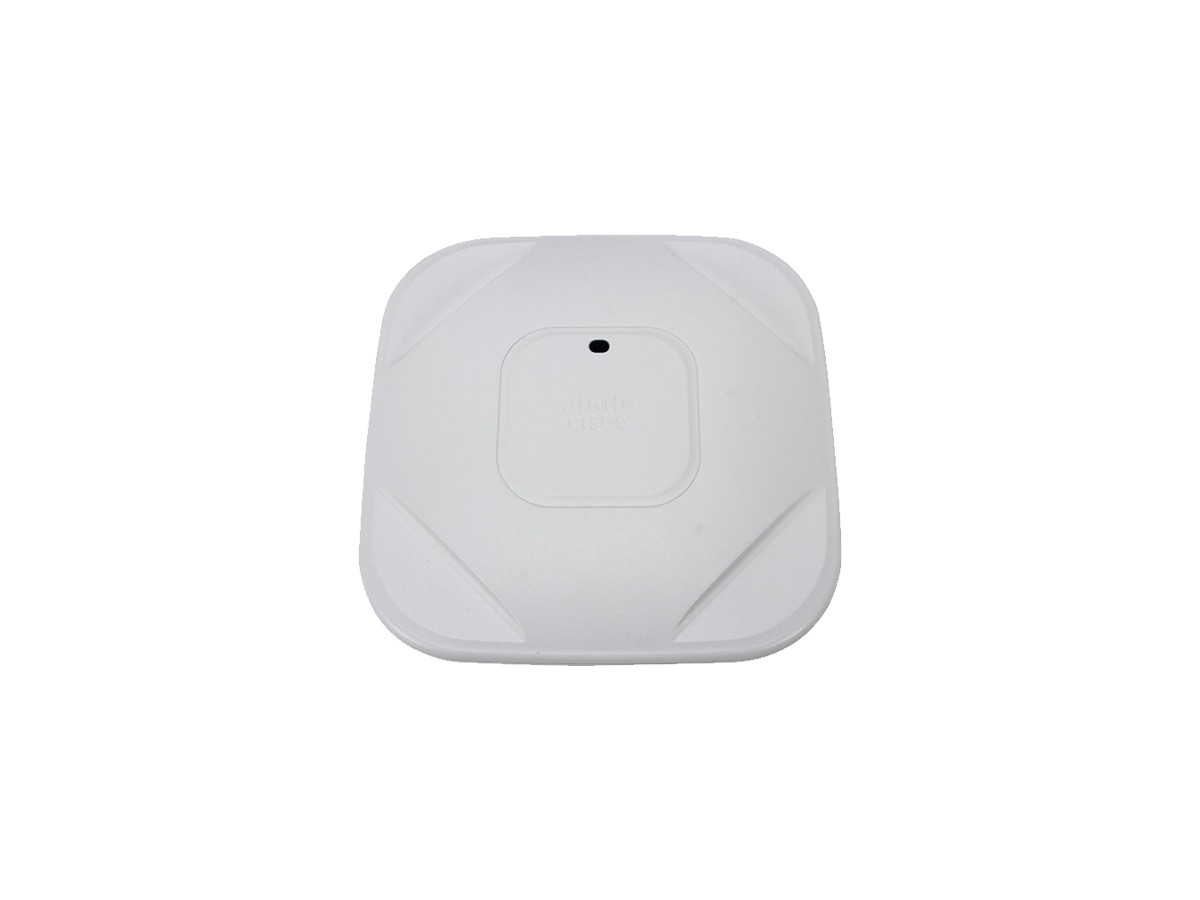

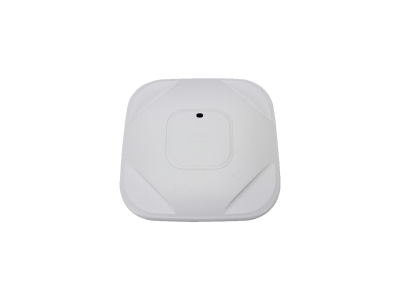

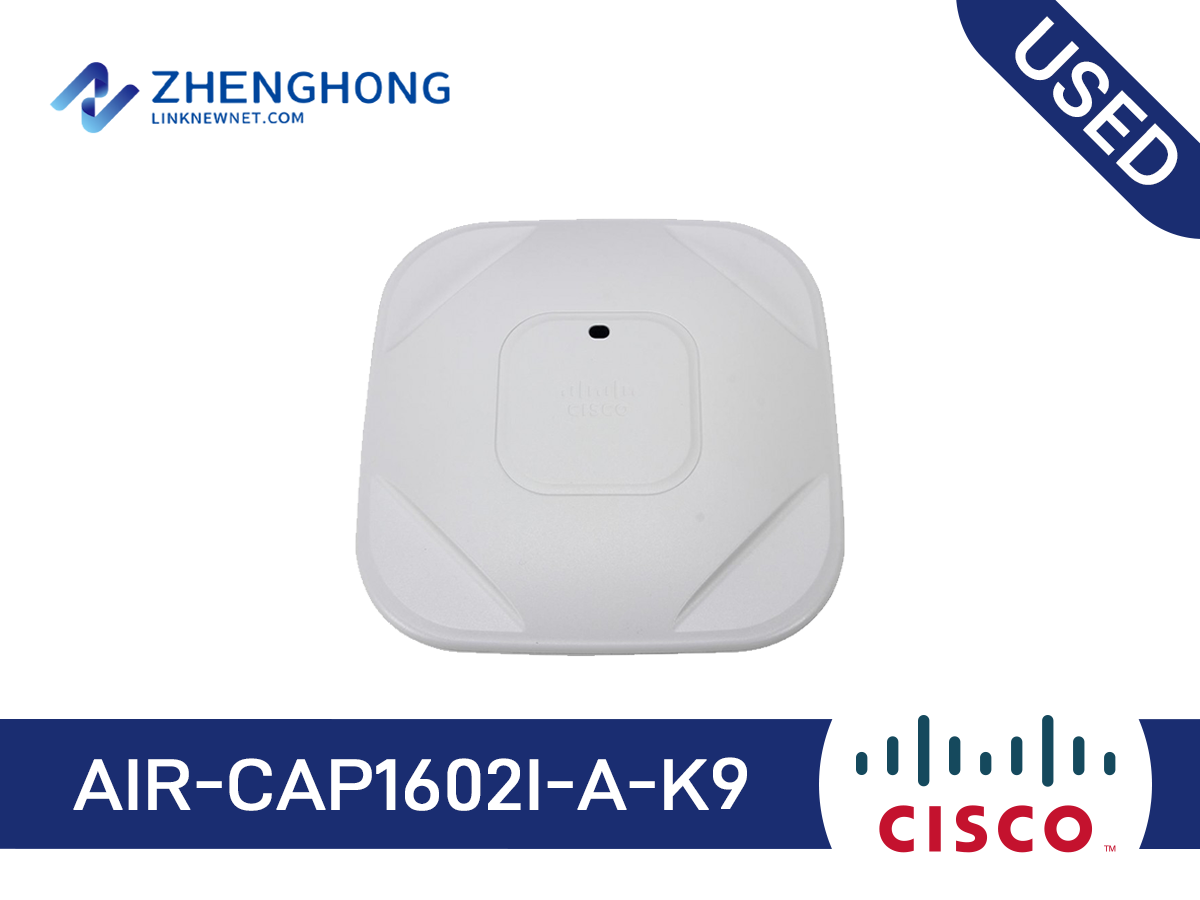

AIR-CAP1602I-A-K9 (USED) AIR-CAP1602I-A-K9 Cisco Aironet Overview
AIR-CAP1602I-A-K9 (USED) AIR-CAP1602I-A-K9 Cisco Aironet is a genuine wireless coverage and secure client access product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco family, the AIR-CAP1602I-A-K9 (USED) unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
This unit follows the original factory specification for the Cisco family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include high-density wireless for offices and halls, branch and remote-site Wi-Fi coverage, and guest networks and IoT onboarding. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “802.11a/g/n Ctrlr-based AP, Int Ant, A Reg Domain”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the AIR-CAP1602I-A-K9 (USED). We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Campus Coverage
High-density wireless for offices and halls.
Branch Wi-Fi
Cost-effective coverage for remote sites.
Guest & IoT
Isolated guest networks and IoT onboarding.
Buying a Pre-Owned AIR-CAP1602I-A-K9 (USED)
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
AIR-CAP1602I-A-K9 Specifications | ||||||||||
Type | 802.11a/g/n Ctrlr-based AP, Integrated Antenna, A Reg Domain, AP controller needed | |||||||||
Software | ● Cisco Unified Wireless Network Software (available in Q4CY12) ● Cisco IOS® Software Release(available in Q4CY12) | |||||||||
802.11n | ● 3 x 3 multiple-input multiple-output (MIMO) with two spatial streams ● Maximal ratio combining (MRC) ● 20- and 40-MHz channels ● PHY data rates up to 300 Mbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 dynamic frequency selection (DFS) (Bin 5) ● Cyclic shift diversity (CSD) support | |||||||||
Data Rates Supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps | |||||||||
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps | ||||||||||
802.11n data rates (2.4 GHz and 5 GHz): | ||||||||||
MCS Index | GI= 800ns | GI = 400ns | ||||||||
20-MHz Rate (Mbps) | 40-MHz Rate (Mbps) | 20-MHz Rate (Mbps) | 40-MHz Rate (Mbps) | |||||||
0 | 6.5 | 13.5 | 7.2 | 15 | ||||||
1 | 13 | 27 | 14.4 | 30 | ||||||
2 | 19.5 | 40.5 | 21.7 | 45 | ||||||
3 | 26 | 54 | 28.9 | 60 | ||||||
4 | 39 | 81 | 43.3 | 90 | ||||||
5 | 52 | 108 | 57.8 | 120 | ||||||
6 | 58.5 | 121.5 | 65 | 135 | ||||||
7 | 65 | 135 | 72.2 | 150 | ||||||
8 | 13 | 27 | 14.4 | 30 | ||||||
9 | 26 | 54 | 28.9 | 60 | ||||||
10 | 39 | 81 | 43.3 | 90 | ||||||
11 | 52 | 108 | 57.8 | 120 | ||||||
12 | 78 | 162 | 86.7 | 180 | ||||||
13 | 104 | 216 | 115.6 | 240 | ||||||
14 | 117 | 243 | 130 | 270 | ||||||
15 | 130 | 270 | 144.4 | 300 | ||||||
Frequency Band and 20-MHz Operating Channels | A Regulatory Domain: ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels | |||||||||
Receive Sensitivity | 2.4 GHz 802.11b -101 dBm @ 1 Mb/s -99 dBm @ 2 Mb/s -92 dBm @ 5.5 Mb/s -89 dBm @ 11 Mb/s | 2.4 GHz 802.11g -93 dBm @ 6 Mb/s -93 dBm @ 9 Mb/s -92 dBm @ 12 Mb/s -90 dBm @ 18 Mb/s -87 dBm @ 24 Mb/s -85 dBm @ 36 Mb/s -80 dBm @ 48 Mb/s -79 dBm @ 54 Mb/s | 5 GHz 802.11a -92 dBm @ 6 Mb/s -91 dBm @ 9 Mb/s -91 dBm @ 12 Mb/s -89 dBm @ 18 Mb/s -86 dBm @ 24 Mb/s -83 dBm @ 36 Mb/s -79 dBm @ 48 Mb/s -78 dBm @ 54 Mb/s | |||||||
| 2.4 GHz 802.11n (HT20) -93 dBm @ MCS0 -91 dBm @ MCS1 -89 dBm @ MCS2 -86 dBm @ MCS3 -83 dBm @ MCS4 -78 dBm @ MCS5 -77 dBm @ MCS6 -76 dBm @ MCS7 -93 dBm @ MCS8 -90 dBm @ MCS9 -88 dBm @ MCS10 -85 dBm @ MCS11 -81 dBm @ MCS12 -77 dBm @ MCS13 -76 dBm @ MCS14 -74 dBm @ MCS15 |
| 5 GHz 802.11n (HT20) -92 dBm @ MCS0 -89 dBm @ MCS1 -88 dBm @ MCS2 -85 dBm @ MCS3 -82 dBm @ MCS4 -77 dBm @ MCS5 -76 dBm @ MCS6 -75 dBm @ MCS7 -91 dBm @ MCS8 -88 dBm @ MCS9 -87 dBm @ MCS10 -84 dBm @ MCS11 -81 dBm @ MCS12 -76 dBm @ MCS13 -75 dBm @ MCS14 -73 dBm @ MCS15 | 5 GHz 802.11n (HT40) -88 dBm @ MCS0 -87 dBm @ MCS1 -85 dBm @ MCS2 -82 dBm @ MCS3 -79 dBm @ MCS4 -74 dBm @ MCS5 -73 dBm @ MCS6 -72 dBm @ MCS7 -88 dBm @ MCS8 -86 dBm @ MCS9 -84 dBm @ MCS10 -81 dBm @ MCS11 -78 dBm @ MCS12 -73 dBm @ MCS13 -72 dBm @ MCS14 -70 dBm @ MCS15 | ||||||
Available Total Transmit Power Settings | 2.4 GHz | 5 GHz | ||||||||
Enabled antennas: | Enabled antennas: | |||||||||
1 | 2 | 3 | 1 | 2 | 3 | |||||
17 dBm 14 dBm 11 dBm 8 dBm 5 dBm 2 dBm | 20 dBm 17 dBm 14 dBm 11 dBm 8 dBm 5 dBm | 22 dBm 19 dBm 16 dBm 13 dBm 10 dBm 7 dBm | 17 dBm 14 dBm 11 dBm 8 dBm 5 dBm 2 dBm | 20 dBm 17 dBm 14 dBm 11 dBm 8 dBm 5 dBm | 22 dBm 19 dBm 16 dBm 13 dBm 10 dBm 7 dBm | |||||
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details. | ||||||||||
Integrated Antenna | ● 2.4 GHz, gain 4.0 dBi, horizontal beamwidth 360° ● 5 GHz, gain 4.0 dBi, horizontal beamwidth 360° | |||||||||
External Antenna (Sold Separately) | ● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) ● Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios | |||||||||
Interfaces | ● 10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45) | |||||||||
Indicators | ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors | |||||||||
Dimensions | ● Access point (without mounting bracket): 8.7 x 8.7 x 1.84 in. (22.1 x 22.1 x 4.7 cm) | |||||||||
Weight | ● 1.9 lbs. (0.86 kg) | |||||||||
Environmental | Cisco Aironet 1600i ● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C) ● Nonoperating (storage) Altitude Test -25°C, 15,000 ft. ● Operating temperature: 32 to 104°F (0 to 40°C) ● Operating humidity: 10 to 90% percent (noncondensing) ● Operating Altitude Test -40°C, 9843 ft. | |||||||||
System Memory | ● 256 MB DRAM ● 32 MB flash | |||||||||
Input Power Requirements | ● AP1600: 44 to 57 VDC ● Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz | |||||||||
Powering Options | ● 802.3af Ethernet Switch ● Cisco AP1600 Power Injectors (AIR-PWRINJ4=, AIR-PWRINJ5=) ● Cisco AP1600 Local Power Supply (AIR-PWR-B=) | |||||||||
Power Draw | ● AP1600: 12.95 W Note: When deployed using PoE, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable. This additional power may be as high as 2.45W, bringing the total system power draw (access point + cabling) to 15.4W. | |||||||||
Warranty | Limited Lifetime Hardware Warranty | |||||||||
Compliance | Standards ● Safety: ◦ UL 60950-1 ◦ CAN/CSA-C22.2 No. 60950-1 ◦ UL 2043 ◦ IEC 60950-1 ◦ EN 60950-1 ● Radio approvals: ◦ FCC Part 15.247, 15.407 ◦ RSS-210 (Canada) ◦ EN 300.328, EN 301.893 (Europe) ◦ ARIB-STD 33 (Japan) ◦ ARIB-STD 66 (Japan) ◦ ARIB-STD T71 (Japan) ◦ AS/NZS 4268.2003 (Australia and New Zealand) ◦ EMI and susceptibility (Class B) ◦ FCC Part 15.107 and 15.109 ◦ ICES-003 (Canada) ◦ VCCI (Japan) ◦ EN 301.489-1 and -17 (Europe) ◦ EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC ● IEEE Standard: ◦ IEEE 802.11a/b/g, IEEE 802.11n, IEEE 802.11h, IEEE 802.11d ● Security: ◦ 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA ◦ 802.1X ◦ Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP) ● EAP Type(s): ◦ Extensible Authentication Protocol-Transport Layer Security (EAP-TLS) ◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ◦ Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST) ◦ PEAPv1 or EAP-Generic Token Card (GTC) ◦ EAP-Subscriber Identity Module (SIM) ● Multimedia: ◦ Wi-Fi Multimedia (WMM ™ ) ● Other: ◦ FCC Bulletin OET-65C ◦ RSS-102 | |||||||||
AIR-CAP1602I-A-K9 (USED) - Variant Notes
This listing is a specific variant of the AIR-CAP1602I-A-K9 (USED) family. Review the specifications above and confirm compatibility with your controller platform and firmware release before ordering.
This SKU is a multi-unit bundle (approximately 160 units), providing an economical option for deploying coverage across multiple floors, offices, or sites at once. Each unit in the bundle shares the same hardware and software baseline as the single-unit SKUs.
When selecting between variants of the AIR-CAP1602I-A-K9 (USED) family, compare the regulatory domain, bundled accessories, and total cost of ownership. For a like-for-like refresh of an existing deployment, match the variant of the units already in service so channel and power settings remain consistent across the network.
AIR-CAP1602I-A-K9 (USED) - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco wireless product delivers Wi-Fi coverage, controller functionality, or antenna solutions for enterprise networks. It integrates with Cisco wireless controllers and DNA Center for centralized management.
Deployment guidance: When planning this AIR-CAP1602I-A-K9 (USED) unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: AIR-SAP1602I-S-K9 (USED), AIR-SAP1602I-EK9-5 (USED), AIR-SAP1602I-KK9-5 (USED), AIR-CAP1602I-C-K9 (USED), AIR-SAP1602I-Q-K9 (USED). Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
