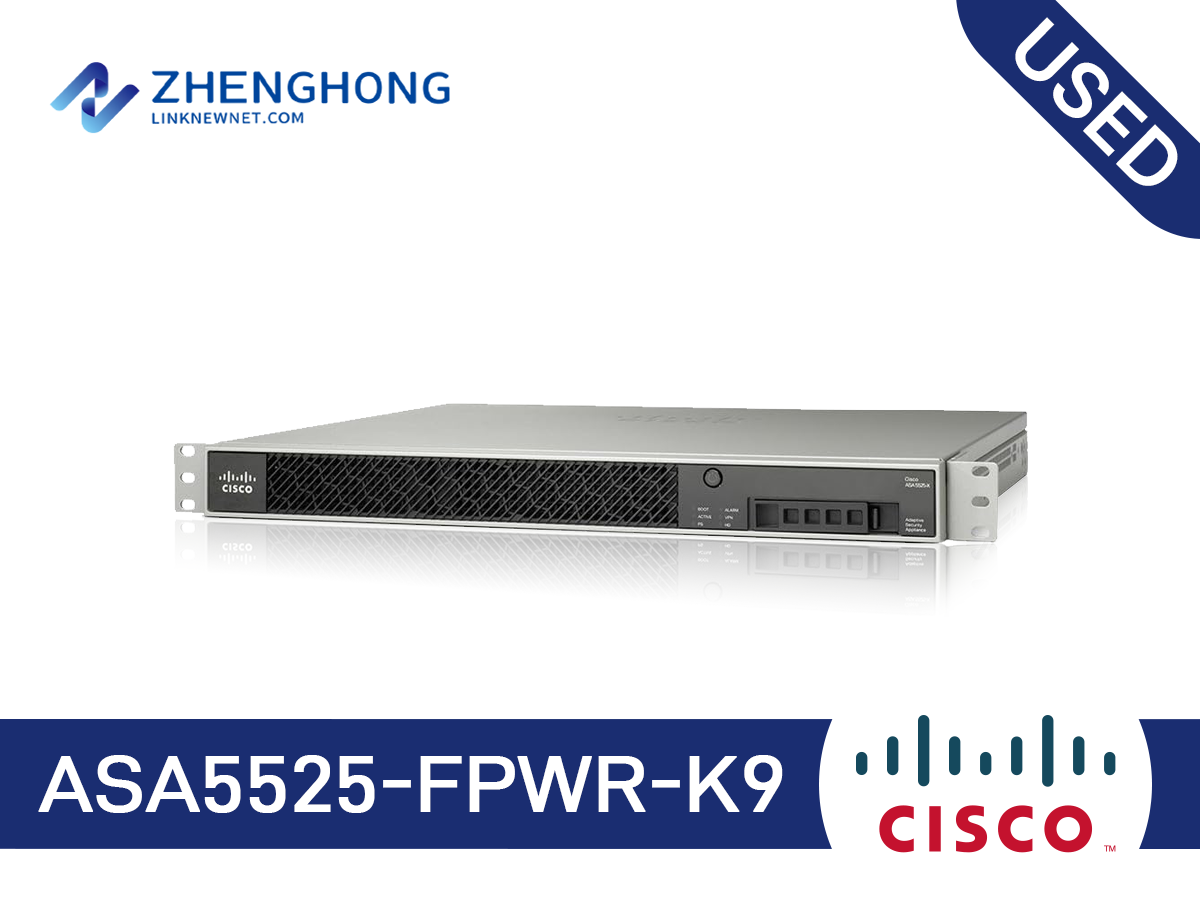

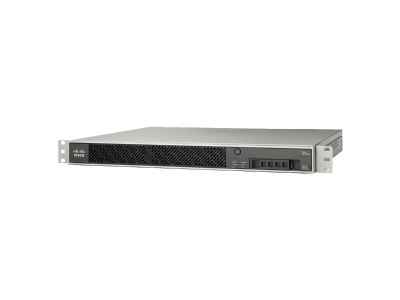

ASA5525-FPWR-K9 - Cisco ASA 5500 Series Firewall Overview
ASA5525-FPWR-K9 - Cisco ASA 5500 Series Firewall is a genuine network security and threat protection product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco ASA 5500 Series family, the ASA5525-FPWR-K9 unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
From a specification standpoint, it offers 8 ports for client, server or uplink connectivity. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include perimeter protection with stateful inspection, branch-office security with VPN and threat prevention, and data-center north-south traffic filtering. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “ASA 5525-X with FirePOWER Services, 8GE, AC, 3DES/AES, SSD”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the ASA5525-FPWR-K9. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Perimeter Security
Stateful inspection and threat prevention at the edge.
Branch Protection
Secure branch offices with VPN and UTM.
Data Center
High-throughput filtering for north-south traffic.
Buying a Pre-Owned ASA5525-FPWR-K9
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
ASA5525-FPWR-K9 Specification | |
| Networking | |
| Type | Security appliance |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1.1 Gbps |
| Data Link Protocol | Gigabit Ethernet |
| Status Indicators | Active, Alarm, Boot state, HDD activity, Power, VPN |
| Ports Qty | 8 |
| Features | Firewall protection, High Availability, VLAN support, VPN support |
| Network Transport Protocol | IPSec |
| Interface Provided | |
| Qty | 8 |
| Type | Management |
| Connector Type | RJ-45 |
| Service | |
| Support Details Type | Limited warranty |
| Support Details Service Included | Advance parts replacement |
| Support Details Full Contract Period | 90 days |
| Miscellaneous | |
| Compliant Standards | C-Tick, CISPR 22, CSA C22.2 No. 60950-1-07 Second Edition, EMC, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15 B Class A, ICES-003, IEC 60950-1 Second Edition, KC, UL 60950-1 Second Edition, VCCI V-3 |
| Height (Rack Units) | 1 |
| Encryption Algorithm | AES, DES, Triple DES |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Header | |
| Compatibility | PC |
| Manufacturer | Cisco Systems |
| Packaged Quantity | 1 |
| Product Line | Cisco ASA |
| Model | 5525-X |
| Bundled with | FirePOWER Services |
| Brand | Cisco |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Power Provided | 400 Watt |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Nominal Voltage | AC 120/230 V |
| Type | Internal power supply |
| Service & Support | |
| Type | 90 days warranty |
| Service & Support Details | |
| Response Time | 10 days |
| Slot Provided | |
| Total Qty | 1 |
| Free Qty | 1 |
| Software | |
| Type | Drivers & Utilities |
| Capacity | |
| Type | Virtual interfaces (VLANs) |
| Value | 200 |
| Performance | |
| Type | VPN throughput (3DES/AES) |
| Value | 300 Mbps |
| Dimensions & Weight | |
| Width | 16.9 in |
| Depth | 15.6 in |
| Height | 1.7 in |
| Weight | 14.93 lbs |
| Expansion Slots | |
| Type | Expansion slot |
| Flash Memory | |
| Installed Size | 8 GB |
| Hard Drive | |
| Installed Qty | 1 |
| Type | SSD |
| Optical Storage | |
| Type | None |
| RAM | |
| Installed Size | 8 GB |
ASA5525-FPWR-K9 - Deployment Notes
This ASA5525-FPWR-K9 security appliance is positioned for the throughput and VPN requirements of its specific SKU tier. Confirm the firewall throughput, VPN tunnel capacity, and interface configuration of this variant against your expected traffic profile before ordering.
For refresh or migration projects, verify the software version and license entitlements applicable to this unit. Our team can confirm the installed software and hardware revision before dispatch.
Every ASA5525-FPWR-K9 unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including interface status, console access and firmware state.
ASA5525-FPWR-K9 - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco firewall provides stateful inspection, VPN termination, and threat defense at the network perimeter. It is commonly deployed in internet-edge, site-to-site, and remote-access roles.
Deployment guidance: When planning this ASA5525-FPWR-K9 unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: ASA5515-SSD120-K9, ASA5500X-SSD120, ASA5585-NM-4-10GE, ASA5505-50-AIP5-K8, ASA5505-GOOD-K9. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: K9 = Cryptographic (encryption) software feature set - this suffix indicates the feature set, power, or regulatory variant of the ASA5525-FPWR-K9, which affects software licensing and regional compliance.
