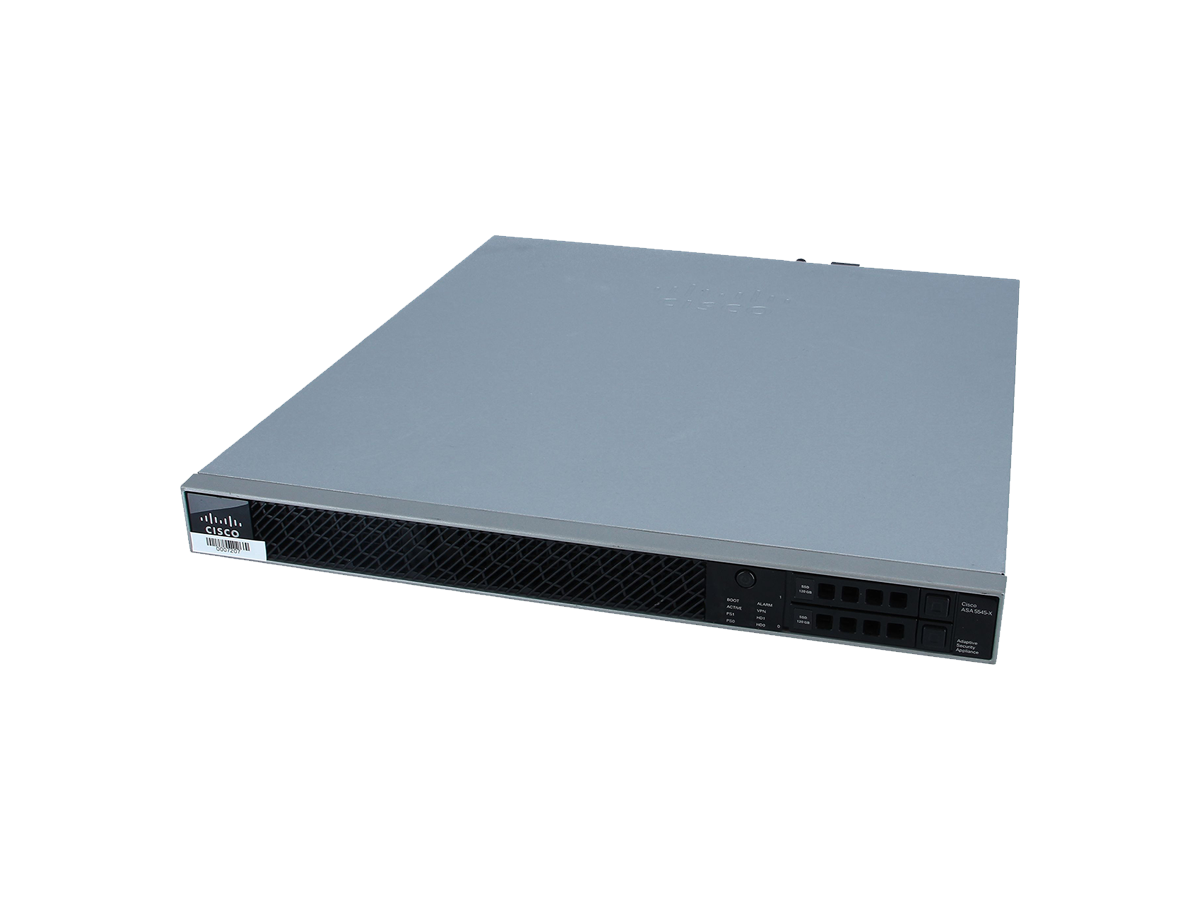

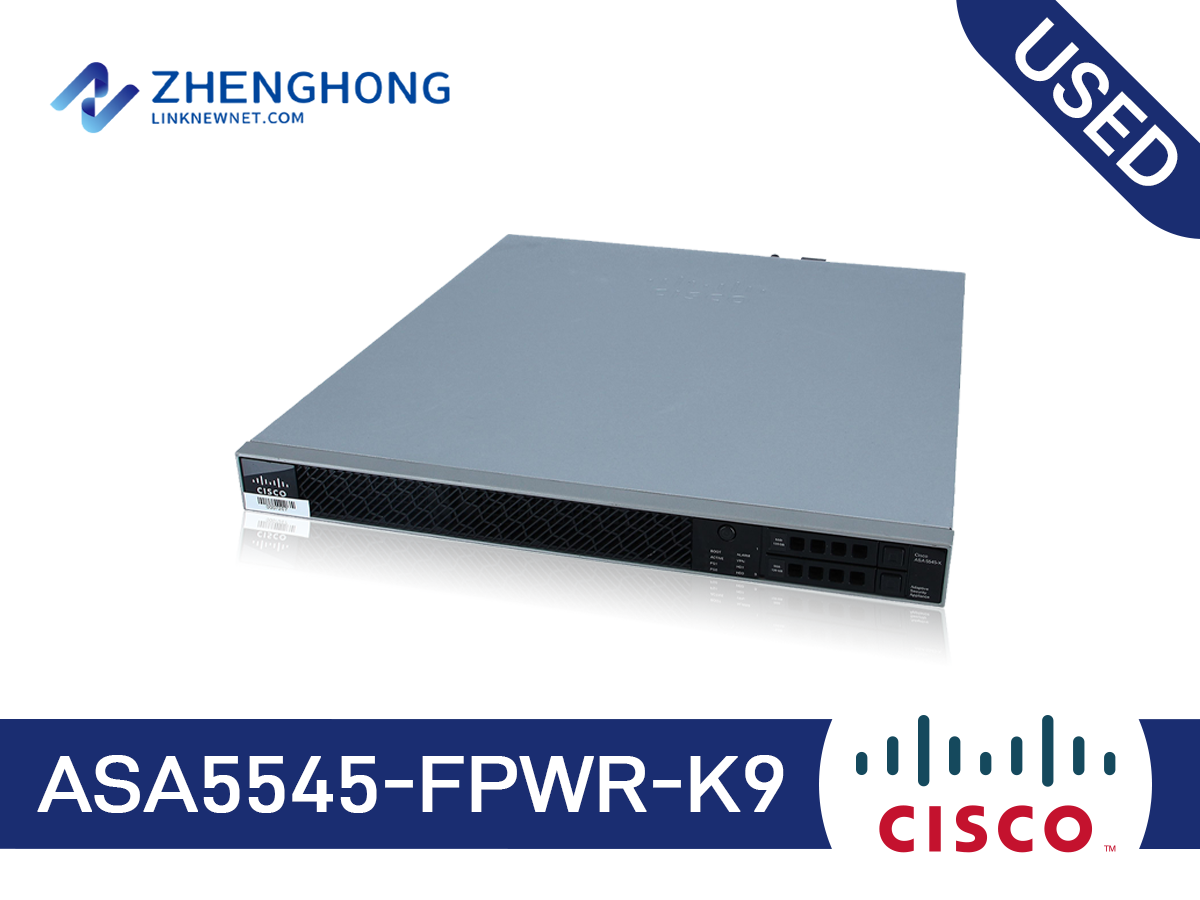

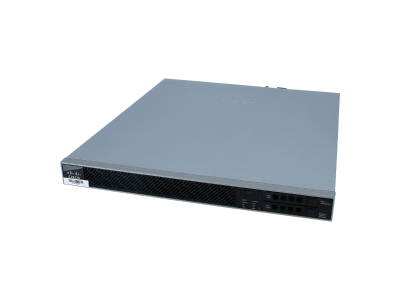

ASA5545-FPWR-K9 - Cisco ASA 5500-X Series Midrange Appliances Overview
ASA5545-FPWR-K9 - Cisco ASA 5500-X Series Midrange Appliances is a genuine network security and threat protection product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco ASA 5500-X Series family, the ASA5545-FPWR-K9 unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
From a specification standpoint, aggregate capacity of 500 Mbps. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include perimeter protection with stateful inspection, branch-office security with VPN and threat prevention, and data-center north-south traffic filtering. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the ASA5545-FPWR-K9. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Perimeter Security
Stateful inspection and threat prevention at the edge.
Branch Protection
Secure branch offices with VPN and UTM.
Data Center
High-throughput filtering for north-south traffic.
Buying a Pre-Owned ASA5545-FPWR-K9
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
ASA5545-FPWR-K9 Specifications | |
Throughput: Application Control (AVC) | 1,500 Mbps |
Throughput: Application Control (AVC) and IPS | 1,000 Mbps |
Maximum concurrent sessions | 750,000 |
Maximum New Connections per second | 30,000 |
Supported applications | More than 3,000 |
URL categories | 80+ |
Number of URLs categorized | More than 280 million |
Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
On-Device Management | ASDM |
Feature | Cisco ASA 5545-X w/ FirePOWER Services |
Stateful inspection throughput (maximum1) | 3 Gbps |
Stateful inspection throughput (multiprotocol2) | 1.5 Gbps |
Triple Data Encryption Standard/ | 400 Mbps |
Users/nodes | Unlimited |
IPsec site-to-site VPN peers | 2500 |
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5 | 25005 |
Virtual interfaces (VLANs) | 300 |
Security contexts5(included; maximum) | 2; 50 |
High availability4 | Active/ |
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details) | N/A |
Expansion slot | 1 interface card |
User-accessible Flash slot | - |
USB 2.0 ports | 2 |
Integrated I/O | 8 GE copper |
Expansion I/O | 6 GE copper or 6 GE SFP |
Dedicated management port | Yes |
Serial ports | 1 RJ-45 console |
Solid-state drive | 2 slots, RAID 1 or 120 GB MLC SED |
Memory | 12 GB |
System flash | 8 GB |
System bus | Multibus architecture |
Temperature | 23 to 104°F (-5 to 40°C) |
Relative humidity | 90 percent |
Altitude | Designed and tested for 0 to 10,000 ft (3050 m) |
Temperature7 | -13 to 158°F (-25 to 70°C) |
Relative humidity | 10 to 90 percent |
Altitude | Designed and tested for 0 to 15,000 ft (4572 m) |
AC range line voltage | 100 to 240 VAC |
AC normal line voltage | 100 to 240 VAC |
AC current | 5A, 100 to 120V or 2.5A, 200 to 240V |
AC frequency | 50/60 Hz |
Dual-power supplies | Yes |
DC domestic line voltage | -40.5 to 56 VDC (-48 VDC nominal) |
DC international line voltage | -55 to -72 VDC (-60 VDC nominal) |
DC current | 15A (maximum input) |
Steady state | 86W |
Maximum | 125W |
Maximum | 427 Btu/hr |
Form factor | 1RU, 19-in. rack-mountable |
Weight (with AC power supply) | 16.82 lb (7.63 kg) with single power supply; 18.86 lb (8.61 kg) with dual power supply |
ASA5545-FPWR-K9 - Deployment Notes
This ASA5545-FPWR-K9 security appliance is positioned for the throughput and VPN requirements of its specific SKU tier. Confirm the firewall throughput, VPN tunnel capacity, and interface configuration of this variant against your expected traffic profile before ordering.
For refresh or migration projects, verify the software version and license entitlements applicable to this unit. Our team can confirm the installed software and hardware revision before dispatch.
Every ASA5545-FPWR-K9 unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including interface status, console access and firmware state.
ASA5545-FPWR-K9 - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco firewall provides stateful inspection, VPN termination, and threat defense at the network perimeter. It is commonly deployed in internet-edge, site-to-site, and remote-access roles.
Deployment guidance: When planning this ASA5545-FPWR-K9 unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: ASA5515-SSD120-K9, ASA5500X-SSD120, ASA5585-NM-4-10GE, ASA5505-50-AIP5-K8, ASA5505-GOOD-K9. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: K9 = Cryptographic (encryption) software feature set - this suffix indicates the feature set, power, or regulatory variant of the ASA5545-FPWR-K9, which affects software licensing and regional compliance.
