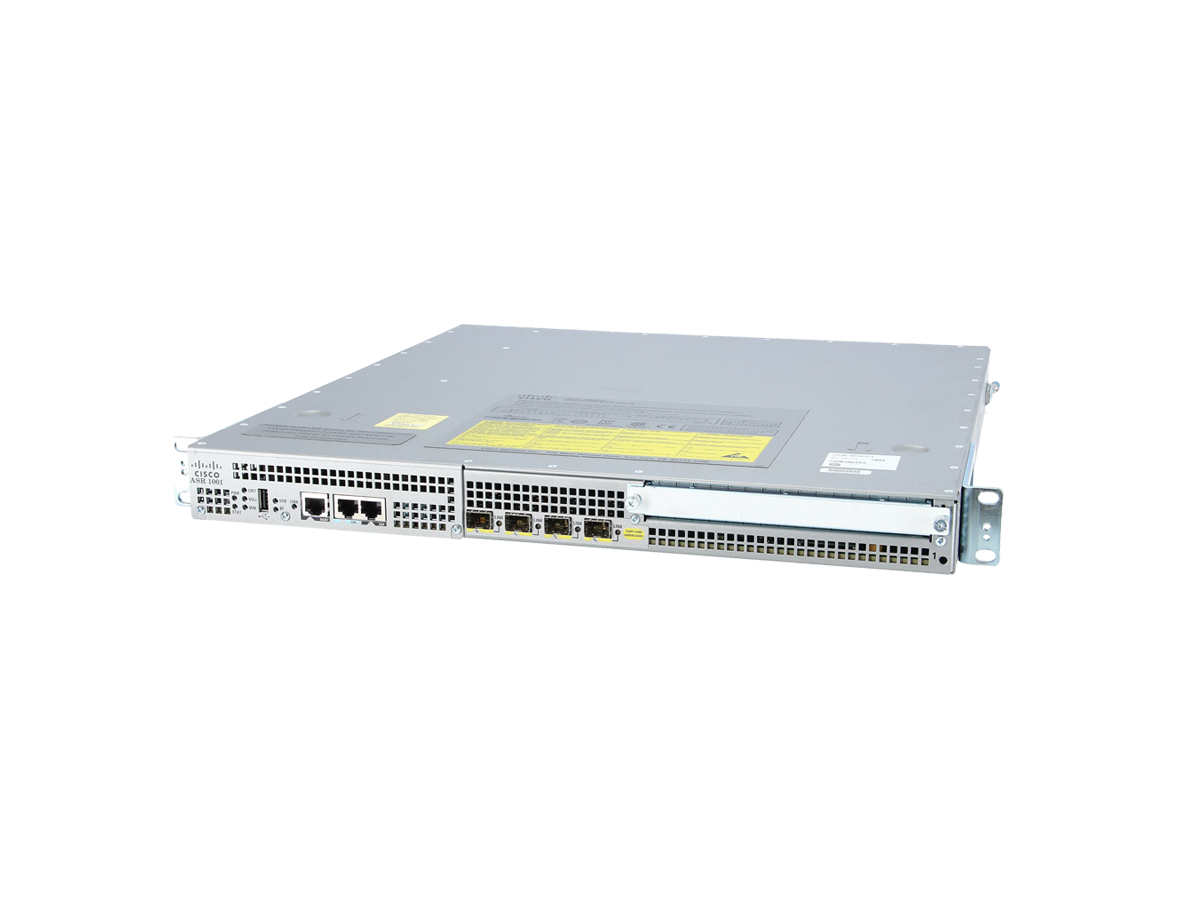

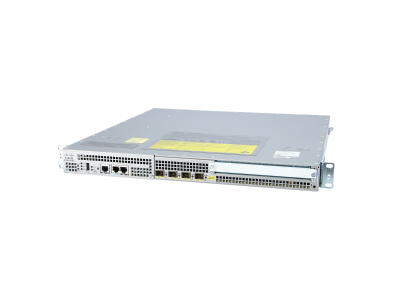

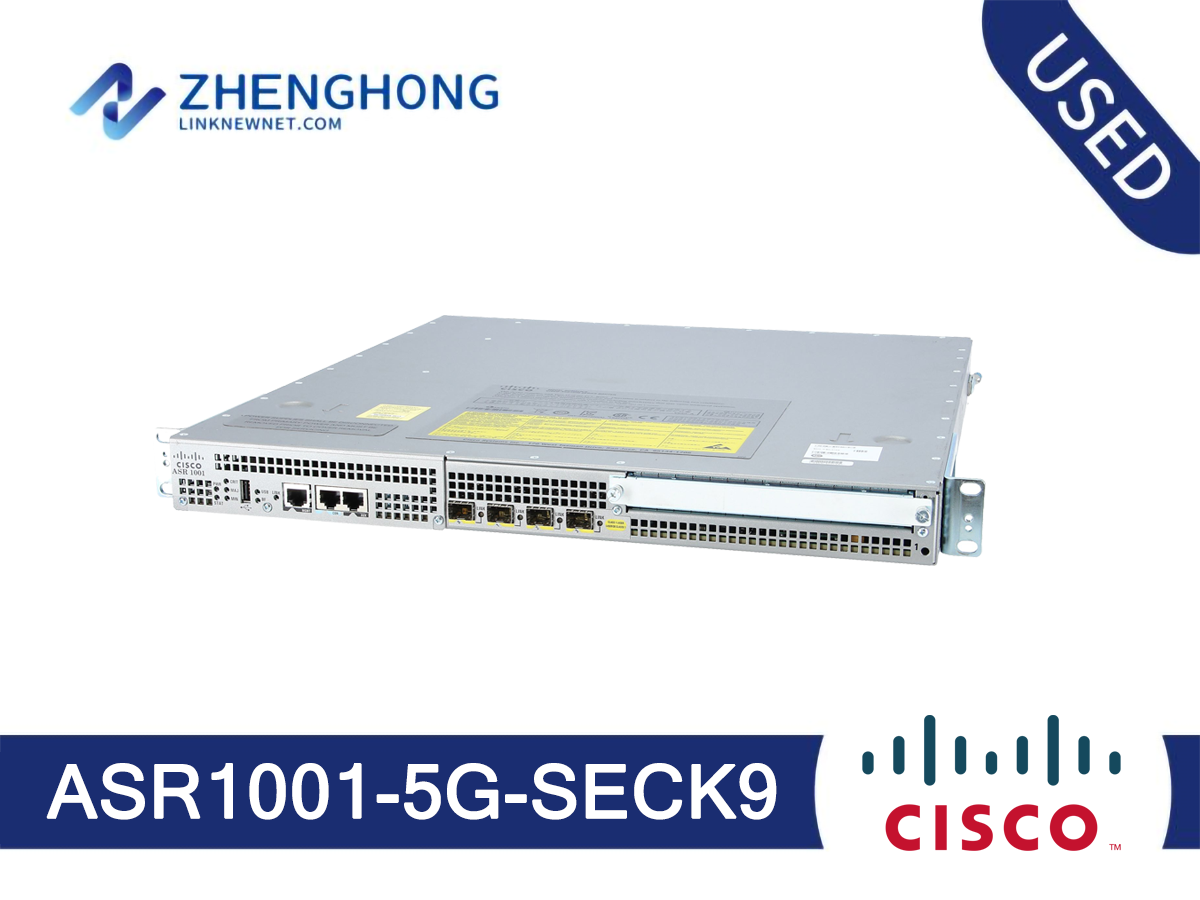

Cisco Router ASR 1000 Series ASR1001-5G-SECK9 Overview
Cisco Router ASR 1000 Series ASR1001-5G-SECK9 is a genuine edge and wide-area routing product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco Router ASR 1000 Series family, the ASR1001-5G-SECK9 unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
This unit follows the original factory specification for the Cisco Router ASR 1000 Series family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “ASR1001-5G-SECK9 router security bundle with IPsec, firewall, AES/3DES, QuantumFlow processor, and advanced networking features.”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the ASR1001-5G-SECK9. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned ASR1001-5G-SECK9
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
ASR1001-5G-SECK9 Specificatio | ||
| Manufacturer | Cisco Systems, Inc | |
| Manufacturer Part Number | Cisco ASR 1001 | |
| Product Type | Aggregation Service Router | |
| Form Factor | Desktop - modular - 3U | |
| Connectivity Technology | Wired | |
| System Bandwidth | 5G | |
| Router Processor | Dual-core 2.2Ghz processor | |
| Build-in Gigabit Ethernet port | 4 * SFP ports | |
| Rack-mounting | 19-inch | |
| DRAM Memory | 4GB | |
| Flash Memory | 8 GB | |
| Shared port adapters | 1 SPA slot | |
| External USB flash memory | 1-GB USB flash-memory support | |
| Scalable Capacity and Throughput | ||
| Cisco QuantumFlow Processor-based platform | Enables advanced services to operate at high speeds without the need for additional hardware or blades. | |
| Hardware acceleration | Features like QoS, crypto, and access control lists (ACLs) are processed in hardware. | |
| Control and forwarding-plane separation | Ability to scale control plane and data plane independent of each other. | |
| expansion Card | ● Cisco 1-port 10GE LAN/WAN-PHY Shared Port Adapter ● Digital Signal Processor SPA ● 2 Port Channelized T3/E3 ATM and Circuit Emulation SPA ● SPA-2XOC12-POS with a license to use 1 port ● SPA-4XOC3-POS-V2 with a license to use 2 ports ● 8-port Channelized T1/E1 to DS0 Shared Port Adapter ● 1-port Channelized STM-1/OC-3c to DS0 SPA, Version 2 ● 2-port Channelized T3 to DS0 Shared Port Adapter, Version 2 ● 2-port Clear Channel T3/E3 Shared Port Adapter, Version 2 ● 4-port Channelized T3 to DS0 Shared Port Adapter, Version 2 ● 4-port Clear Channel T3/E3 Shared Port Adapter, Version 2 ● Cisco 4 port serial SPA ● Cisco 5-Port Gigabit Ethernet Shared Port Adapter ● Cisco 8-Port Fast Ethernet (TX) Shared Port Adapter ● Cisco 8-Port Gigabit Ethernet Shared Port Adapter ● 8-port OC12/STM4 POS Shared Port Adapters | ● 4-port OC-3/STM-1 POS Shared Port Adapters ● Cisco 1-Port 10GE LAN-PHY Shared Port Adapter ● 1 port OC12 STM Shared Port Adapter ● 1 port OC-3c/STM-1 ATM Shared Port Adapter ● 1-port OC48/STM16 POS/RPR Shared Port Adapters ● Cisco 2-Port Gigabit Ethernet Shared Port Adapter ● 2-port OC12/STM4 POS Shared Port Adapters ● 2-port OC48/STM16 POS/RPR Shared Port Adapters ● 3 port OC-3c/STM-1 ATM Shared Port Adapter ● Cisco 4-Port Fast Ethernet (TX) Shared Port Adapter ● 4-port OC-12/STM-4 POS Shared Port Adapters ● 4-port OC48/STM16 POS/RPR Shared Port Adapters ●8-port OC-3/STM-1 POS Shared Port Adapters ● 1-port OC192/STM64 POS/RPR XFP Optics |
| Managed Services Software | ● Cisco ASR1001 IOS XE - NO PAYLOAD ENCRYPTION UNIVERSAL MS ● Cisco ASR1001 IOS XE - UNIVERSAL MS ● Cisco ASR1001 IOS XE - ENCRYPTION UNIVERSAL MS | |
| System Software license | ● IP base license ● Advanced Enterprise service license ● IP services license | |
| IOS XE Operating System | Cisco IOS XE Software Release 3.2.0S | |
