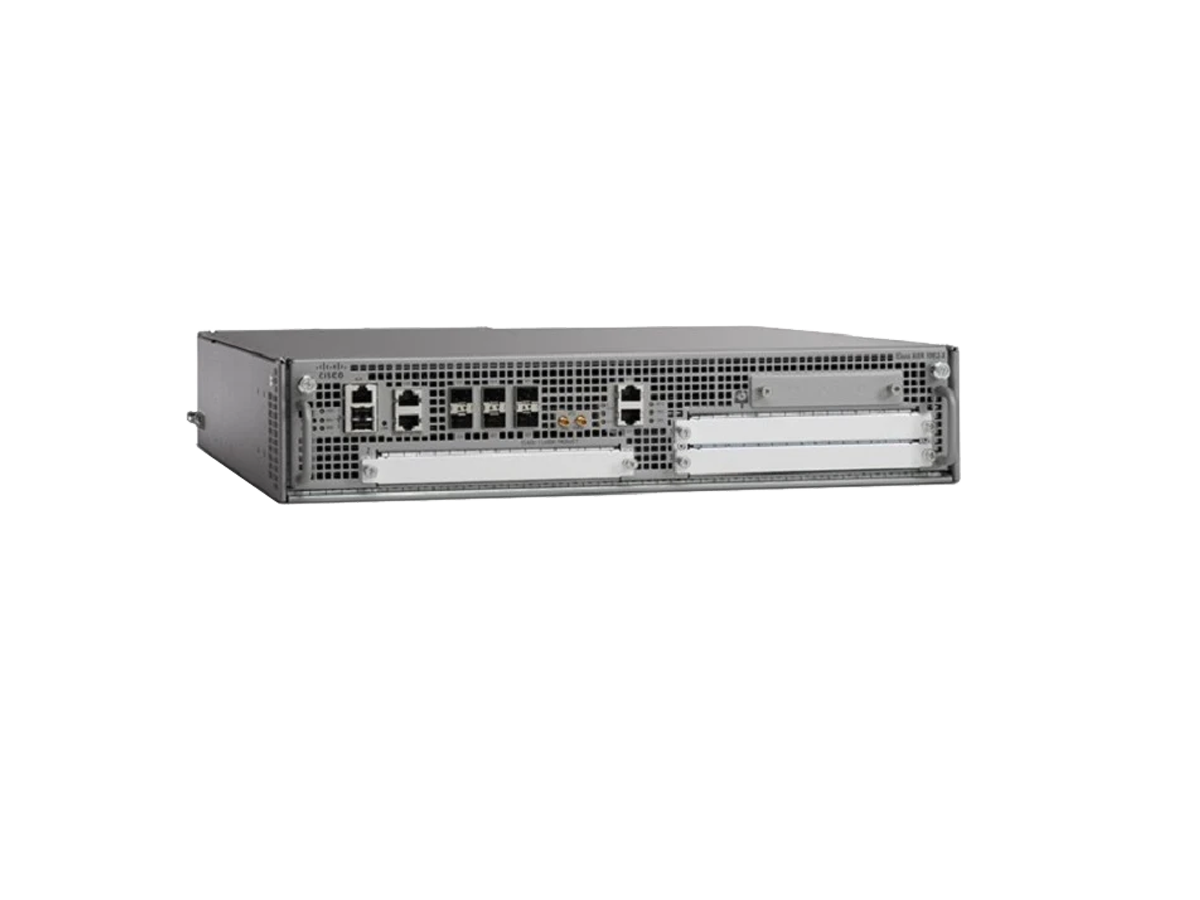

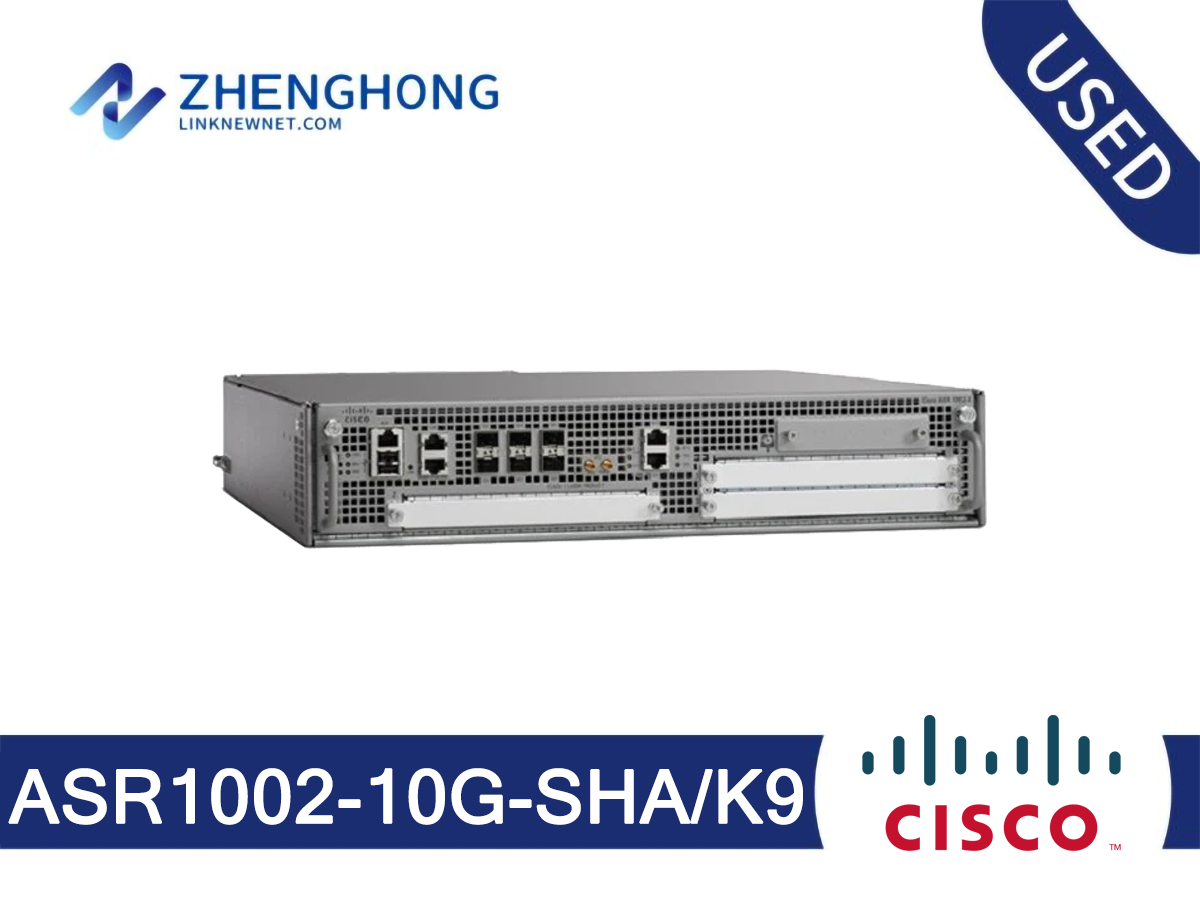

Cisco Router ASR 1000 Series ASR1002-10G-SHA/K9 Overview
Cisco Router ASR 1000 Series ASR1002-10G-SHA/K9 is a genuine edge and wide-area routing product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco Router ASR 1000 Series family, the ASR1002-10G-SHA/K9 unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
This unit follows the original factory specification for the Cisco Router ASR 1000 Series family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco ASR 1002 router security and HA bundle with a QuantumFlow processor, 10G system bandwidth, and comprehensive security features.”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the ASR1002-10G-SHA/K9. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned ASR1002-10G-SHA/K9
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
ASR1002-10G-SHA/K9 Specification | ||
| Manufacturer | Cisco Systems, Inc | |
| Manufacturer Part Number | Cisco ASR 1002-10G-SHA/K9 | |
| Product Type | Aggregation Service Router | |
| Form Factor | Desktop - modular - 3U | |
| Connectivity Technology | Wired | |
| System Bandwidth | 10G | |
| Router Processor | Quad-core 2.13Ghz processor | |
| Build-in Gigabit Ethernet port | 4 * SFP ports | |
| Redundancy | Software (license included) | |
| Cisco ASR 1000 Series ESP | 1 ESP slot | |
| SIP and Ethernet line card | Integrated ASR 1000-SIP10, not upgradable | |
| Embedded hardware-based encryption | Up to 4-Gbps crypto support throughput | |
| Rack-mounting | 19-inch | |
| DRAM Memory | 4GB-shared across RP and SIP | |
| Flash Memory | 8 GB | |
| Shared port adapters | 3 SPA slots | |
| External USB flash memory | 1-GB USB flash-memory support | |
| Cisco QuantumFlow Processor-based platform | Enables advanced services to operate at high speeds without the need for additional hardware or blades. | |
| expansion Card | ● 1-port OC48/STM16 POS/RPR Shared Port Adapters ● 2-port OC12/STM4 POS Shared Port Adapters ● 4-port OC-12/STM-4 POS Shared Port Adapters ● 8-port OC12/STM4 POS Shared Port Adapters ● 8-port OC-3/STM-1 POS Shared Port Adapters ● 8-port Channelized T1/E1 to DS0 Shared Port Adapter ● 1-port OC192/STM64 POS/RPR XFP Optics ● SPA-2XOC12-POS with a license to use 1 port ● SPA-4XOC3-POS-V2 with a license to use 2 ports ● 1 Port Channelized OC3/STM-1 ATM and Circuit Emulation SPA ● Cisco 1-port 10GE LAN/WAN-PHY Shared Port Adapter ● Synchronous Ethernet SPA ● 1 port OC12 STM Shared Port Adapter ● 8-port Channelized T1/E1 to DS0 Shared Port Adapter ● 1-port Channelized STM-1/OC-3c to DS0 SPA, Version 2 ● 2-port Channelized T3 to DS0 Shared Port Adapter, Version 2 ● Cisco 10-Port Gigabit Ethernet Shared Port Adapter ● 24 Port Channelized T1/E1/J1 ATM and Circuit Emulation SPA | ● 2-port Clear Channel T3/E3 Shared Port Adapter, Version 2 ● 4-port Channelized T3 to DS0 Shared Port Adapter, Version 2 ● 4-port Clear Channel T3/E3 Shared Port Adapter, Version 2 ● 2-port OC48/STM16 POS/RPR Shared Port Adapters ● 1 port OC-3c/STM-1 ATM Shared Port Adapter ● 3 port OC-3c/STM-1 ATM Shared Port Adapter ● 4-port OC-3/STM-1 POS Shared Port Adapters ● Digital Signal Processor SPA ● 1-port Channelized OC12 to DS0 SPA ● Cisco 8-Port Gigabit Ethernet Shared Port Adapter ● Cisco 4 port serial SPA ● Cisco 8-Port Fast Ethernet (TX) Shared Port Adapter ● Cisco 2-Port Gigabit Ethernet Shared Port Adapter ● 4-port OC48/STM16 POS/RPR Shared Port Adapters ● Cisco 1-Port 10GE LAN-PHY Shared Port Adapter ● Cisco 5-Port Gigabit Ethernet Shared Port Adapter ● Cisco 4-Port Fast Ethernet (TX) Shared Port Adapter ● 2 Port Channelized T3/E3 ATM and Circuit Emulation SPA |
| Feature License | ● Unified Border Element - Enterprise Edition 100 Sessions ● Unified Border Element Ent, 100 Sessions, Redundancy ● Unified Border Element Ent, 500 Sessions, Redundancy ● Unified Border Element Ent, 1000 Sessions, Redundancy ● Unified Border Element - Enterprise Edition 4000 Sessions ● Unified Border Element Ent, 4000 Sessions, Redundancy ● Unified Border Element - Enterprise Edition 16000 Sessions ● Unified Border Element Ent, 16000 Sessions, Redundancy ● CGN RTU Feature License for up to 2M Sessions on ASR1000 | ● Flex. Pack Insp. Right-To-Use Feat Lic,ASR1000 Series ● Broadband Right-To-Use Feature Lic for ASR1000 Series ● DBE Base Right-To-Use Lic for Release 2.3.x and prior ● Firewall Right-To-Use Feature Lic for ASR1000 Series ● GTP add-on to Firewall RTU Feature Licence for ASR1000 ● Firewall/NAT Stateful Inter-Chassis Redundancy License ● NAT64 RTU Feature License for up to 2M Sessions on ASR1000 ● ASR1000 Lawful Intercept RTU ● Broadband Right-To-Use Feature Lic for ASR1000 Series ●DBE Base Right-To-Use Lic for Release 2.3.x and prior ● App Visibility and Control |
| License Include | ● SASR1R1-AESK9-313S ● FLASR1-IPSEC-RTU ● FLASR1-IOSRED-RTU | ● FLASR1-FPI-RTU ● FLASR1-FW-RTU |
| IOS XE Operating System | Cisco IOS XE Software Release 2.1 | |
