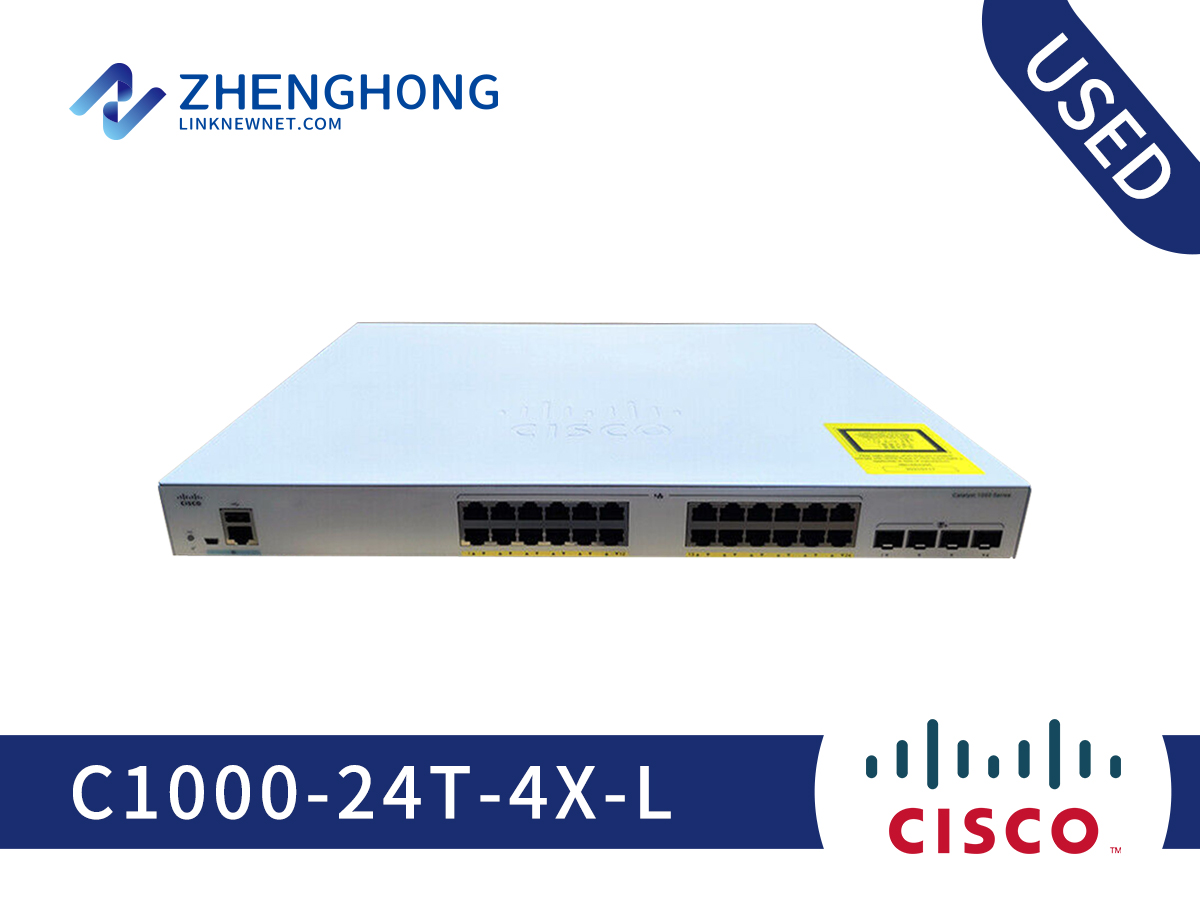

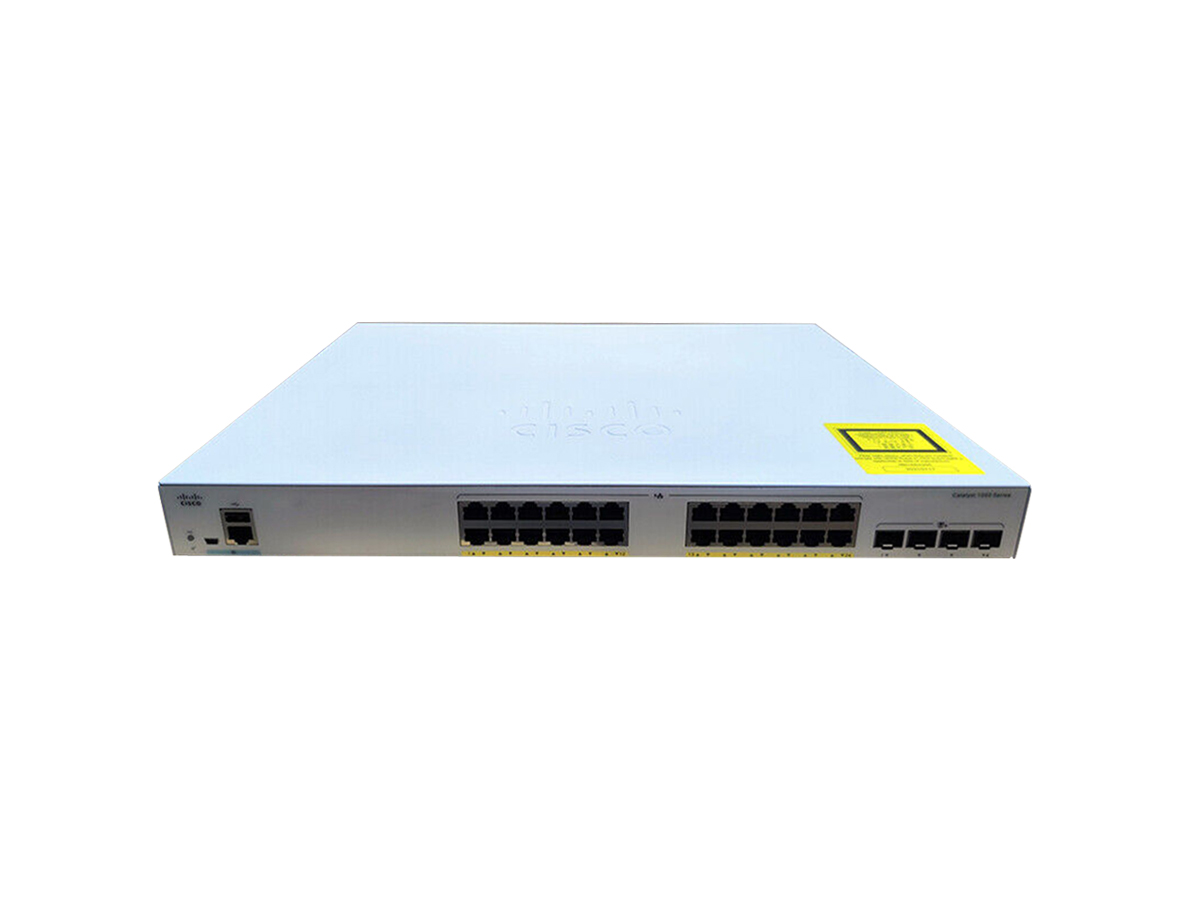

C1000-24T-4X-L Specification | |
Description | 24x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks |
Gigabit Ethernet ports | 24 |
Uplink interfaces | 4 SFP+ |
Dimensions (WxDxH) | 17.5 x 9.45 x 1.73in |
RJ-45 Ethernet | 1 |
USB mini-B | 1 |
USB-A port for storage and Bluetooth console | 1 |
CPU | ARM v7 800 MHz |
DRAM | 512 MB |
Flash memory | 256 MB |
Forwarding bandwidth | 64 Gbps |
Switching bandwidth | 128 Gbps |
Forwarding rate(64—byte L3 packets) | 41.67 Mpps |
Unicast MAC addresses | 16000 |
Maximum active VLANs | 256 |
VLAN IDs available | 4094 |
Maximum STP instances | 64 |
Maximum SPAN sessions | 4 |
MTU-L3 packet | 9198 bytes |
Jumbo Ethernet frame | 10,240 bytes |
Dying Gasp | Yes |
MTBF in hours (data) | 2,026,793 |
MTBF in hours (PoE) | 698,220 |
MTBF in hours (Full PoE) | 698,220 |
Operating altitude | 10,000 ft (3,000m) |
Operating relative humidity | 5% to 90% at 40C |
Storage temperature | -13 to 158F (-25 to 70C) |
Storage altitude | 15,000 ft (4500m) |
Storage relative humidit | 5% to 95% at 65C |
