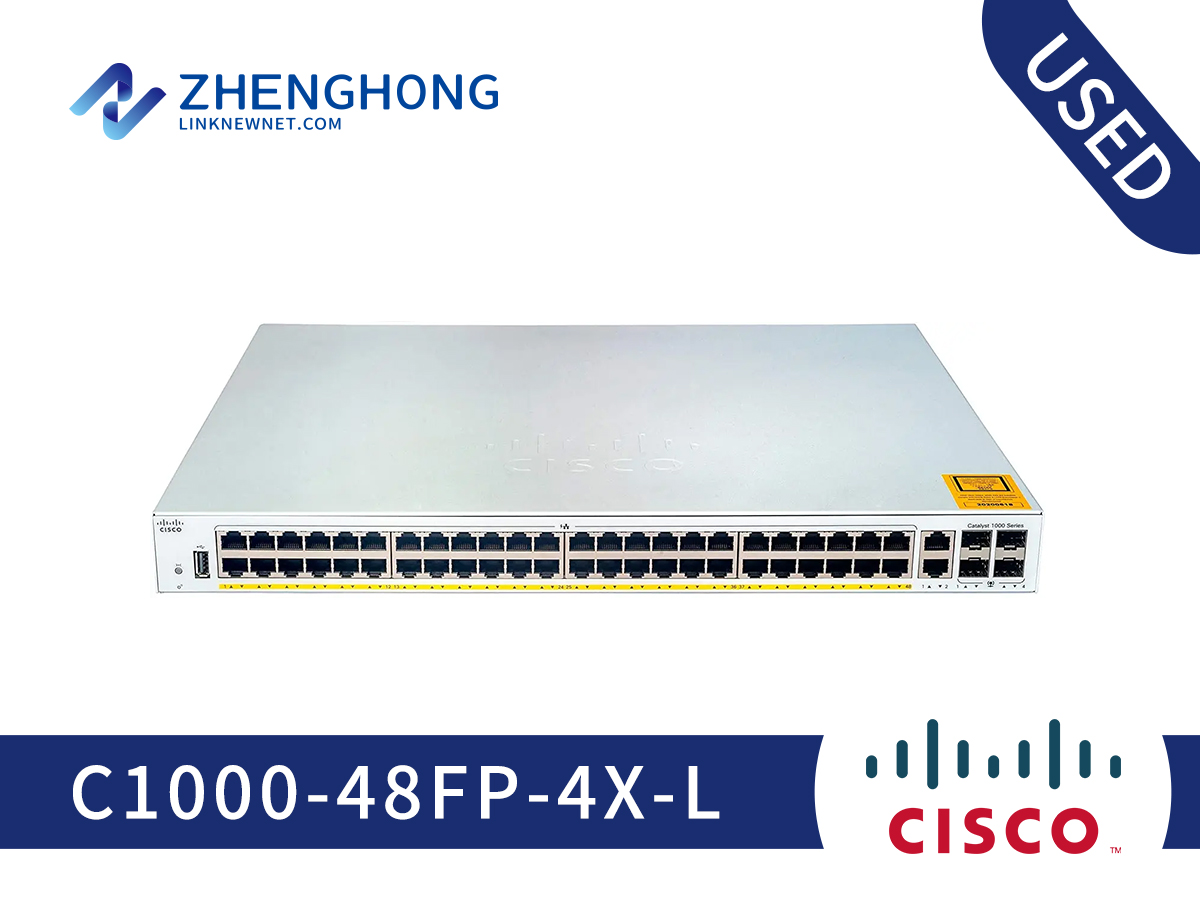

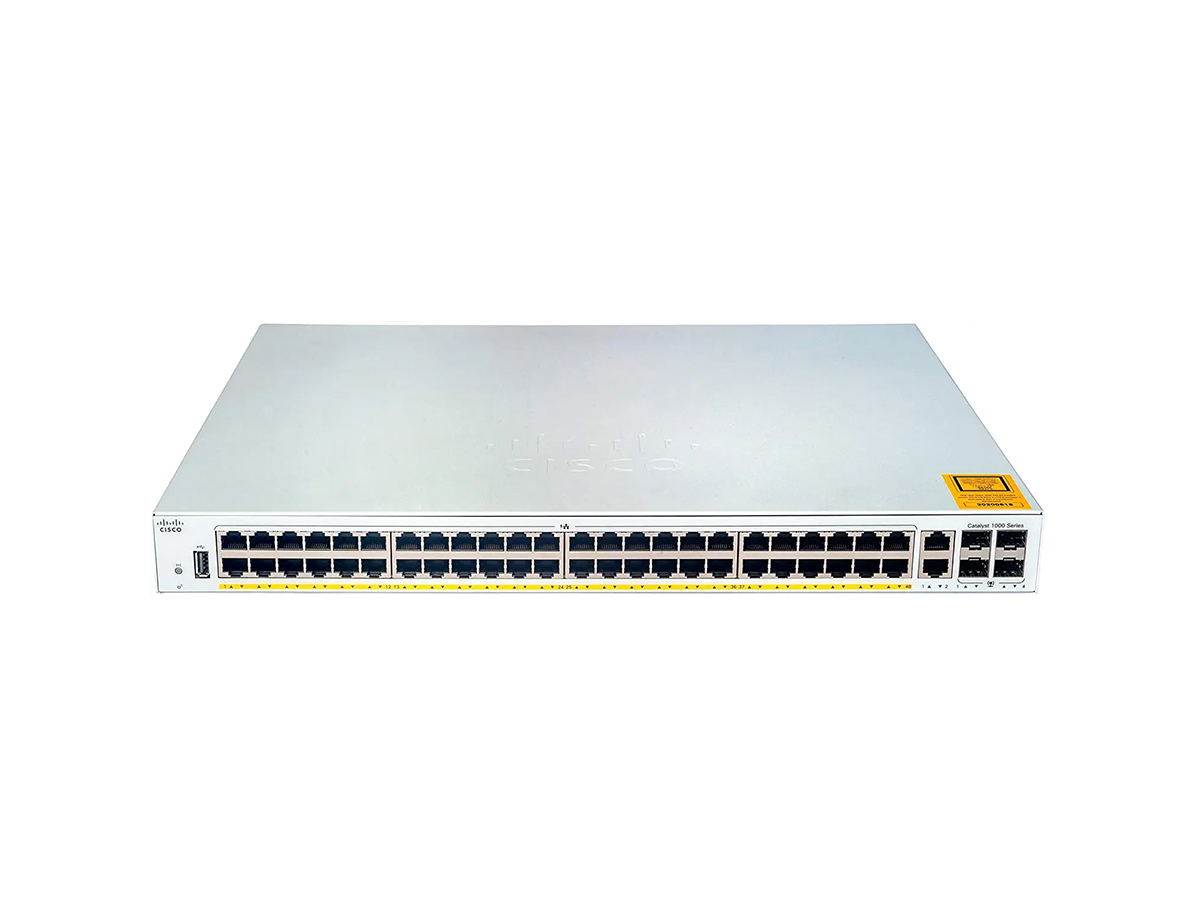

C1000-48FP-4X-L Specification | |
Description | 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 10G SFP+ uplinks |
Gigabit Ethernet ports | 48 |
Uplink interfaces | 4 SFP+ |
PoE+power budget | 740W |
Fanless | N |
Dimensions (WxDxH in inches) | 17.5 x 13.78 x 1.73 |
Memory and processor | |
CPU | ARM v7 800 MHz |
DRAM | 512 MB |
Flash memory | 256 MB |
Performance | |
Forwarding bandwidth | 88 Gbps |
Switching bandwidth | 176 Gbps |
Forwarding rate(64—byte L3 packets) | 77.38 Mpps |
Unicast MAC addresses | 16000 |
IPv4 unicast direct routes | 542 |
IPv4 unicast indirect routes | 256 |
IPv6 unicast direct routes | 414 |
IPv6 unicast indirect routes | 128 |
IPv4 static routes | 16 |
IPv6 static routes | 16 |
IPv4 multicast routes and IGMP groups | 1024 |
MTU-L3 packet | 9198 bytes |
Jumbo Ethernet frame | 10,240 bytes |
Dying Gasp | Yes |
MTBF in hours (data) | 1,452,667 |
MTBF in hours (PoE) | 856,329 |
MTBF in hours (Full PoE) | 856,329 |
Environmental | |
Operating relative humidity | 5% to 90% at 40C |
Storage temperature | -13 to 158F (-25 to 70C) |
Storage altitude | 15,000 ft (4500m) |
Storage relative humidit | 5% to 95% at 65C |
Connectors and interfaces | |
Ethernet interfaces
| * 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling * 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling * 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling * 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
Indicator LEDs
| * Per-port status: link integrity, disabled, activity * System status: system |
Console cables
| * CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 * CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors |
Power
| * Use the supplied AC power cord to connect the AC power connector to an AC power outlet * Models have external power supply |
