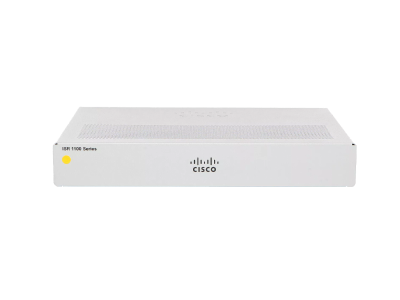

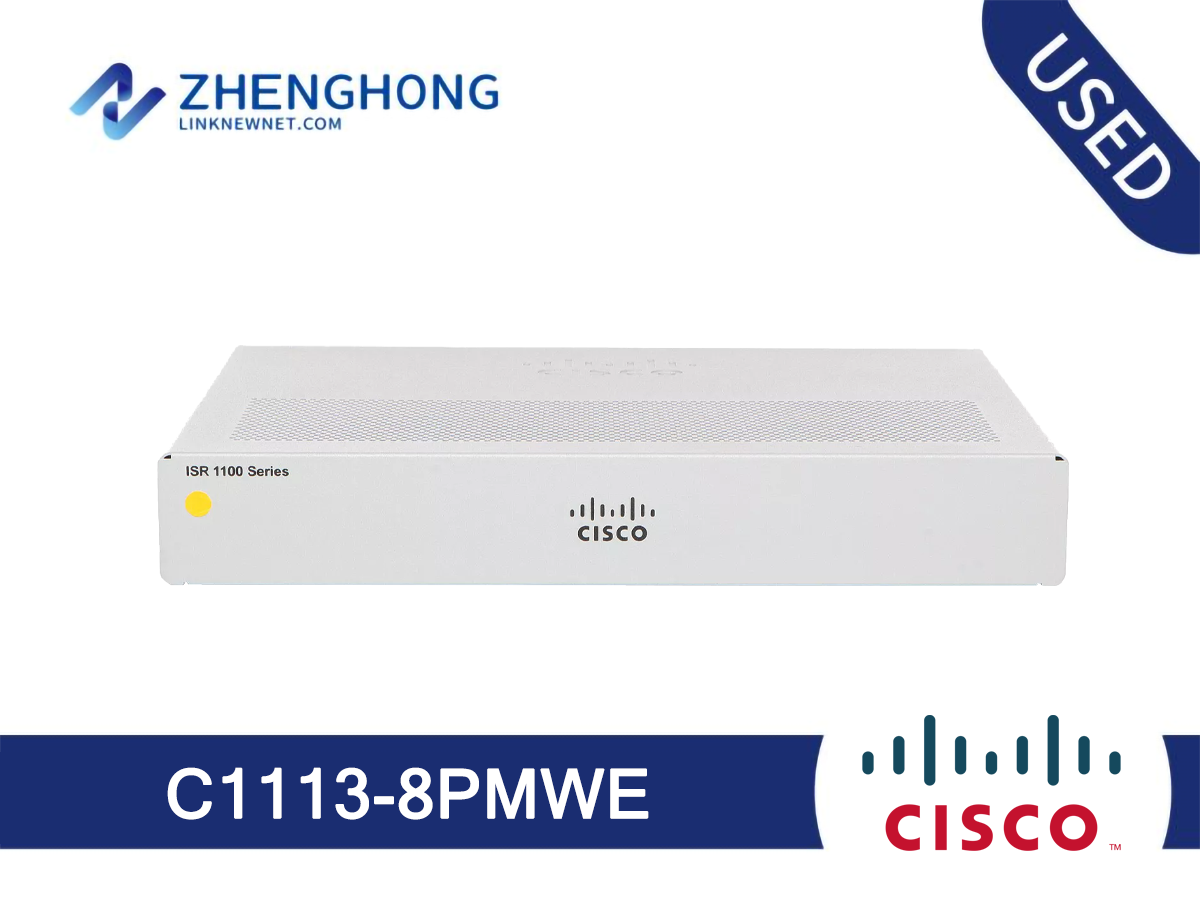

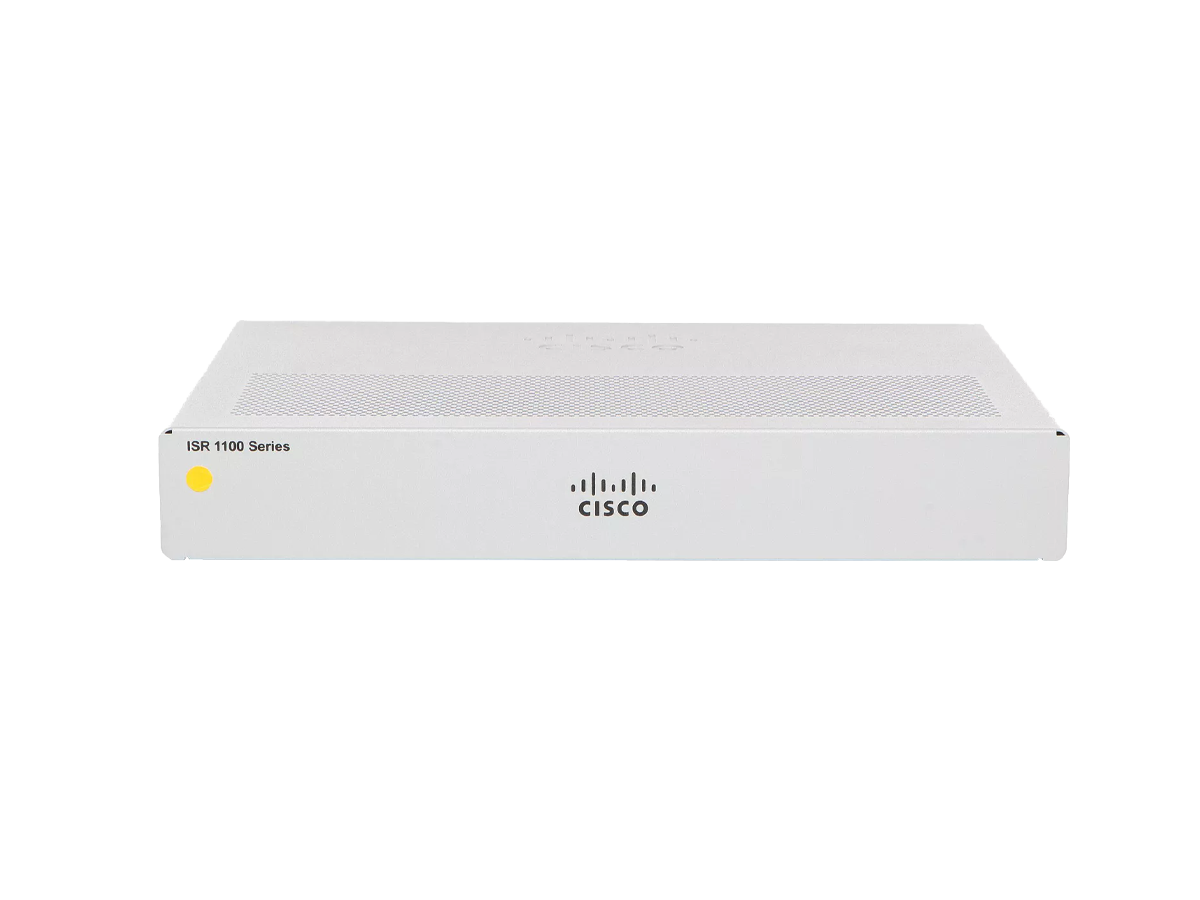

C1113-8PMWE - Cisco Router ISR 1100 Series Overview
C1113-8PMWE - Cisco Router ISR 1100 Series is a genuine edge and wide-area routing product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco Router ISR 1100 Series family, the C1113-8PMWE unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
From a specification standpoint, Power over Ethernet support. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “ISR 1100 G.FAST GE Router w/ 802.11ac, M, E WiFi domain”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the C1113-8PMWE. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned C1113-8PMWE
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
C1113-8PMWE Specification | |
GE | N/A |
GE/SFP combo | 1 |
ADSL2/VDSL2+ | 1 G.FAST |
LTE Advanced (CAT6) | N/A |
802.11ac | 2X2 MIMO |
GE | 8 |
PoE | 4 |
PoE+ | 2 |
Integrated USB 3.0 AUX/console | Yes |
Memory (default and maximum) | DRAM: 4 GB Flash: 4 GB |
Console | · Micro USB console (USB 3.0). |
Mini-USB port (reserved) | · Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0). |
802.11ac | · 2x2 SU-MIMO/MU-MIMO with two spatial streams. · Maximal Ratio Combining (MRC). · 20-, 40-, and 80-MHz channels. · PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz). · Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx). · 802.11 Dynamic Frequency Selection (DFS). · Cyclic Shift Diversity (CSD) support. |
Software | · Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 |
DSL interfaces | · G.FAST (spectrum up to 106MHz) Annex A, Annex B, Annex M and compatible with ADSL2/2+ and VDSL2. · ITU G.993.2 (VDSL2) and supported profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 35b. · ITU G.9700/9701/997.2 G.FAST and supported profiles: 106a, and 106b. |
External power supply | · AC input voltage: Universal 100 to 240 VAC. · Frequency: 50 to 60 Hz. · Maximum output power: 66W (default). · Output voltages: 12 VDC. · Optional PoE and PoE+: ◦ Single 150W power supply required for Cisco 1100-8P series router ◦ Single 115W power supply required for Cisco 1100-4P series router · External output voltage: 48 VDC. |
USB 3.0 | · USB devices supported: ◦ USB eTokens and USB flash memory · Note: Devices USB 3.0 supports to be connected externally. |
LEDs | · WWAN (green/amber). · SIM status (green/amber). · Received signal strength indication (RSSI) bar (green). · 3G/LTE service (green/amber). · GPS (green/amber). · Speed and link for Gigabit Ethernet WAN port (green). · Speed and link for all Fast Ethernet LAN ports (green). |
Physical dimensions (H x W x D) | C111X Models · 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models). · 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet on non-LTE models). C1101-4PLTEP and C1101-4PLTEPWX Models · 1.73 x 9.75 x 6.6 in. (43.9 x 247.6 x 167.6 mm) (includes rubber feet models). |
Weight | C111X Models · 1.94 lb to 4.59 lb (1.94kg to 2.08 kg). · 4.50 lb (2.04 kg) with LTE Advanced. · 4.76 lb (2.16 kg) with Wave 2 802.11ac Dual Radio. · 4.89 lb (2.22 kg) with LTE Advanced plus Wave 2 802.11ac Dual Radio. |
Environmental operating range | · Nonoperating temperature: -4° to 149°F (-0° to 65°C). · Nonoperating humidity: 5% to 95% relative humidity (noncondensing). · Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m). · Operating temperature: 32° to 104°F (0° to 40°C). C1101 support 32° to 113°F (0° to 45°C). · Operating humidity: 10% to 85% relative humidity (noncondensing). · Operating altitude: 0 to 10,000 ft (0 to 3000 m). |
