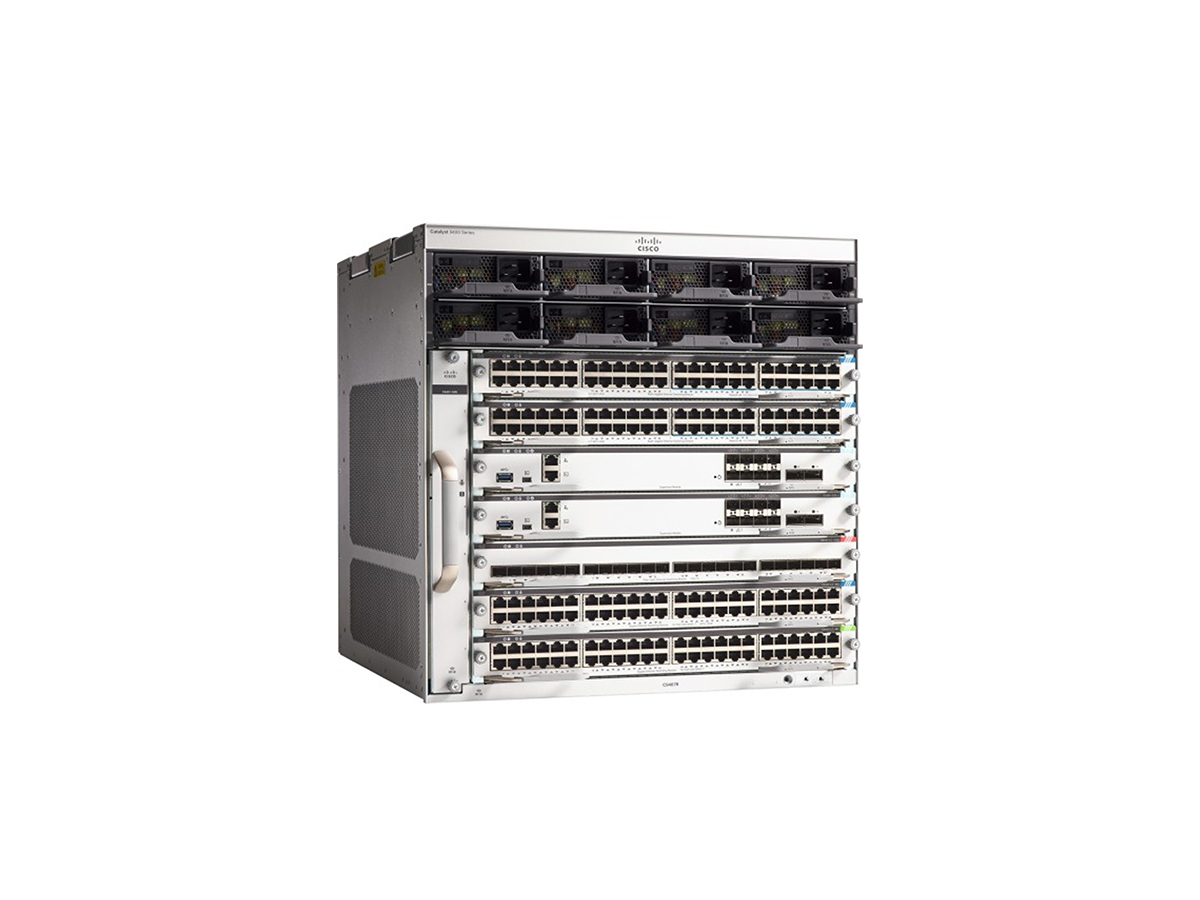

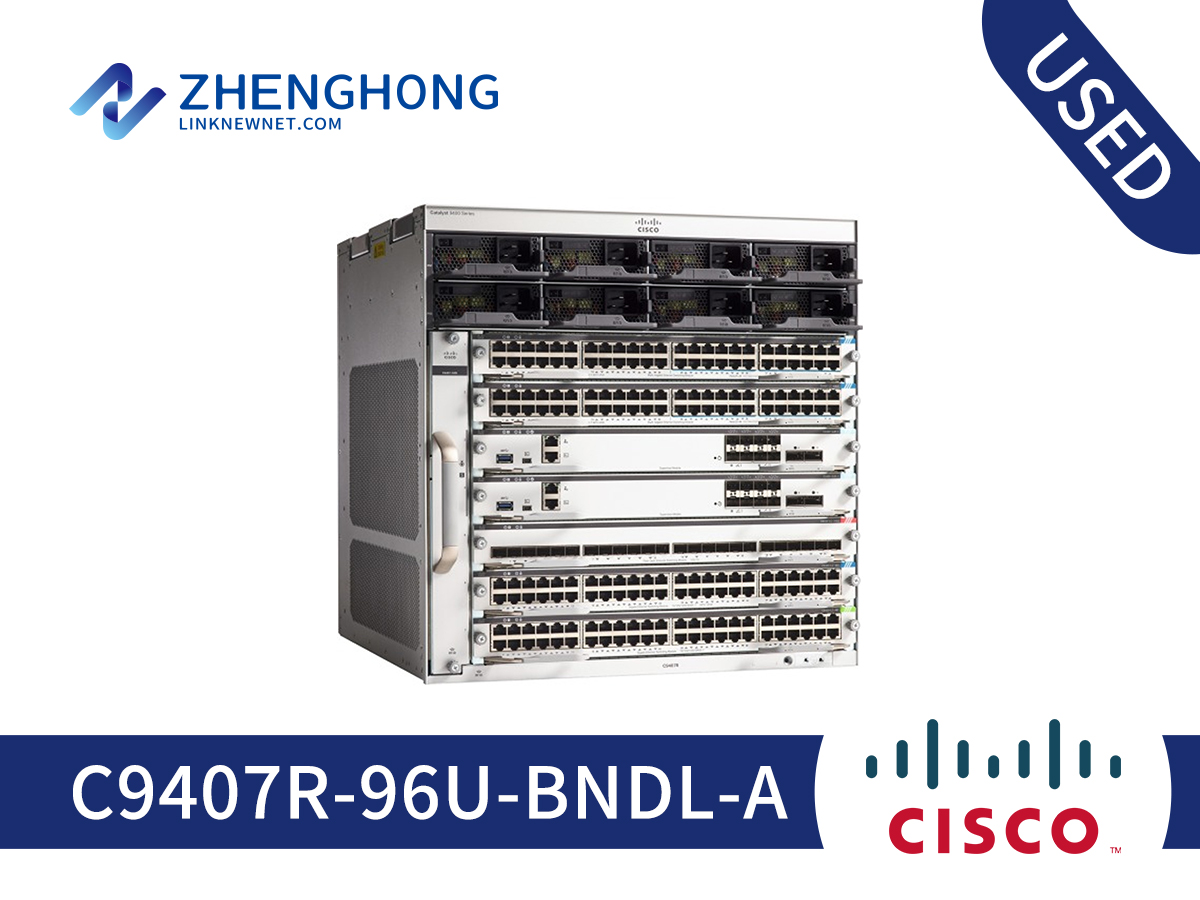

C9407R-96U-BNDL-A Specification | |
Total number of slots | 7 |
Line-card slots | 5 |
Supervisor engine slots | 2 |
Dedicated supervisor engine slot numbers | 3 and 4 |
Supervisor engine redundancy | Yes |
Supervisor engines supported | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y |
Maximum PoE per slot | 2880W |
Maximum Bandwidth scalability per line-card slot | Up to 480 Gbps on all slots |
Number of power supply bays | 8 |
AC input power | Yes |
Integrated PoE | Yes |
Power supplies supported | 3200W AC, 2100W AC |
Number of fan-tray bays | 1 |
Location of 19-inch rack-mount | Front |
Dimensions (H x W x D) | 17.41 x 17.30 x 16.30 in. (44.22 x 43.94 x 41.40cm) |
Rack Units (RU) | 10 RU |
Chassis weight (with fan tray) | 63.0 lb (28.58 kg) |
Mounting | 19-in rack compatible (19-in. rack and cable guide hardware included) |
Regulatory compliance | CE Marking |
Safety | ● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3 |
EMC | ● 47 CFR Part 15 ● CISPR22 Class A ● KN 32 Class A ● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CNS13438 Class A ● CISPR24 ● EN 300 386 ● EN55024 ● TCVN 7317 ● KN35 |
Industry EMC, safety, and environmental standards | ● NEBS: Operating temperature: -5 to 55C ● Relative Humidity: 10-93% ● Operating Altitude: up to 1829 m (6000 ft) at 55C ● ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations. ● SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue) ● ETS 300 019-2-1, Class 1.2 Storage ● ETS 300 019-2-2, Class 2.3 Transportation ● ETS 300 019-2-3, Class 3.2 Stationary ● EN50121-4 ● EN 300 386 |
ROHS compliance | ROHS5 |
