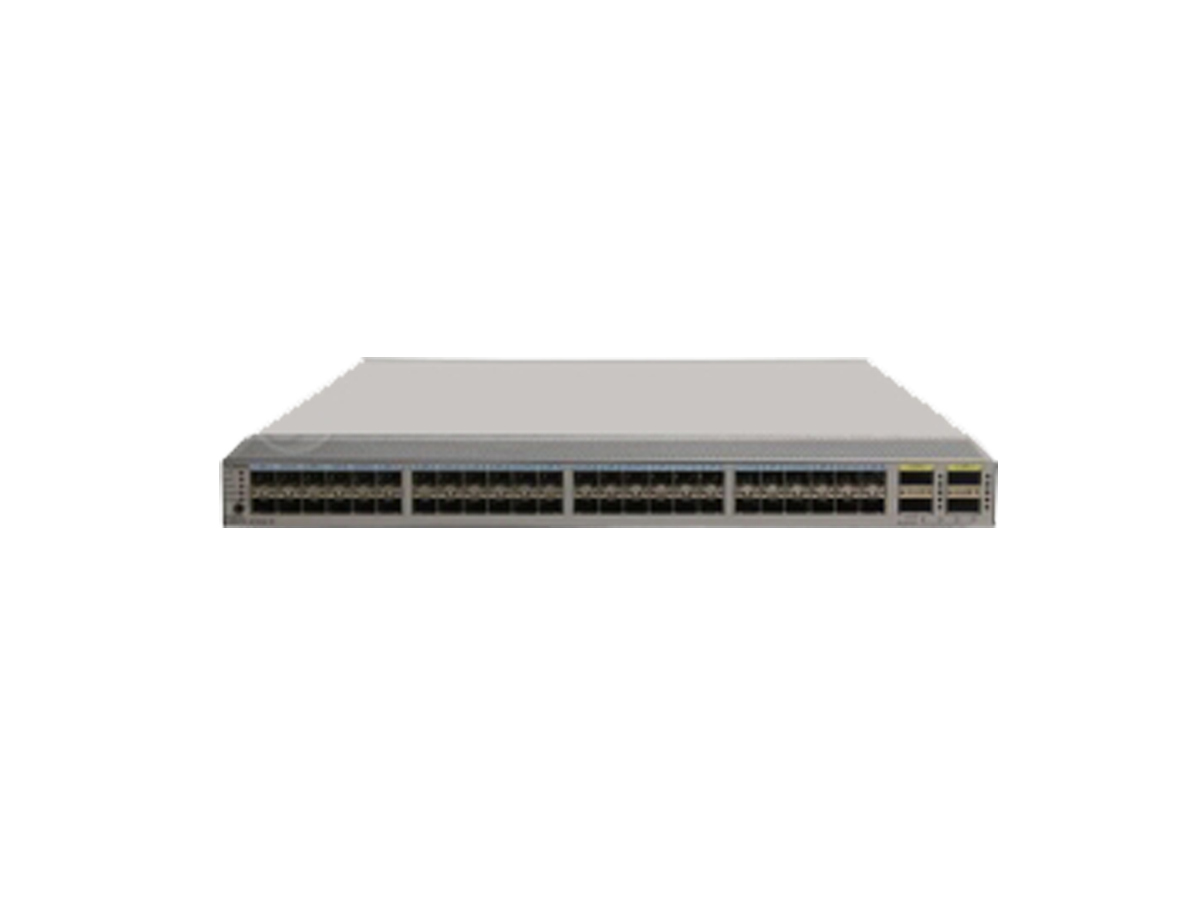

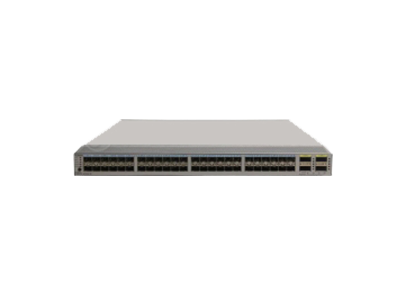

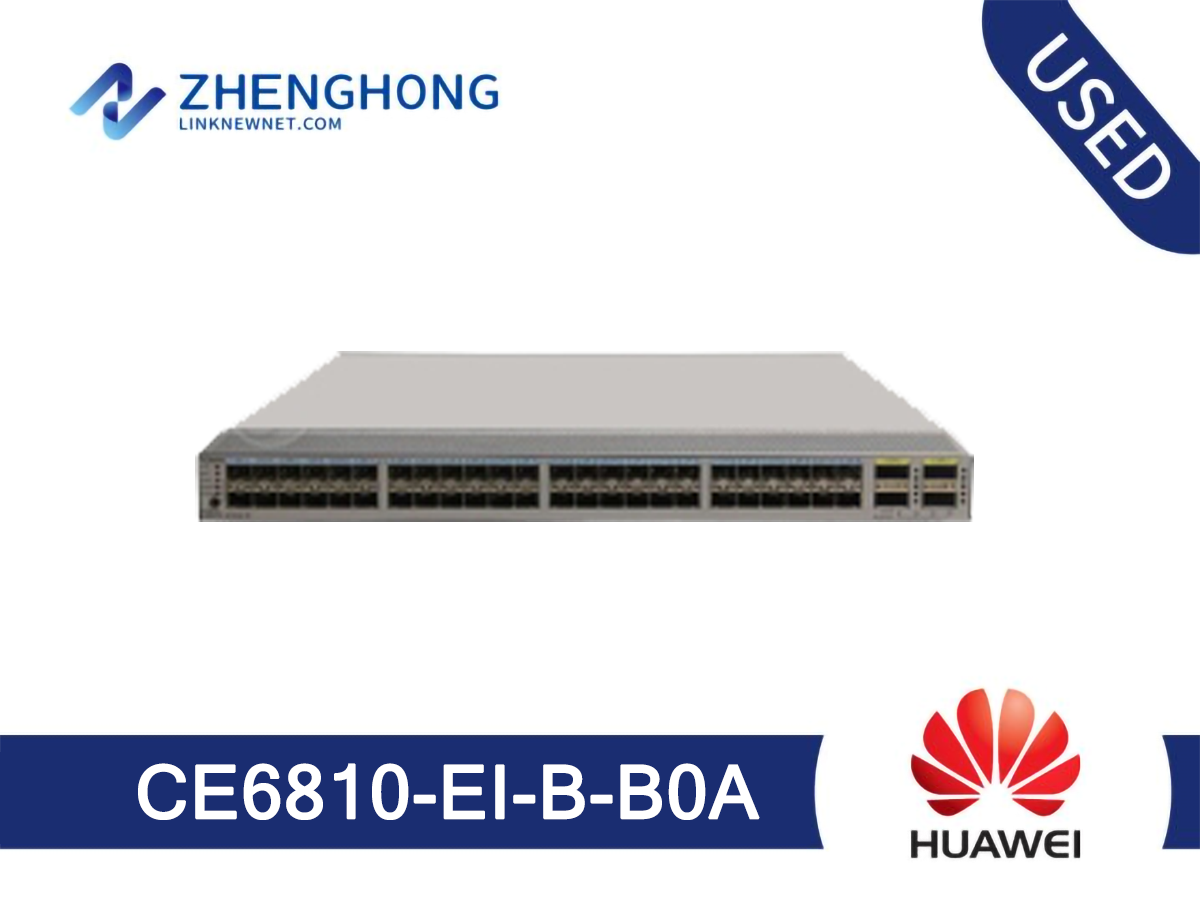

Huawei CloudEngine 6800 Series Switches CE6810-EI-B-B0A

Huawei CloudEngine 6800 Series Switches CE6810-EI-B-B0A

Model: CE6810-EI-B-B0A
Detail: CE6810-48S4Q-EI Switch (2*AC Power Module,2*FAN Box,Port-side Intake)
Condition: USED
List Price: $6830 Price: $4097
Price is not final
Price changes with demand in the second-hand market, please contact our sales to obtain the latest quotation. The final price is subject to the quotation.
Please contact if any inquiry.
Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags： DC AC QSFP+ SFP+ ≥48 port

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details


CE6810-EI-B-B0A Specification

10G Base-T Ports

0

SFP+ Ports

48

QSFP+ Ports

4

Switching Capacity

1.28 Tbit/s

Forwarding Rate

960 Mpps

Airflow Design

Front-to-back or back-to-front

Device Virtualization

iStack

Super Virtual Fabric (SVF)

Network Virtualization

M-LAG

TRILL (CE6810EI)

VM Awareness

Agile Controller

Network Convergence

FCoE

DCBX, PFC, and ETS

Programmability

OpenFlow

OPS

Puppet and OVSDB plugins released on open source websites (CE6810EI)

Linux container for open source and customization programming

Traffic Analysis

NetStream

sFlow

VLAN

Adding access, trunk, and hybrid interfaces to VLANs

Default VLAN

QinQ

MUX VLAN

GVRP

ACL

Ingress: 2,250
Egress: 1,000

MAC Address Table

Maximum: 64k

Dynamic learning and aging of MAC addresses

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

MAC address limiting based on ports and VLANs

ARP (maximum)

4k

IPv4 FIB (maximum)

16k

IP Routing

IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS

IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ (CE6810EI)

IPv6 FIB (maximum)

8k

Multicast FIB (maximum)

2k

Security and Management

802.1x authentication

Command line authority control based on user levels, preventing unauthorized users from using commands

DoS, ARP, and ICMP attack defenses

Port isolation, port security, and sticky MAC

Binding of the IP address, MAC address, interface number, and VLAN ID

Authentication methods, including AAA, RADIUS, and HWTACACS

Remote Network Monitoring (RMON)

Dimensions (W x D x H)

442 mm x 600 mm x 43.6 mm

Weight (fully loaded)

10.4 kg (22.9 lb)

Environmental Parameters

Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m)
Storage temperature: -40°C to 70°C (-40°F to 158°F)
Relative humidity: 5% RH to 95% RH, non-condensing

Operating Voltage

AC: 90V to 290V
DC: -38.4V to -72V

Max. Power Consumption

238W
