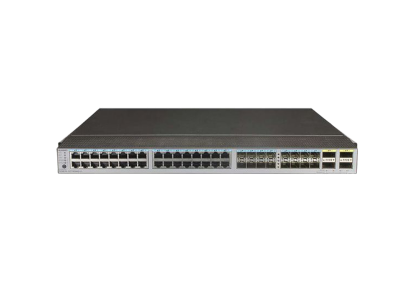

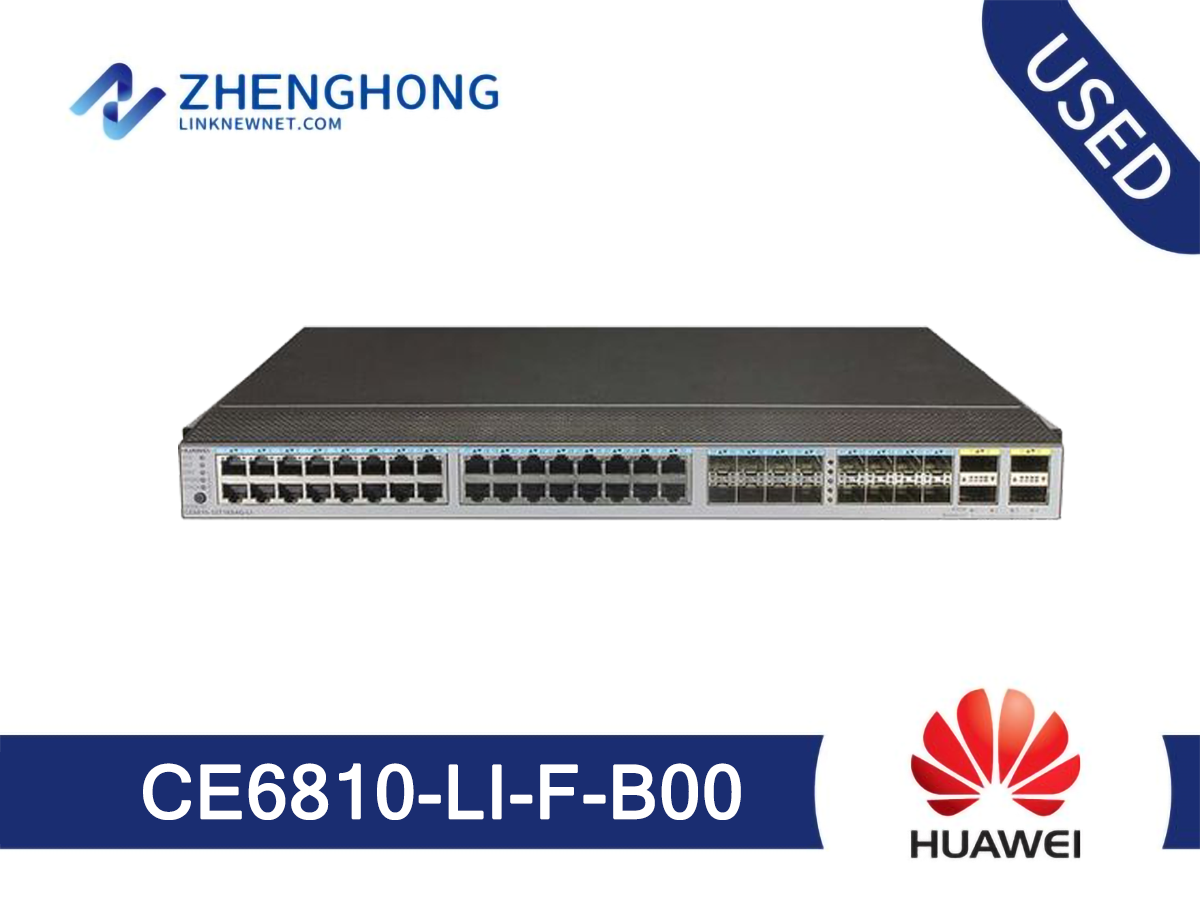

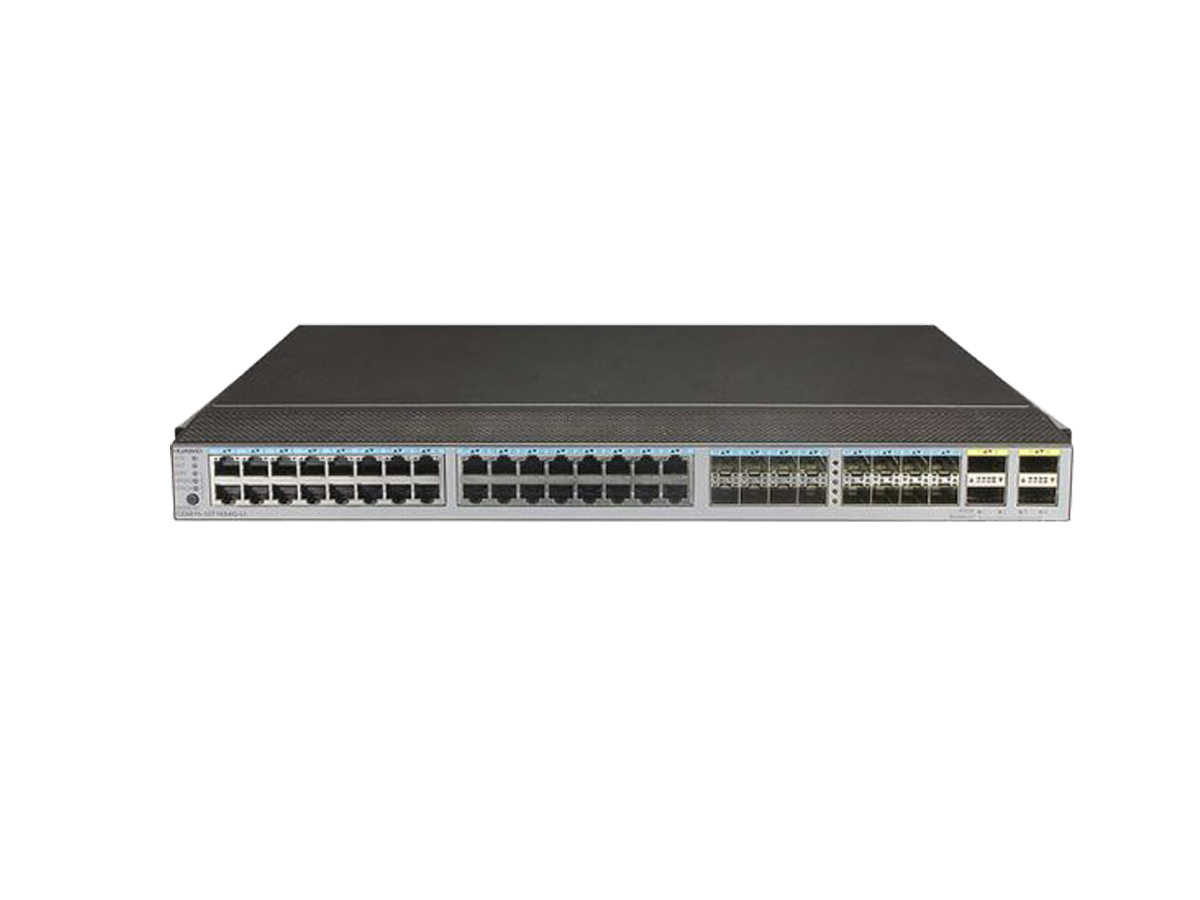

CE6810-LI-F-B00 Specification | |
10G Base-T Ports | 32 |
SFP+ Ports | 16 |
QSFP+ Ports | 4 |
Switching Capacity | 1.28 Tbit/s |
Forwarding Rate | 960 Mpps |
Airflow Design | Front-to-back or back-to-front |
Device Virtualization | iStack |
Super Virtual Fabric (SVF) | |
Network Virtualization | M-LAG |
VM Awareness | Agile Controller |
Network Convergence | FCoE |
DCBX, PFC, and ETS | |
Programmability | OpenFlow |
OPS | |
Linux container for open source and customization programming | |
Traffic Analysis | NetStream |
sFlow | |
VLAN | Adding access, trunk, and hybrid interfaces to VLANs |
Default VLAN | |
QinQ | |
MUX VLAN | |
GVRP | |
ACL | Ingress: 1,250 |
MAC Address Table | Maximum: 128k |
Dynamic learning and aging of MAC addresses | |
Static, dynamic, and blackhole MAC address entries | |
Packet filtering based on source MAC addresses | |
MAC address limiting based on ports and VLANs | |
ARP (maximum) | 1.5k |
IPv4 FIB (maximum) | 1.5k |
IP Routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
IPv6 FIB (maximum) | / |
Multicast FIB (maximum) | / |
Multicast | IGMP snooping |
Reliability | LACP |
STP, RSTP, VBST, MSTP | |
BPDU protection, root protection, and loop protection | |
Smart Link and multi-instance | |
DLDP | |
ERPS (G.8032) | |
VRRP, VRRP load balancing, and BFD for VRRP | |
Security and Management | 802.1x authentication |
Command line authority control based on user levels, preventing unauthorized users from using commands | |
DoS, ARP, and ICMP attack defenses | |
Port isolation, port security, and sticky MAC | |
Binding of the IP address, MAC address, interface number, and VLAN ID | |
Authentication methods, including AAA, RADIUS, and HWTACACS | |
Remote Network Monitoring (RMON) | |
Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
Weight (fully loaded) | 8.5 kg (18.7 lb) |
Environmental Parameters | Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) |
Operating Voltage | AC: 90V to 290V |
Max. Power Consumption | 288W |
