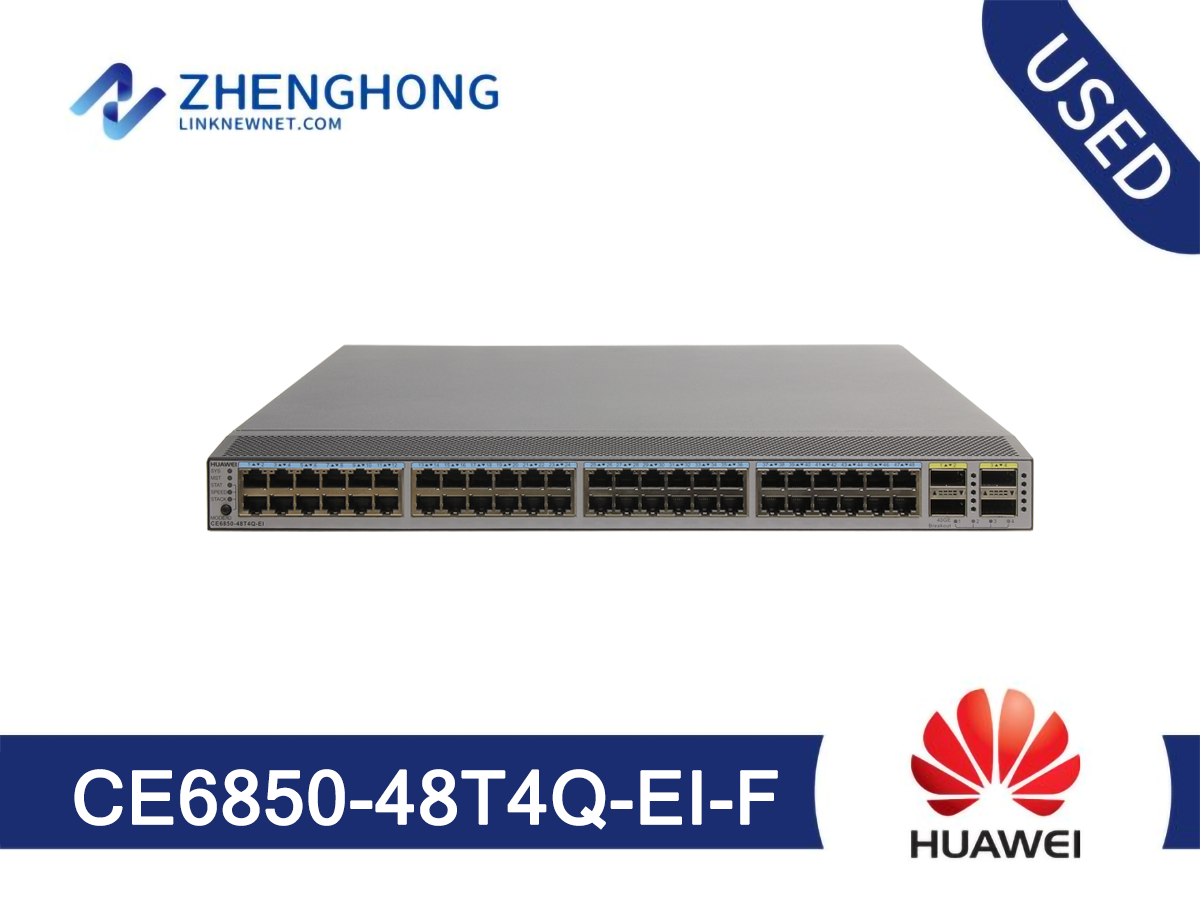

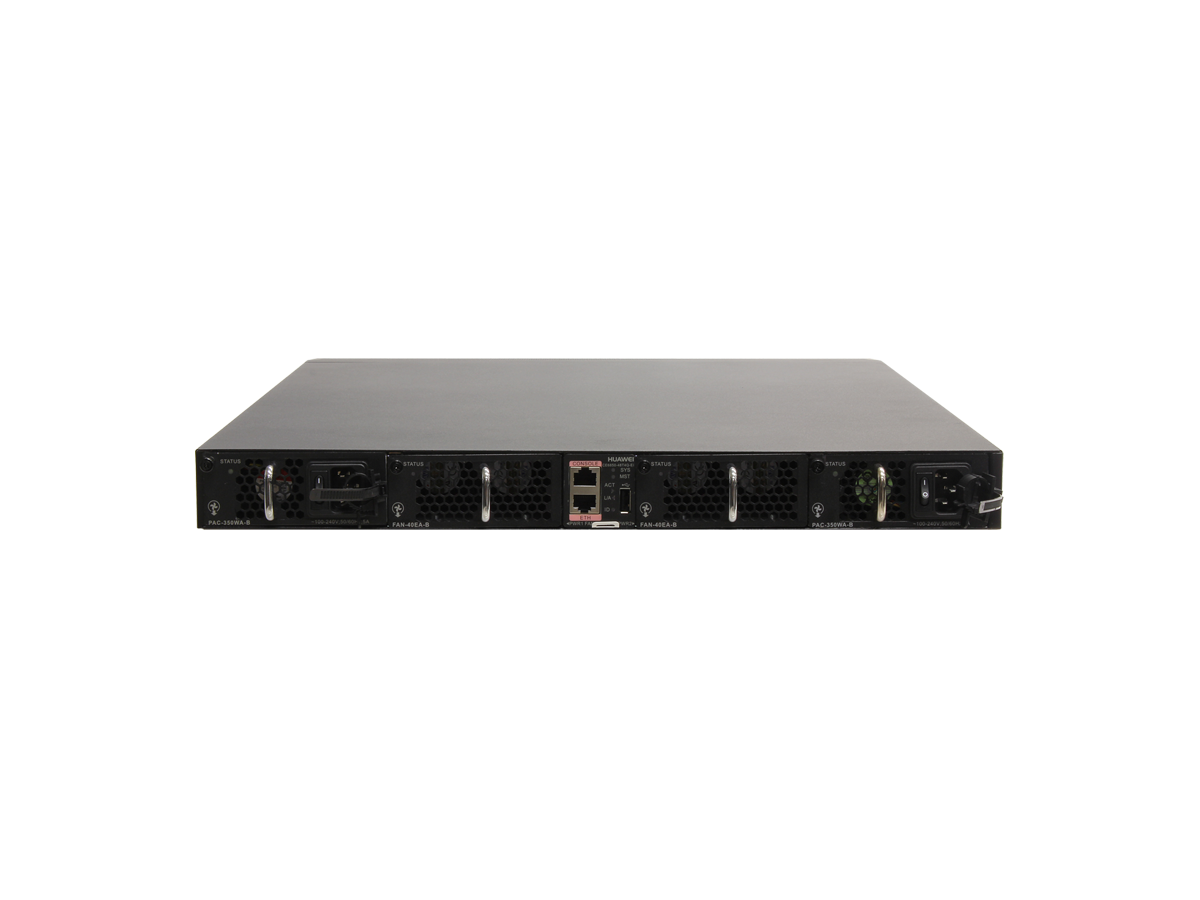

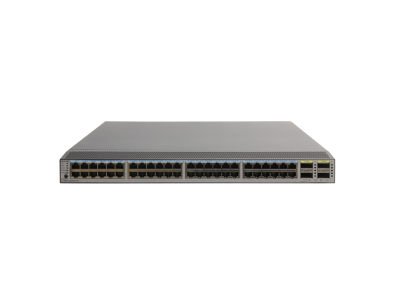

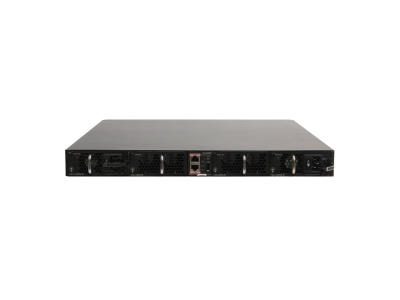

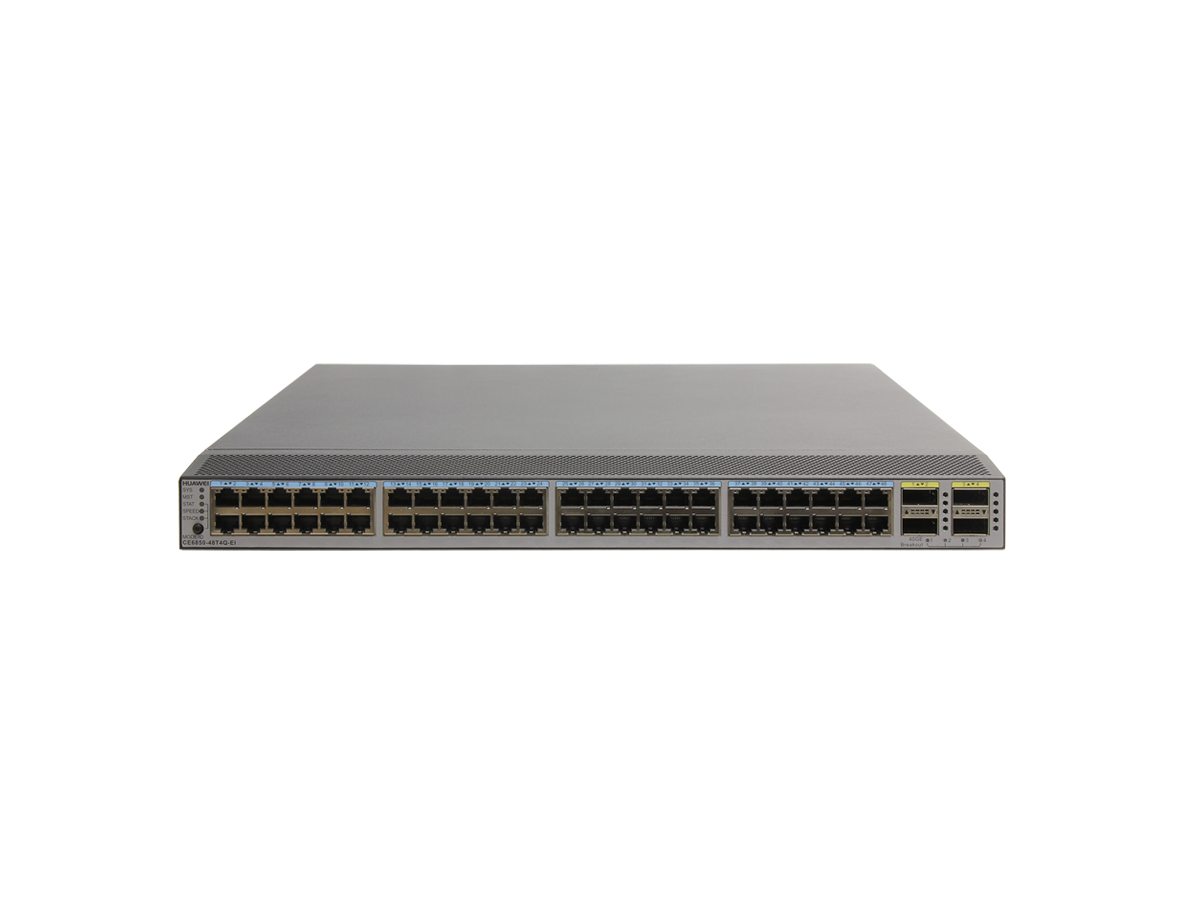

Huawei CloudEngine 6800 Series Switches CE6850-48T4Q-EI-F

10G Base-T Ports

48

SFP+ Ports

0

FC Ports

0

QSFP+ Ports

4

Switching Capacity

1.28 Tbit/s

Forwarding Rate

960 Mpps

Airflow Design

Front-to-back or back-to-front

Device Virtualization

iStack

Super Virtual Fabric (SVF)

Network Virtualization

M-LAG

TRILL

VM Awareness

Agile Controller

Network Convergence

FCoE

DCBX, PFC, and ETS

Programmability

OpenFlow

OPS

Puppet, and OVSDB plugins released on open source websites

Linux container for open source and customization programming

Traffic Analysis

NetStream

sFlow

VLAN

Adding access, trunk, and hybrid interfaces to VLANs

Default VLAN

QinQ

MUX VLAN

GVRP

ACL

Ingress: 2,250 Egress: 1,000

MAC Address Table

Maximum: 128k

Dynamic learning and aging of MAC addresses

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

MAC address limiting based on ports and VLANs

ARP (maximum)

16k

IPv4 FIB (maximum)

16k

IP Routing

IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS

IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+

IPv6 FIB (maximum)

8k

IPv6

IPv6 Neighbor Discovery (ND)

Path MTU Discovery (PMTU)

TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6

Multicast FIB (maximum)

4k

Multicast

IGMP, PIM-SM, PIM-DM, MSDP, and MBGP

IGMP snooping

IGMP proxy

Fast leave of multicast member interfaces

Multicast traffic suppression

Multicast VLAN

MPLS

MPLS (CE6800HI)

Configuration and Maintenance

Network management protocols, such as SNMPv1/v2c/v3

File upload and download through FTP and TFTP

BootROM upgrade and remote upgrade

802.3az Energy Efficient Ethernet (EEE)

Hot patches

User operation logs

ZTP

Security and Management

802.1x authentication

Command line authority control based on user levels, preventing unauthorized users from using commands

DoS, ARP, and ICMP attack defenses

Port isolation, port security, and sticky MAC

Binding of the IP address, MAC address, interface number, and VLAN ID

Authentication methods, including AAA, RADIUS, and HWTACACS

Remote Network Monitoring (RMON)

Dimensions (W x D x H)

442 mm x 600 mm x 43.6 mm

Weight (fully loaded)

11.4 kg (25.1 lb)

Environmental Parameters

Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m)
Storage temperature: -40°C to 70°C (-40°F to 158°F)
Relative humidity: 5% RH to 95% RH, non-condensing

Operating Voltage

AC: 90V to 290V

Max. Power Consumption

380W
