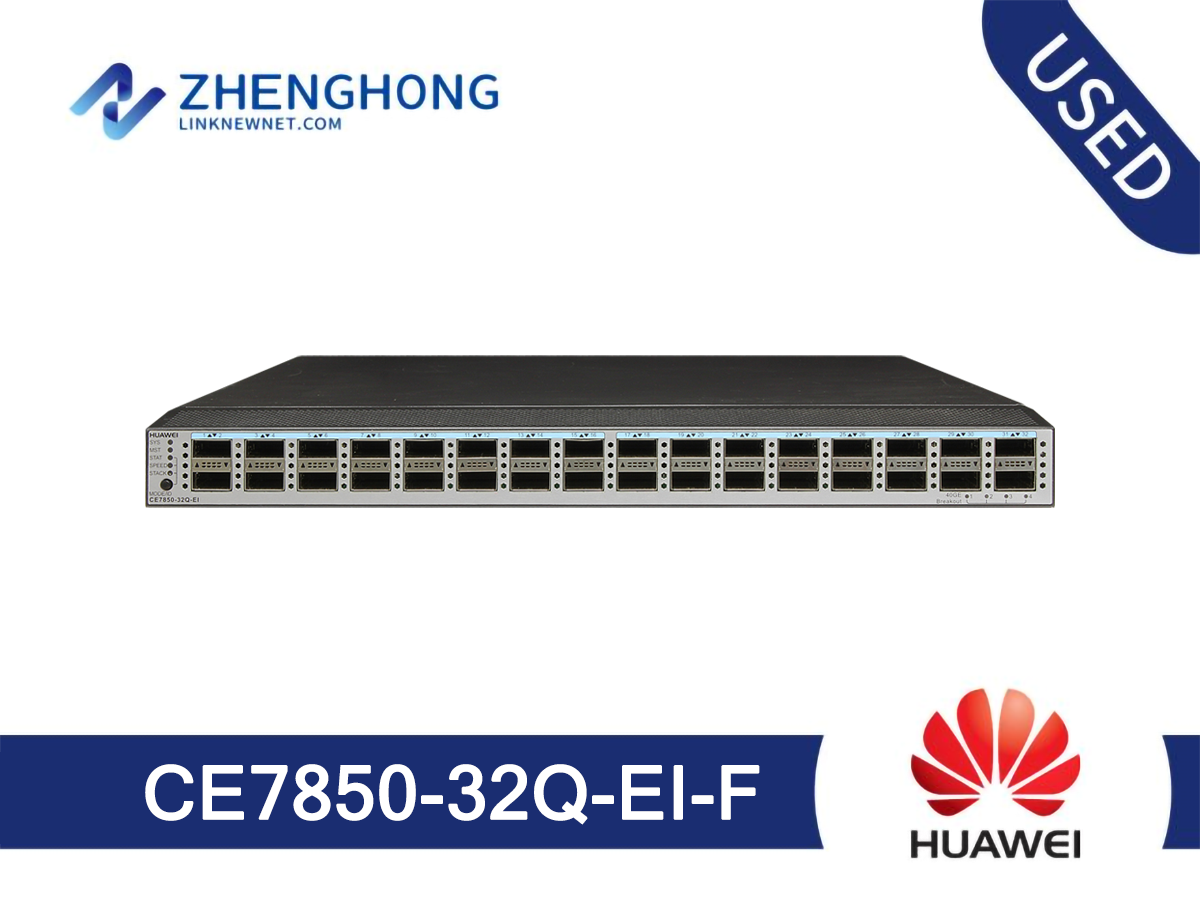

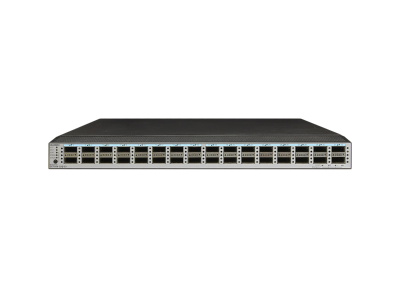

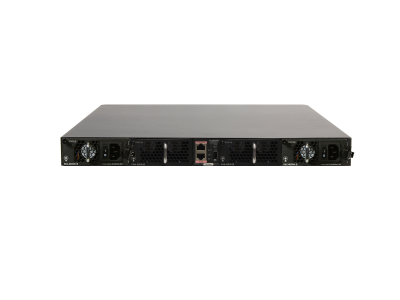

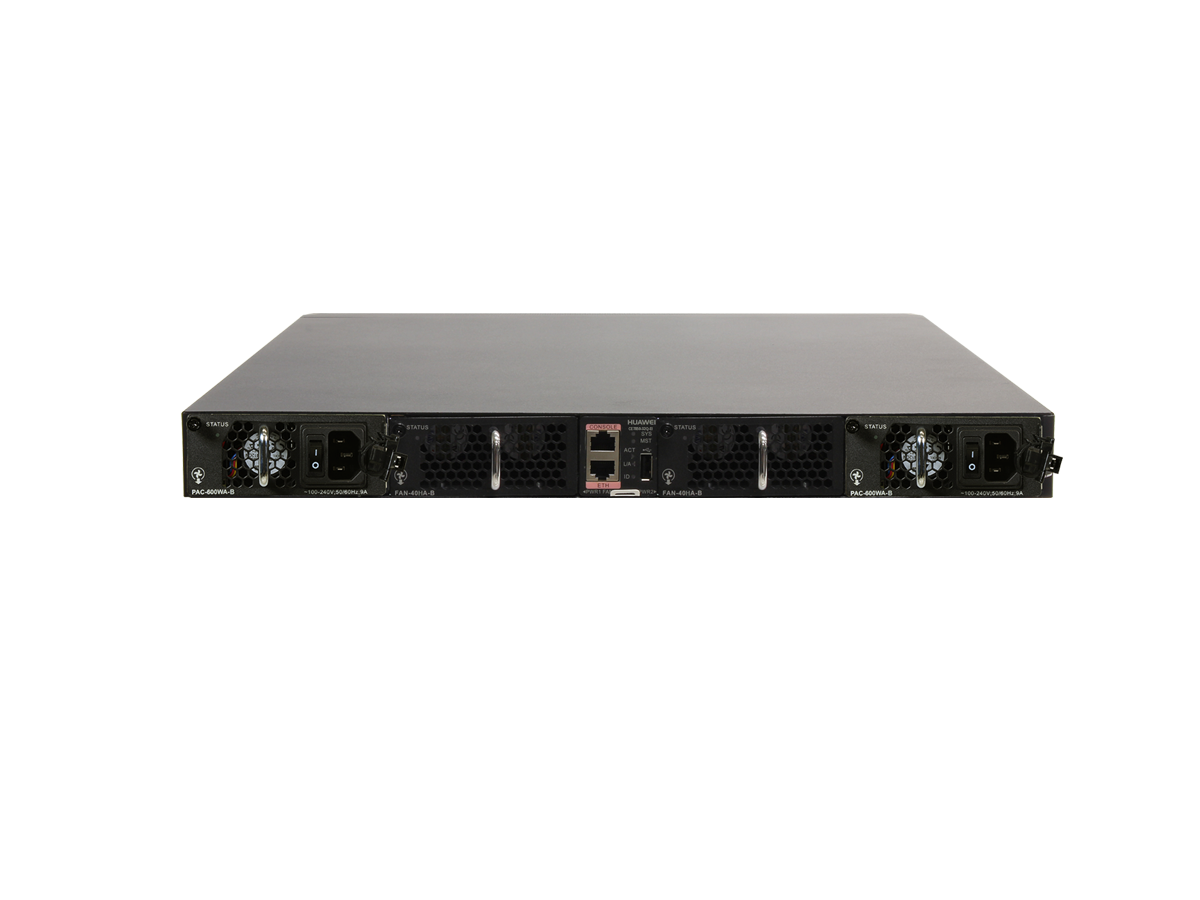

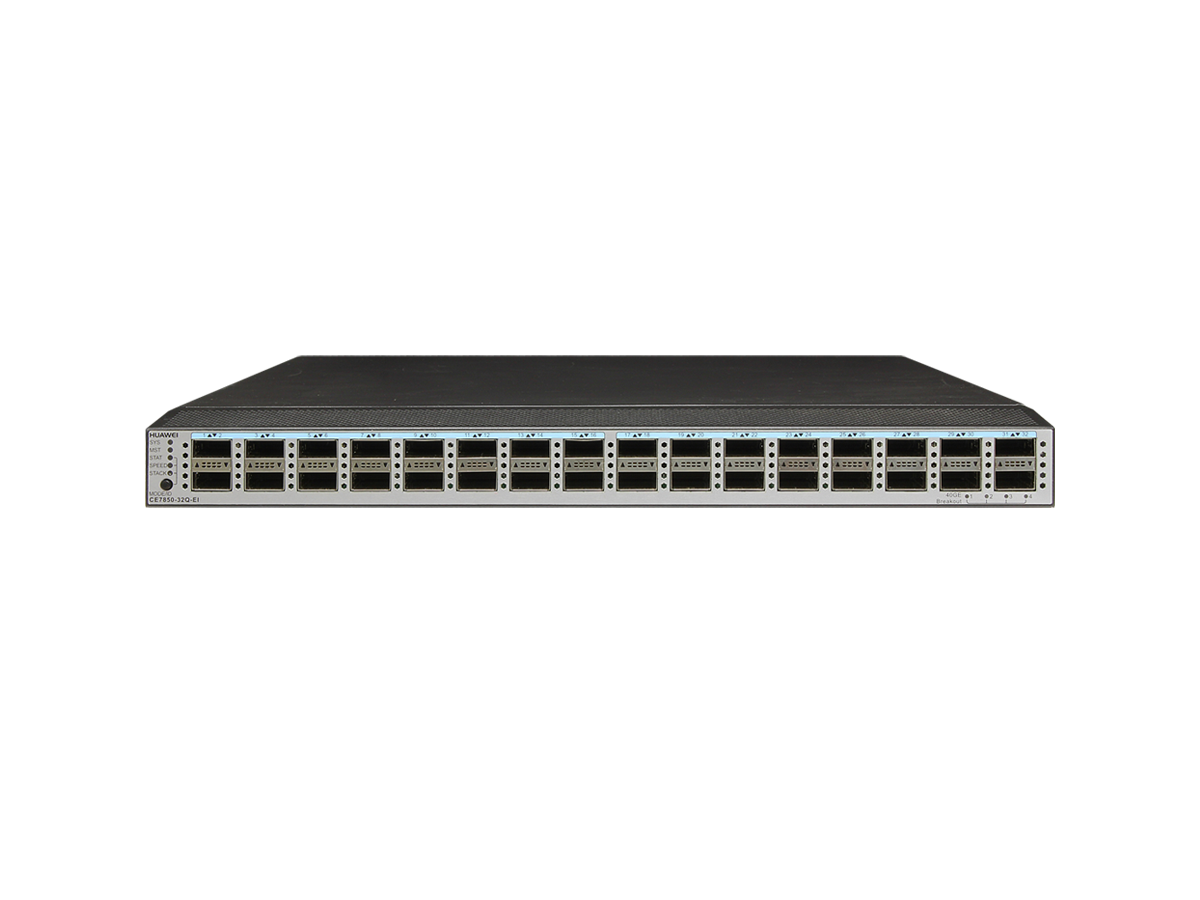

Huawei CloudEngine 6800 Series Switches CE7850-32Q-EI-F Overview
Huawei CloudEngine 6800 Series Switches CE7850-32Q-EI-F is a genuine data-center switching fabric product from Huawei, a global ICT provider whose CloudEngine and S-Series platforms are widely deployed in campus and data-center environments. Belonging to the Huawei CloudEngine 6800 Series family, the CE7850-32Q-EI-F unit is built to the original factory specification, so it integrates with existing Huawei deployments predictably and behaves exactly as the platform documentation describes. In the network, it is built for high-density data-center and cloud environments, where low latency, high availability and consistent forwarding matter most.
From a specification standpoint, it offers 32 ports for client, server or uplink connectivity; packet forwarding up to 440 Mpps. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Huawei hardware already running in the environment.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Huawei CE7850-32Q-EI Switch (32-Port 40G QSFP+,2*FAN Box,Port-side exhaust,Without Power Module)”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the CE7850-32Q-EI-F. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned CE7850-32Q-EI-F
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
CE7850-32Q-EI-F Specifications | |
Ports | 32 x 40 GE QSFP+ |
Switching Capacity | 2.56 Tbit/s |
Forwarding Performance | 1,440 Mpps |
Airflow Design | Front-to-back or back-to-front |
Device Virtualization | iStack |
SVF | |
M-LAG | |
Network Virtualization | TRILL |
VXLAN routing and bridging | |
BGP-EVPN | |
QinQ access VXLAN | |
IPv6 over VXLAN | |
SDN | Agile Controller |
VMware NSX | |
Network Convergence | FCoE |
DCBX, PFC, and ETS | |
Programmability | OPS |
Puppet, Ansible, and OVSDB plug-ins released on open source websites | |
Linux containers for open-source and customized programming | |
Traffic Analysis | NetStream |
sFlow | |
VLAN | Adding access, trunk, and hybrid interfaces to VLANs |
Default VLAN | |
QinQ | |
MUX VLAN | |
GARP VLAN registration protocol (GVRP ) | |
ACL | Ingress: 3,750; Egress: 1,000 |
| Maximum: 288k |
Dynamic learning and aging of MAC addresses | |
Static, dynamic, and black hole MAC address entries | |
Packet filtering based on source MAC addresses | |
MAC address limiting based on ports and VLANs | |
ARP | Maximum: 128k |
ND | Maximum: 48k |
IPv4 FIB | Maximum: 256k |
IP Routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ | |
IPv6 FIB | Maximum: 128k |
IPv6 | IPv6 Neighbor Discovery (ND) |
Path MTU Discovery (PMTU) | |
TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6 | |
Multicast FIB | Maximum: 8k |
Configuration and Maintenance | Console, Telnet, and SSH terminals |
Network management protocols, such as SNMP v1/v2c/v3 | |
File upload and download through FTP and TFTP | |
BootROM upgrade and remote upgrade | |
802.3az Energy Efficient Ethernet (EEE) | |
Hot patches | |
User operation logs | |
Zero-Touch Provisioning (ZTP) | |
Security and Management | 802.1x authentication |
Command line authority control based on user levels, preventing unauthorized users from using commands | |
DoS, ARP, and ICMP attack defenses | |
Port isolation, port security, and sticky MAC | |
Binding of the IP address, MAC address, interface and VLAN | |
Authentication methods, including AAA, RADIUS, and HWTACACS | |
Remote Network Monitoring (RMON) | |
Dimensions (W x D x H) | 17.4 in. x 23.9 in. x 1.7 in. (442 mm x 607 mm x 43.6 mm) |
Weight (fully loaded) | 11.2 kg (24.7 lb) |
Environment Parameters | Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) |
Operating Voltage | 90V AC to 290V AC |
Maximum Power Consumption | 431W |
