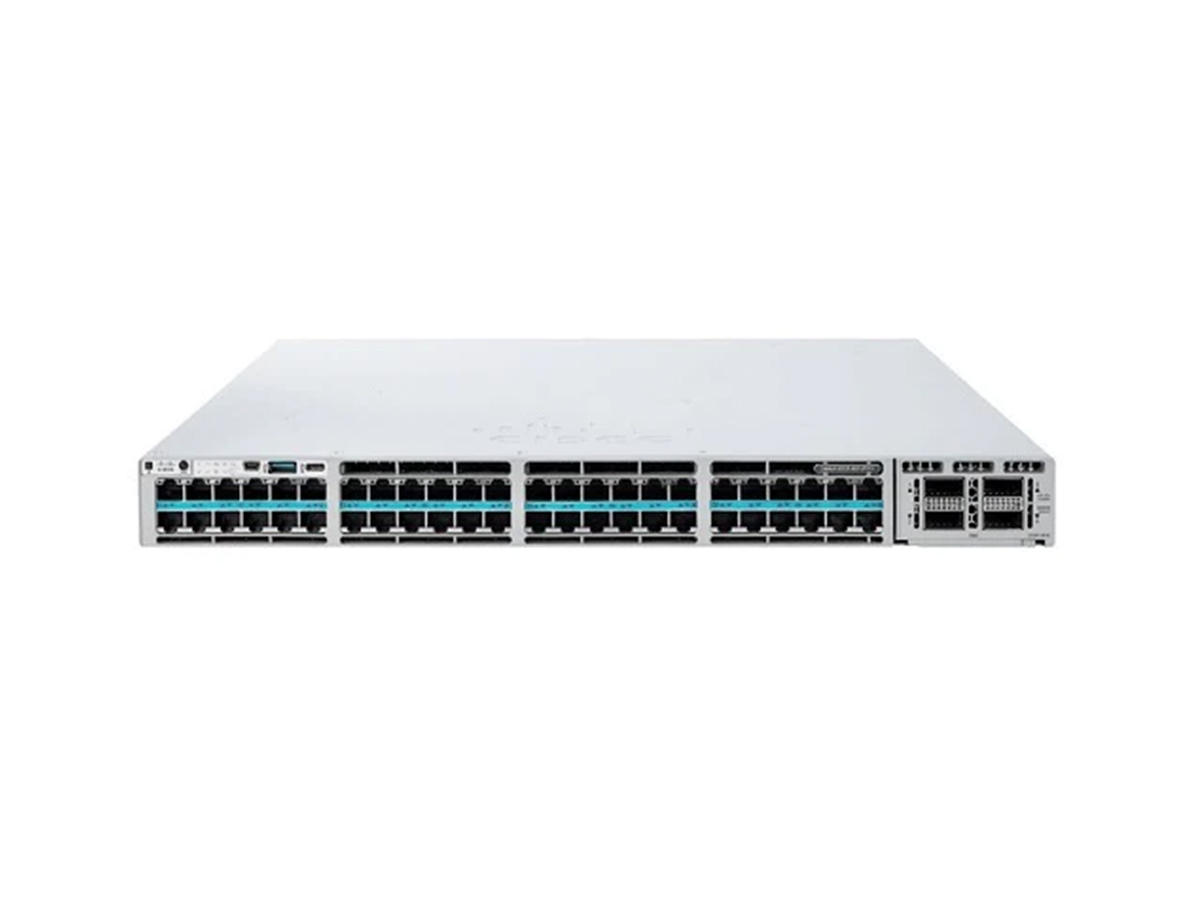

Cisco Catalyst 9300 Series Switch C9300X-48HX-A Overview
Catalyst 9300 48-port 10G/mGig with modular uplink, UPOE+, Network Advantage
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned C9300X-48HX-A
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
| C9300X-48HX-A | |
| Product list | |
| Product code | C9300X-48HX-A |
| Power cable | No |
| Button | No |
| Product parameters | |
| Network Ports | 48 |
| Modular Uplink | Yes |
| Stack Port | Yes |
| Port Details | 48 port Cisco UPOE+, 48x 10G Multigigabit (10G/5G/2.5G/1G/100M) with 90W UPOE+ |
| Ethernet Technology | Gigabit Ethernet |
| Switch capacity | 2,000 Gbps |
| Switch Capacity witch stacking | 3,000 Gbps |
| Forwarding rate | 1488 Mpps |
| Forwarding rate with stacking | 2232 Mpps |
| Layer Supported | 3 |
| Introduction | Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place. |
| Power supply | |
| Default | 1100W AC 1900W AC |
| Physical specifications | |
| Width | 22 in |
| Height | 1.7 in |
| Depth | 17.5 in |
| Weight | 14.6 lb |
