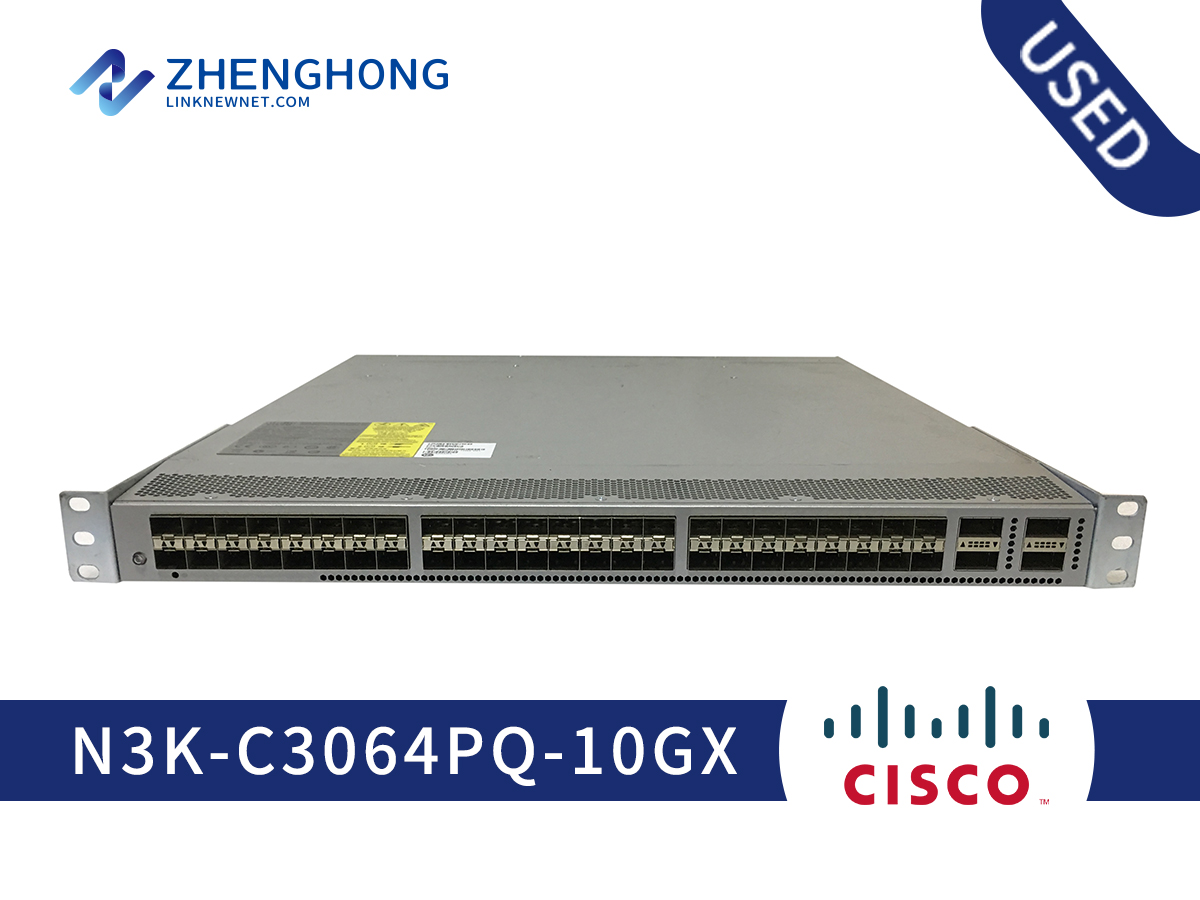

Cisco Nexus 3000 Series Switch N3K-C3064PQ-10GX Overview
Cisco Nexus 3000 Series Switch N3K-C3064PQ-10GX is a genuine data-center switching fabric product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco Nexus 3000 Series family, the N3K-C3064PQ-10GX unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is built for high-density data-center and cloud environments, where low latency, high availability and consistent forwarding matter most.
From a specification standpoint, it offers 52 ports for client, server or uplink connectivity. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Nexus 3064-X, 48 SFP+ and 4 QSFP+ ports, with enhanced scale, low latency”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the N3K-C3064PQ-10GX. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Upgrade Path
N3K-C3064PQ-10GX is end-of-life. See how to upgrade to Nexus 9000 →
Buying a Pre-Owned N3K-C3064PQ-10GX
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
| N3K-C3064PQ-10GX | |
| Product list | |
| Product code | N3K-C3064PQ-10GX |
| Power cable | No |
| Button | No |
| Product parameters | |
| Port | 52 |
| Port Type | 48 x 10 Gigabit Ethernet Expansion Slot 4 x 40 Gigabit Ethernet Expansion Slot |
| Expansion Slot Type | QSFP+ SFP+ |
| Layer Supported | 3 |
| Flash Memory | 2GB |
| Management | Web-Based Management Command Line Interface SNMP v1, v2, v3 Cisco OHMS Cisco DCNM Syslog Telnet RMON DHCP VLAN QoS MIB |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3ba, IEEE 1588-2008 |
| Introduction | N3K-C3064PQ-10GX supports a wide variety of 1, 10, and 40 Gigabit Ethernet connectivity options. 1 and 10 Gigabit Ethernet connectivity is achieved using SFP+ transceivers in the first 48 ports, and 40 Gigabit Ethernet connectivity is achieved by using QSFP+ transceivers in the last 4 ports. |
| Power Device | |
| Power Source | Power Supply |
| Max Supported Qty | 2 |
| Input Voltage | 110 V AC 220 V AC |
| Physical specifications | |
| Width | 17.3 in |
| Height | 1.7 in |
| Depth | 19.9 in |
| Weight | 20.5 lbs |
| Environmental Parameters | |
| Min Temperature | 32 °F |
| Max Temperature | 104 °F |
| Humidity Operating | 10 - 85% (non-condensing) |
N3K-C3064PQ-10GX - Deployment Notes
This N3K-C3064PQ-10GX switch is suited to wiring-closet, distribution, or core roles depending on the port density and uplink options of the specific model. The port configuration is a key consideration when planning power budgets for attached devices such as IP phones and access points.
For a refresh or expansion, confirm the IOS/NX-OS software release supported by this specific SKU, the fan and power requirements, and the uplink modules that match your existing infrastructure. Our team can verify revision levels and software compatibility before you order.
Every unit at LinkNewNet is inspected and tested before dispatch, and this N3K-C3064PQ-10GX variant is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Volume requirements can be staged with configuration checks.
