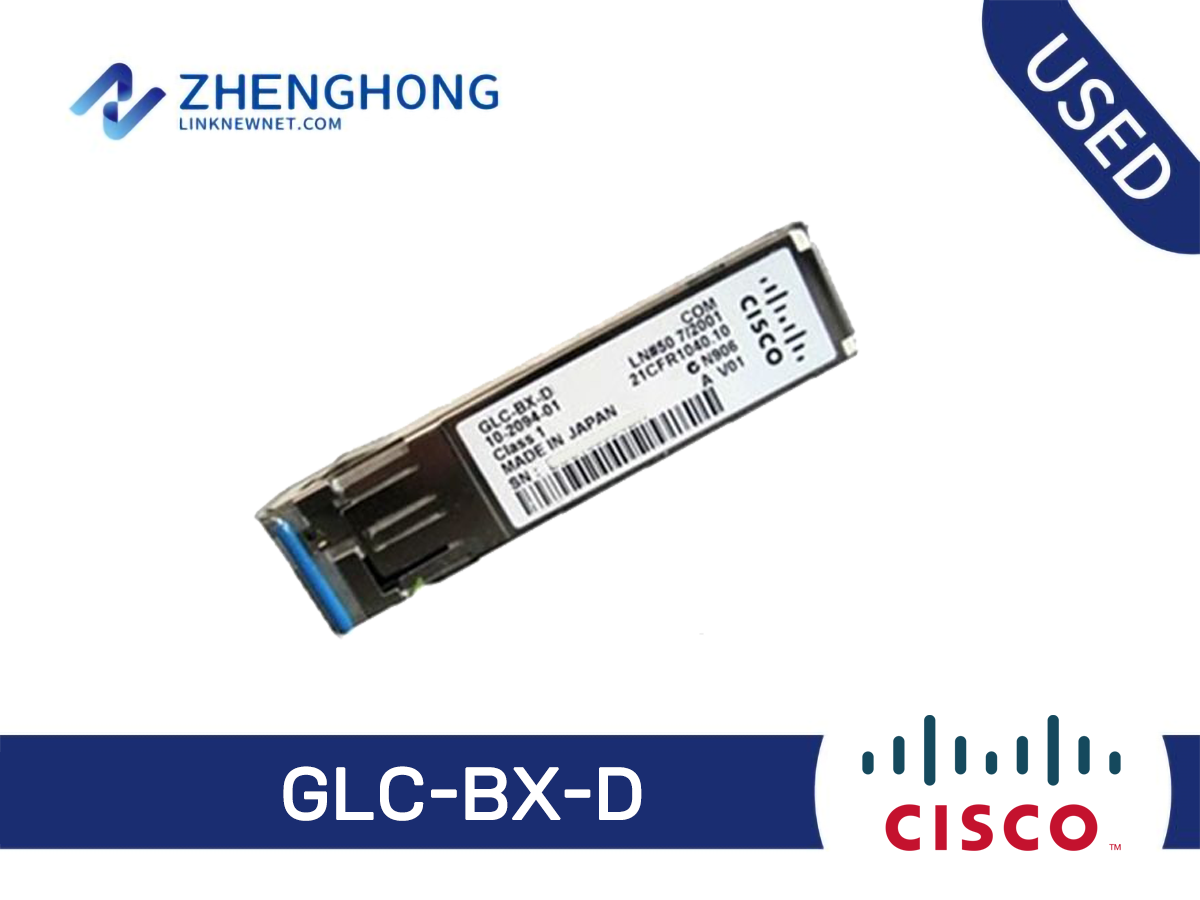

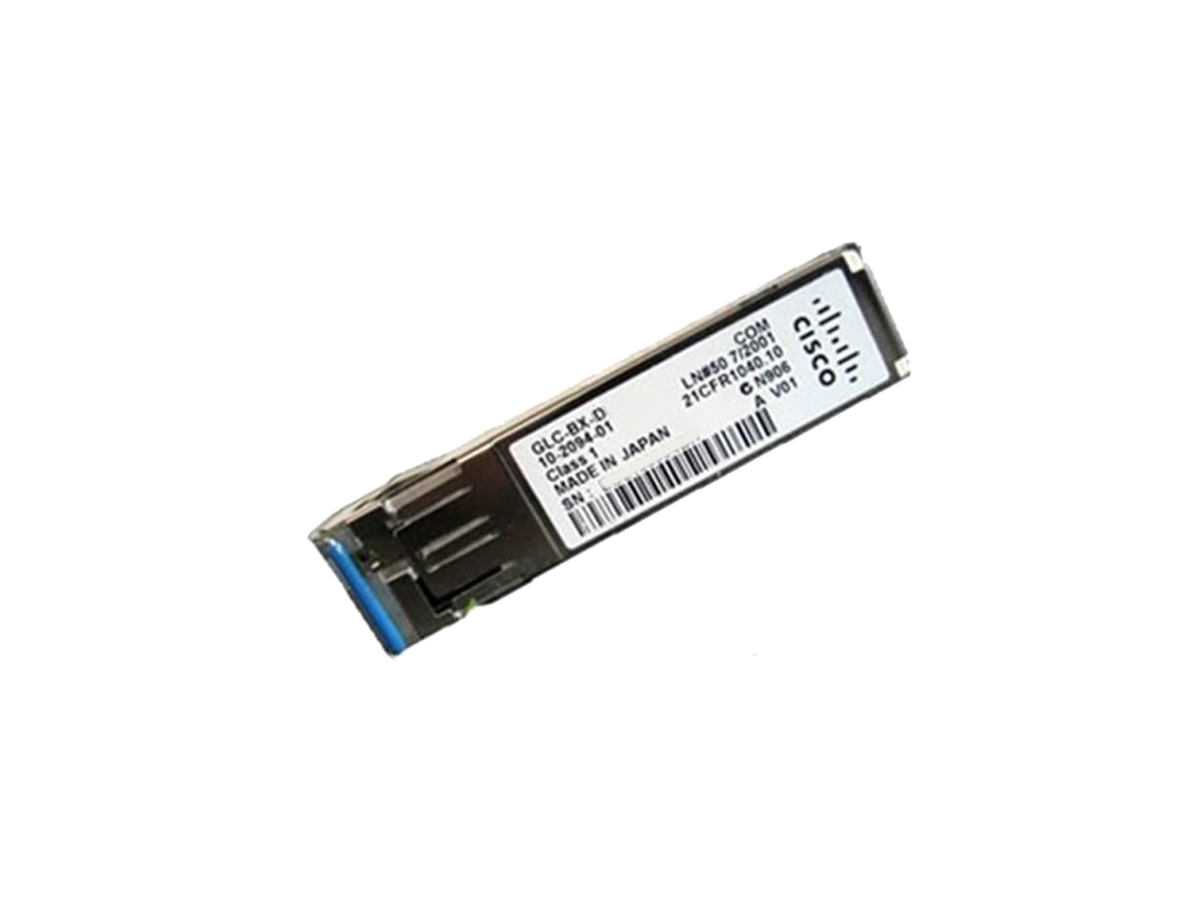

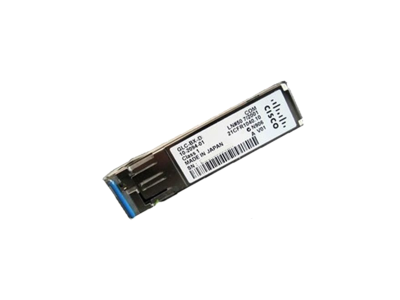

GLC-BX-D Specifications | |
| Wavelength (nm) | 1490 |
| Fiber Type | SMF |
| Operating Distance (m) | 10,000 (32,821 ft) |
| Transmit Power Range (dBm) | -3 to -9 |
| Receive Power Range (dBm) | -3 to -19.5 |
| Maximum Channel insertion loss in dB (by fiber type)* | 5.5 (G.652 SMF) |
| Transmit and Receive Wavelength Range (nm) | 1480 to 1500 (Transmit) 1260 to 1360 (Receive) |
| Dimensions (H x W x D) | 8.5 x 13.4 x 56.5 mm |
| Operating temperature range | Commercial temperature range (COM): 0 to 70°C (32 to 158°F) Extended temperature range (EXT): -5°C to 85°C (23 to 185°F) Industrial temperature range (IND): -40 to 85°C (-40 to 185°F) Storage temperature range: -40 to 85°C (-40 to 185°F) |
| Power requirements | up to 1W per SFP port |
| Temperature Range | COM |
| DOM | Yes |
* A mode-conditioning patch cord, as specified by the IEEE standard, is required regardless of the span length. Note how the mode conditioning patch cord for 62.5-μm fibers has a different specification from the mode-conditioning patch cord for 50-μm fibers.
*** Specified at transmission wavelength.
