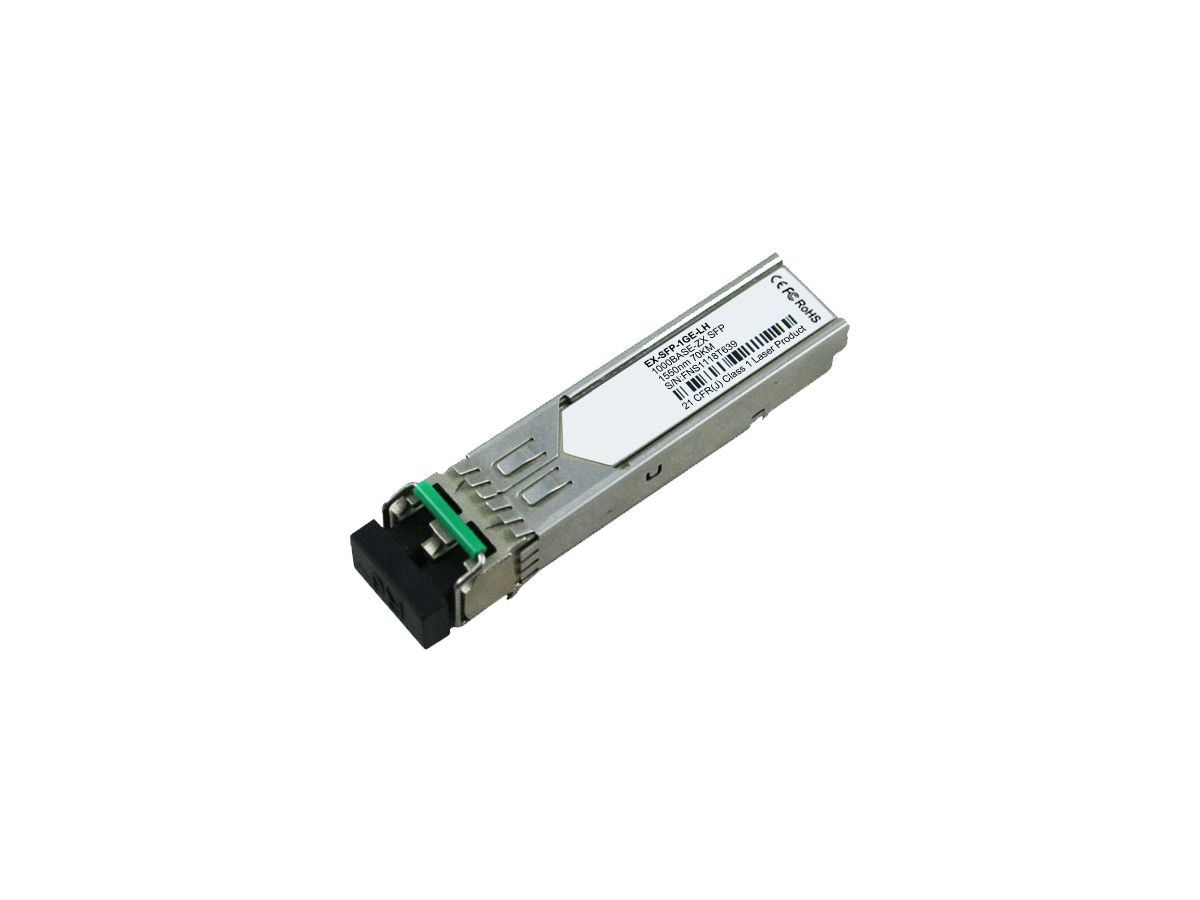

Juniper EX-SFP-1GE-LH Specifications | |
Type | Small Form Factor Pluggable (SFP) Transceiver |
Data Rate | 1 Gbps (Gigabit Ethernet) |
Wavelength | 1310 nm for 10 km transmission |
Connector Type | LC Duplex |
Cable Type | Single Mode Fiber (SMF) |
Maximum Transmission Distance | Up to 70 km |
Digital Diagnostic Monitoring (DDM) | Yes, with Digital Optical Monitoring (DOM) |
Operating Temperature Range | 0��C to 70��C |
Storage Temperature Range | -40��C to 85��C |
Supply Voltage | 3.3 V |
Power Consumption | Less than 1 W |
Hot Pluggable | Yes |
Compatibility | Compatible with Juniper EX Series Switches and other devices supporting SFP transceivers |
MTBF (Mean Time Between Failures) | Greater than 100,000 hours |
Compliance | IEC/EN 61000-4-2, FCC Part 15 Class B, RoHS |
Product SKU | EX-SFP-1GE-LH |
Part Number | 740-010612 |
Certifications | CE, FCC, RoHS |
