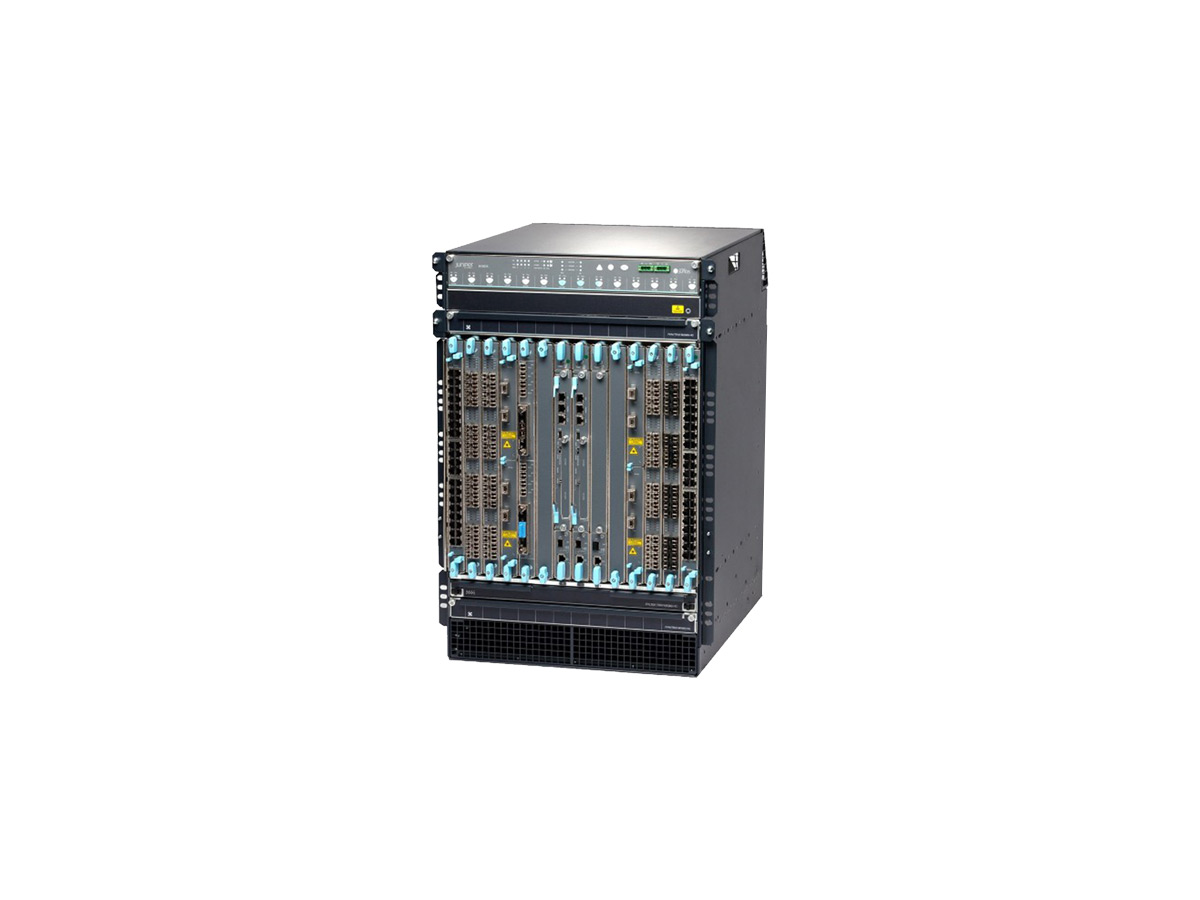

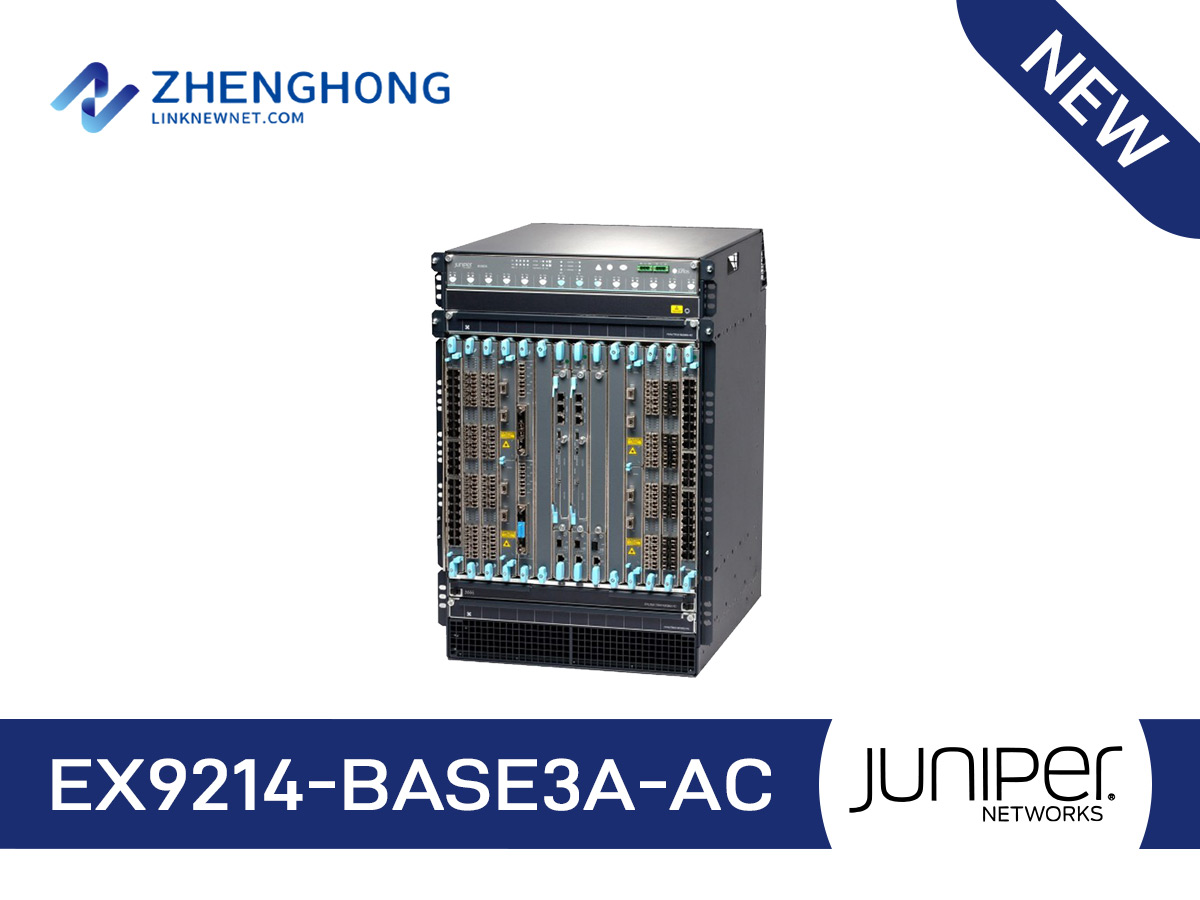

Juniper EX9214-BASE3A-AC Specifications | |
Brand | Juniper |
Model | EX9214-BASE3A-AC |
Chassis Slots | 14-slot chassis |
Midplane | Passive midplane |
Fan Trays | 2x fan trays |
Routing Engine | 1x routing engine |
Switch Fabric Modules | 2x switch fabric-2 modules |
Power Supply Units | 3x 4100W AC PSUs |
Blank Panels | All necessary blank panels included |
Type | Modular Ethernet switch |
System Configuration | Base system configuration |
Redundancy | High availability with redundant components |
Port Capacity | Varies based on installed line cards |
Management | Juniper Junos OS |
Power Input | 110-240V AC |
Cooling System | Front-to-back airflow |
Operating Temperature | 0??C to 40??C (32??F to 104??F) |
Storage Temperature | -40??C to 70??C (-40??F to 158??F) |
Humidity | 5% to 90% non-condensing |
Dimensions (H x W x D) | 61.95 cm x 43.43 cm x 90.17 cm (24.4 in x 17.1 in x 35.5 in) |
Compliance | FCC Class A, CE Mark, RoHS-6 |
