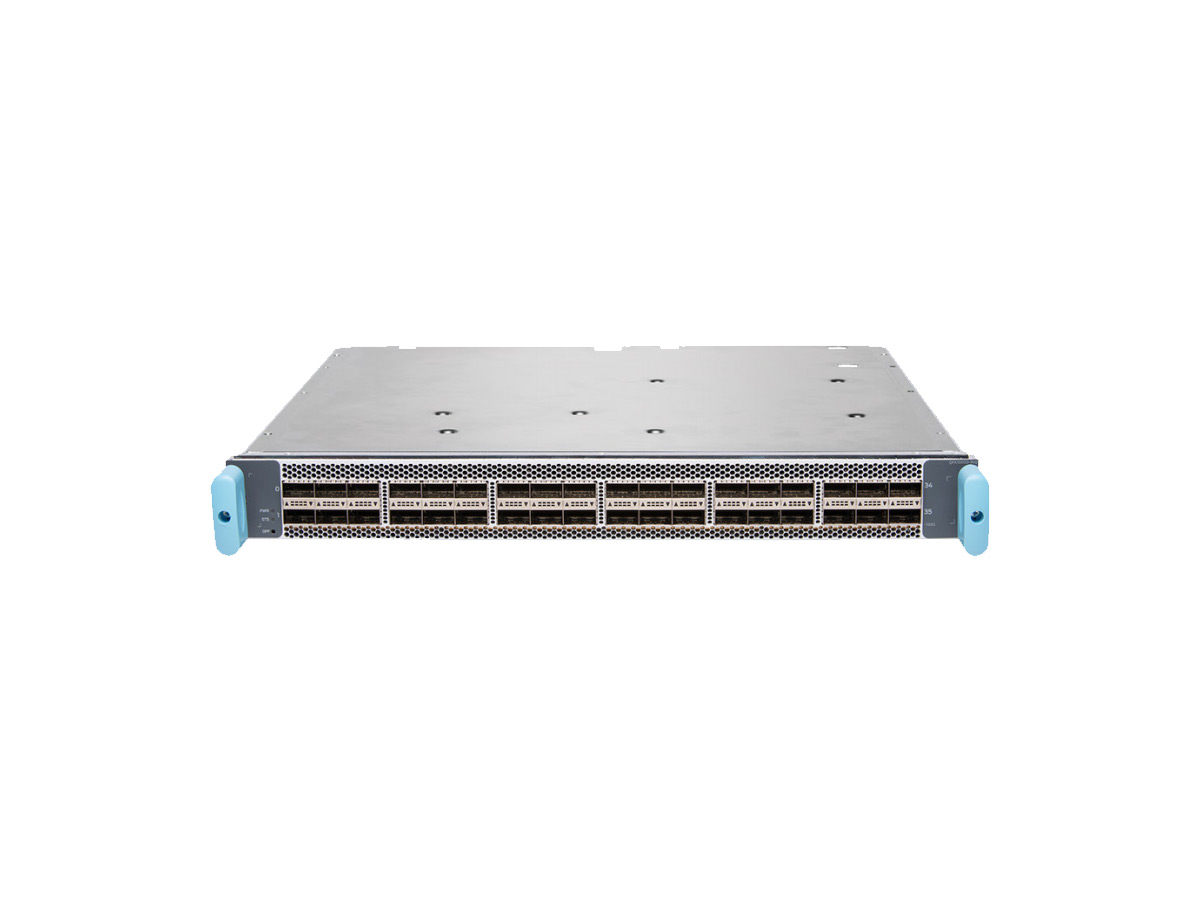

Juniper QFX10000-36Q Specifications | |
| Brand | Juniper |
| Product Name | QFX10000-36Q |
| Type | Line Card |
| Compatible With | Juniper QFX10000 Series Switches |
| Ports | 36-port 40G QSFP+ / 12-port 100G QSFP28 |
| Maximum Data Transfer Rate | 40 Gbps per QSFP+ port, 100 Gbps per QSFP28 port |
| Switching Capacity | Up to 3.6 Tbps (Full Duplex) |
| Throughput | Up to 2.88 billion packets per second (bpps) |
| Buffer Size | Dynamic |
| QoS Queues per Port | 8 |
| MAC Address Entries | 288,000 |
| IPv4 Routes | Up to 2 million |
| IPv6 Routes | Up to 1 million |
| Virtual Interfaces (VLANs) | Up to 64,000 |
| Multicast Groups | Up to 128,000 |
| Hot Swappable | Yes |
| Redundancy | Supports redundant configurations with QFX10000 Series Switches |
| Management | Managed via Juniper Networks Junos operating system |
| JUNOS Version Compatibility | Check latest compatibility information on Juniper's website |
| Power Requirements | Specific to deployment; estimated based on module usage within chassis |
| Operating Temperature | 0��C to 40��C (32��F to 104��F) |
| Operating Humidity | 5% to 90% non-condensing |
