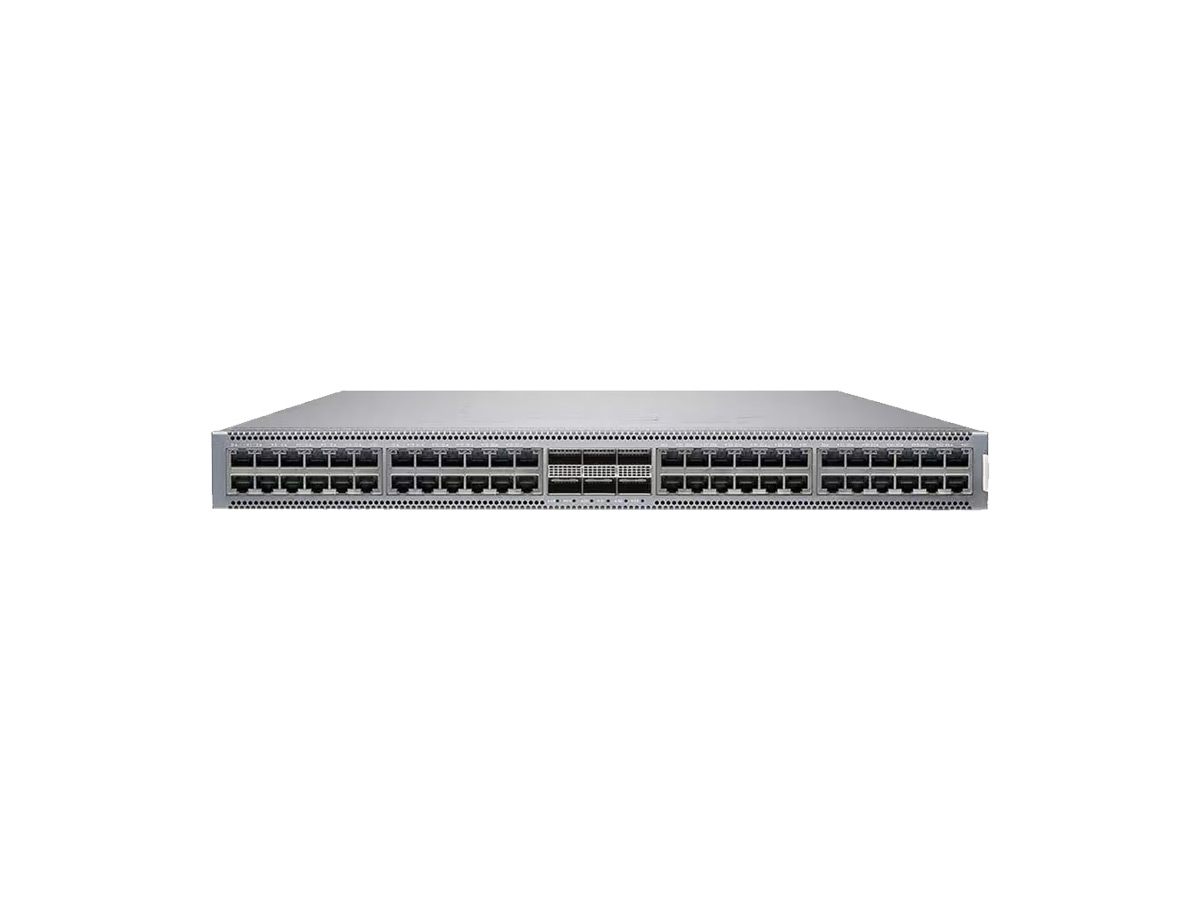

Juniper QFX5120-48T-AFI-T Specifications | |
| Brand | Juniper |
| Model | QFX5120-48T-AFI-T |
| Port Configuration | 48x 10GBASE-T, 6x 100G QSFP28 |
| Form Factor | 1U |
| TAA Compliant | Yes |
| PSU Type | AC PSU |
| Cooling | Side intake and Port side exhaust |
| Backplane Bandwidth | 1.76 Tbps |
| CPU | Intel Rangeley C2558 2.4 GHz |
| Memory | 16 GB |
| SSD Storage | 32 GB |
| Forwarding Capacity | 1.32 Bpps |
| Junos OS Support | Yes |
| Redundant Power Supply | Supported |
| Switching Capacity | 1.76 Tbps |
| Throughput | 1.32 Bpps |
| Management Ports | 1x 10/100/1000BASE-T RJ-45, 1x RJ-45 Console, 1x USB 2.0 |
| Rack Mountable | Yes |
| Operating Temperature | 32��F to 104��F (0��C to 40��C) |
| Humidity | 5% to 95% non-condensing |
