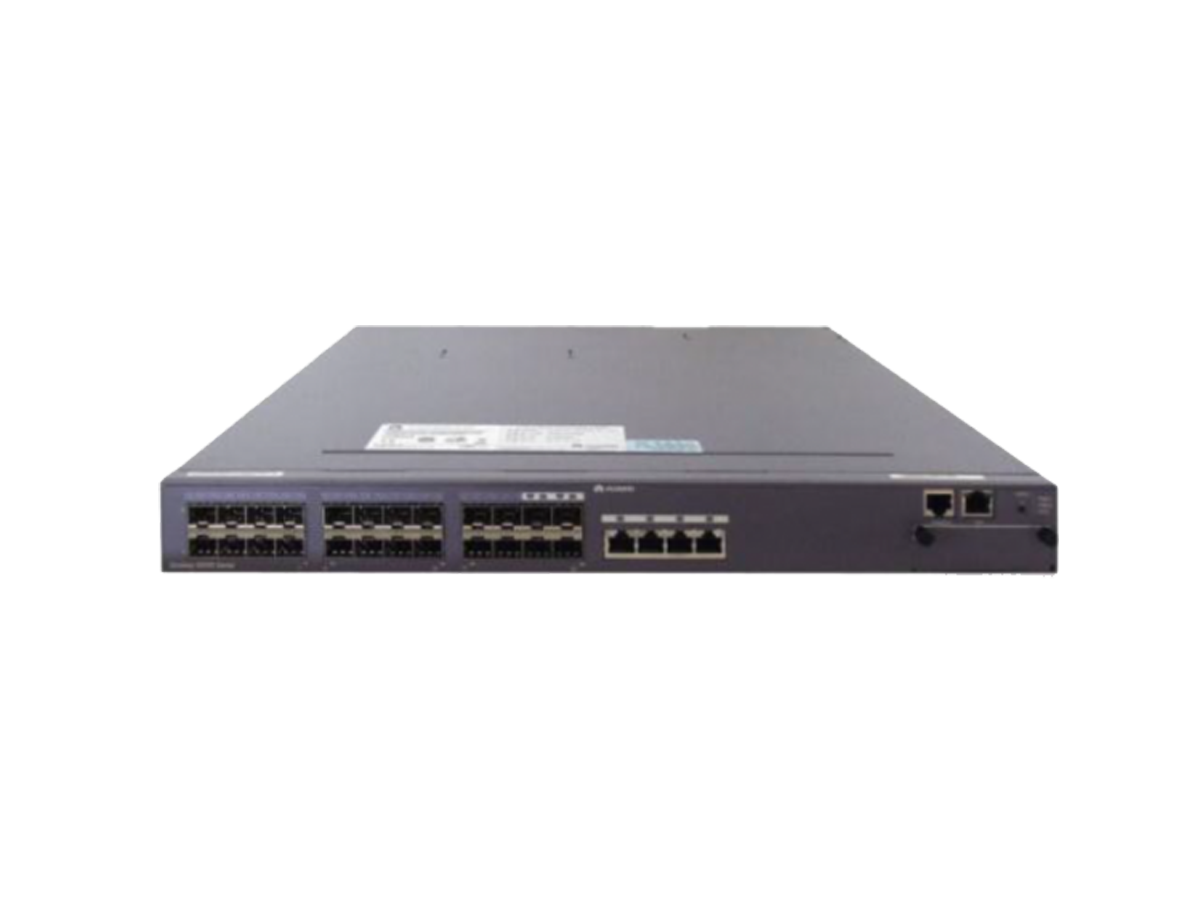

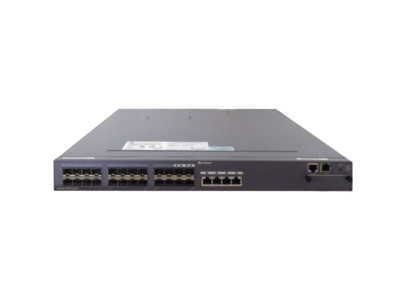

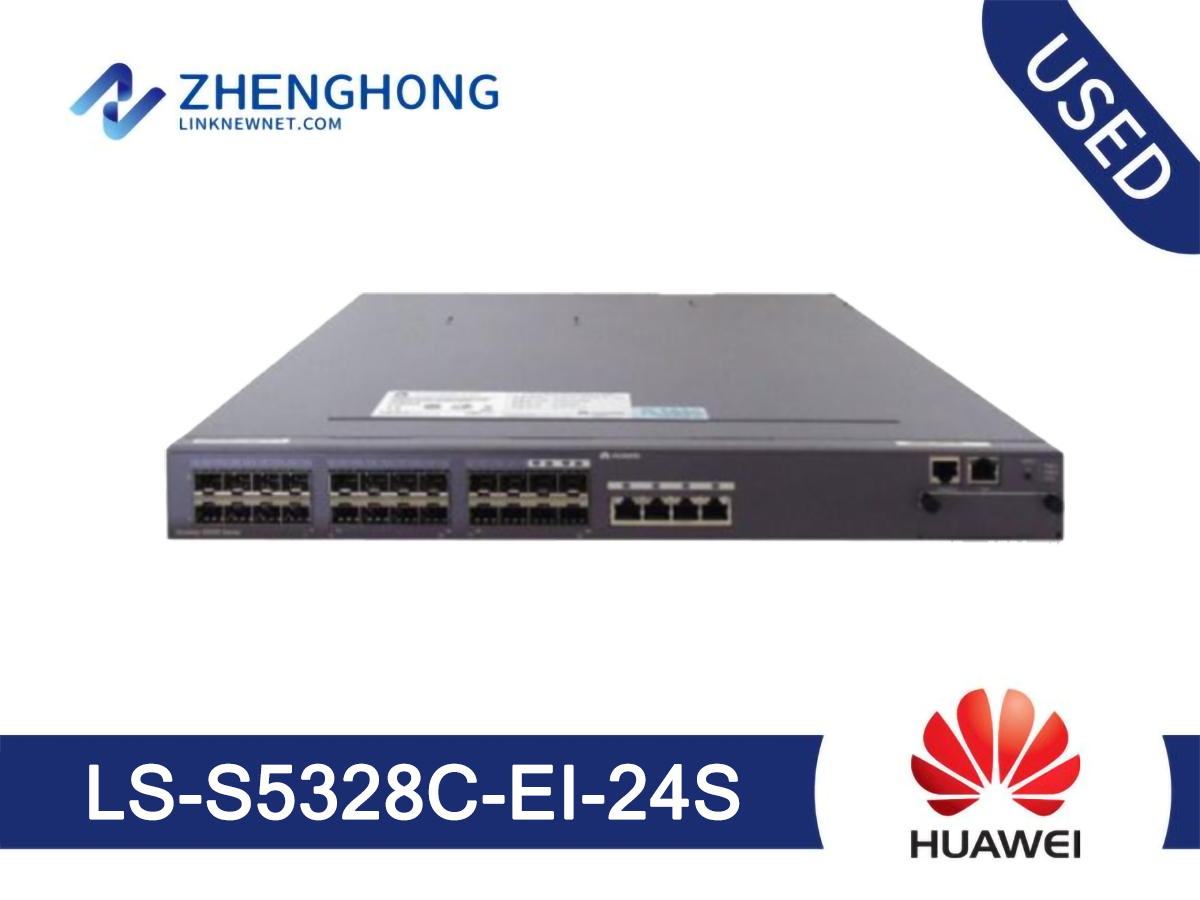

Huawei S5300 Series Switch LS-S5328C-EI-24S Overview
Huawei S5300 Series Switch LS-S5328C-EI-24S is a genuine campus and data-center switching product from Huawei, a global ICT provider whose CloudEngine and S-Series platforms are widely deployed in campus and data-center environments. Belonging to the Huawei S5300 Series family, the LS-S5328C-EI-24S unit is built to the original factory specification, so it integrates with existing Huawei deployments predictably and behaves exactly as the platform documentation describes. In the network, it is suited to access-layer and edge deployments, where reliable wiring-closet operation and straightforward management are the priorities.
This unit follows the original factory specification for the Huawei S5300 Series family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Huawei equipment already deployed in the network.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “S5328C-EI-24S Mainframe(24 100/1000Base-X,4 Combo GE(10/100/1000 BASE-T)”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the LS-S5328C-EI-24S. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned LS-S5328C-EI-24S
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
LS-S5328C-EI-24S Specifications | |
Technical Specifications | |
Memory (RAM) | 256 MB |
Flash | 32 MB |
Mean time between failures (MTBF) | 41.33 years when a 2x10GE card is configured; 50.00 years when a 4xGE front card is configured; 26.52 years when a 4x10GE front card is configured |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Dimensions (W x D x H) | 442.0 mm x 420.0 mm x 43.6 mm |
Weight | Fully loaded:≤ 8.5 kg Empty loaded:≤ 5 kg |
Stack ports | Two stack ports available on each stack card |
Maximum stack bandwidth (bidirectional) | 48 Gbit/s |
PoE | Yes |
Rated voltage range | -48 V DC to -60 V DC 100 V AC to 240 V AC, 50/60 Hz |
Maximum voltage range | -36 V DC to -72 V DC 90 V AC to 264 V AC, 47 Hz to 63 Hz |
Maximum system power consumption (100% throughput, 100% PoE loads, full speed of fans) | 63 W
|
Operating temperature | 0°C to 50°C |
Storage temperature | -40°C to +70°C |
Noise under normal temperature (27°C, sound power) | less than 41 dBA
|
Relative humidity | 5% RH to 95% RH, noncondensing |
