General Information | |
Manufacturer: | Cisco |

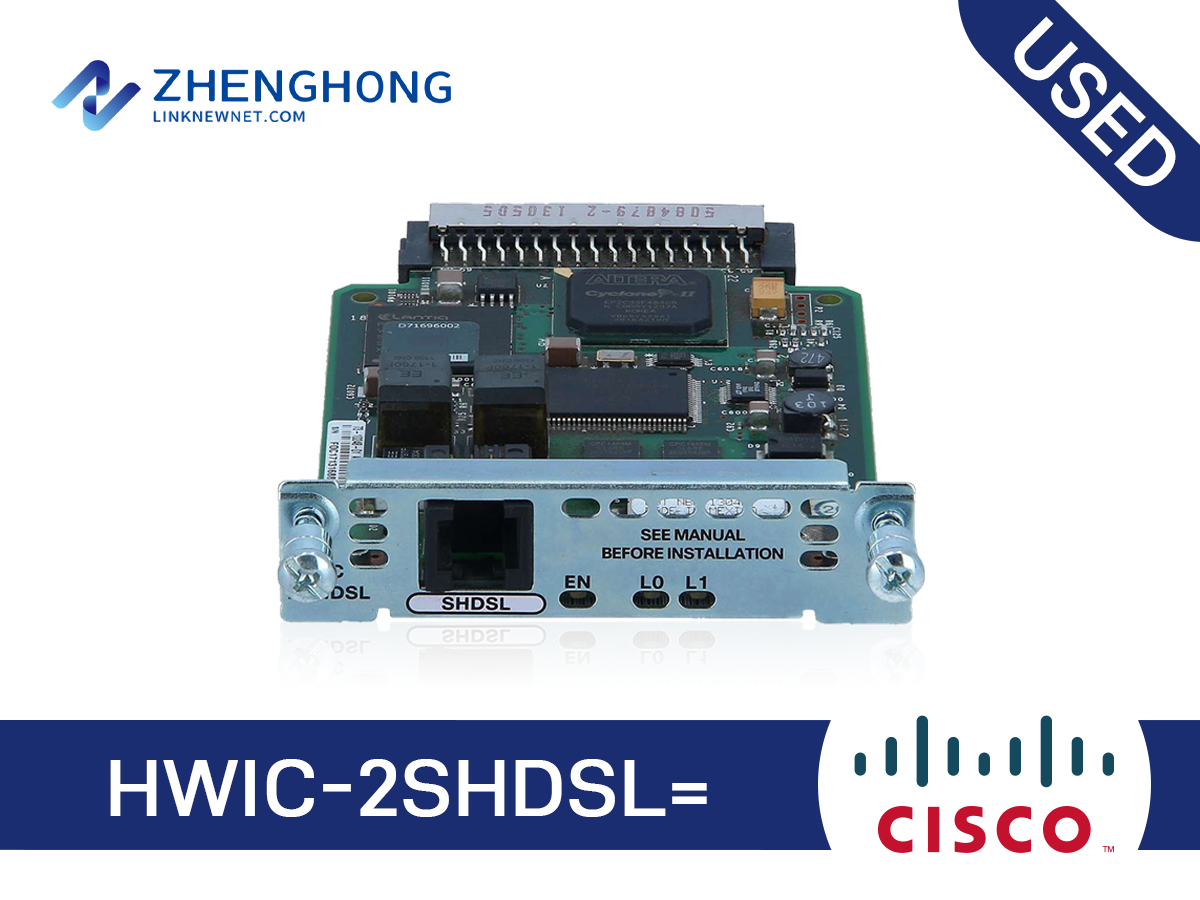

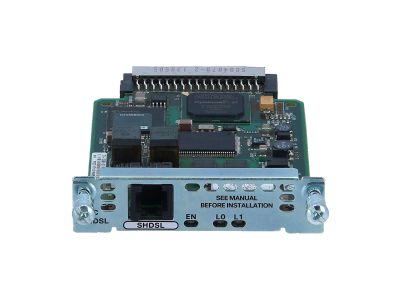

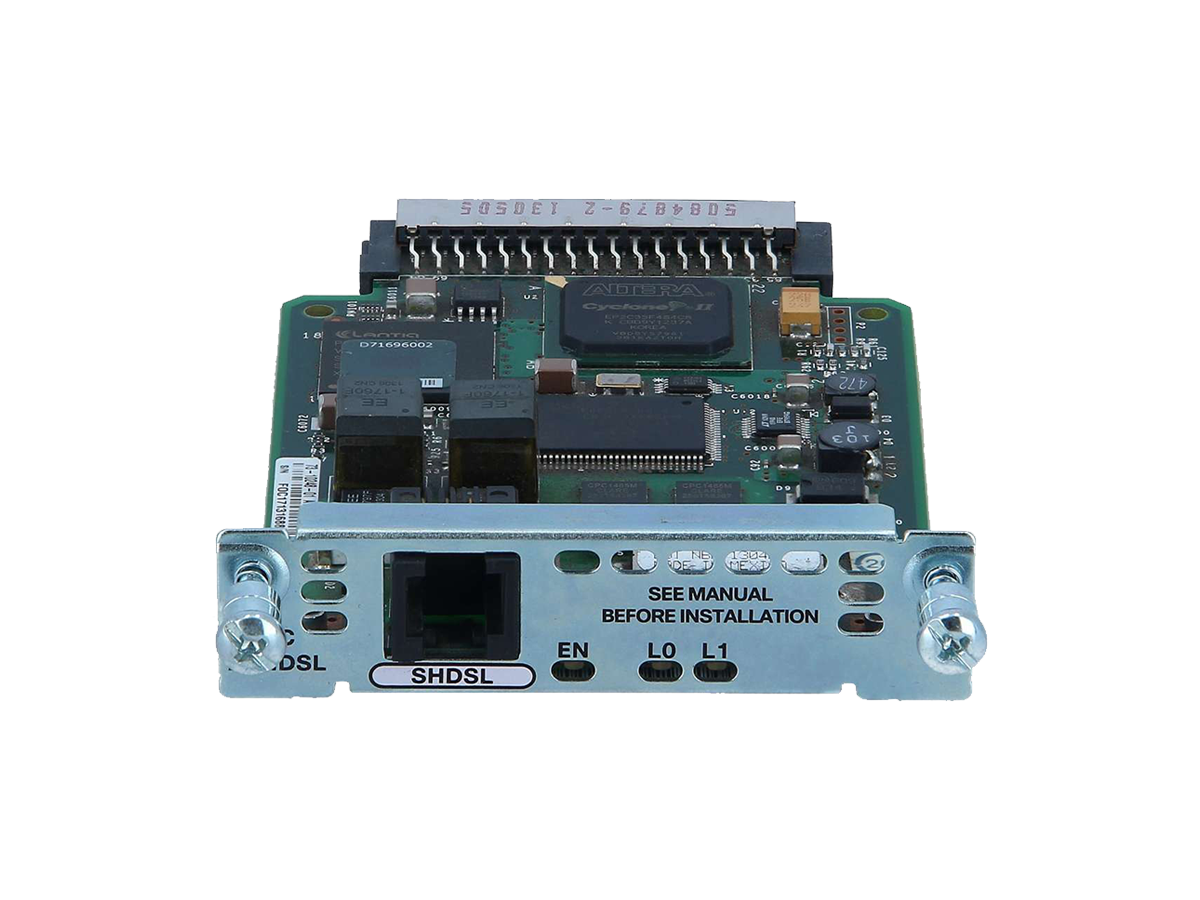

Product ID: | HWIC-2SHDSL |
Product Description: | 2-port G.shdsl HWIC |
Product Type: | HWIC |
Marketing Information | |
The HWIC-2SHDSL 2-Pair High-Speed WAN Interface Card provide G.SHDSL connectivity to a Wide Area Network.The 2-pair G.SHDSL HWICs supersede the existing G.SHDSL WAN Interface Card which is a WIC-based G.SHDSL solution. | |
Technical Information | |
Application/Usage: | Wide Area Network |
Interfaces/Ports | |
Interfaces/Ports: | 1 x RJ-11 G.SHDSL WAN |
Media & Performance | |
Connectivity Media: | Copper G.SHDSL |
Data Transfer Rate: | 4.61 Mbps G.SHDSL |
Management & Protocols | |
Digital Signaling Protocol: | SHDSL |
Protocols & Specifications: | ITU G.991.2 (G.shdsl) |
Environmental Conditions | |
Temperature: | 32°F (0°C) to 104°F (40°C) Operating -4°F (-20°C) to 149°F (65°C) Storage |
Humidity: | 10% to 90% Non-condensing Relative Humidity |
Physical Characteristics | |
Dimensions: | 0.7" Height x 2.8" Width x 4.0" Depth |
Weight (Approximate): | 3.52 oz |
Miscellaneous | |
Additional Information: | · Based on ITU Recommendation G.991.2 · Offers symmetrical WAN speeds of 2.304 Mbps per pair up to 9.2 Mbps over four pairs on the 4-pair by bonding with IMA Version 1.1 · Supports Wetting Current · Sustains up to 8 permanent virtual circuits (PVCs) per HWIC ·Offers extensive ATM class-of-service (CoS) and IP quality-of-service (QoS) support ·The minimum Cisco IOS Software Release required for the G.SHDSL HWICs |
