QFX5110-48S-AFO|LinkNewNet

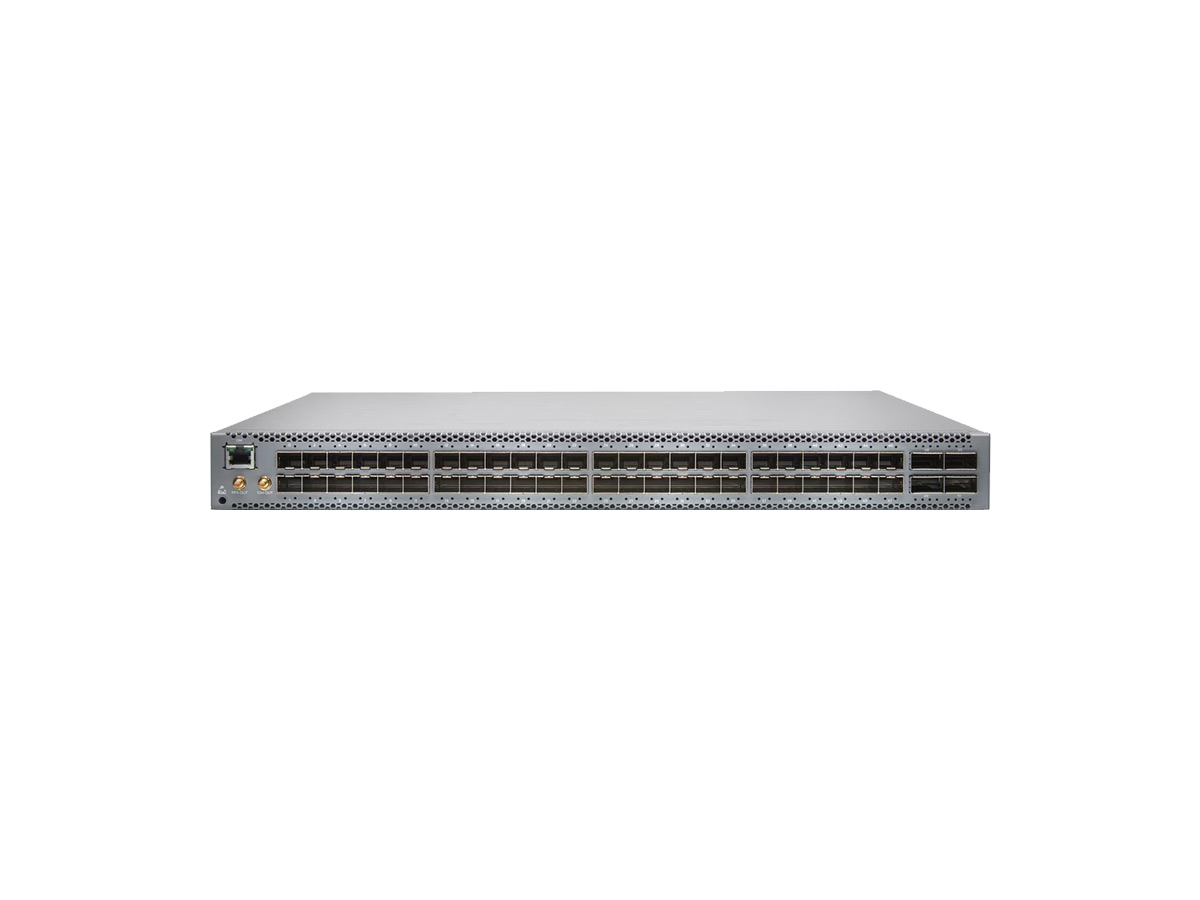

QFX5110-48S-AFO - Juniper QFX5110 Switch

Model: QFX5110-48S-AFO

Detail: Juniper QFX5110-48S-AFO, 48 SFP+ and 4 QSFP28, Front to Back AC

Condition: USED

List Price: $10867 Price: $6520

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

QFX5110-48S-AFO Specification
Dimensions (W x H x D)	1.72 x17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm)
Rack units	1 U
Weight	23 lb (10.43 kg)
Operating system	Junos OS
CPU	1.8 GHz quad-core Intel CPU
Power	* AFO/AFI: Max load: 300 W, Typical load: 195 W, Idle load: 150 W * Dual redundant (1+1) and hot-pluggable power supplies * 110-240 V single phase AC power * -36 to -72 V DC power
Cooling	* Redundant (N+1) and hot-pluggable fan modules for front-to- back and back-to-front airflow * Redundant variable-speed fans to reduce power draw
Total packet buffer	16 MB
Warranty	Juniper standard one-year warranty
System Throughput	Up to 1.76 Tbps (bidirectional)
Forwarding Capacity	1.32 Bpps
Interface Options	* 1GbE SFP: 48 (24 copper 1GbE) * 10GbE SFP+: 48/64 (with breakout cable) * 40GbE QSFP+: 4 * 100GbE QSFP28: 4
Other Interface Notes	* Each QSFP+ port can be configured as a 4 x 10GbE interface or as a 40 Gbps port * Each QSFP28 port can be configured as a 4 x 10GbE interface a 40 Gbps port or as a 100 Gbps port * 1 USB 2.0 port * 1 RS-232 console port * 2 management ports: 2x SFP fiber ports or 1x RJ-45 and 1x copper SFP ports * Supported transceiver and direct attach cable * SFP+ 10GbE optical modules * SFP+ DAC cables: 1/3/5 m twinax copper and 1/3/5/7/10 m active twinax copper * SFP GbE optical and copper module * QSFP+ DAC cables: 1/3/5 m twinax copper and 7/10 m active twinax copper * QSFP+ AOC cables: 1/3/5/7/10/15/20/30 m cable * QSFP+ Optics: SR4, LX4, ESR4, IR, LR4 * QSFP+ to SFP+ 10GbE direct attach breakout copper (1/3/10 m twinax copper and 5/7 m active twinax copper cable) * QSFP28 Optics: SR4, CWDM4, LR4 * QSFP28 AOC: 10 m cable
MAC addresses per system	288,000
VLAN IDs	4,093
Number of link aggregation groups (LAGs)	104
Number of ports per LAG	32
Firewall filters (ingress / egress)	6,142 / 1,022
IPv4 unicast routes	128,000 prefixes; 208,000 host routes; 64 ECMP paths
IPv4 multicast routes	104,000
IPv6 unicast routes	84,000
IPv6 multicast routes	52,000
ARP entries	48,000
Jumbo frame	9,216 bytes
Spanning Tree Protocol (STP)	* Multiple Spanning Tree Protocol (MSTP) Instances: 64 * VLAN Spanning Tree Protocol (VSTP) Instances: 253
Traffic mirroring	* Mirroring destination ports per switch: 4 * Maximum number of mirroring sessions: 4 * Mirroring destination VLANs per switch: 4
Operating temperature	32° to 104° F (0° to 40° C)
Storage temperature	-40° to 158° F (-40° to 70° C)
Operating altitude	Up to 2,000 ft (610 m)
Relative humidity operating	Operating: 5% to 90% (noncondensing)
Relative humidity non-operating	Non-operating: 0% to 95% (noncondensing)

Q&A

　　How to troubleshoot common issues?

　　For troubleshooting the QFX5110-48S-AFO, refer to the Juniper support site for guidelines on common issues like connectivity and firmware issues.

　　What accessories are available?

　　Accessories for the QFX5110-48S-AFO include various SFP+ transceivers, cables, and rack-mount kits.

　　How does it compare to other switches?

　　Compared to other switches in its class, the QFX5110-48S-AFO offers superior port density and flexibility with four QSFP28 ports.

　　What power options does it support?

　　The QFX5110-48S-AFO supports front-to-back AC power supplies, providing ease of airflow management in data centers.

　　Does Juniper have a firewall?

　　The Juniper Connected Security suite of products offers comprehensive network visibility, intelligence, and policy enforcement. The portfolio includes next-generation firewall services delivered on-premises, for cloud environments, and as a service.

　　What is a Juniper firewall?

　　Juniper firewalls support a concept called virtual routers. Each VR is its own independent router, with its own routing table and configuration. By default, the Juniper firewalls come predefined with a Trust-VR and an Untrust-VR, which, though you can edit their properties, you cannot delete.

　　Is Juniper SRX a firewall?

　　Protect your network edge, data center, and cloud applications with Juniper next-generation physical, virtual, and containerized firewalls.

　　Is Juniper a Next Gen firewall?

　　Juniper next-generation firewalls reduce the risk of attack and provide granular control of applications, users, and devices through identity-based policies, microsegmentation, VPN connectivity, and validated threat prevention.

　　How do I connect to Juniper firewall?

　　Connect your Juniper firewall device to an Ethernet port on a workstation or network hub/switch. If this is the first time you are using the WebUI, in the browser Address box, enter the default manage IP address: 192.168. From the Enter Network Password dialog box, enter your User Name and Password. Click OK.

　　What is the form factor of qfx5110 48s afo?

　　The qfx5110 48s afo is a fixed form factor switch.

　　What is the maximum number of ports on the qfx5110 48s afo?

　　The qfx5110 48s afo has 48 SFP/SFP+ ports.

　　What is the switching capacity of the qfx5110 48s afo?

　　The qfx5110 48s afo has a switching capacity of up to 1.44 Tbps.

　　What type of uplink interfaces does the qfx5110 48s afo support?

　　The qfx5110 48s afo supports uplink interfaces such as QSFP+, QSFP28, and MACsec.

　　What is the maximum power consumption of the qfx5110 48s afo?

　　The qfx5110 48s afo has a maximum power consumption of 530 Watts.

　　What is Router-switch?

　　Router-switch is a company that sells networking equipment such as routers, switches, firewalls, and other related products.

　　What brands does Router-switch carry?

　　Router-switch carries a variety of networking equipment brands such as Cisco, Huawei, Juniper, HP, Dell, and more.

　　Does Router-switch ship internationally?

　　Yes, Router-switch ships their products internationally. However, customers may need to pay additional customs and taxes depending on their country's regulations.

　　Does Router-switch offer discounts or promotions?

　　Yes, Router-switch often offers discounts and promotions on their products. Customers can check their website or subscribe to their newsletter to stay updated on current offers.

　　Does Router-switch offer customized solutions for specific networking needs?

　　Yes, Router-switch offers customized solutions for specific networking needs. Customers can contact their sales team and provide their requirements to receive a personalized quote and solution.

　　Is the QFX5110-48S-AFO cost-effective?

　　Yes, the Juniper QFX5110-48S-AFO provides an excellent balance of performance and cost, ideal for mid to large-sized networking needs.

　　What are the key features of QFX5110-48S-AFO?

　　The QFX5110-48S-AFO features 48 SFP+ ports and 4 QSFP28 ports, offering high throughput and flexibility for data center networks.

　　What are the application scenarios?

　　The QFX5110-48S-AFO is suitable for data centers, core networks, and high-performance enterprise environments.

　　How do I install the QFX5110-48S-AFO?

　　Installation involves rack-mounting the switch, connecting power and network cables, and running the initial configuration via CLI or web interface.

　　Does the QFX5110-48S-AFO need upgrades?

　　Regular firmware updates are recommended to ensure optimal performance and security for the Juniper QFX5110-48S-AFO.

　　Are there alternative products?

　　Alternatives include the Cisco Nexus 9000 series, which also offers high performance and flexibility for data center networks.

　　How to troubleshoot common issues?

　　For troubleshooting the QFX5110-48S-AFO, refer to the Juniper support site for guidelines on common issues like connectivity and firmware issues.

　　What accessories are available?

　　Accessories for the QFX5110-48S-AFO include various SFP+ transceivers, cables, and rack-mount kits.

　　How does it compare to other switches?

　　Compared to other switches in its class, the QFX5110-48S-AFO offers superior port density and flexibility with four QSFP28 ports.

　　What power options does it support?

　　The QFX5110-48S-AFO supports front-to-back AC power supplies, providing ease of airflow management in data centers.
