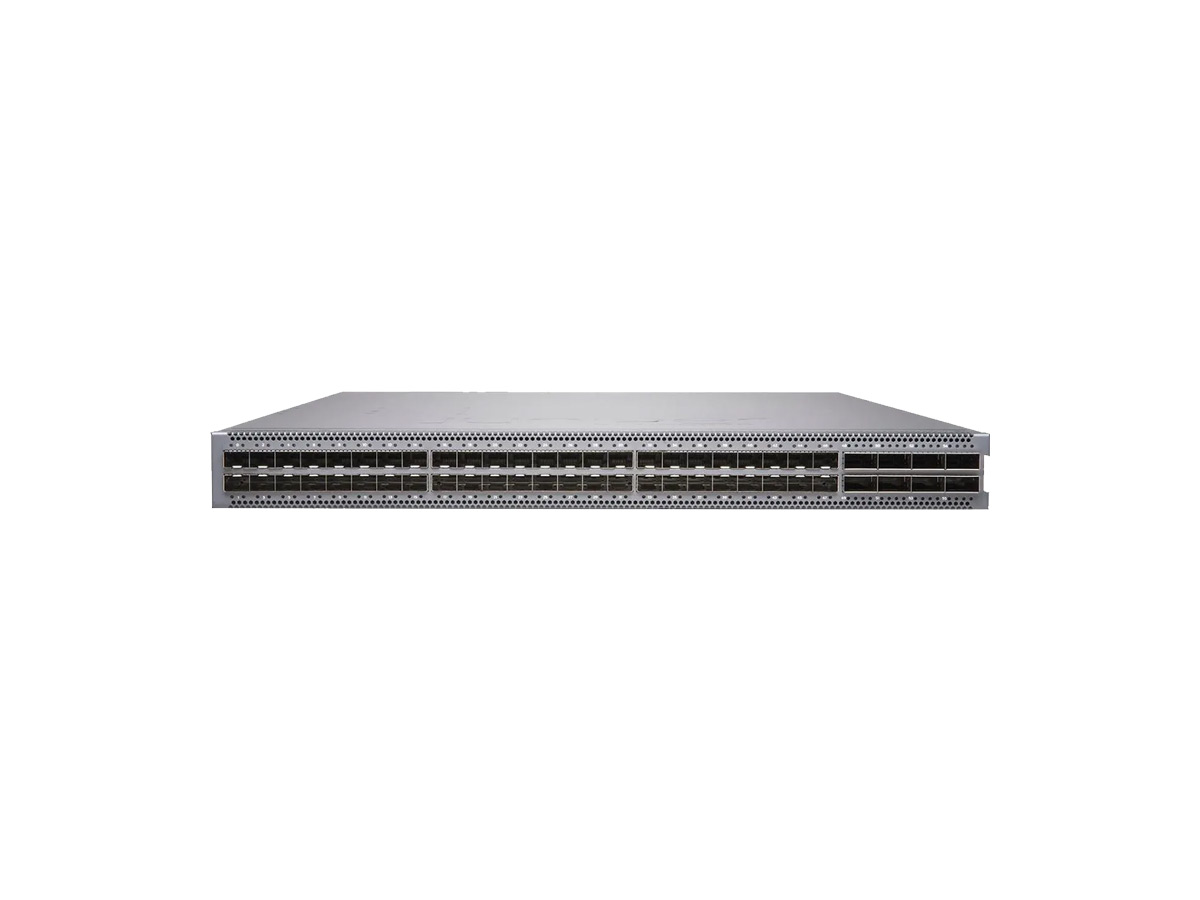

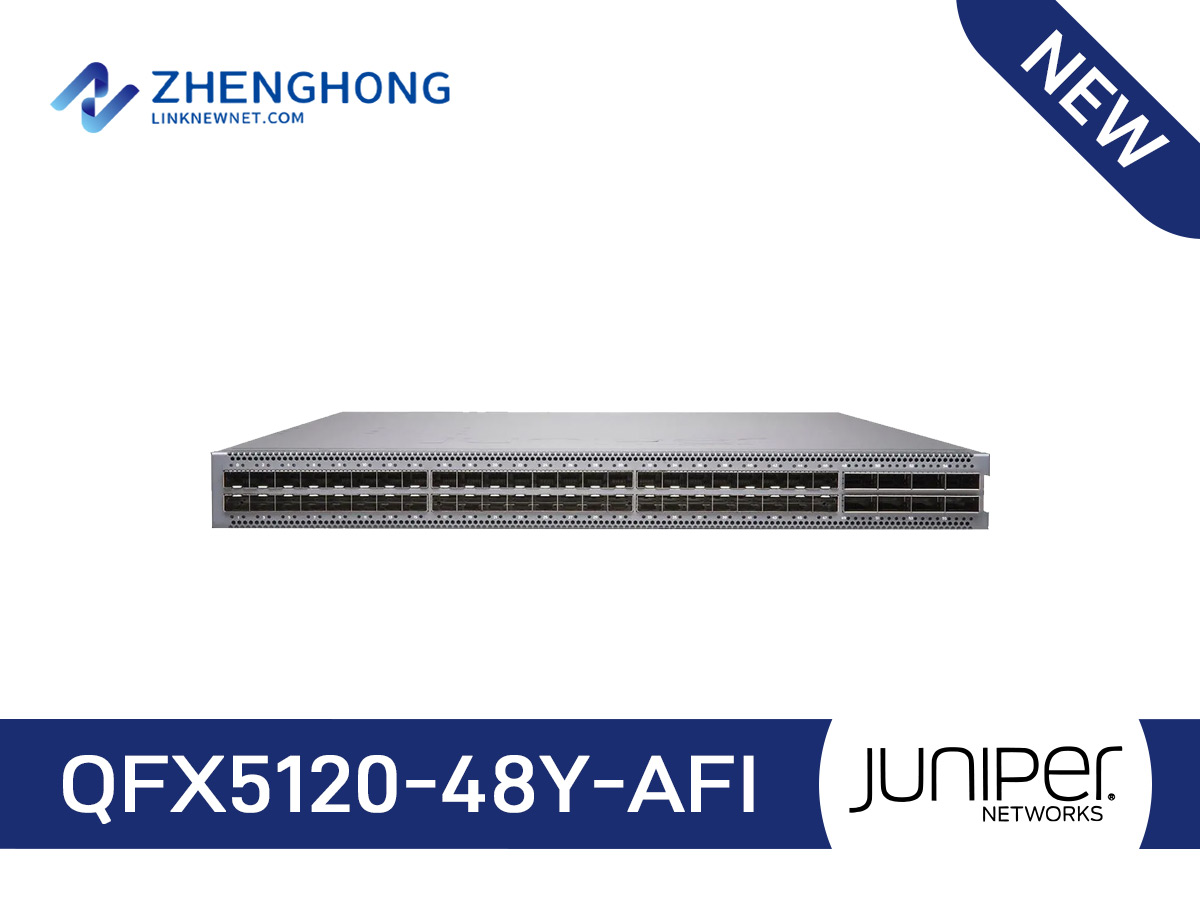

Juniper QFX5120-48Y-AFI Switches Overview
Juniper QFX5120-48Y-AFI Switches is a genuine data-center switching fabric product from Juniper, a vendor known for scalable, high-performance networking platforms from the campus edge to the core. Belonging to the Juniper family, the QFX5120-48Y-AFI unit is built to the original factory specification, so it integrates with existing Juniper deployments predictably and behaves exactly as the platform documentation describes. In the network, it is built for high-density data-center and cloud environments, where low latency, high availability and consistent forwarding matter most.
From a specification standpoint, it offers 48 ports for client, server or uplink connectivity. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Juniper hardware already running in the environment.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the QFX5120-48Y-AFI. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned QFX5120-48Y-AFI
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
| QFX5120-48Y-AFI Specification | |
| Model | QFX5120-48Y-AFI |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 48 x 1/10/25 Gigabit SFP28 + 8 x 40/100 Gigabit QSFP28 |
| Performance | Switching capacity: 2 Tbps ¦ Switching capacity: 1.31 Bpps |
| Capacity | Virtual interfaces (VLANs): 4093 ¦ VLAN Spanning Tree Protocol instances: 509 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ ARP entries: 64000 ¦ Link aggregation groups: 80 ¦ Maximum member ports per LAG: 64 ¦ IPv4 prefixes (Unicast): 351000 ¦ IPv4 hosts: 208000 ¦ IPv4 routes (Multicast): 104000 ¦ ECMP paths: 64 ¦ IPv6 prefixes (Unicast): 168000 ¦ IPv6 hosts: 104000 ¦ IPv6 routes (Multicast): 52000 ¦ Mirroring destination ports per switch: 4 ¦ Maximum number of mirroring sessions: 4 ¦ Mirroring destination VLANs per switch: 4 ¦ Queues per port: 10 |
| MAC Address Table Size | 288K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, MPLS, Bidirectional Forwarding Detection (BFD), CIDR, RSVP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, SSH, SSH-2, CLI, OVSDB |
| Encryption Algorithm | MD5 |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | ARP support, IGMP snooping, store and forward, IPv6 support, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Bidirectional Forwarding Detection (BFD), IPv4 support, DHCP relay, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), VLAN Spanning Tree Protocol (VSTP), built-in DIP switch, static routing, Class of Service (CoS), sFlow v5, Multicast Source Discovery Protocol (MSDP), multihoming, cut-through, IGMP filtering, Uplink Failure Detection (UFD), Storm Control, Weighted Tail Drop (WTD), Priority-Based Flow Control (PFC), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Link Aggregation, Ethernet Virtual Private Network (EVPN), TCP/UDP port setting, Python runtime, Private VLAN, Zero-touch provisioning (ZTP), 4+1 redundant fans, MAC based VLAN, Routed VLAN Interface (RVI), port-based VLAN, Junos XML management protocol, VLAN trunking, Multichassis link aggregation (MC-LAG), Link Aggregation Group (LAG), remarking of bridged packets, static label-switched paths (LSPs), RSVP-based signaling of LSPs, LDP-based signaling of LSPs, LDP tunneling (LDP over RSVP), MPLS LSR support, image rollback, beacon LED, traffic mirroring |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, Shaped Deficit Weighted Round-Robin (SDWRR) |
| Processor | 1 x Intel: 2.2 GHz |
| RAM | 16 GB |
| Flash Memory | 64 GB |
| Interfaces | 48 x 1/10/25Gbit LAN SFP28 ¦ 8 x 100Gbit/40Gbit LAN QSFP28 ¦ 1 x USB 2.0 ¦ 1 x management (RS-232) ¦ 2 x management RJ-45 |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 650 Watt |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 260 Watt |
| Rack Mounting Kit | Included |
| Compliant Standards | ICES-003, RoHS, FCC CFR47 Part 15, WEEE, RoHS, BSMI CNS 13438, REACH, EN 300 386 V1.6.1, EN 55024:2010, KN32, KN35, EN 55032:2012, IEC/EN 61000, EN 62368-1:2014, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2015, EN 300 386 V2.1.1, KN 61000, EMC-221, OCT-16, IEC 62368-1: 2014 Second Edition |
QFX5120-48Y-AFI - Deployment Notes
This QFX5120-48Y-AFI switch is suited to wiring-closet, distribution, or core roles depending on the port density and uplink options of the specific model. The 32 port configuration is a key consideration when planning power budgets for attached devices such as IP phones and access points.
For a refresh or expansion, confirm the IOS/NX-OS software release supported by this specific SKU, the fan and power requirements, and the uplink modules that match your existing infrastructure. Our team can verify revision levels and software compatibility before you order.
Every unit at LinkNewNet is inspected and tested before dispatch, and this QFX5120-48Y-AFI variant is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Volume requirements can be staged with configuration checks.
