S2700-18TP-SI-AC Specification | ||

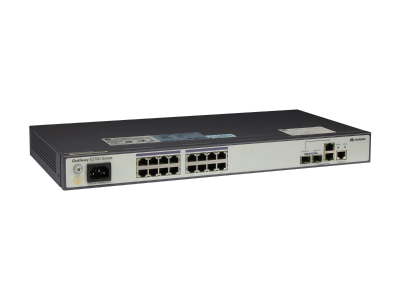

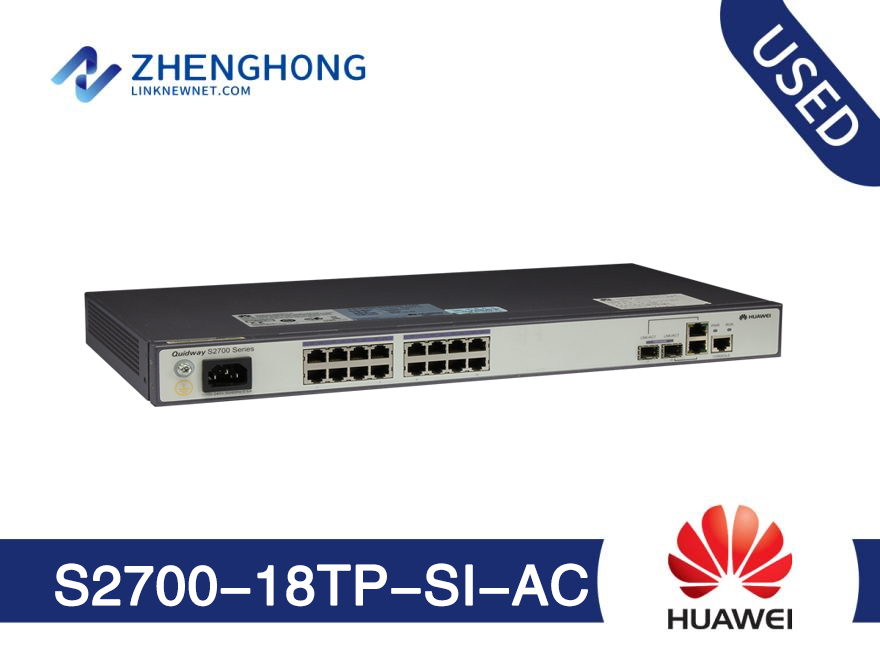

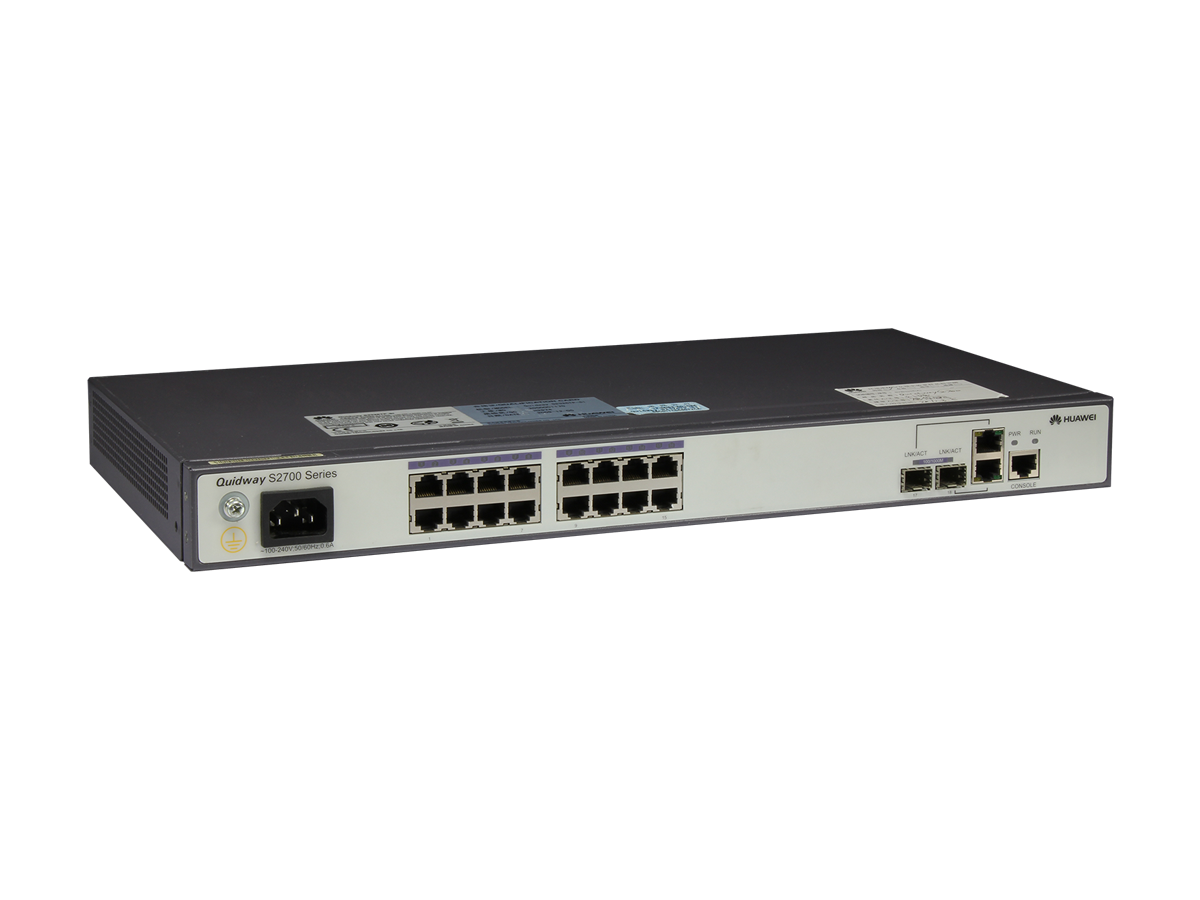

Product Description | Huawei Quidway S2700-18TP-SI-AC - switch - 16 ports - Managed - desktop | |
Device Type | Switch - 16 ports - Managed - stackable | |
Enclosure Type | Desktop | |
Interfaces | Gigabit Ethernet | |
Subtype | Gigabit Ethernet | |
Ports | 16 x 10/100 + 2 x combo Gigabit SFP | |
Performance | Forwarding performance : 5.4 Mpps | |
Capacity | Virtual interfaces (VLANs) : 4000 | |
MAC Address Table Size | 8K entries | |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv6 routing | |
Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI | |
Features | VLAN support, IGMP snooping, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression | |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p | |
Power | AC 120/230 V ( 50/60 Hz ) | |
Dimensions (WxDxH) | 44.2 cm x 22 cm x 4.4 cm | |
Weight | 2.4 kg | |
Extended Specification | ||
General | ||
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ | |
Capacity | Virtual interfaces (VLANs) : 4000 | |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p | |
Device Type | Switch - 16 ports - Managed - stackable | |
Enclosure Type | Desktop | |
Features | VLAN support, IGMP snooping, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression | |
Interfaces | Gigabit Ethernet | |
MAC Address Table Size | 8K entries | |
Performance | Forwarding performance : 5.4 Mpps | |
Ports | 16 x 10/100 + 2 x combo Gigabit SFP | |
Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI | |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv6 routing | |
Subtype | Gigabit Ethernet | |
Dimensions (D × H × W) | 22 cm × 4.4 cm × 44.2 cm | |
Weight | 2.4 Kg | |
Environmental Parameters | ||
Humidity Range Operating | 10 - 90% (non-condensing) | |
Humidity Range Storage | 10 - 90% (non-condensing) | |
Max Operating Temperature | 50 °C | |
Max Storage Temperature | 55 °C | |
Min Operating Temperature | 0 °C | |
Min Storage Temperature | -5 °C | |
Expansion / Connectivity | ||
Interfaces | 2 x 1000Base-T - RJ-45 ¦ 16 x 100Base-TX - RJ-45 ¦ 1 x console - RJ-45 - management ¦ 2 x SFP (mini-GBIC) | |
Power |
| |
Power Consumption Operational | 14.5 Watt | |
Power Device | Internal power supply | |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
