SM-ES3-16-P - Cisco Services-Ready Engine Modules|LinkNewNet

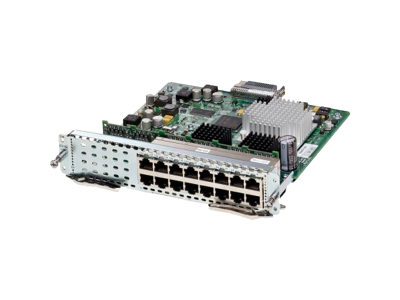

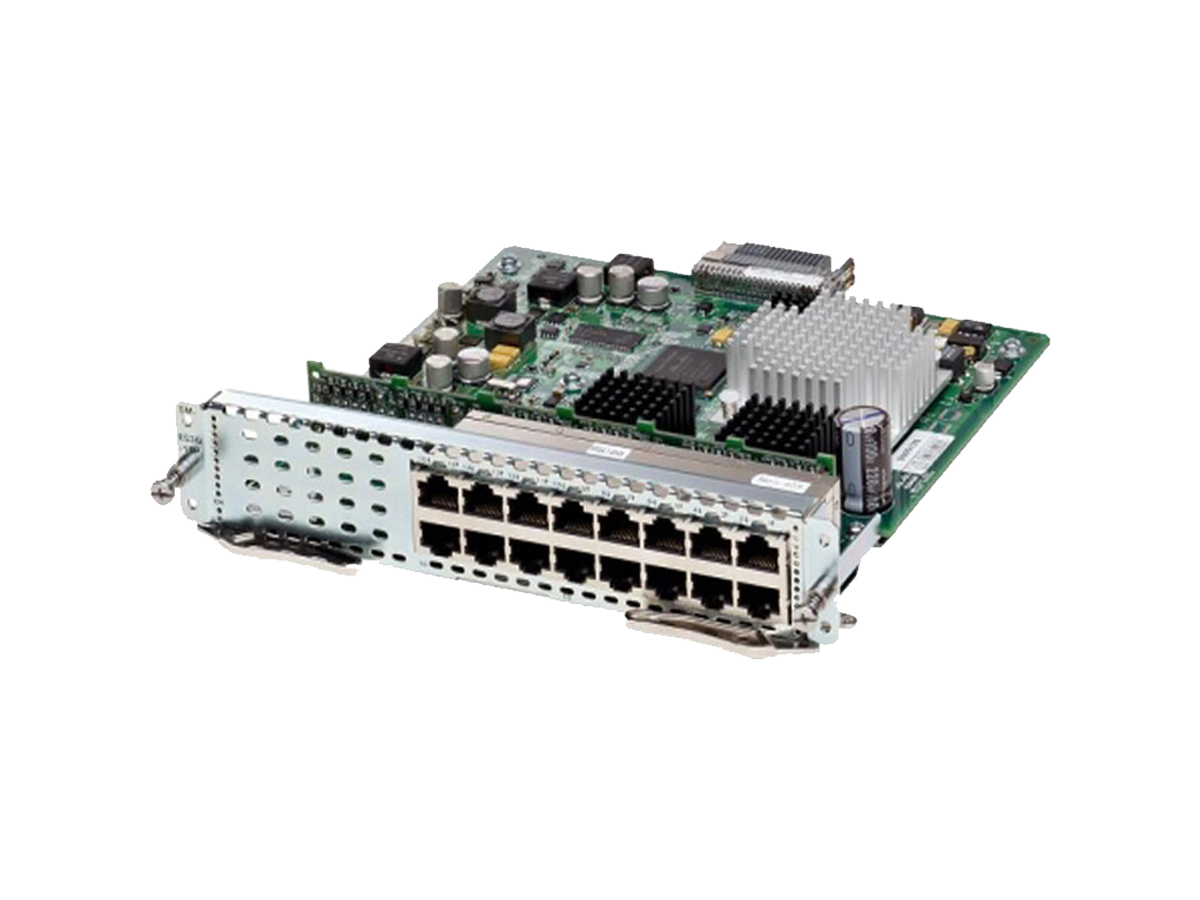

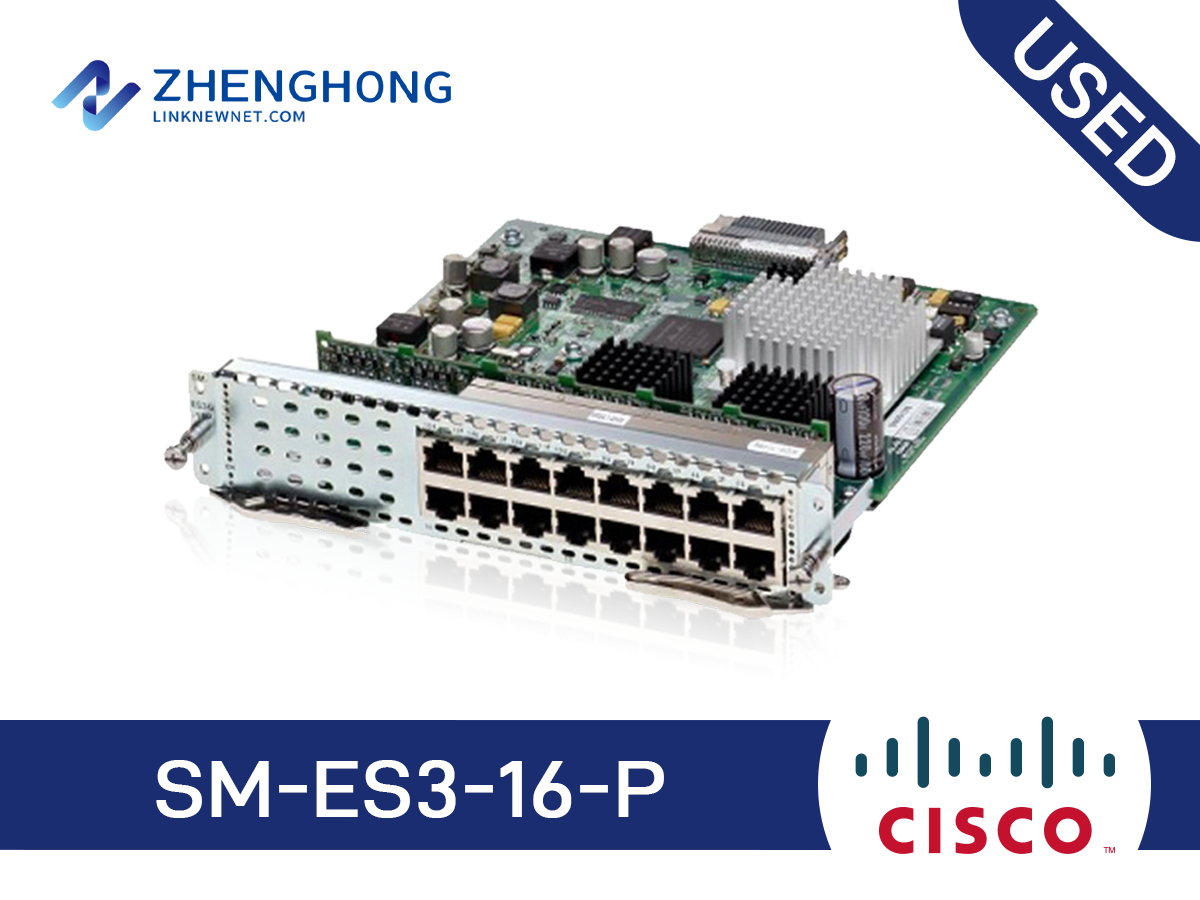

SM-ES3-16-P - Cisco Services-Ready Engine Modules

Model: SM-ES3-16-P

Detail: Enhcd EtherSwitch Service Module, L2/L3 Switching, 15 * 10/100 FE ports, 1 * 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

Condition: USED

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

SM-ES3-16-P Specification
Model info	SM-ES3-16-P
Product Type	Cisco Enhanced EtherSwitch Service Module
Port Density	15 * 10/100 FE ports and 1 10/100/1000 GE port
Power over Ethernet (PoE)	up to 20W per port
Routing Protocol	RIP-1, RIP-2, HSRP, static IP routing, RIPng
Remote Management Protocol	SNMP 1, SNMP 2,Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Supported router	2911 / 2921 / 2951 / 3925 / 3945
Service Module Width	single slot
Power Redundancy	RPS 2300
IP base feature	• QoS • ACLs • Static Routing • RIP v1,v2 • HSRP
IP service feature	• IP unicast and IP Multicast routing • EIGRP • OSPF • BGP • PIM • IPv6 routing	• OSPFv3 • EIGRPv6 • IP SLA • VRF-lite
Security Features	• Dynamic ARP Inspection (DAI) • DHCP Snooping • IP Source Guard • Private VLANs • Unicast Reverse Path Forwarding (RPF) • IEEE 802.1x • Multidomain Authentication • MAC Authentication Bypass • Advanced ACLs • Administrative Traffic Protection • Switched Port Analyzer (SPAN)	• Centralized Authentication • MAC Address Authentication • Port Security • Console Security • Bridge Protocol Data Unit (BPDU) Guard • Spanning-Tree Root Guard (STRG) • Dynamic VLAN Assignment • IGMP Filtering
Software license	• L-ES3G-16-IPS: IP Services License Upgrade 16 Port GE ES3 Enhanced EtherSwitch eDelivery	• L-ES3: Upgrade Quantity license

Q&A

What accessories are available for the SM-ES3-16-P?

Compatible accessories for the SM-ES3-16-P include PoE injectors, power supplies, and additional patch cables.

How does the SM-ES3-16-P compare with other similar Cisco modules?

The SM-ES3-16-P stands out with its Enhanced PoE capabilities and EnergyWise technology, offering better energy management and device support.

How can troubleshooting be performed on the SM-ES3-16-P?

Use Cisco's diagnostic software to check port status, firmware versions, and troubleshoot connectivity issues on the SM-ES3-16-P.

What is Cisco EnergyWise technology in the SM-ES3-16-P?

Cisco EnergyWise technology allows the SM-ES3-16-P to monitor and manage the energy consumption of connected devices for efficient energy use.

What is the primary application scenario of the SM-ES3-16-P?

The SM-ES3-16-P is ideal for small to medium-sized business networks requiring Layer 2/Layer 3 switching capabilities with enhanced PoE, for applications like VoIP, wireless access points, and IP surveillance.

Can the SM-ES3-16-P be used for power over Ethernet (PoE) devices?

Yes, the SM-ES3-16-P supports Enhanced PoE, enabling it to power devices such as VoIP phones, surveillance cameras, and wireless access points directly through the Ethernet cable, simplifying installation and reducing cabling costs.

How does Cisco EnergyWise technology benefit users of the SM-ES3-16-P?

Cisco EnergyWise technology helps users monitor and manage power consumption of networked devices, potentially reducing energy costs and carbon footprint, making the SM-ES3-16-P an eco-friendly choice for power management.

What type of ports are available on the SM-ES3-16-P?

The SM-ES3-16-P is equipped with 15 10/100 Fast Ethernet ports and 1 10/100/1000 Gigabit Ethernet port, offering versatile connectivity options for a variety of network devices.

How does the Layer 3 switching capability of the SM-ES3-16-P benefit system integrators and distributors?

Layer 3 switching capability enables the SM-ES3-16-P to perform routing functions alongside traditional switching, optimizing network traffic and making it a cost-effective solution for expanding networks.

Is there a need to upgrade the firmware of the SM-ES3-16-P?

To maintain optimal performance and security, it is recommended to regularly check for and install firmware upgrades for the SM-ES3-16-P, as these updates can offer new features, bug fixes, and security enhancements.

What makes the SM-ES3-16-P a cost-effective solution for network expansions?

The SM-ES3-16-P's combination of PoE, EnergyWise technology, Layer 2 and 3 capabilities, and availability of both FE and GE ports makes it an all-in-one, cost-effective solution for network expansions without the need for additional hardware.

Are there any alternative products to the SM-ES3-16-P within the Cisco product line?

Yes, alternatives within the Cisco product line include other members of the Enhanced EtherSwitch Service Modules series, depending on the specific port configurations, POE requirements, and Layer support needed.

How to address common troubleshooting issues with the SM-ES3-16-P?

Common troubleshooting steps include checking cable connections, ensuring all devices are powered on, performing a system restart, and checking for firmware updates. For more complex issues, Cisco's support resources are available for assistance.

What accessories come with the SM-ES3-16-P to facilitate its installation?

The SM-ES3-16-P typically comes with a rack-mounting kit, power cable (if applicable), and a quick-start installation guide. Specific accessories can vary, so it's advisable to check with your distributor for the exact contents.

How cost-effective is the SM-ES3-16-P compared to other Cisco modules?

The SM-ES3-16-P offers enhanced EtherSwitch Service, L2/L3 switching, and PoE at a competitive price, making it highly cost-effective for large and small networks.

What are the key features of the SM-ES3-16-P?

The SM-ES3-16-P features 15 * 10/100 FE ports, 1 * 10/100/1000 GE port, Enhanced PoE, and Cisco EnergyWise technology.

What are common application scenarios for the SM-ES3-16-P?

The SM-ES3-16-P is ideal for enterprises needing L2/L3 switching, PoE for powering devices, and energy management.

How do you install the SM-ES3-16-P in a Cisco Router ISR G2?

Insert the SM-ES3-16-P module into an empty service module slot on your Cisco Router ISR G2 and secure it with screws.

Does the SM-ES3-16-P require software upgrades?

Periodically check for firmware updates to ensure that the SM-ES3-16-P operates with the latest features and security patches.

Are there alternative products to the SM-ES3-16-P?

Yes, alternatives include other Cisco ISR G2 modules, but the SM-ES3-16-P's enhanced PoE and EnergyWise technology make it unique.

What accessories are available for the SM-ES3-16-P?

Compatible accessories for the SM-ES3-16-P include PoE injectors, power supplies, and additional patch cables.

How does the SM-ES3-16-P compare with other similar Cisco modules?

The SM-ES3-16-P stands out with its Enhanced PoE capabilities and EnergyWise technology, offering better energy management and device support.

How can troubleshooting be performed on the SM-ES3-16-P?

Use Cisco's diagnostic software to check port status, firmware versions, and troubleshoot connectivity issues on the SM-ES3-16-P.

What is Cisco EnergyWise technology in the SM-ES3-16-P?

Cisco EnergyWise technology allows the SM-ES3-16-P to monitor and manage the energy consumption of connected devices for efficient energy use.
