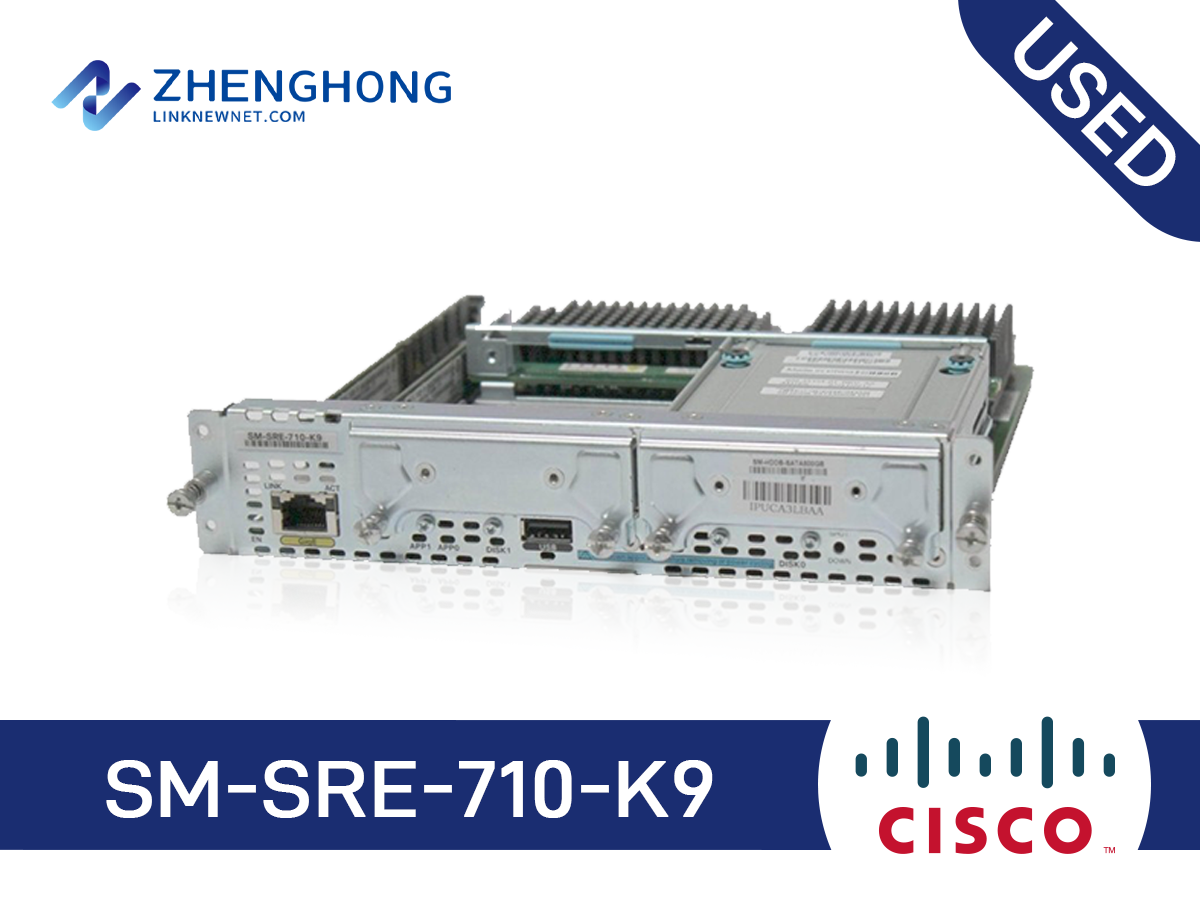

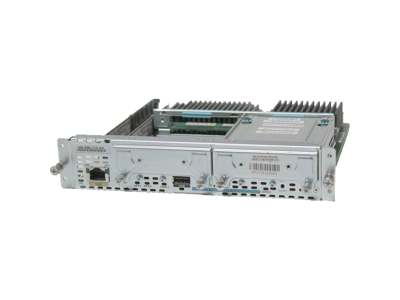

SM-SRE-710-K9 - Cisco Services-Ready Engine Modules

Form factor

SM

CPU

Intel Core2 Solo, 1.86 GHz

DRAM

4 GB

Compact Flash memory

2-GB internal USB flash-memory module

Hard disk

One 500-GB SATA

7200 rpm (SRE 710)

Hot-swappable hard disk drive (HDD)

None

RAID support

None

Internal network interfaces

Gigabit Ethernet connectivity to router backplane

External network interfaces

One USB connector

One RJ-45 Gigabit Ethernet connector

Router platforms

Cisco 2911, 2921, 2951, 3925, 3925E, 3945, and 3945E Integrated Services Routers

Cisco IOS Software (on router)

Release 15.1(4)M

Embedded hardware-based cryptography acceleration

No

Applications

• Cisco Unity Express

• Cisco UCS Express

• Cisco AXP

• Cisco WLC

• Cisco Wide Area Application Services (WAAS)

• Infoblox Core Network Services

• Cisco Prime Network Analysis Module (NAM)

• Cisco Unified SIP Proxy

• Cisco Unified Messaging Gateway (UMG)

• Cisco Survivable Remote Site Voicemail (SRSV)

• Sagemcom Fax over IP

• Tiani Spirit Medical Data Exchange Solution

• Orion Health Rhapsody Connect

• NetScout nGenius Integrated Agent

• BlueCat Adonis DNS/DHCP and Proteus IPAM

• LogLogic MX-Virtual Appliance

• SecureLogix Voice Policy Firewall

• Open Text RightFax Fax over IP

• Visual Network Systems OmniPoint Element

• Uplogix Local Management Platform

• IndustryWeapon CommandCenterHD

Power consumption (maximum)

35W

Maximum weight

2.5 lb (1.1 kg)

Relative humidity

5 to 95%

Altitude

15,000 ft (4,600m)

Safety

• UL 60950-1, First Edition, Standard for safety for information technology equipment (US)

• CAN/CSA-C22.2 No. 60950-1-03, Safety of information technology equipment including electrical business equipment (Canada)

• IEC 60950-1:2001, Safety of information technology equipment/Second Edition -2005) (World-Wide)- 2 nd Ed. 2005 (optional)

• EN 60950 -1:2001, Safety of information technology equipment (CENELEC; includes EU and EFTA)

• GB4943-2001, Safety of information technology equipment (PRC)

• AS/NZS 60950-1, Safety of information technology equipment including electrical business equipment (Australia)

• NOM-019, Safety of data processing equipment (Mexico)

EMC

Emission:

• 47 CFR Part 15 Class A

• CISPR22 Class A

• EN300386 Class A

• EN55022 Class A

• EN61000-3-2

• EN61000-3-3

• SD/EMI (India)

• KN22 (Korea)

• VCCI Class I

• AS/NZS CISPR 22 Class A

Immunity:

• CISPR24

• EN300386

• EN50082-1

• EN55024

• SD/EMI (India)

• KN22 (Korea)

• EN61000-6-1
