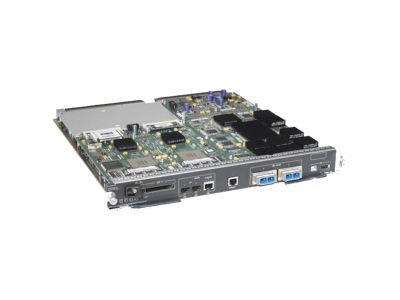

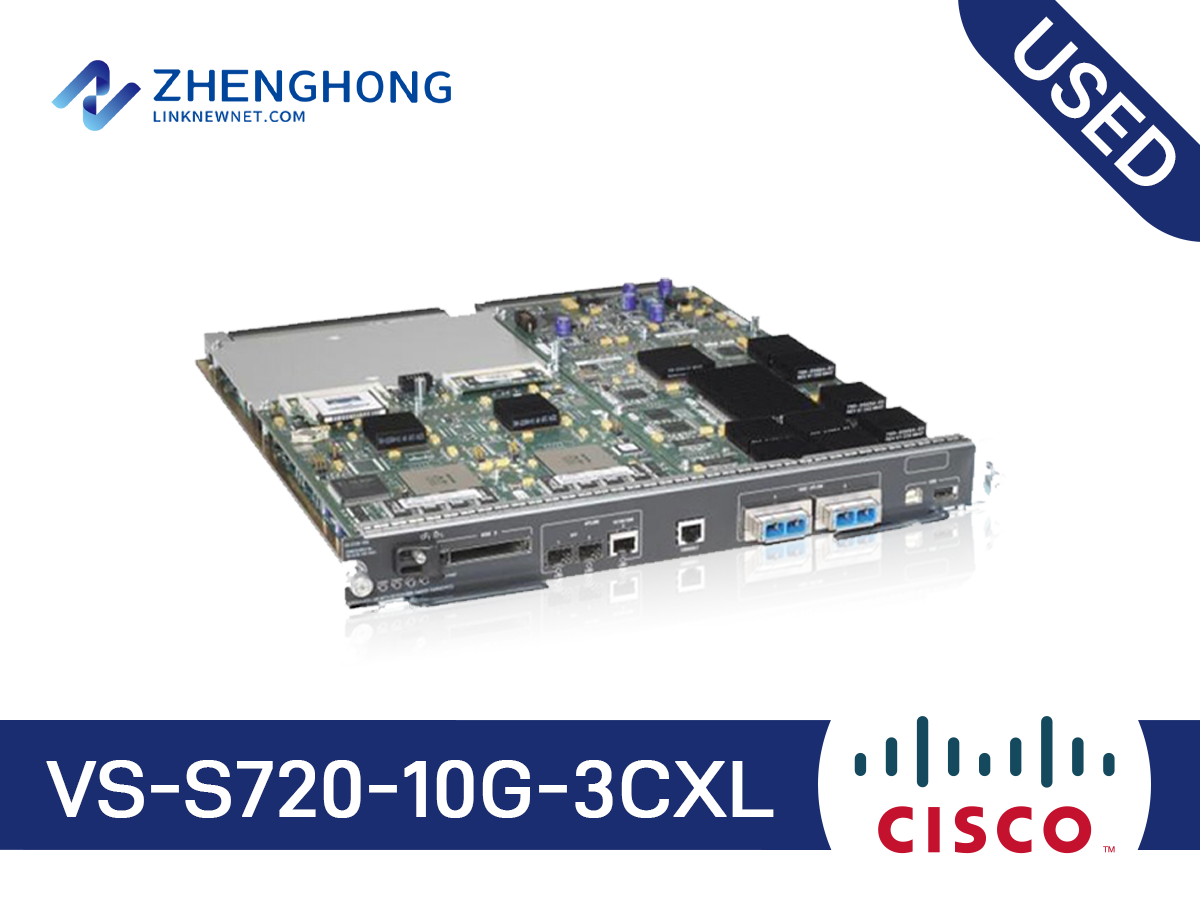

VS-S720-10G-3CXL - Cisco Catalyst 6800 Series Supervisor Engine 720 Overview
VS-S720-10G-3CXL - Cisco Catalyst 6800 Series Supervisor Engine 720 is a genuine modular capacity expansion product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco Catalyst 6800 Series family, the VS-S720-10G-3CXL unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
From a specification standpoint, it offers 2 ports for client, server or uplink connectivity; aggregate capacity of 720 Gbps. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include adding ports and performance to existing chassis systems, modernizing legacy platforms with compatible line cards, and mixing copper, fiber and high-speed uplinks in one chassis. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Catalyst 6500 VS-S720-10G-3CXL Supervisor 720 with 2 ports 10GbE MSFC3 PFC3C XL”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the VS-S720-10G-3CXL. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned VS-S720-10G-3CXL
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
VS-S720-10G-3CXL Specification | |
Product Description | Catalyst 6500 Supervisor engine 720-10G-VSS (PFC 3CXL) |
Devide Tyde | Control Processor |
Ports | 2 * 10G X2, 2 * 1G SFP, 1 * 10/100/1000 GE |
Console ports | RS-232 |
Centralized switching capacity | 720 Gbps |
Per-slot switching capacity | 40 Gbps |
Compatibility | ● Cisco 6500 Catalyst Series |
FNF (Flexible NetFlow) entries | 256,000 |
Forn Factor | Plug-in Module |
Memory | ●WS-SUP720 supports 512MB of DRAM for the route processor and 512 MB for the switch processor |
Options | Removable storage: 64MB, 128 MB, 256 MB, 512 MB (Compact Flash) |
Throughput (in hardware) | ● 450 Mpps for IPv4 |
Routing entries | ● IPV4: 1,000,000 |
Security ACL entries | 32,000 |
Number of interfaces with unique ACLs | 4,000 |
MAC ACLs on IP | Yes |
Aggregate Traffic Rate-Limiting Policers | 1,023 |
NAT | Hardware assisted |
VS-S720-10G-3CXL - Product Notes
This listing is a specific SKU variant of the VS-S720-10G-3CXL family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
VS-S720-10G-3CXL - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco module/line card expands the capability of a chassis platform, adding interface density, forwarding capacity, or service features. It is installed in a matching chassis slot and managed as part of the parent platform.
Deployment guidance: When planning this VS-S720-10G-3CXL unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: WS-IPSEC-3, WS-X6148-FE-SFP, VS-S2T-10G, WS-SVC-IDS2BUNK9, SPA-IPSEC-2G. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: L = LAN Base feature set - this suffix indicates the feature set, power, or regulatory variant of the VS-S720-10G-3CXL, which affects software licensing and regional compliance.
