WS-X6904-40G-2T - Cisco Catalyst 6900 Series Ethernet Fiber Modules|LinkNewNet

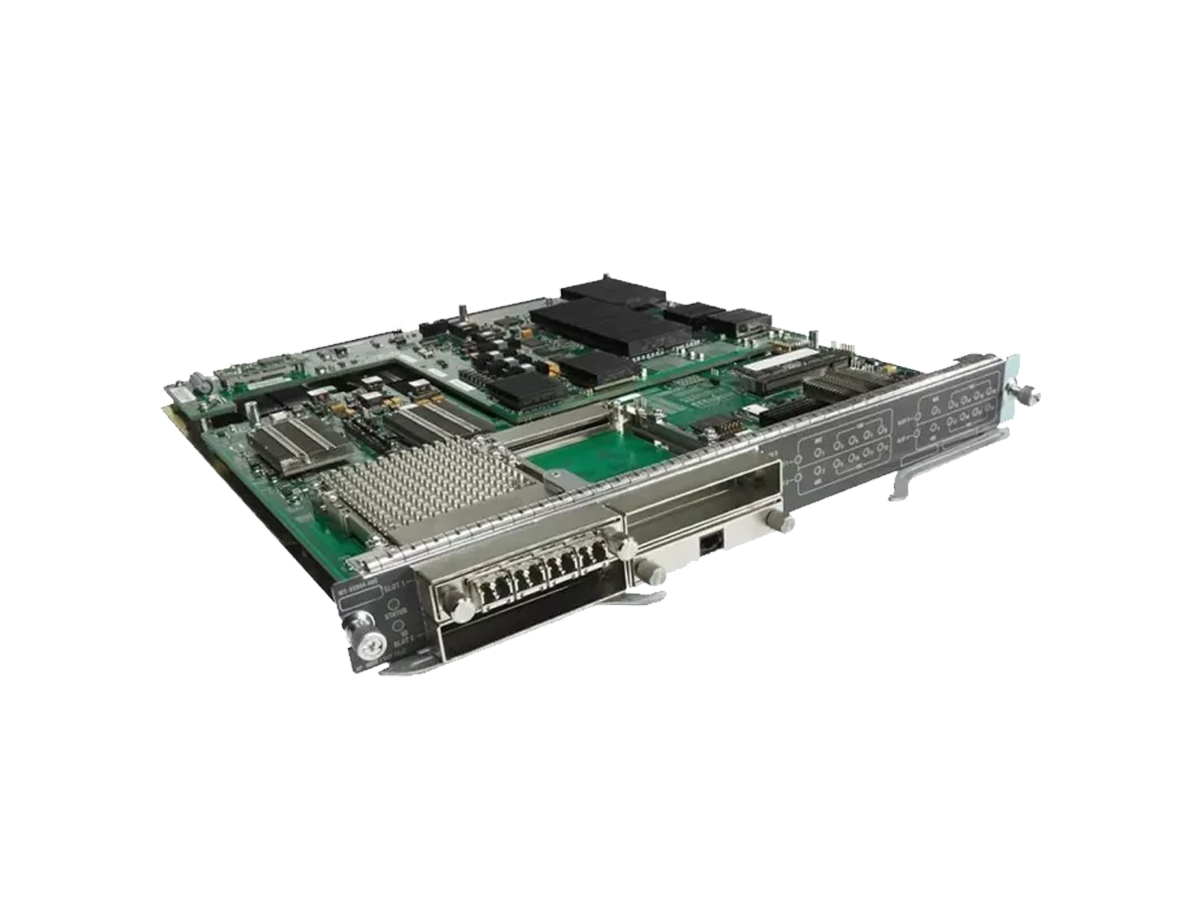

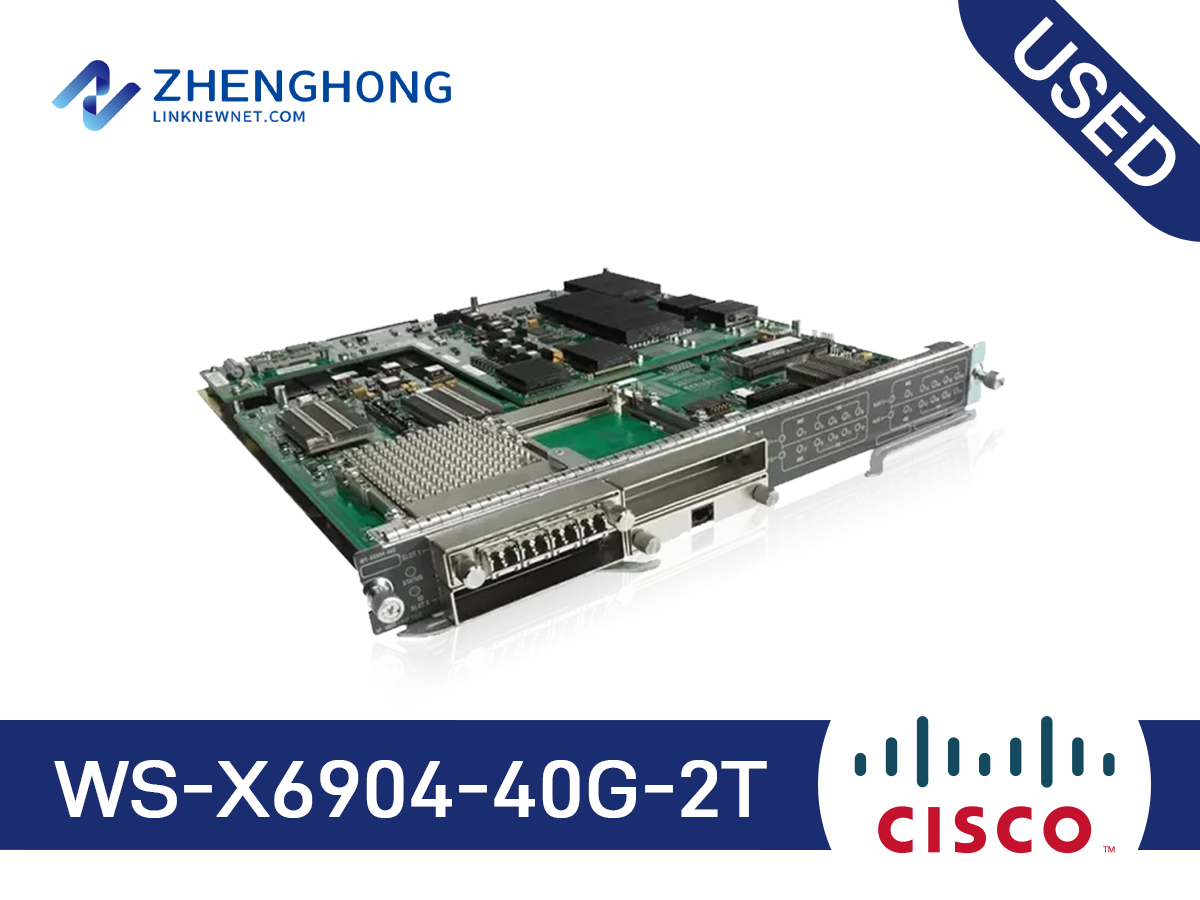

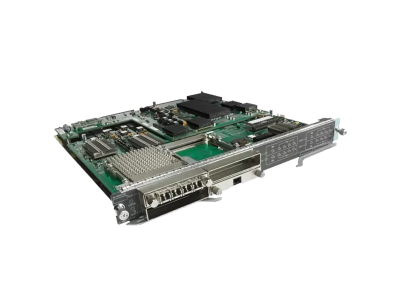

WS-X6904-40G-2T - Cisco Catalyst 6900 Series Ethernet Fiber Modules

Model: WS-X6904-40G-2T

Detail: Cisco 6500 Module WS-X6904-40G-2T C6K 4 port 40 Gigabit Ethernet module with DFC4 (Trustsec) S

Condition: USED

Price: $4600

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags： 10 Gbps

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-X6904-40G-2T Specification
Product Description	Cisco Catalyst 6500 Series 10 Gigabit Ethernet interface module WS-X6904-40G-2T
Devide Tyde	10 Gigabit Ethernet interface Fiber module
Ports	4 * 40G Gigabit Ethenet or 16 * 10 Gigabit Ethernet
switch fabric connection	CFP-40G-LR4, 40G-CFP-SR4 FourX converter for 10 Gigabit Ethernet SFP+
Forwarding Engine	WS-F6K-DFC4-E
ACL entries	64000
Netflow entries	512000
Routing entries	256000
Bridge Domains	16000
MAC address	128000
Multicast routing	256000
IPv4 forwarding speed	60 Mpps
Scheduler	● Deficit Weighted Round Robin (DWRR) ● Weighted Random Early Detection (WRED)
Virtual Switch Link (VSL)	Yes (all ports). Maximum of 4 x 40 G ports (refer to EtherChannel capacity section above)
Queuing Mechanisms	● CoS-based queue mapping ● DSCP-based queue mapping
Hardware-based Multicast replication	● Ingress and egress ● Approximately 20 GB per replication engine ● Four replication engines per module delivering total throughput of 80 Gbps
Jumbo frame support for bridged and routed packets	Up to 9216 bytes
Supervisor engines supported	Cisco Catalyst 6500 Series Supervisor Engine VS-S2T-10G
Onboard memory	2 GB default
Power requirement	468 Watts
